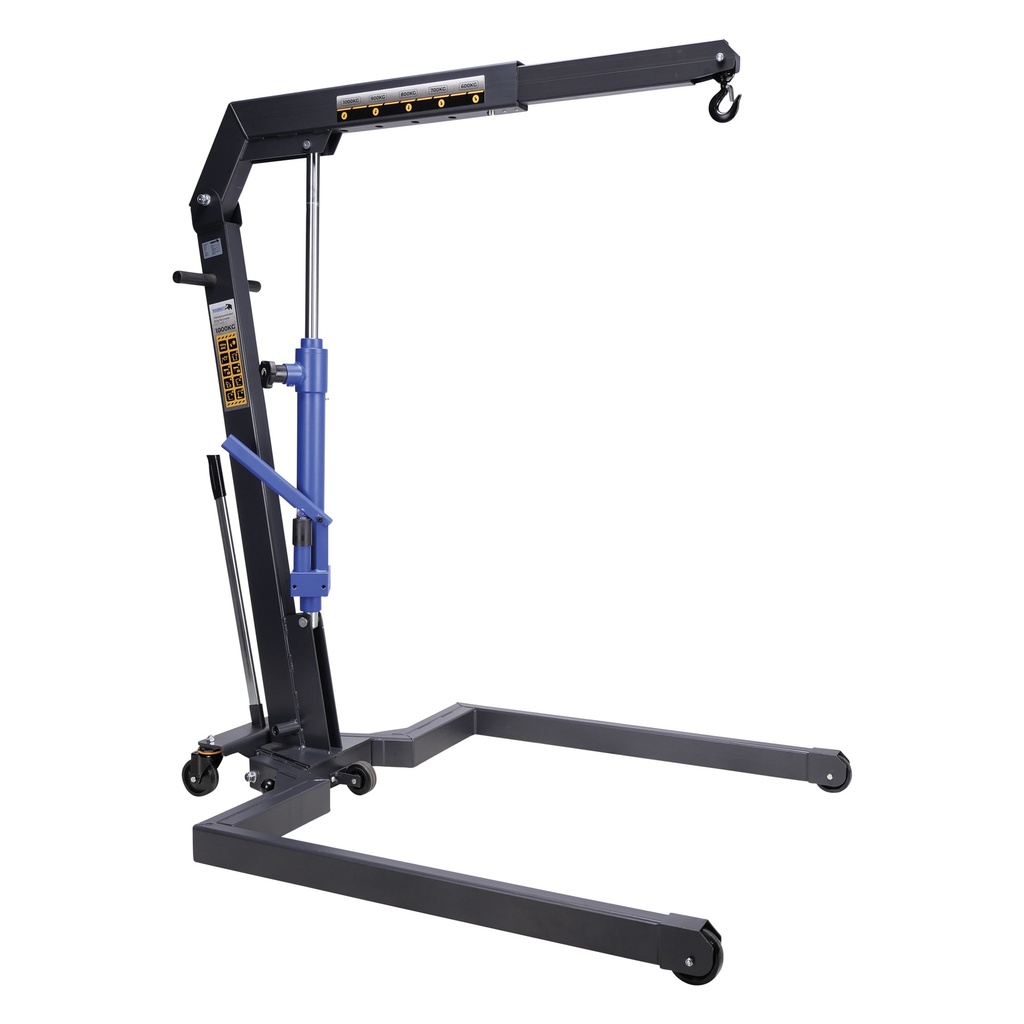

Foldable crane 1000kg parallel frame

Shop equipment / Engine cranes Brand: Mammuth Mammuth

Product Code: CE1TPW

EAN: 8720028106707

Availability: Available

€ 695.75 Incl. VAT 695.75 EUR € 695.75

€ 575.00

  • Length of the legs
  • Capacity position 1
  • Capacity position 2
  • Capacity position 3
  • Capacity position 4
  • Capacity position 5
  • Max. hook height (position 1)
  • Hook height (position 2)
  • Hook height (position 3)
  • Hook height (position 4)
  • Min. hook height (position 5)
  • Distance between legs at widest point

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

Engine Crane 1000kg
This Mammuth folding engine crane is perfect for lifting projects and general purpose lifting applications in workshops, garages, and more.
The crane has the ability to lift loads up to 600kg.
The extension boom of the crane and can easily be locked in 5 different positions:
600kg, 700kg, 800kg, 900kg and 1000kg.
The engine crane uses the unique technology of quick lifting by dual action pump which gives the crane a higher lifting speed without load and a slower speed under load so that the load can be lifted safely.
With the automatic safety lowering valve, the engine crane guarantees a controlled lowering speed that ensures the safe load lowering.
The plunger is protected by a dust proof cover.
The crane boom has a swivel lifting hook designed to fully swivel while controlling the load.

The crane has a parallel undercarriage wich  allows for swift maneuvering around Euro pallets, resulting in expedited handling.
Sturdy welded frame for increased mobility is equipped with glass fiber and hard wearing nylon wheels which prevents damage to garage floors and provides a quieter and smoother operation. The crane has a low base height thanks to the integrated wheels inside the welded frame. The engine crane can easily be folded to save space in your workshop and easy moving when folded due to the extra wheel base.
The workshop crane has the following useful features:

  • Auto relief knob with built in two speed action
  • hard chrome plated cylinder and piston rod for long life
  • 200° rotatable cylinder assy
  • fully rotatable lifting hook
  • pump handle incl. locking pin
  • handle holder
  • Parallel chassis base
Product Dimensions:
Product Length 1,485 mm
Product Width 1,075 mm
Product Height 1,545 mm
Product Weight 102.0 Kg
Package Dimensions:
Package Length 540 mm
Package Width 1,575 mm
Package Height 240 mm
Package Weight 108.00 Kg

  • Dual action pump
  • Controlled lowering speed
  • Nylon & Fiberglass wheels
  • Quick boom locking system
  • Rotatable cylinder


Length of the legs 1450 mm
Capacity position 1 1000 kg
Capacity position 2 900 kg
Capacity position 3 800 kg
Capacity position 4 700 kg
Capacity position 5 600 kg
Max. hook height (position 1) 2090 mm
Hook height (position 2) 2140 mm
Hook height (position 3) 2190 mm
Hook height (position 4) 2250 mm
Min. hook height (position 5) 2300 mm
Distance between legs at widest point 1025 mm
