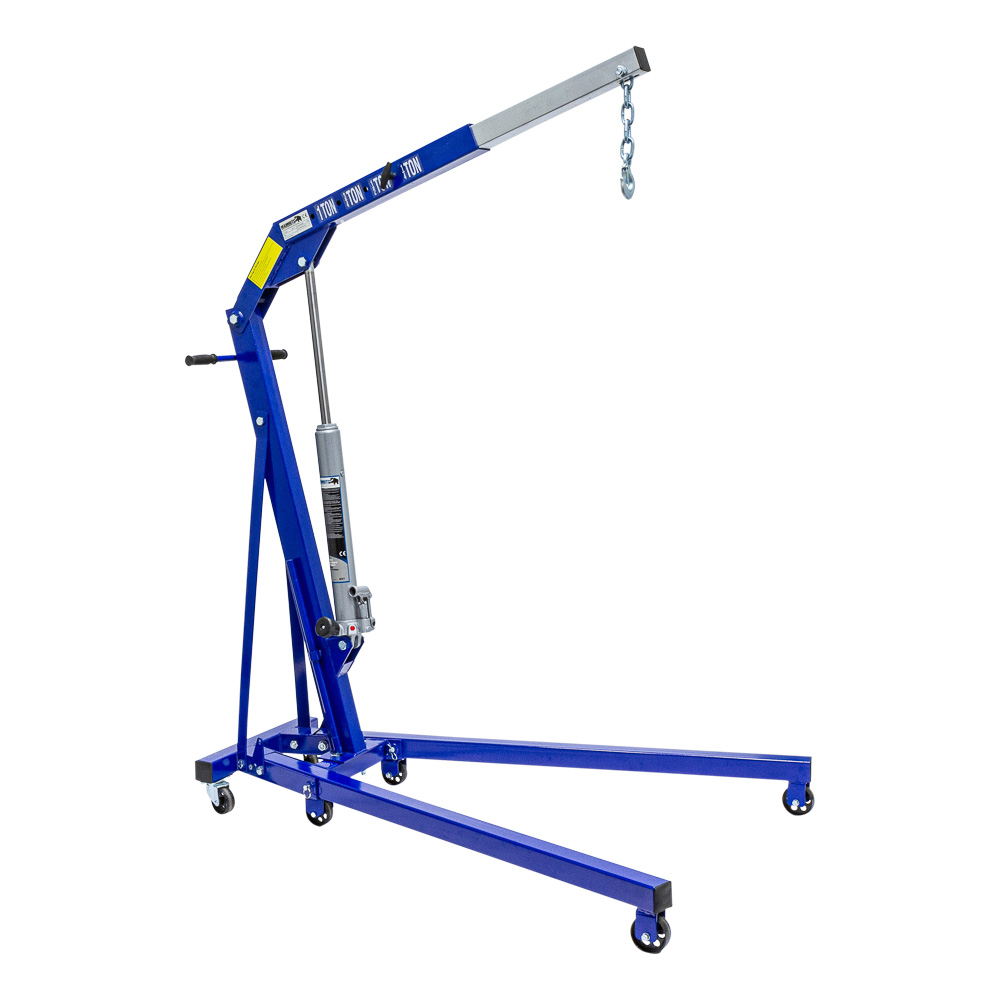

Workshop crane foldable / motor hoist / garage crane
This Mammuth engine crane is extremely suitable for (dis)assembling engine blocks, but is also often used for lifting and moving other heavy objects. The arm of the crane can be locked in four different positions: 250kg, 500kg, 750kg and 1000kg. The locking pin has a handy handle.
The hoist is equipped with a rotary knob to lower the arm, which ensures high ease of use and extra safety.
Furthermore, the crane is foldable and therefore easy to store.
height range 1000kg = 1920mm
height range 750kg = 1990mm
height range 500kg = 2050mm
height range 250kg = 2120mm
total length crane arm 1000kg = 1080mm
total length crane arm 750kg = 1170mm
total length crane arm 500kg = 1260mm
total length crane arm 250kg = 1350mm
height of the legs = 160mm
distance between legs at widest point = 940mm
dimensions folded = 570 x 485 x 1520mm
|Product Length||1,540 mm|
|Product Width||1,040 mm|
|Product Height||1,400 mm|
|Product Weight||66.0 Kg|
|Package Length||1,440 mm|
|Package Width||455 mm|
|Package Height||180 mm|
|Package Weight||69.00 Kg|
