workshop crane foldable / workshop crane / motor hoist / garage crane / standard folding portable engine crane

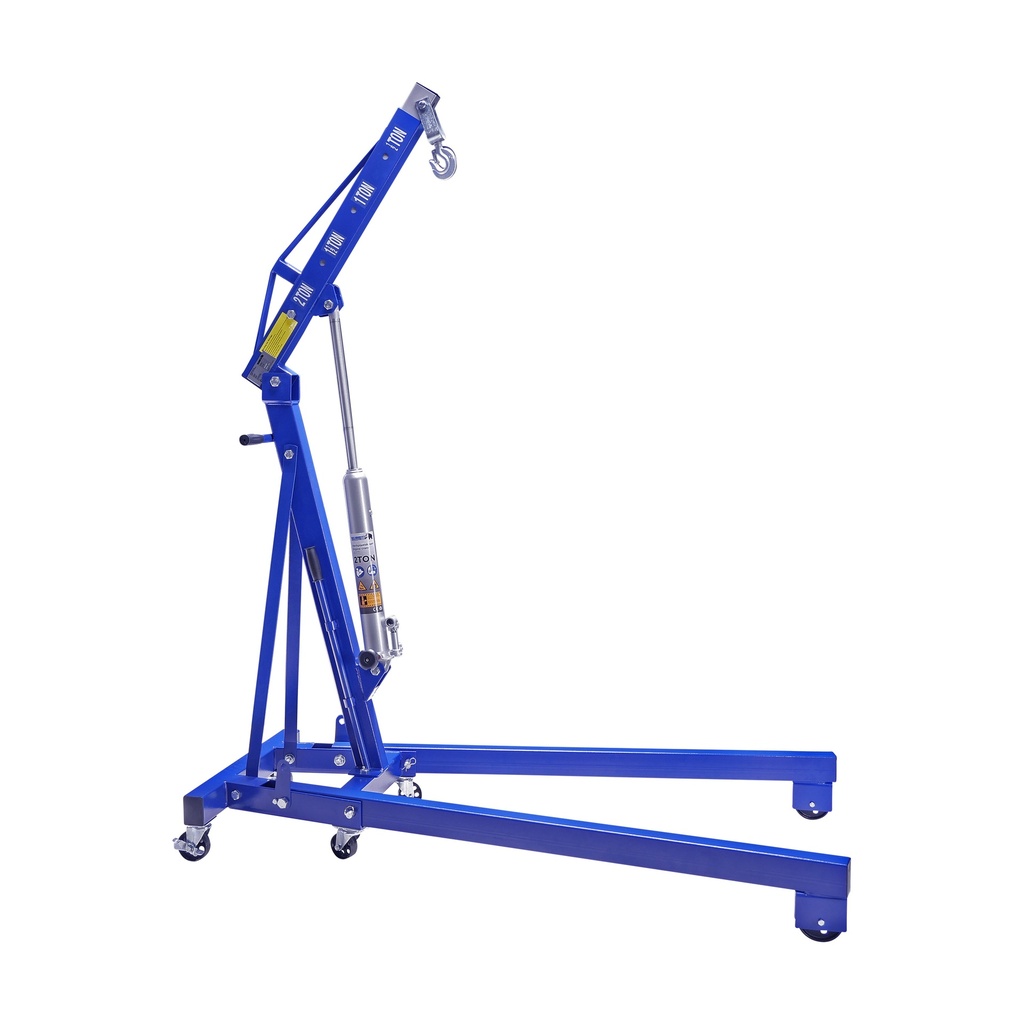

This foldable engine crane from Mammuth has a rectangular body construction which makes it more stable than normal square tube designed engine crane’s. This Mammuth folding engine crane is perfect for lifting engines and heavy-load and it also can be used for hundreds of general purpose lifting applications in workshops, garages, laboratories and many more.
The arm of the crane can be locked in 4 different positions: 500kg, 1000kg, 1500kg and 2000kg.
The hoist is equipped with a quick-release lowering valve to lower the arm, which ensures high ease of use and extra safety.
Furthermore, the crane is provided with 6 wheels of which 4 are swivel, includes 2 wheels with brakes and is foldable and therefore easy to store and 2 front bearing straight wheels inside the frame.
The hydraulic cylinder is made out of a complete welded structure which ensures high quality hydraulic lifting.
Technical specifications:
- height range 2000kg = 2080mm
- height range 1500kg = 2240mm
- height range 1000kg = 2375mm
- height range 500kg = 2515mm
- total length crane arm 2000kg = 1070mm
- total length crane arm 1500kg = 1245mm
- total length crane arm 1000kg = 1425mm
- total length crane arm 500kg = 1650mm
- length up to and including mounting bolt cylinder = 350mm
- height of the legs = 185mm
- distance between legs at widest point = 960mm
Packed in 2 boxes:
- 780 x 540 x 100mm 26kg
- 1585 x 320 x 190mm 70kg
| Product Dimensions: | |
|---|---|
| Product Length | 1,715 mm |
| Product Width | 990 mm |
| Product Height | 1,410 mm |
| Product Weight | 91.0 Kg |
| Package Dimensions: | |
| Package Length | 1,585 mm |
| Package Width | 320 mm |
| Package Height | 190 mm |
| Package Weight | 96.00 Kg |
