Engine crane 600kg

Shop equipment / Engine cranes Brand: Mammuth Mammuth

Product Code: CE6TP

EAN: 8720028106684

Availability: Available

€ 423.50 Incl. VAT https://schema.org/InStock 423.5 EUR € 423.50

€ 350.00

  • Capacity position 1
  • Capacity position 2
  • Capacity position 3
  • Length of the legs
  • Capacity position 4
  • Capacity position 5
  • Distance between legs at widest point
  • Max. hook height (position 1)
  • Hook height (position 2)
  • Hook height (position 3)
  • Hook height (position 4)
  • Min. hook height (position 5)

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

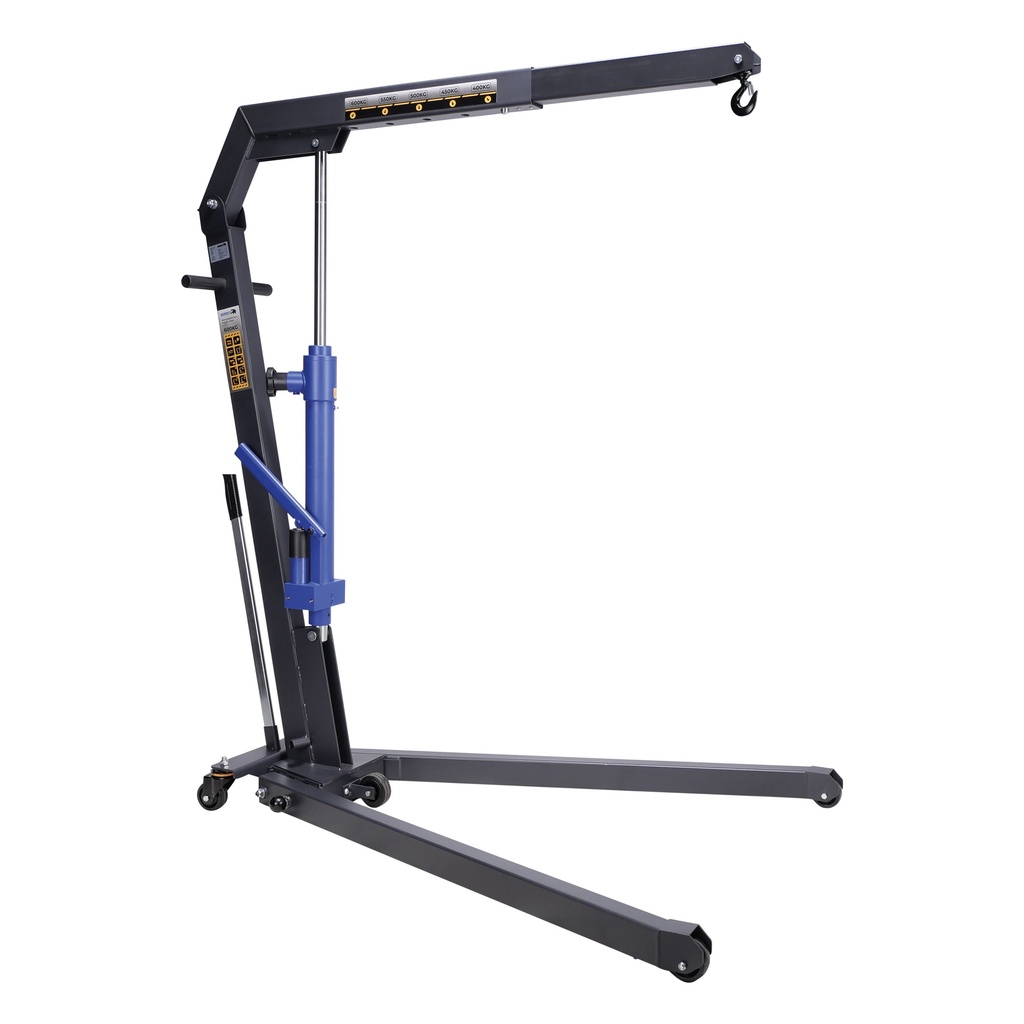

Engine Crane 600kg

This Mammuth folding engine crane is perfect for lifting engines and general purpose lifting applications in workshops, garages, and more.
The crane has the ability to lift loads up to 600kg.
The extension boom of the crane and can easily be locked in 5 different positions:
400kg, 450kg, 500kg, 550kg and 600kg.
The engine crane uses the unique technology of quick lifting by dual action pump which gives the crane a higher lifting speed without load and a slower speed under load so that the load can be lifted safely.
Wit hthe automatic safety lowering valve, the engine crane guarantees a controlled lowering speed that ensures the safe load lowering.
The plunger is protected by a dust proof cover.
The crane boom has a swivel lifting hook designed to fully swivel while controlling the load.
Sturdy welded frame for increased mobility is equipped with glass fiber and hard wearing nylon wheels which prevents damage to garage floors and provides a quieter and smoother operation. The crane has a low base height thanks to the integrated wheels inside the welded frame. The engine crane can easily be folded to save space in your workshop and easy moving when folded due to the extra wheel base.
The workshop crane has the following useful features:

  • Auto relief knob with built in two speed action
  • hard chrome plated cylinder and piston rod for long life
  • 200° rotatable cylinder assy
  • fully rotatable lifting hook
  • pump handle incl. locking pin
  • handle holder
  • V-shaped chassis base
Product Dimensions:
Product Length 1,420 mm
Product Width 1,050 mm
Product Height 1,530 mm
Product Weight 73.4 Kg
Package Dimensions:
Package Length 380 mm
Package Width 1,595 mm
Package Height 240 mm
Package Weight 78.00 Kg

  • Dual action pump
  • Controlled lowering speed
  • Nylon & Fiberglass wheels
  • Quick boom locking system
  • Rotatable cylinder


Capacity position 1 600 kg
Capacity position 2 550 kg
Capacity position 3 500 kg
Length of the legs 1375 mm
Capacity position 4 450 kg
Capacity position 5 400 kg
Distance between legs at widest point 940 mm
Max. hook height (position 1) 2100 mm
Hook height (position 2) 2140 mm
Hook height (position 3) 2190 mm
Hook height (position 4) 2250 mm
Min. hook height (position 5) 2300 mm
