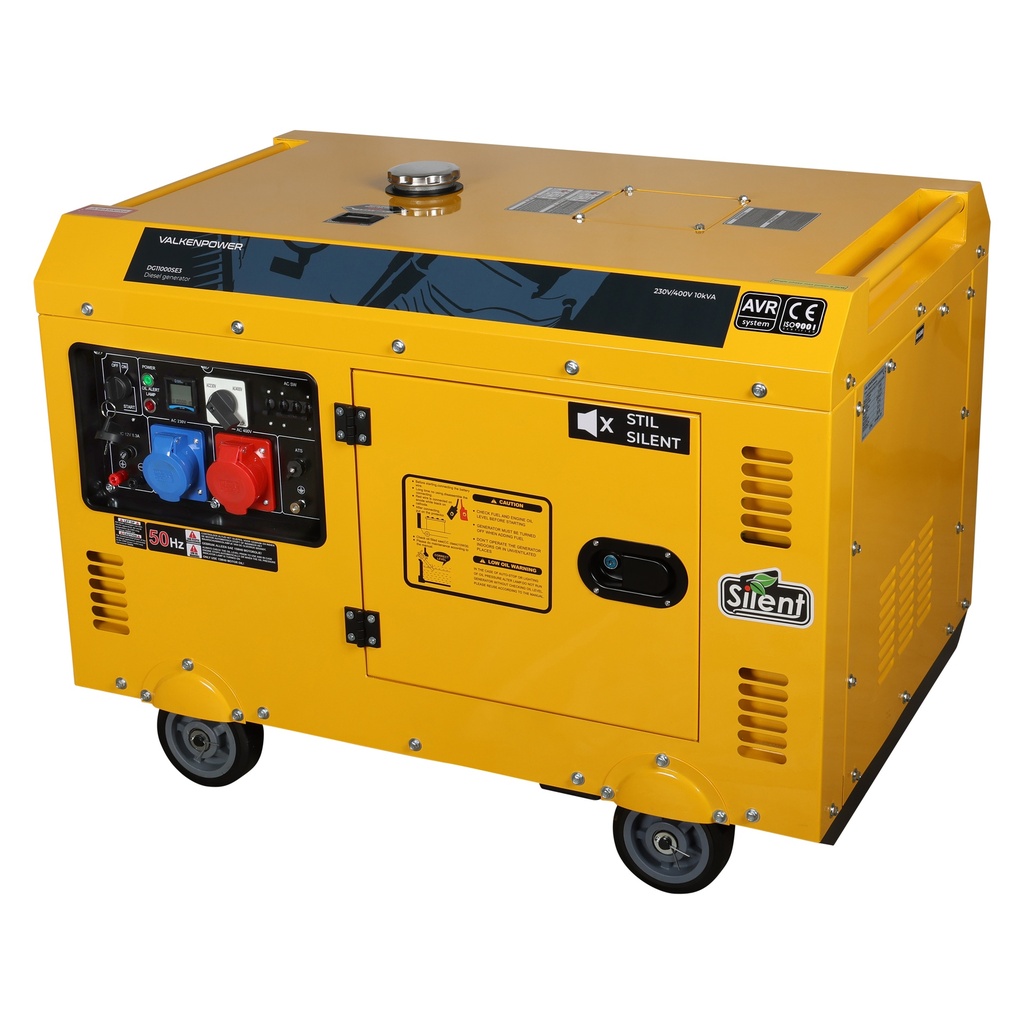

This mobile diesel generator is suitable for professional use on construction sites, in workshops, or as a reliable standby generator and backup power solution for home use. With a maximum output of 8000 watts at 400V and 6.5 kW at 230V, it is highly versatile.
AVR technology ensures a constant output voltage, making it safe for powering sensitive electronics such as laptops, battery chargers or measuring instruments. The built-in ATS connection also enables automatic mains switchover in the event of a power outage, ensuring a continuous power supply.
The unit features electric start and built-in protection against low oil level, overload and overheating. With a 30-litre fuel tank and consumption of 3.44 l/h at full load, the generator can be used for extended periods. The mobile frame allows easy relocation.
The digital VFT meter provides real-time data on voltage, frequency and operating hours. Stage V certification ensures this generator meets strict EU environmental standards for use in low-emission zones.
Key features:
- ATS port
Enables automatic mains switchover during power failure.
- Automatic Voltage Regulation (AVR)
Provides stable voltage output, suitable for sensitive electronics.
-
Sound-dampening housing 85 dB
Suitable for noise-restricted areas such as residential zones.
-
Mobile chassis
Easy to relocate thanks to the wheeled frame.
- Stage V certified
Meets EU emission standards for use in eco-sensitive areas.
This diesel generator is not only suitable for professional use, but also as a reliable backup power source for home or on-site needs.
Supplied with:
1x 230V 32A plug (3-pin), 1x 400V 32A plug (5-pin), gasket set, air filter, screwdriver, 2 spanners (10–12 & 14–17), fuel funnel, and user manual.
Specifications
| Max. power | 8 kW |
| Rated output (230V) | 6.0 kW |
| Max. output (230V) | 6.5 kW |
| Rated output (400V) | 7.5 kW |
| Max. output (400V) | 8kW |
| Output voltage | 230V / 400V |
| Frequency | 50 Hz |
| AC Output | 230V / 32A (3-pin), 400V / 32A(5-pin) |
| DC Output | 12V / 8.3A |
| AVR | Yes |
| Engine model | HR198FA |
| Engine type | 4 stroke, single cylinder |
| Motor speed | 3000 rpm |
| Cylinder number | 1 |
| Cylinder capacity | 633cc |
| Cooling system | air-cooled |
| Starting system | Electric |
| Fuel type | Diesel |
| Fuel tank capacity | 30L |
| Fuel consumption at 50% load | 1.7 L/h |
| Fuel consumption at 100% load | 2.8 L/h |
| Oil type | O15W40 |
| Oil capacity | 1.85 L |
| Noise level | 85 dB |
| Isonorm | 9001 |
| Product Dimensions: | |
|---|---|
| Product Length | 1,100 mm |
| Product Width | 750 mm |
| Product Height | 760 mm |
| Product Weight | 212.0 Kg |
| Package Dimensions: | |
| Package Length | 1,100 mm |
| Package Width | 750 mm |
| Package Height | 760 mm |
| Package Weight | 240.00 Kg |
