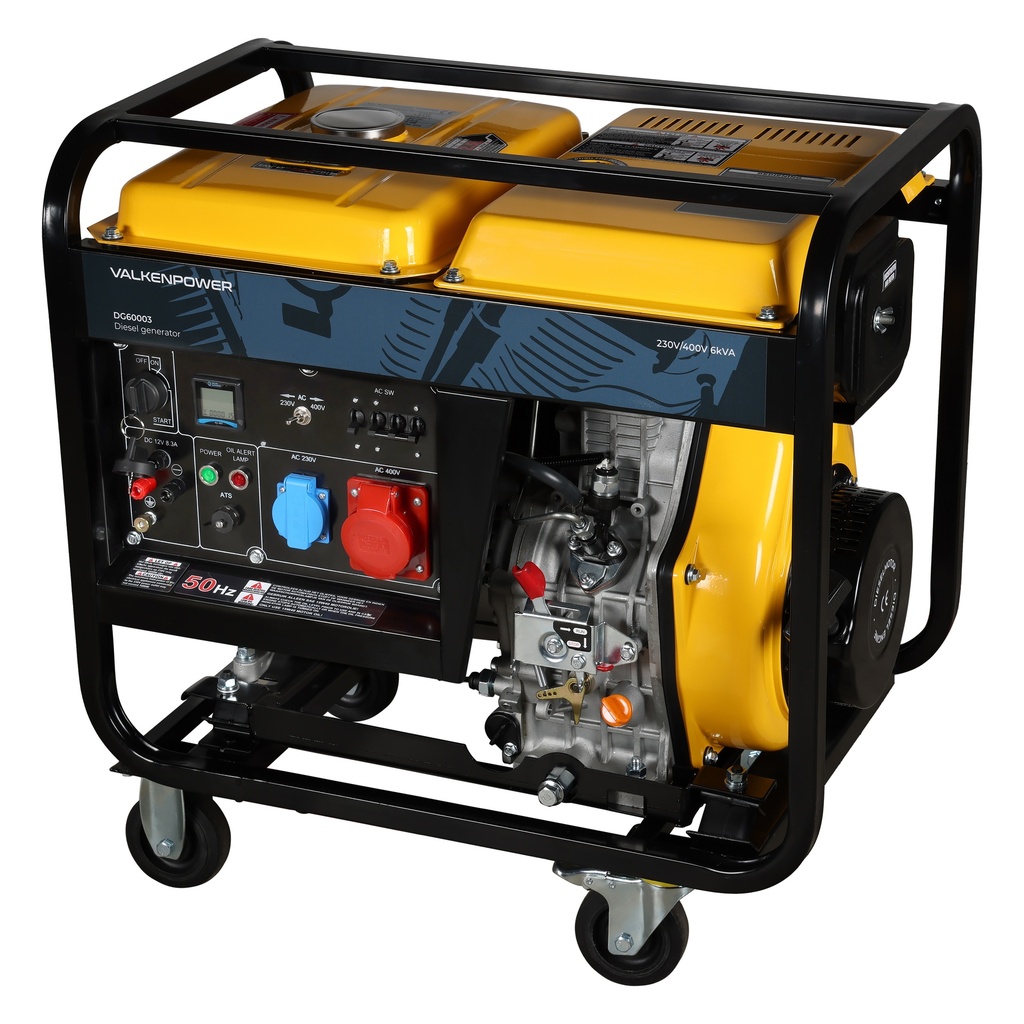

This mobile diesel generator is ideal for use on construction sites, in workshops, or as a reliable standby generator and backup power source for home use. With a maximum output of 5000 watts and both 230V and 400V sockets, it’s suitable for a wide range of applications.
Thanks to AVR technology, the generator delivers a stable output voltage, making it safe for sensitive electronics such as laptops, battery chargers, and measuring equipment. The built-in ATS port makes it compatible for automatic switch-over during power outages, maintaining a constant power supply.
For added convenience, this unit features a digital VFT meter (voltage, frequency, runtime), electric start, and protections against low oil, overload, and overheating. The wheeled frame makes the generator easy to move. Its Stage V certification guarantees environmentally responsible performance, even in low-emission zones.
Key features:
- ATS port
Enables automatic switch-over during power failure.
- Automatic Voltage Regulation (AVR)
Provides stable voltage output, suitable for sensitive electronics.
- Mobile design
Easy to move with integrated transport wheels.
- Digital VFT meter
Displays voltage, frequency, and runtime in real-time.
- Stage V certified
Meets EU emission standards for use in eco-sensitive areas.
This diesel generator is not only suitable for professional use but also serves as a reliable backup power source for home or remote locations.
Supplied with:
1x 230V 16A plug (2-pin), 1x 400V 16A plug (5-pin), gasket set, air filter, screwdriver, 2 spanners (10–12 & 14–17), fuel funnel, and user manual.
Specifications
| Max. power | 4 kW |
| Rated output (230V) | 3.6 kW |
| Max. output (230V) | 4 kW |
| Rated output (400V) | 4.6 kW |
| Max. output (400V) | 5 kW |
| Frequency | 50 Hz |
| Output voltage | 230V / 400V |
| AC Output | 230V / 16A (2-pin), 400V / 16A (5-pin) |
| DC Output | 12V / 8.3A |
| AVR | Yes |
| Engine model | HR186FA |
| Engine type | 4 stroke, single cylinder |
| Motor speed | 3000 rpm |
| Cylinder number | 1 |
| Cylinder capacity | 418cc |
| Cooling system | air-cooled |
| Starting system | Electric |
| Fuel type | Diesel |
| Fuel tank capacity | 12.5L |
| Fuel consumption at 50% load | 0.8 L/h |
| Fuel consumption at 100% load | 1.3 L/h |
| Oil type | O15W40 |
| Oil capacity | 1.65 L |
| Noise level | 85 dB |
| Isonorm | 9001 |
| Product Dimensions: | |
|---|---|
| Product Length | 700 mm |
| Product Width | 470 mm |
| Product Height | 600 mm |
| Product Weight | 120.0 Kg |
| Package Dimensions: | |
| Package Length | 715 mm |
| Package Width | 485 mm |
| Package Height | 615 mm |
| Package Weight | 0.00 Kg |
