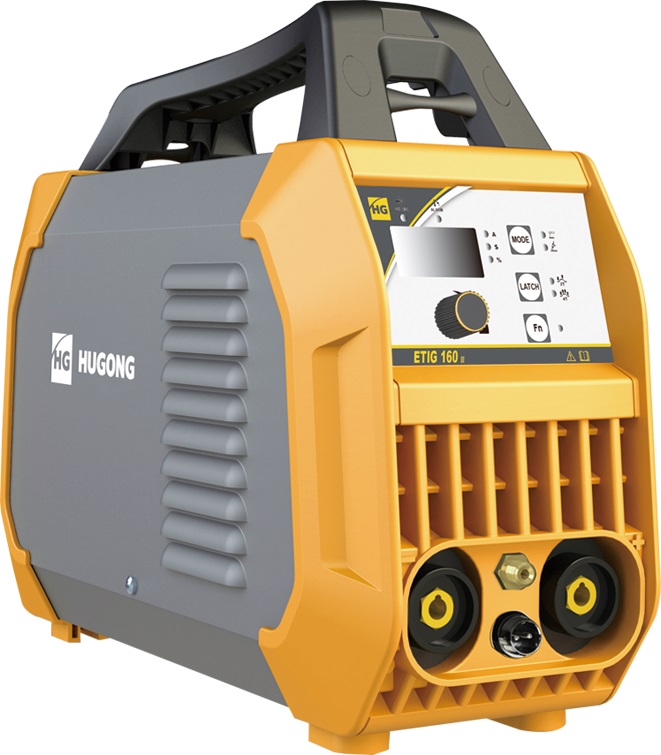

The Hugong ETIG160 is a compact and portable TIG/MMA welding machine designed for precise work on carbon steel, low-alloy steel, and stainless steel. With modern IGBT inverter technology, HF ignition, and a clear digital display, it’s well-suited for light industrial tasks, maintenance, and mobile use.
The ETIG160 supports DC HF TIG, Lift-TIG, and MMA welding, with adjustable settings such as current, gas pre/post-flow, and peak/base current. The machine also offers memory programs, allowing you to save and recall preferred welding parameters—ideal for repetitive tasks.
Weighing only 6.8 kg, it’s highly maneuverable without compromising performance or ease of use.
Key features:
- Compact HF TIG / Lift-TIG / MMA process
Versatile 3-in-1 system with high-frequency, contactless TIG arc starting.
- Stepless adjustment
The welding current can be adjusted smoothly and precisely via a rotary knob.
- Memory function
Save and quickly access custom weld settings for repetitive work.
- Shock-resistant ABS housing
Durable and rugged for heavy use in workshop or field environments.
- 5-year warranty upon registration
Long-term security thanks to extended factory warranty after online registration.
Supplied with:
- WP26 TIG torch – 4 meters
- Ground clamp with 2-meter cable
- TIG accessory kit
- 3-meter gas hose with NW5 connector
Specifications
| Frequency | 50/60 Hz |
| Voltage | 230V - 1 Phase |
| No load voltage | 82V |
| Input power | 6.6kVA |
| Welding current range | TIG 10 - 160A / MMA 20 - 160A |
| Duty cycle @20C | 60% - 160A |
| Duty cycle @40C | 35% - 160A |
| Protection class | IP21S |
| Product Dimensions: | |
|---|---|
| Product Length | 394 mm |
| Product Width | 154 mm |
| Product Height | 293 mm |
| Product Weight | 6.8 Kg |
| Package Dimensions: | |
| Package Length | 450 mm |
| Package Width | 325 mm |
| Package Height | 345 mm |
| Package Weight | 13.70 Kg |
