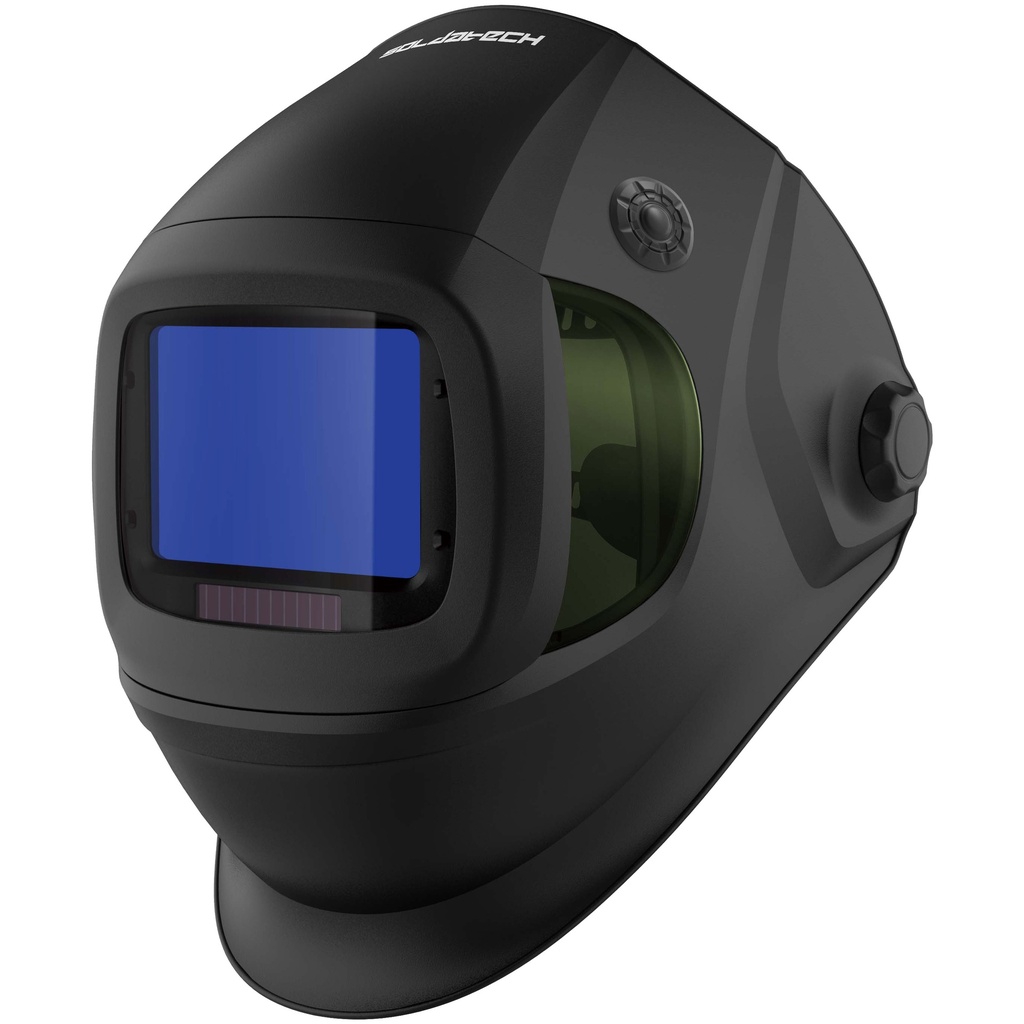

The EWH5 Side Clear welding helmet provides a wide field of vision and enhanced comfort, making it ideal for TIG welding and precision work.
The 107 x 75mm viewing area ensures clear visibility, while the side lenses improve peripheral awareness and can be covered when needed.
Equipped with four independent arc sensors, the helmet delivers fast auto-darkening activation, even at low amperages from 2A (AC/DC). The digital display allows precise filter adjustments, and the DIN 4 light state ensures brightness before welding. The adjustable grind mode (DIN 5-8) makes it also suitable for plasma cutting. With a fast switching speed of 1/25,000 sec, the lens reacts instantly to the arc for optimal eye protection.
A solar cell with two CR2450 batteries ensures reliable operation. An external push button allows quick switching between welding and grind mode, even with gloves. The five-strap headgear distributes weight evenly for a secure and comfortable fit. The high-impact nylon shell provides durability while remaining lightweight.
Key features:
- 4 independent arc sensors deliver fast and reliable auto-darkening activation.
- TIG detection from 2A (AC/DC) – excellent response for low-amperage welding.
- Clear lens technology – ultimate sight and brightness.
- Side lenses enhanced peripheral vision, with optional covers.
- Digital display – easy and precise filter adjustments.
- Fast switching speed (1/25,000 sec) – instant reaction for optimal eye protection.
- External push button – quick switching between welding and grinding mode.
- Certified safety standards – CE, ANSI Z87.1, Z94.3, AS/NZS 1338.1 compliant.
Specifications
| Optical class | 1/1/1/1 |
| Viewing area | 107 x 75 mm |
| Cartridge size | 156 x 123 x33 mm |
| Arc sensor | 4 |
| Light state | DIN 4 |
| Cutting shade | 5 ~ 8 |
| Dark state | DIN 9 ~ 13 |
| Grinding | Yes |
| Grind state | DIN 4 |
| Shade control | internal, digital display control |
| Power on/off | automatic on/off |
| Sensitivity control | low-high by infinitely dial knob |
| Protection (UV/IR) | DIN 16 |
| Power supply | solar cell, 2× CR2450 lithium battery replaceable |
| Battery capacity test | - |
| Low battery indicator | Yes, Digital display |
| Switching time (light to dark) | 1/25000 sec. |
| Delay time (dark to light) | 0.1 - 1.0 sec. by infinitely dial knob |
| Low amperage TIG rated | ≥ 2 amps (DC); ≥ 2 amps (AC) |
| Operating temperature | -10℃ ~ 55℃ |
| Storage temperature | -20°C ~ +70°C |
| Helmet material | High impact resistance nylon |
| MMA welding applications | SMAW |
| TIG welding applications | GTAW-DC / GTAW-AC / GTAW-P DC / GTAW-P AC |
| MIG welding application | GMAW (MIG/MAG) / GMAW-P |
| Cutting welding application | PAC / CAC-A / OC |
| Other welding application | PAW / OFW |
| Product Dimensions: | |
|---|---|
| Product Length | 330 mm |
| Product Width | 260 mm |
| Product Height | 220 mm |
| Product Weight | 0.635 Kg |
| Package Dimensions: | |
| Package Length | 300 mm |
| Package Width | 260 mm |
| Package Height | 260 mm |
| Package Weight | 1.20 Kg |
| Package Type: | |
| Overdoos | 8 Pcs |
