Hand shear 8''

[HS8I] Hand shear 8''

Wood and Metal working / Metal working machinery / Bar and section shear Brand: Cowley Cowley

Product Code: HS8I

EAN: 8720028044993

Availability: Available

https://www.valkenpower.com/web/image/product.template/51811/image_1920?unique=ccd6127

€ 105.00 105.0 EUR € 105.00

€ 105.00

Not Available For Sale

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

sheet metal shears / lever hand scissors / lever shears

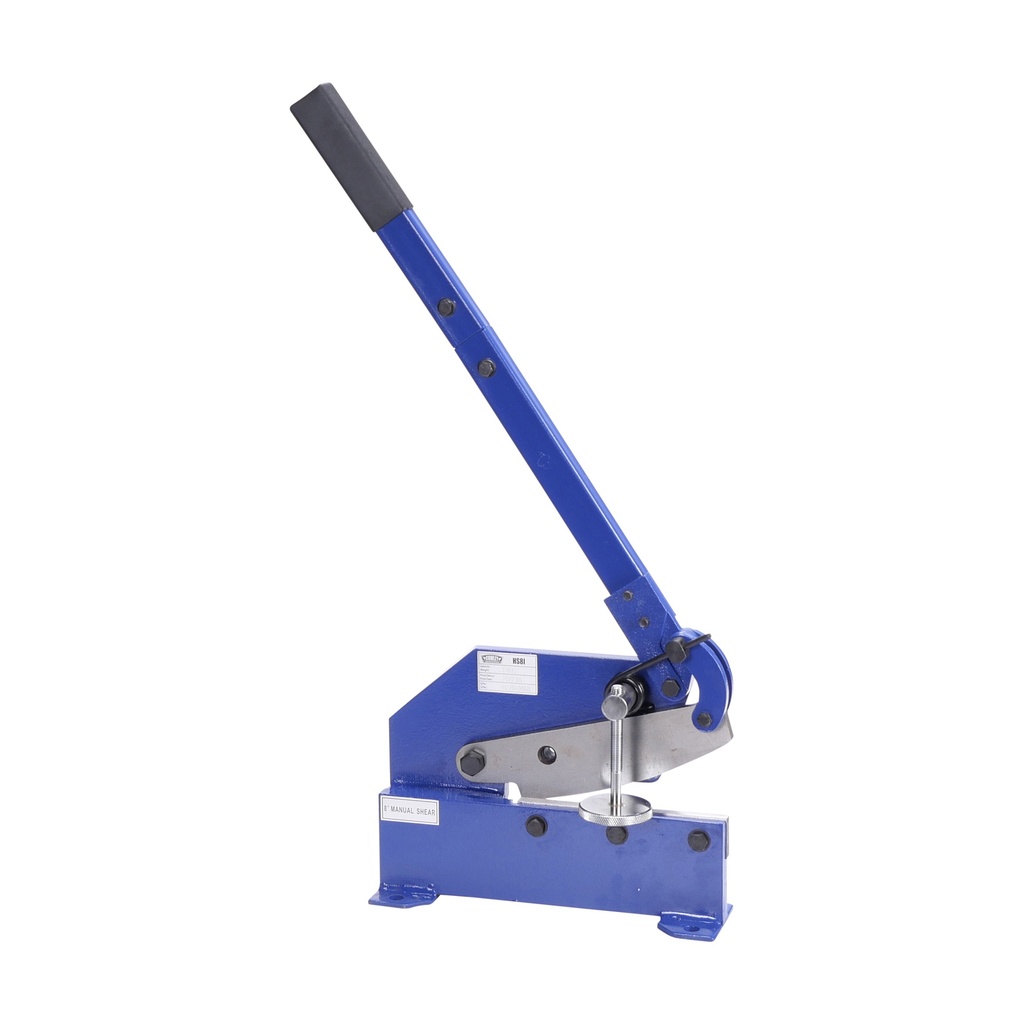

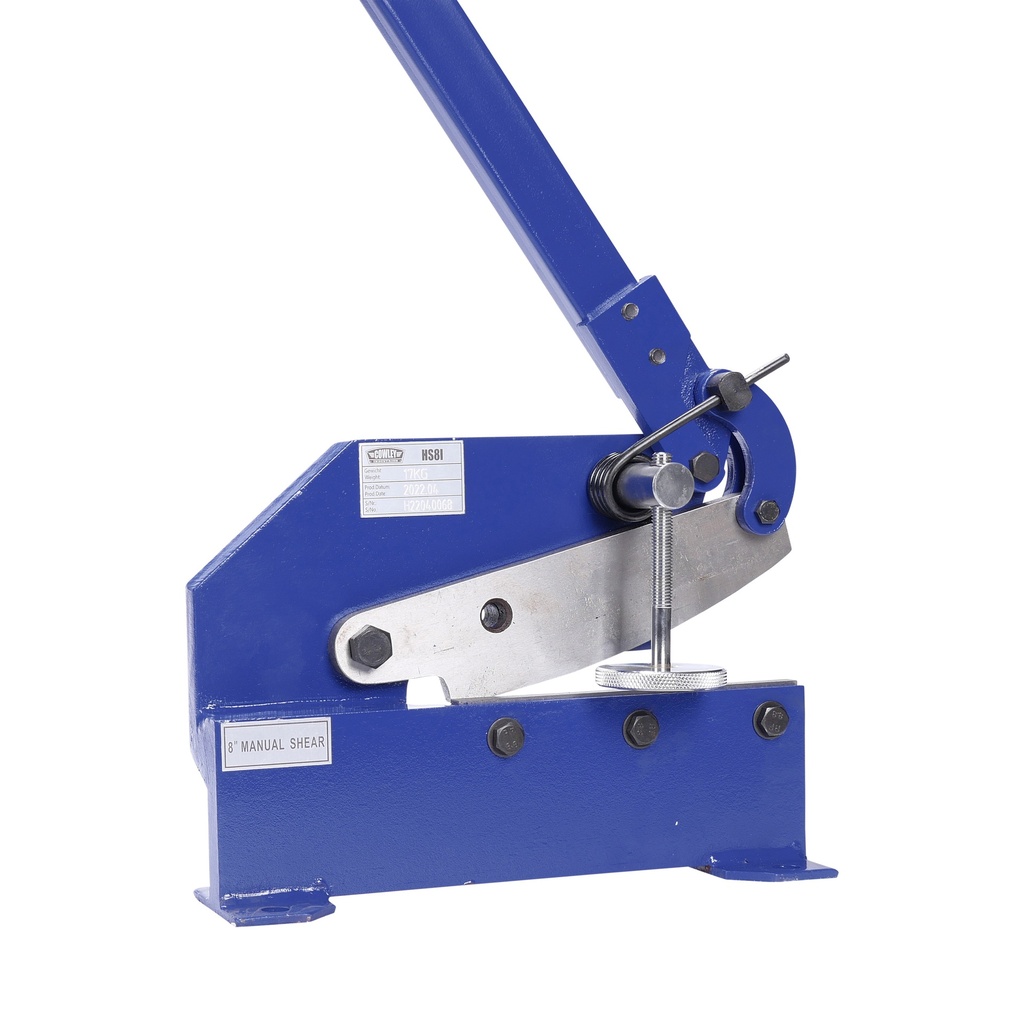

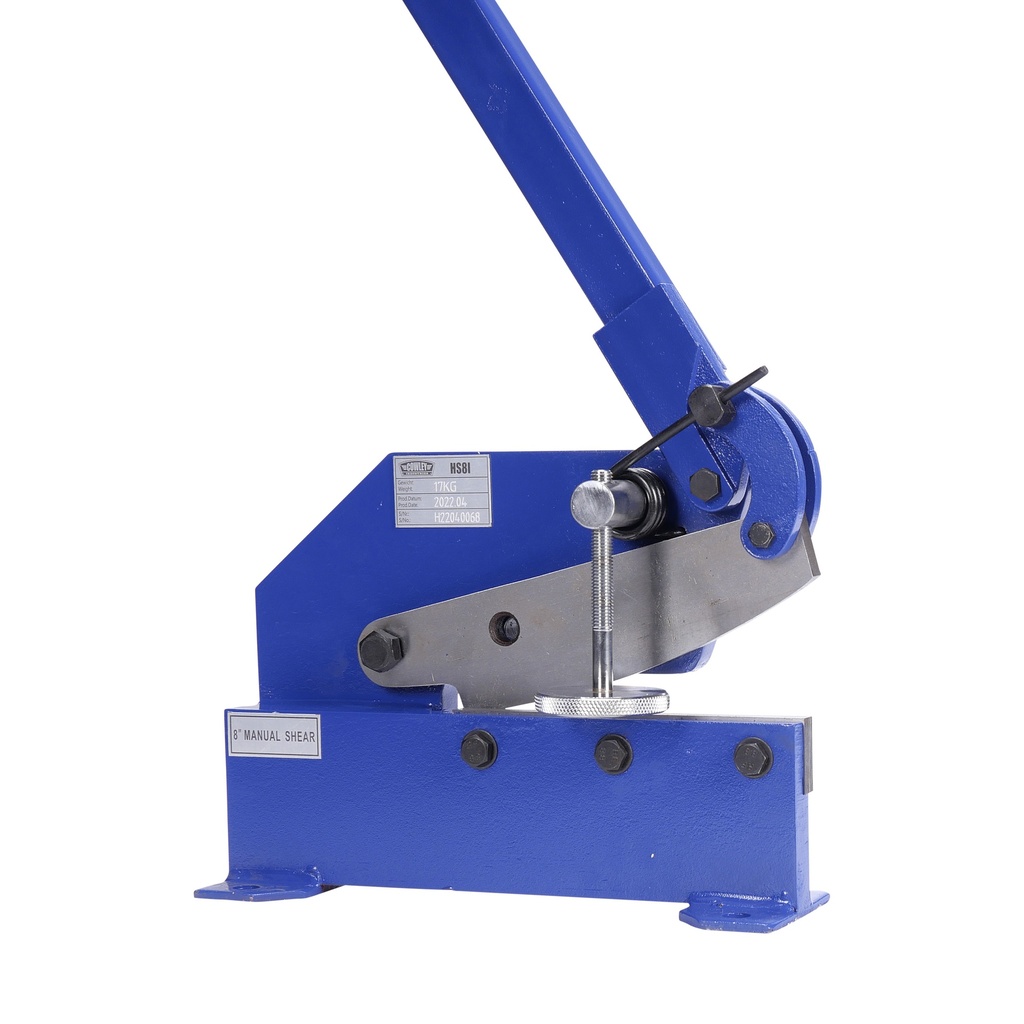

Hand shear from Cowley is a durable universal cutter for sheet, round steel and flat bar. Standard lever shears for installers, locksmitheries and training workshops.
The lever shears are capable of cutting round billets up to 11 mm in diameter, sheet steel up to 5 mm thick and strips up to 70x5 mm in size. The scissors are equipped with a strong, height-adjustable clamp and high-quality cutting blades.
Due to the favourable cutting geometry of the arched top blade allows smooth and easy power-saving cutting without much effort along the entire length of the working stroke.
Technical specifications:

  • Blade length = 203.2 mm (8")
  • Cutting length max. = 190 mm
  • Capacity sheet steel* = 5.0 mm (* Material strength 400 N/mm², not over the entire length)
  • Capacity round steel = 11 mm
  • Capacity flat steel = 70 x 5 mm
Product Dimensions:
Product Length 810 mm
Product Width 130 mm
Product Height 810 mm
Product Weight 17.0 Kg
Package Dimensions:
Package Length 420 mm
Package Width 410 mm
Package Height 160 mm
Package Weight 19.00 Kg

  • Adjustable downholder
  • Go through hole for cutting round material
  • 203.2 mm cutting length
