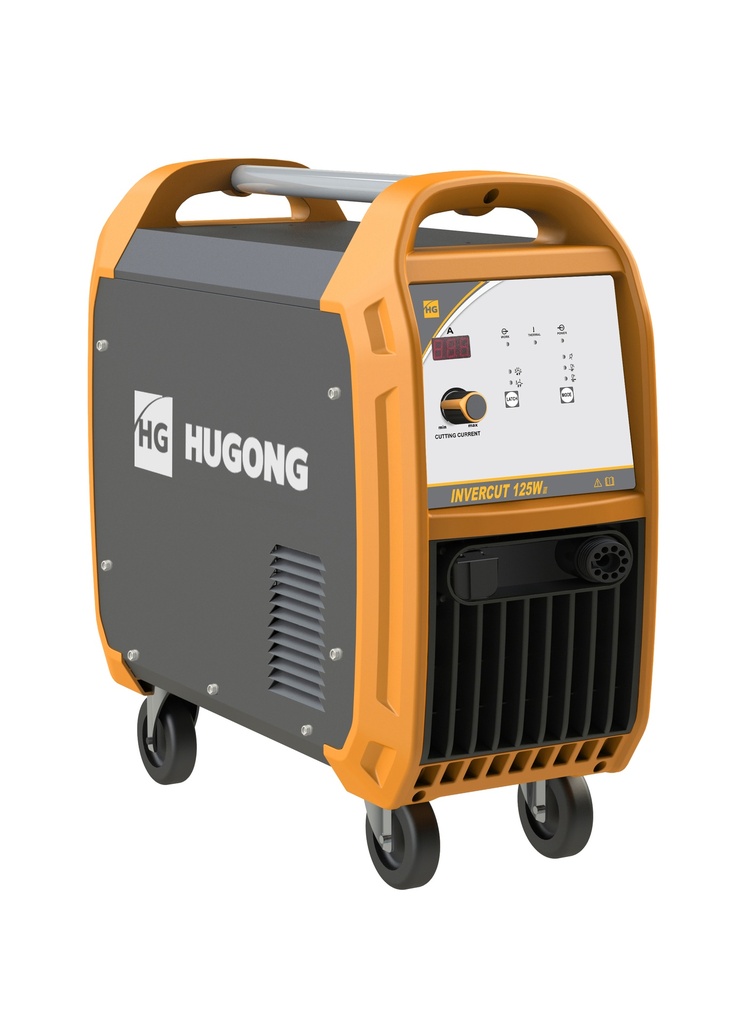

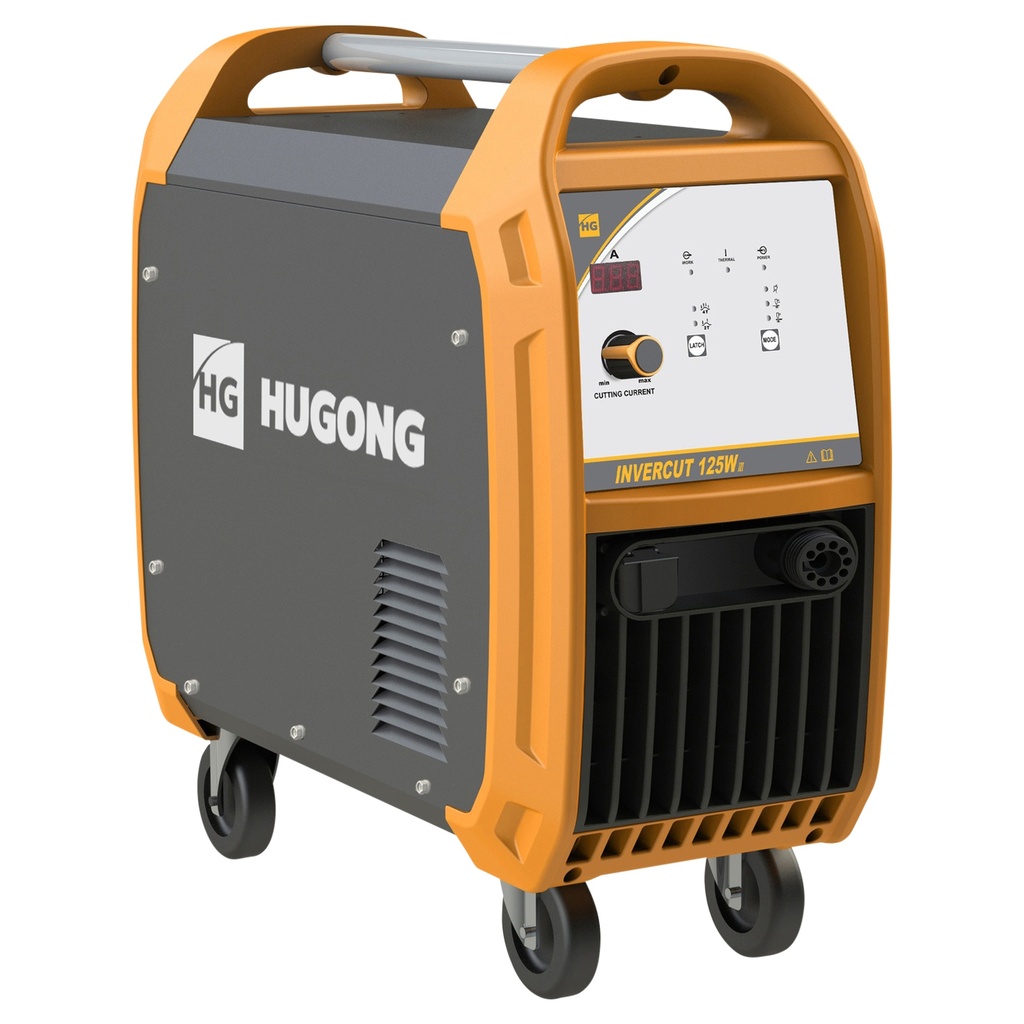

The Hugong INVERCUT125 is a high-power industrial plasma cutter designed for heavy-duty cutting tasks. The machine is mounted on wheels for easy transport within the workshop and offers an impressive maximum cutting thickness of up to 50 mm. Thanks to modern IGBT inverter technology, Pilot ARC ignition, and built-in PFC technology, the INVERCUT125 delivers stable performance with low peak power demand - even under heavy loads.
The cutter features a clear control panel, stepless current adjustment, and an integrated air regulation system. A key advantage is the CNC connection, which allows seamless integration with automatic cutting systems and gantry CNC tables.
Suitable for cutting low-alloy steel, stainless steel, and aluminum alloys up to 50 mm.
Key features:
- PFC Module (Power Factor Correction)
Ensures lower peak load and stable performance even with fluctuating mains voltages.
- CNC Connection for Automated Cutting
Easily integrates with CNC cutting tables and automated systems, ideal for production environments.
- Pilot ARC Ignition with HF
Reliable non-contact ignition, effortlessly cuts through rust, paint, and coatings.
- Shock-Resistant ABS Housing
The ABS housing provides protection against impacts, dust, and light moisture.
- 5-year warranty upon registration
Long-term security thanks to extended factory warranty after online registration.
Supplied with:
- LT141 plasma cutting torch – 5 meters
- Ground clamp with 3-meter cable (16 mm², 200A)
- 10 – 25 quick connector
- Gas hose Ø 8mm – 3 meters
- Hose clamps 10 – 16 mm (4 pcs.)
- Pressure regulator – 1 pcs.
Specifications
| Frequency | 50/60 Hz |
| Voltage | 400V - 3 Phase |
| Input power | 20.8kVA |
| No load voltage | 340V |
| Welding current range | 20 - 125A |
| Duty cycle @20C | 100% - 125A |
| Duty cycle @40C | 60% - 125A |
| Recommended cutting thickness | 25mm |
| Max. cutting thickness | 35mm |
| Protection class | IP21S |
| Product Dimensions: | |
|---|---|
| Product Length | 719 mm |
| Product Width | 308 mm |
| Product Height | 633 mm |
| Product Weight | 56.0 Kg |
| Package Dimensions: | |
| Package Length | 770 mm |
| Package Width | 410 mm |
| Package Height | 810 mm |
| Package Weight | 59.00 Kg |
