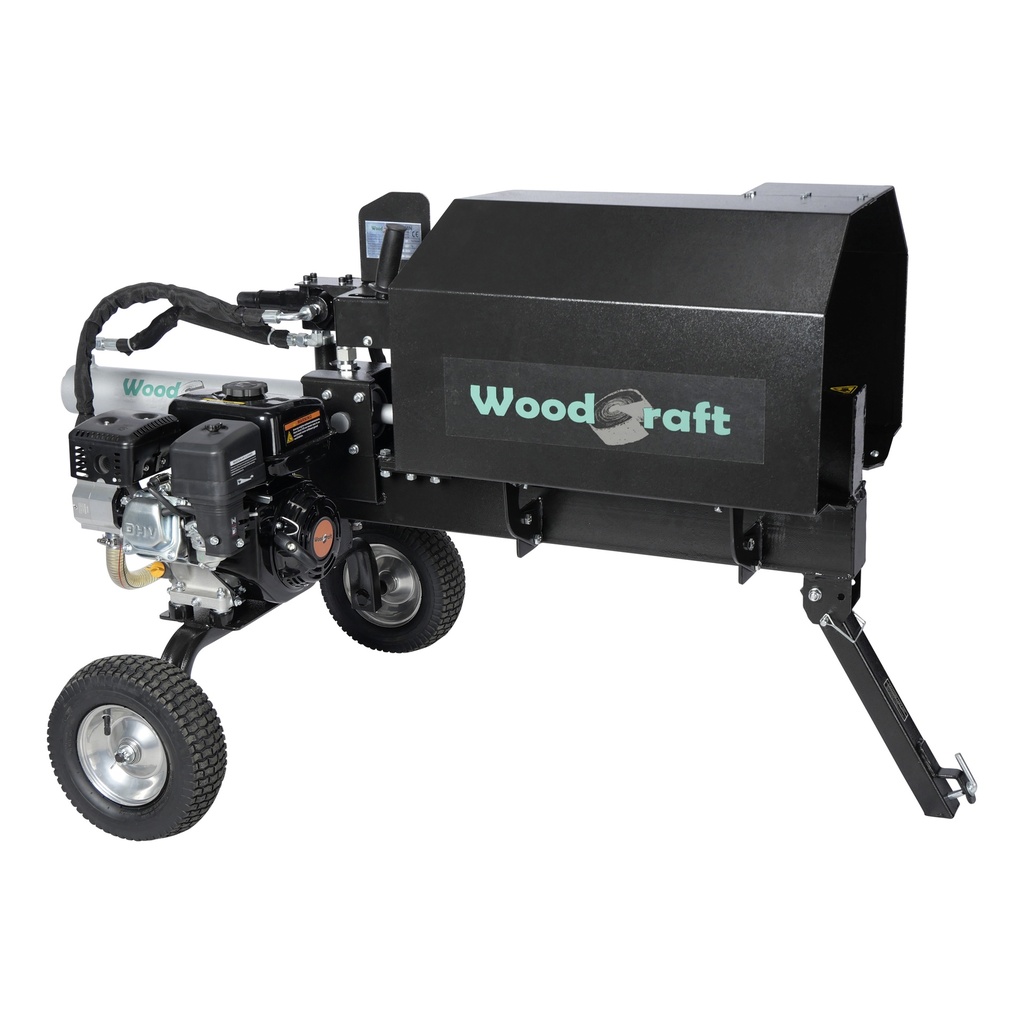

Log splitter / wood splitter with gasoline engine
This gasoline-powered log splitter is used for splitting firewood, softwood and hardwood. The splitter can only be used horizontally.
Adjustable for logs of different lengths. The splitter is also equipped with a tow bar for easy attachment behind a tractor or other vehicle and a protective cover for extra safety.
Specifications:
capacity = 12 ton
cycle = 9 sec
hydraulic oil capacity = 8L (not included!)
max. length wood = 53cm
max. pressure = 215 bar (3600psi)
max. pump output = 10gpm / 37,9L/min
wheel size = 13"
motor type = YM168F19
engine power = 6,5HP (196cc) / 3600rpm
equiped with non-return valve
max. towing speed = 8km/h
Specifications
| Splitting force | 12 ton |
| Maximum log diameter | 280 mm |
| Minimum log diameter | 140 mm |
| Maximum log length | 540 mm |
| Minimum log length | 350 mm |
| Working cycle time | 8 sec. |
| Return stroke speed | 4 sec |
| Working pressure max. | 215 Bar |
| Motor capacity | 6.6 pk |
| Fuel type | Gasoline |
| Oil capacity | 7 L |
| Oil type | CH32 |
| Wheel diameter | 330 mm |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 1,660 mm |
| Product Width | 920 mm |
| Product Height | 940 mm |
| Product Weight | 0.0 Kg |
| Package Dimensions: | |
| Package Length | 1,210 mm |
| Package Width | 780 mm |
| Package Height | 530 mm |
| Package Weight | 148.00 Kg |
| Package Type: | |
| 1 Pcs |
