splitter / wood press/ log splitter / gasoline splitter / vertical splitter / wood splitter

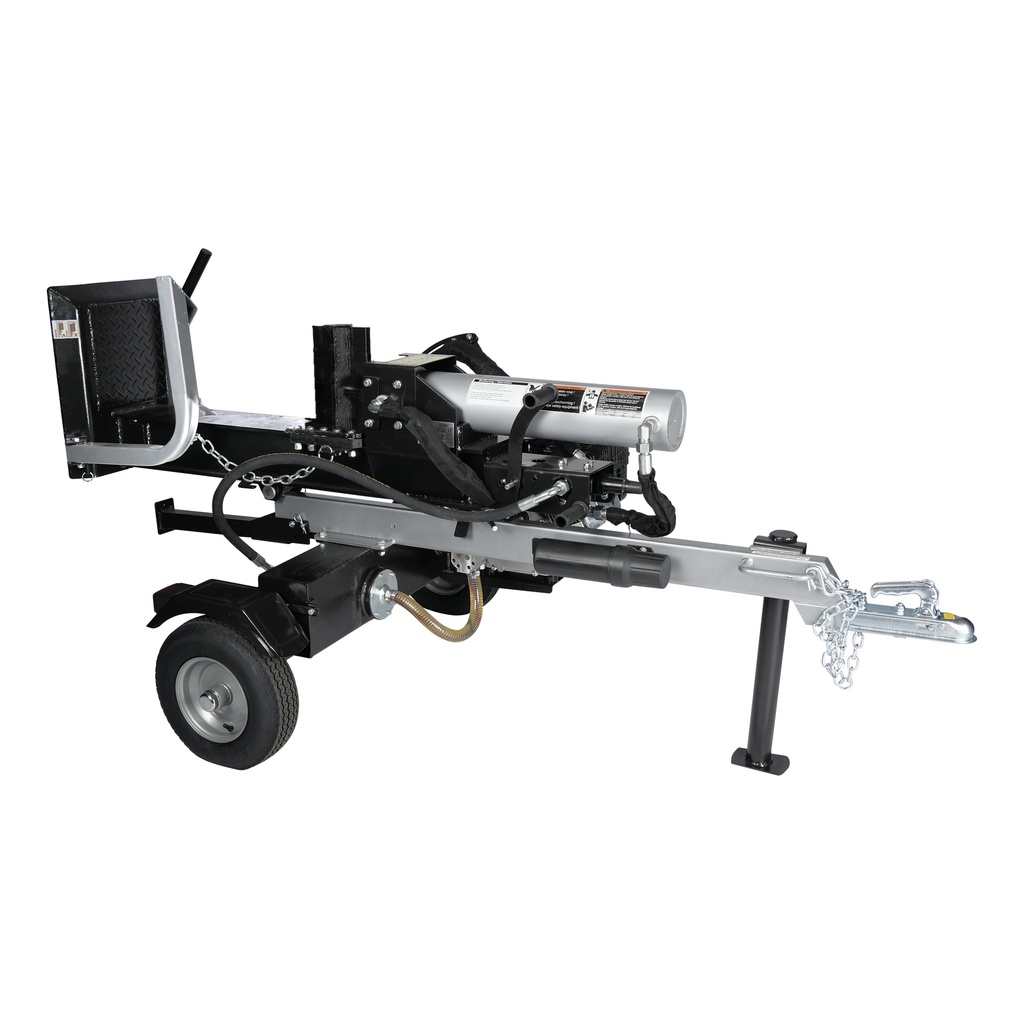

This gasoline engine powered log splitter from Woodcraft does not need an external power supply network and can therefore be used anywhere.
With a pressing force of 35 tons and 25 cm long splitting blade, it is easy to split large logs up to 60 cm long.
The splitter is very mobile and equipped with 2 sturdy support legs for extra stability, which make folding the splitter up and down a lot easier, and also ensures stability during splitting.
Thanks to the foldable catch bracket, the split wood does not immediately fall to the ground. This also ensures that it is possible to split large diameter logs.
The hydraulic cylinder is mounted on a dowel pin that allows the cylinder to slide during splitting, reducing the pressure on the cylinder rod. This makes it less sensitive to wear and leaks.
Because the wood splitter is positioned vertically, it does not require much effort to slide large logs under it.
This product complies with the new Nen standard 609-1/2017.
! Please note that this log splitter is for vertical use only!
- Technical specifications:
- capacity = 35 ton
- cycle = 13.5 sec
- hydraulic oil capacity = 24.6L (not included!)
- max. diameter wood = 34.8 x 61cm
- max. pressure = 248 bar (3600psi)
- max. pump output = 15 gpm / 56.8L/min
- wheel size = 16"
- engine power = 9.12HP (302cc) / 3600 rpm
- equipped with non-return valve
- max. towing speed = 60 km/h
Specifications
| Splitting force | 35 ton |
| Maximum log diameter | 510 nn |
| Minimum log diameter | 150 mm |
| Maximum log length | 620 mm |
| Minimum log length | 400 mm |
| Working cycle time | 13.5 sec |
| Return stroke speed | 7 sec |
| Working pressure max. | 215 Bar |
| Motor capacity | 10.1 pk |
| Fuel type | Gasoline |
| Oil capacity | 25 L |
| Oil type | CH32 |
| Wheel diameter | 406 mm |
| Maximum towing speed | 72 km/u |
| Product Dimensions: | |
|---|---|
| Product Length | 2,300 mm |
| Product Width | 1,400 mm |
| Product Height | 1,720 mm |
| Product Weight | 0.0 Kg |
| Package Dimensions: | |
| Package Length | 2,090 mm |
| Package Width | 590 mm |
| Package Height | 820 mm |
| Package Weight | 380.00 Kg |
