MIG MAG welding machine synergetic 200A

[ML200HG] MIG MAG welding machine synergetic 200A

Welding and cutting equipment / MIG / MAG welding machines Brand: Soldatech Soldatech

Product Code: ML200HG

EAN: 8720028090457

Availability: Available

https://www.valkenpower.com/web/image/product.template/59753/image_1920?unique=fd731c9

€ 750.00 750.0 EUR € 750.00

€ 750.00

Not Available For Sale

  • Frequency
  • Voltage
  • No load Voltage
  • Input power
  • Circuit breaker
  • Duty cycle @20C
  • Welding current range
  • Duty cycle @40C
  • Weldable welding wire
  • Protection class

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

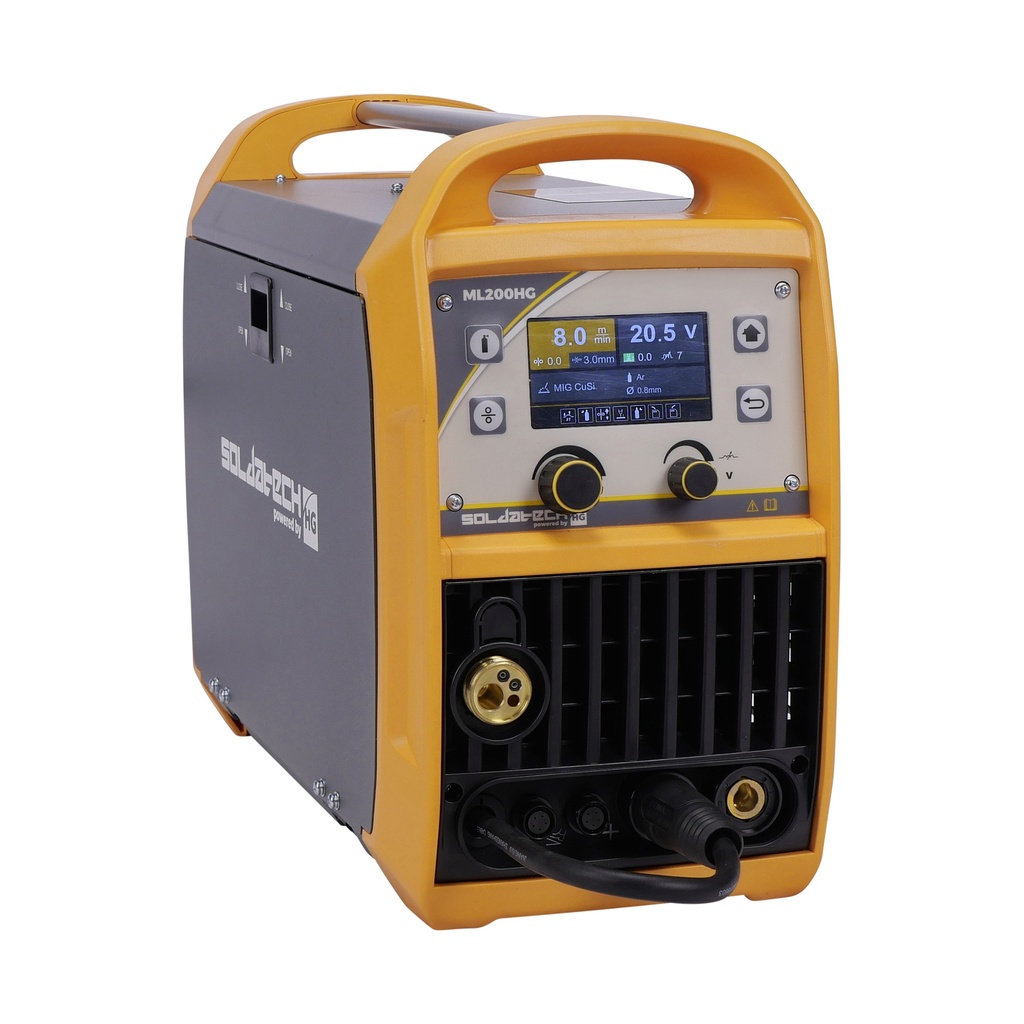

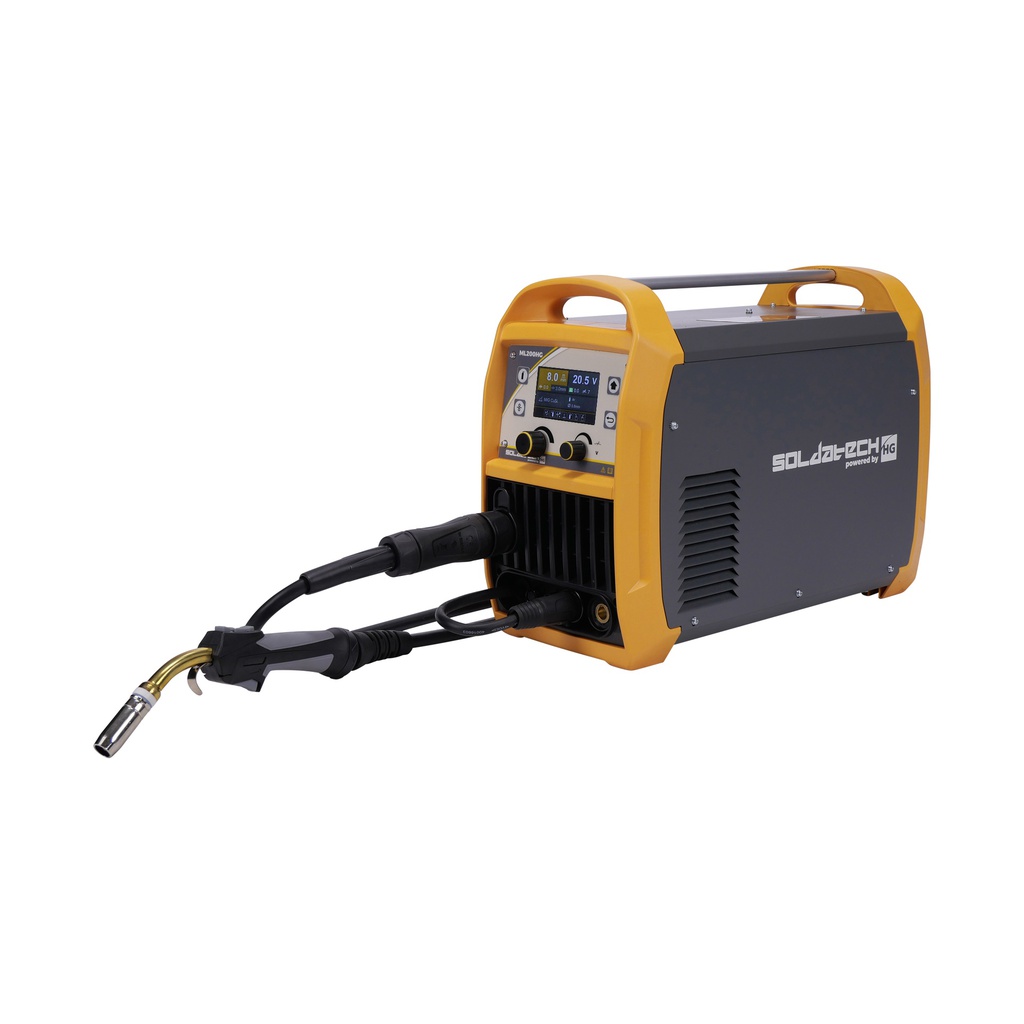

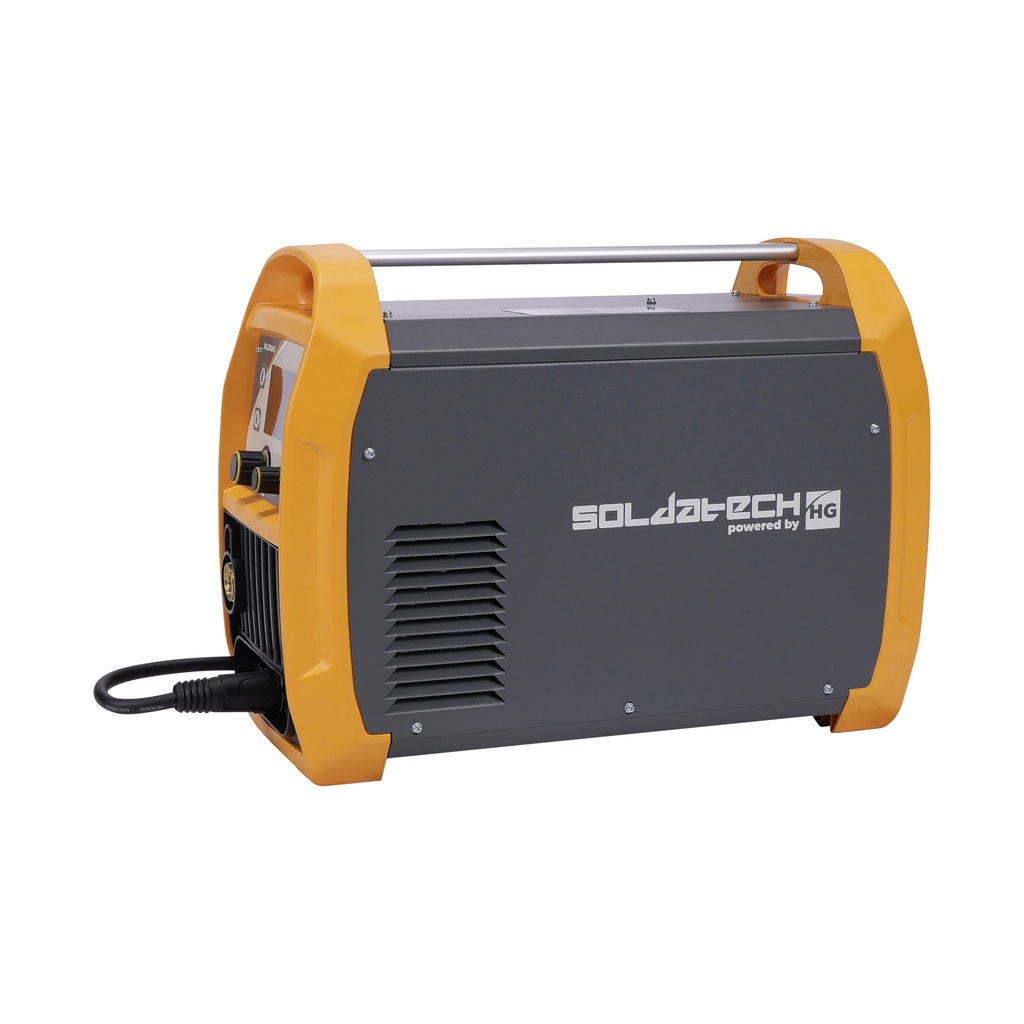

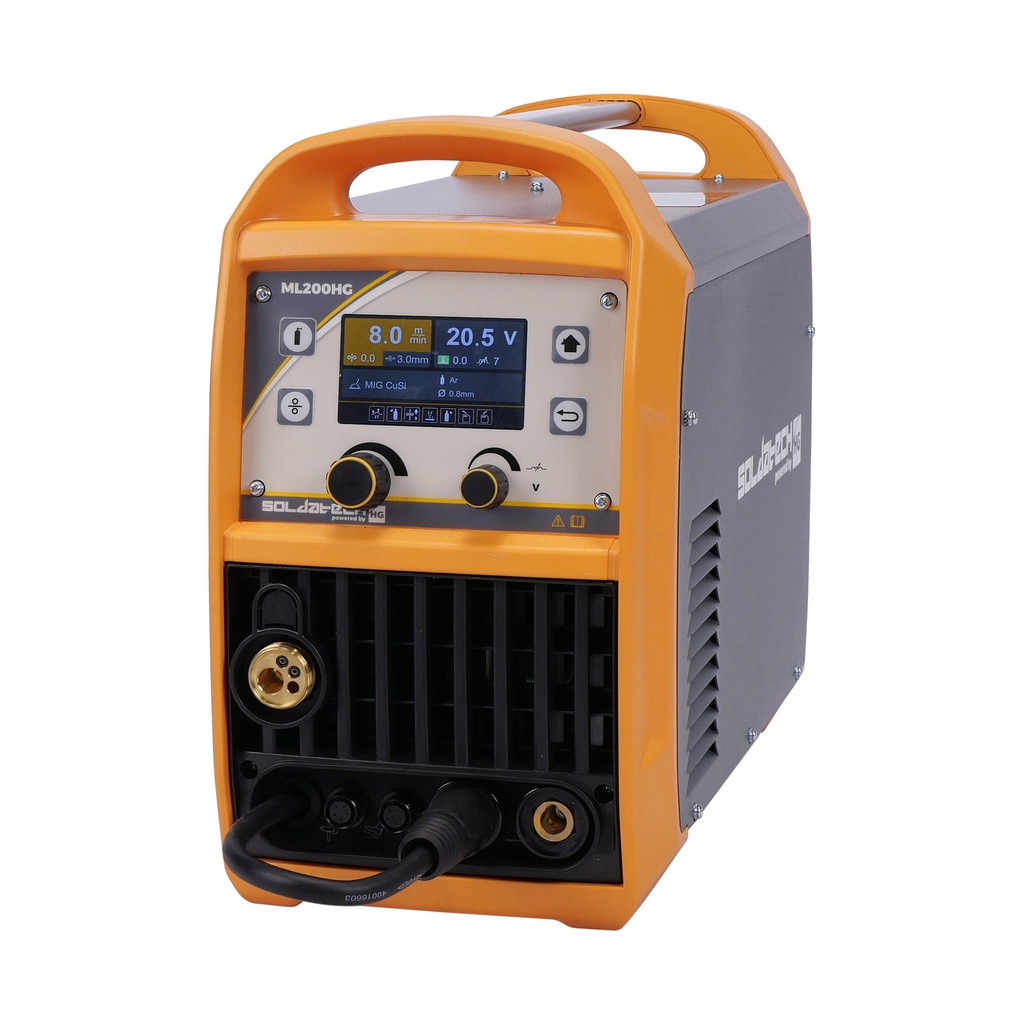

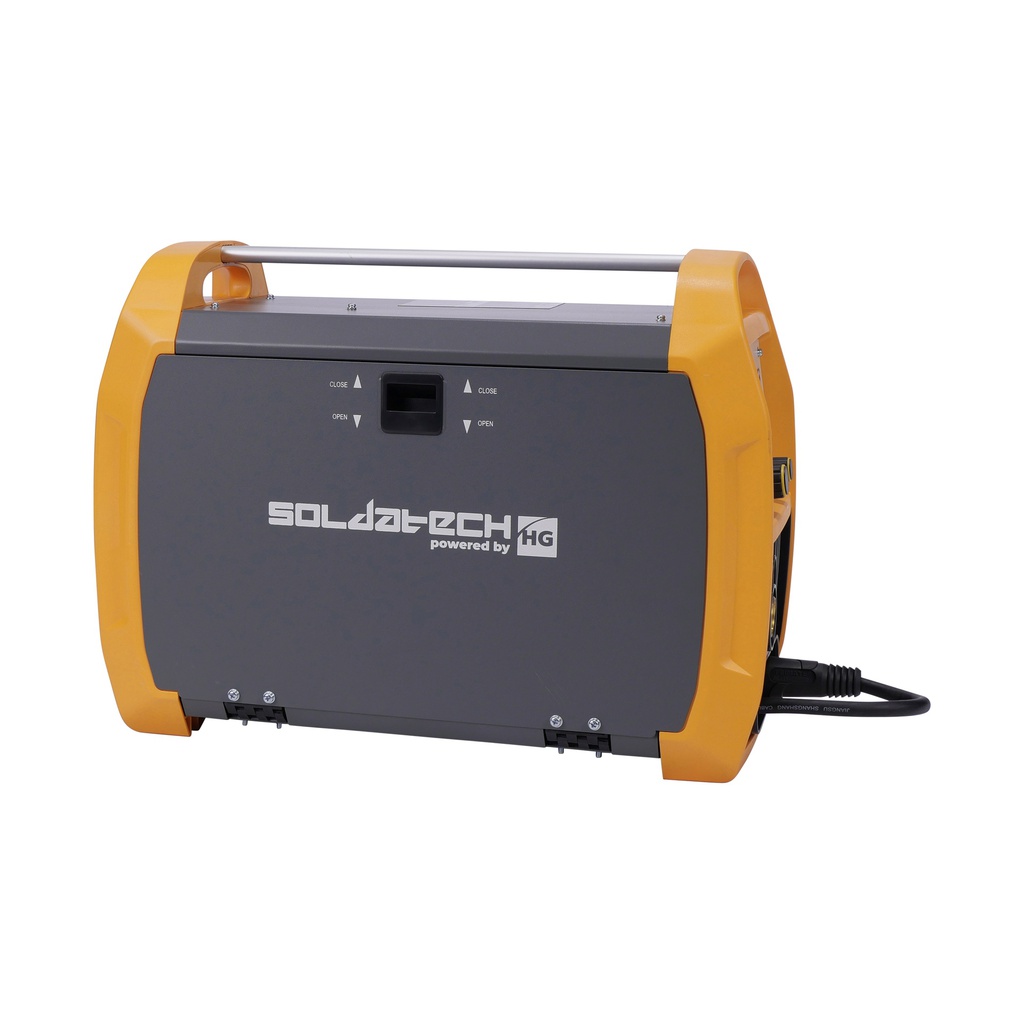

MIG/MAG 200A welding inverter / synergetic inverter / welding machine

This portable Soldatech powered by HG synergistic welding machine makes it possible to perform different welding processes including MIG welding, Lift-TIG and also electrode welding with ease. The wire speed is automatically adjusted to the set amperage, ensuring professional results.

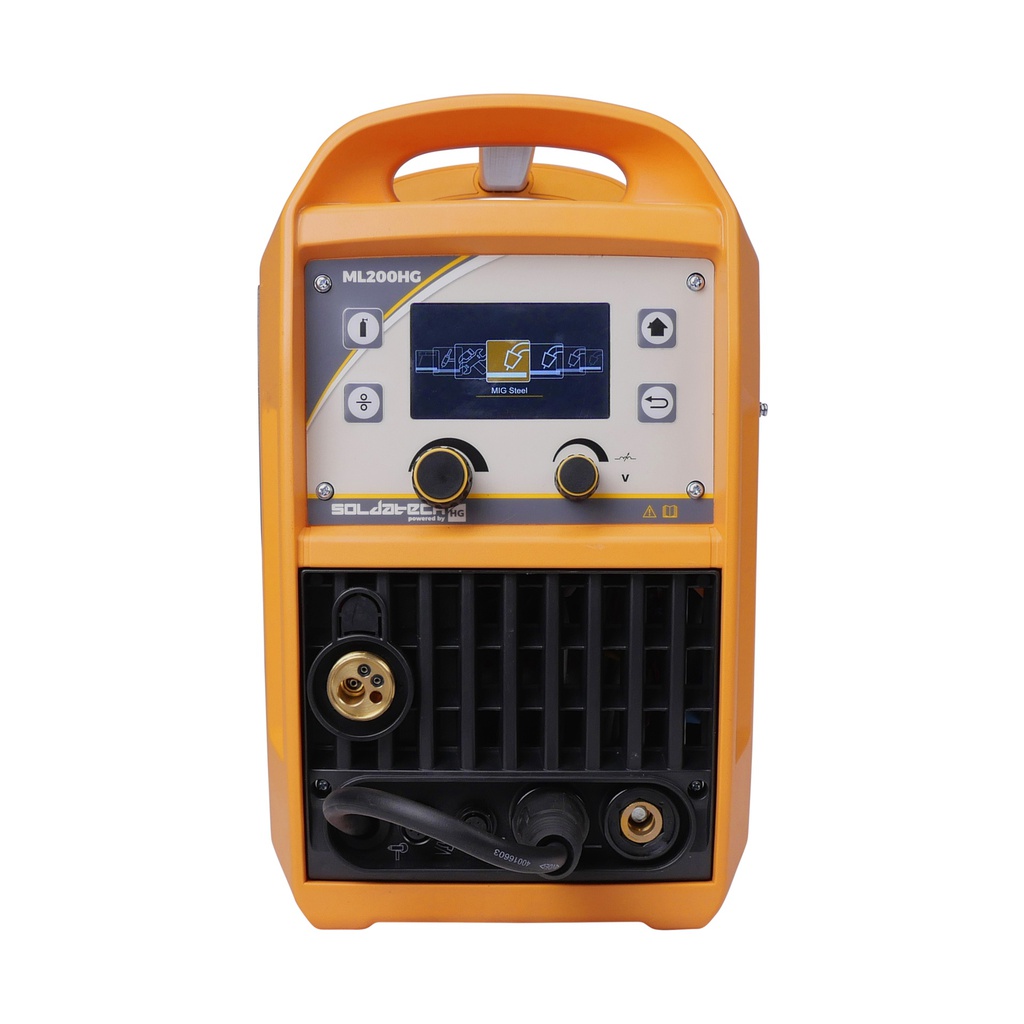

The clear LCD display makes the ML200HG very easy to set up and all welding settings can be easily managed. The applications in the LCD screen and the synergistic properties of the machine make welding with this unit a real pleasure for almost all materials without the need for complicated settings.

With this machine it is possible to braze with CuSi3, the copper-silicon alloy has a lower melting temperature than steel, so that less temperature enters the material to be soldered and there is less chance of deformation of (thin) plates. It is also possible to solder different materials together (eg. aluminum to steel).

The welding torch is also equipped with the latest torch-control technology, making it very easy to adjust the welding machine remotely and even while welding.

The modern IGBT inverter technology ensures that the ML200HG delivers sustainable performance with more power and a very high duty cycle. The ML200HG is also equipped with thermal safety as standard, which in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.

The Soldatech  inverter has a very extensive database that makes it possible to save 5 different programs with welding settings. This makes it easy to manage the ideal settings.

The hot-start/anti-stick function increases the welding current quickly, so that the electrode does not stick to the workpiece during ARC welding.

Ideal for welding stainless steel, carbon steel, low alloy steel, copper and aluminum (MIG).

Each ML200HG comes standard including:

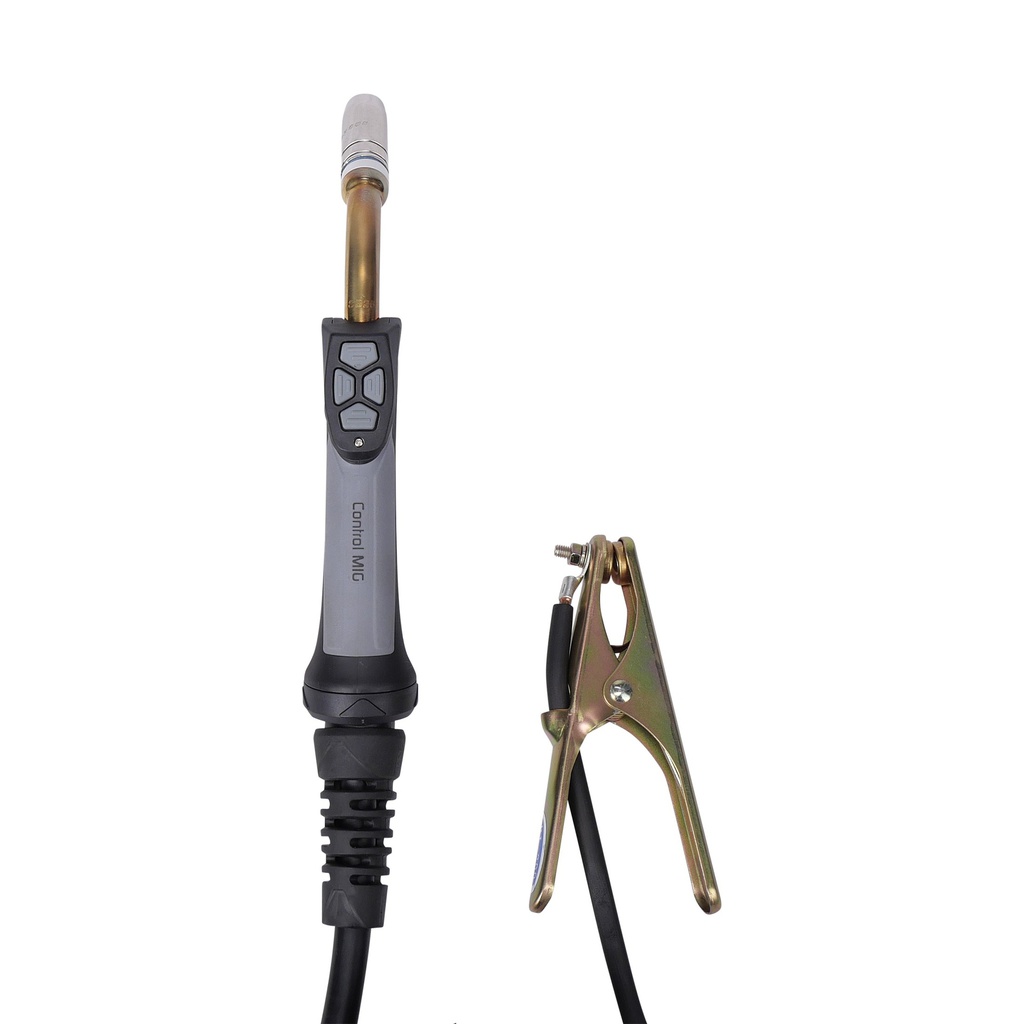

  • Soldatech MLT25M3R remote control MIG torch with Euro connector and 3m cable

  • Twistlock electrode torch with 3m 16mm² cable

  • Welding ground clamp with 2m 16mm² cable

  • Neoprene power cable 2.5m 3x2.5mm²
  • European dinse couplers 13mm

  • Gas line including quick coupling 3m

  • 2x Wire feed roll: 0.6 + 0.8 and 0.8 + 1.0

Technical specifications:

  • voltage = 230V - 1 phase

  • frequency = 50/60Hz

  • circuit breaker = 16A C-char

  • input power = 8.6kVA

  • no load voltage = 69V

  • duty cycle (at 20°C ambient temperature) =  35% - 200A
  • duty cycle (at 40°C ambient temperature) = 20% - 200A
  • welding current range MIG/MAG = 40 - 200A
  • welding current range MMA = 10 - 180A
  • welding current range lift TIG = 10 - 180A
  • weldable welding wire = 0.6 / 0.8 / 1.0 / 1.2mm

  • protection class = IP21S

  • dimensions = 550 x 245 x 405mm

  • weight = 19kg

Product Dimensions:
Product Length 550 mm
Product Width 245 mm
Product Height 405 mm
Product Weight 19.0 Kg
Package Dimensions:
Package Length 700 mm
Package Width 335 mm
Package Height 460 mm
Package Weight 23.70 Kg

  • LCD-display for welding settings

  • Remote control MIG torch

  • High-quality aluminum wire feeder

  • Synergetic

  • 5 years warranty

Specifications

Frequency 50/60 Hz
Voltage 230V - 1 Phase
No load Voltage 69V
Input power 8.6kVA
Circuit breaker 16A C-char
Duty cycle @20C 35% - 200A
Welding current range MIG 40 - 200A / MMA 10 - 180A / TIG 10 - 180A
Duty cycle @40C 20% - 200A
Weldable welding wire 0.6 / 0.8 / 1.0 / 1.2 mm
Protection class IP21S
