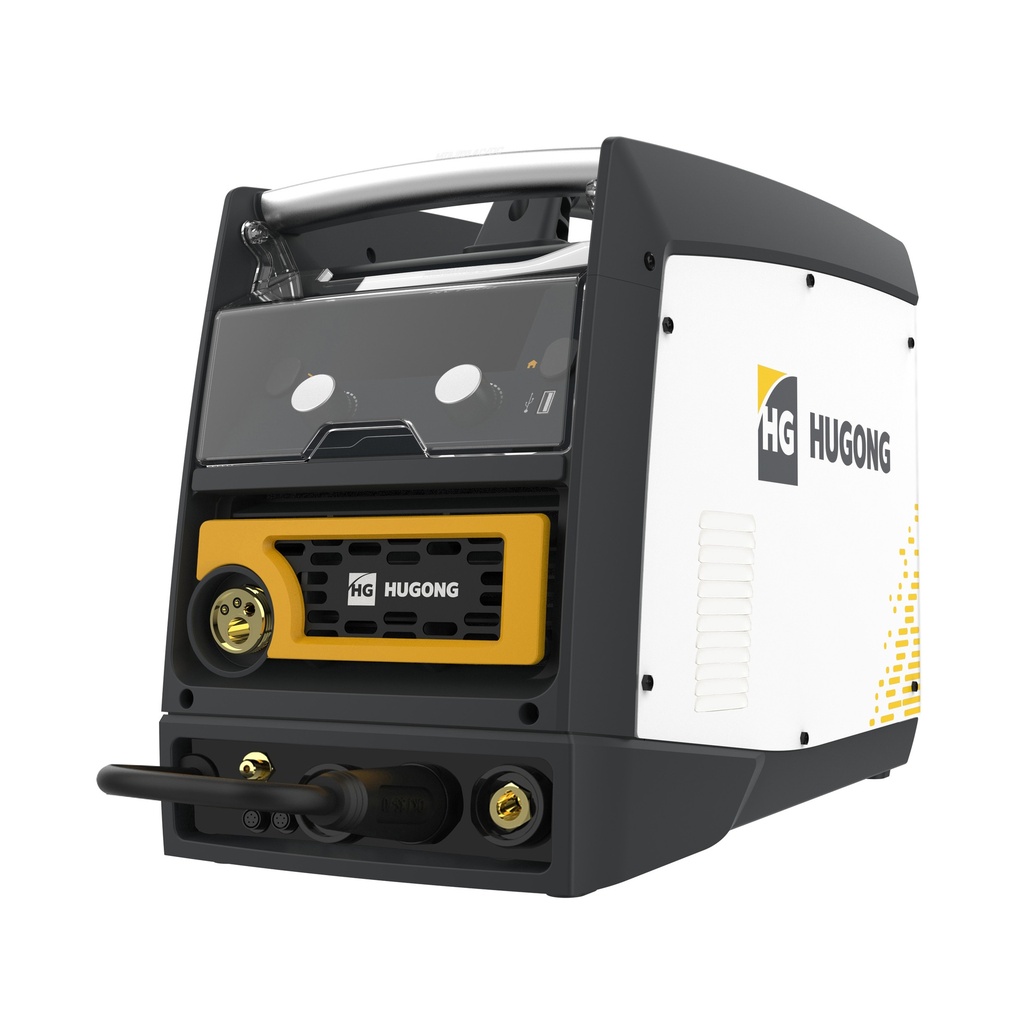

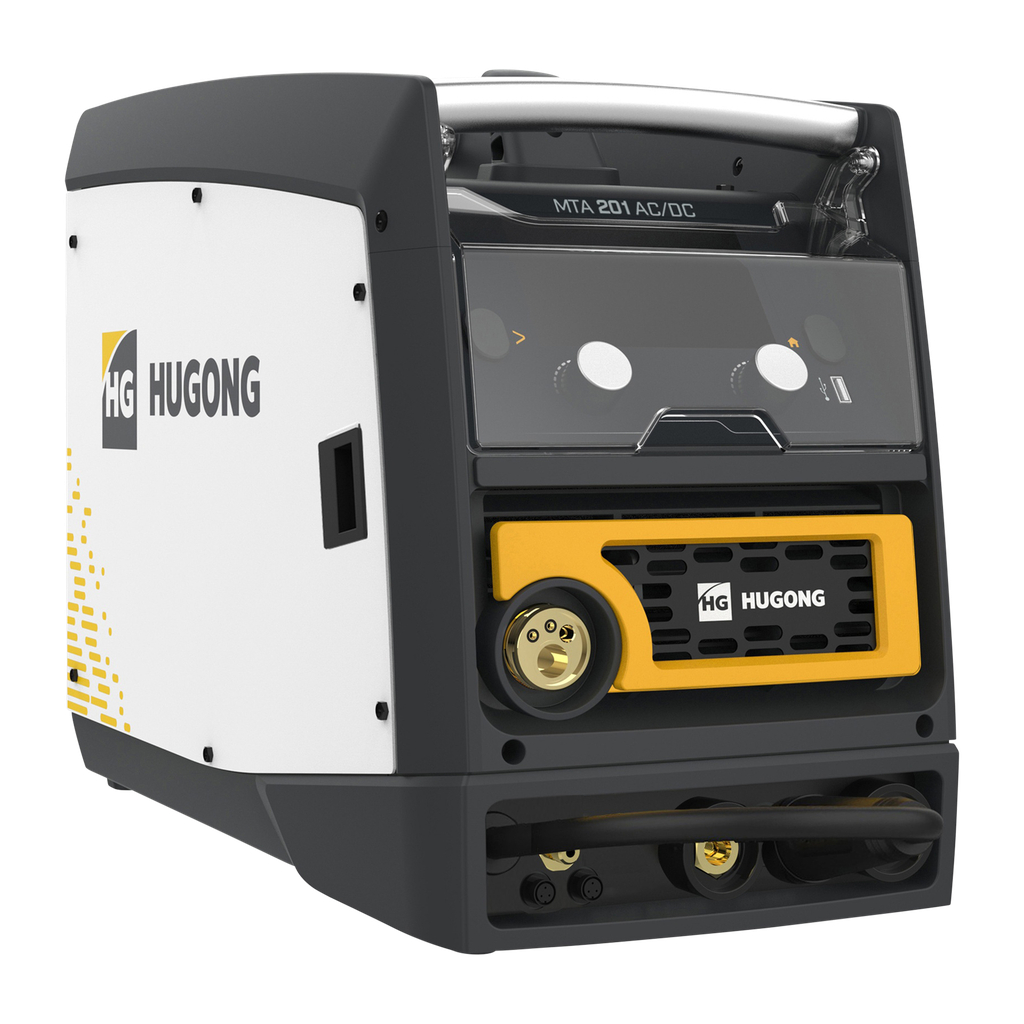

The Hugong MTA201ACDC is an advanced 4-in-1 welding machine from the NOVI series, combining MIG/MAG, AC/DC TIG (HF), and MMA in a portable unit. Powered by a Cortex M4 chip and digital waveform technology, it delivers highly precise welding performance on steel, stainless steel, aluminum, and CuSi. With synergic control, full TIG pulse settings, and a dual-drive MIG wire feeder, this machine is built for professionals seeking versatility and maximum control.
The HDVision interface with a clear LCD screen makes setup quick and intuitive, while its industrial-grade ABS housing and built-in cable storage ensure it’s ready for daily workshop use.
Key features:
- 4-in-1 welding process: MIG / TIG HF AC/DC / MMA
All major processes in one machine – including AC TIG with pulse for aluminum welding.
- HDVision display with synergic control
Smart interface with automatic parameter matching and expert mode with 99 programmable channels.
- 4-roll wire feeder
Ensures steady wire feed even with long welds or aluminium.
- Supports 15 kg wire spools
Longer welding tasks without interruption, ideal for professional and industrial use.
- Shock-resistant ABS housing & 5-year warranty
Rugged casing for protection against impact, dust, and light moisture. Warranty extends to 5 years with online registration.
Supplied with:
- MIG torch MLT15M3 – 3 meters
- TIG torch TLT26M4 – 4 meters
- Ground cable with clamp – 3 meters (16 mm²)
- 4m Ø8mm gas hose with NW5 coupling
- Wire feed rollers: 0.8/0.9V, 0.6/0.8V
- Contact tips: 0.6 mm, 0.8 mm, 0.9 mm, 1.0 mm, 1.2 mm
- Hose clamps: 9 – 16 and 10 – 16 mm
- TIG accessories set
Specifications
| Frequency | 50/60 Hz |
| Voltage | 230V - 1 Phase |
| Rated input current | 27A |
| No load voltage | 70V |
| Duty cycle @40C | 20% - 230A |
| Welding current range | MIG 30 - 230A / MMA 10 - 175A / TIG 10 - 210A |
| Weldable welding wire | MIG wire 0.6 - 0.9 mm / flux core wire 0.8 - 0.9 mm |
| Product Dimensions: | |
|---|---|
| Product Length | 532 mm |
| Product Width | 245 mm |
| Product Height | 382 mm |
| Product Weight | 19.5 Kg |
| Package Dimensions: | |
| Package Length | 590 mm |
| Package Width | 270 mm |
| Package Height | 430 mm |
| Package Weight | 24.50 Kg |
