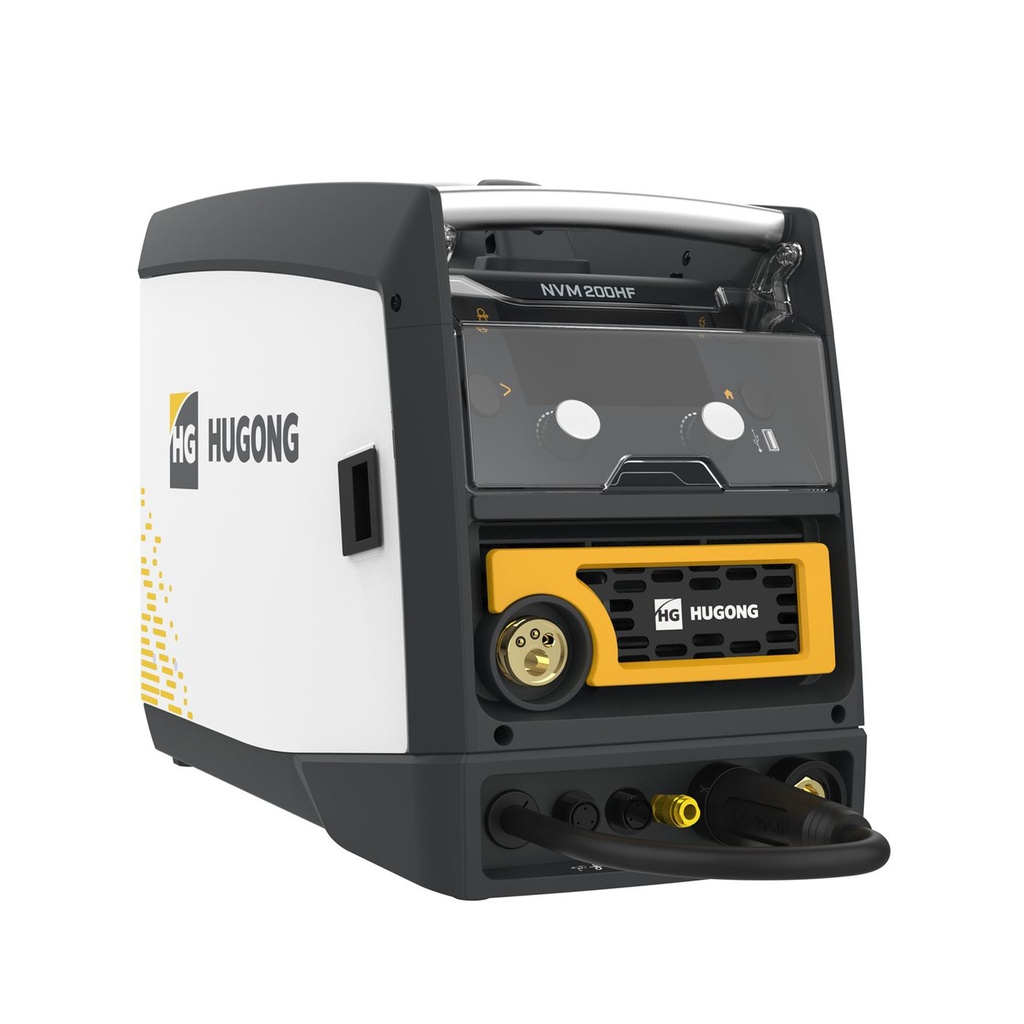

The Hugong NVM200HF is a powerful and versatile 4-in-1 inverter welder from Hugong’s innovative NOVI series. This machine combines robust MIG/MAG performance with high-frequency TIG (HF-TIG) welding capabilities, and also supports Lift-TIG and MMA (stick) welding. It’s an all-in-one solution for welders who demand flexibility, precision, and reliability.
Equipped with Hugong’s HDVision interface and intelligent synergic control, the NVM200HF automatically adjusts welding parameters based on material, wire, and gas selection. One of its standout features is its >99% HF-TIG arc ignition success rate, ensuring smooth, immediate arc starts - even on thin materials or during precision work. The built-in PFC module supports a wide input voltage range from 95V to 275V, making the machine highly stable even on long extension cables or under variable power conditions.
Key feature:
- 4-in-1 welding process: MIG, HF-TIG, Lift-TIG, and MMA
Flexibly usable for various applications, with contactless HF arc start for TIG welding.
- 99% arc ignition success in HF-TIG mode
Reliable, stable arc starts every time, ideal for delicate or detailed TIG welding.
- HDVision display with synergic control
Intuitive digital interface with automatic parameter settings.
- PFC module (Power Factor Correction)
Delivers consistent performance even under fluctuating or low-voltage conditions.
- Shock-resistant ABS housing
The ABS housing provides protection against impacts, dust, and light moisture.
- 5-year warranty
Long-term security thanks to extended factory warranty after online registration.
Supplied with:
- MIG torch MLT15M3 – 3 meters
- Ground clamp with 3-meter cable (16 mm², 35 – 70 quick connector)
- 4-meter gas hose with NW5 connector
- Drive rollers: 0.8 – 1.0 mm (solid) – 2 pcs.
- Contact tips: 0.6 mm, 0.9 mm, 1.0 mm
- 10 – 16 hose clamp
Specifications
| Frequency | 50/60 Hz |
| Voltage | 230V - 1 Phase |
| No load voltage | 69V |
| Rated input current | 36A |
| Duty cycle @20C | 40% - 200A |
| Duty cycle @40C | 20% - 200A |
| Weldable welding wire | 0.8 / 1.0 mm |
| Welding current range | MIG 40 - 200A / MMA 10 - 180A / TIG 10 - 180A |
| Product Dimensions: | |
|---|---|
| Product Length | 532 mm |
| Product Width | 245 mm |
| Product Height | 382 mm |
| Product Weight | 15.2 Kg |
| Package Dimensions: | |
| Package Length | 555 mm |
| Package Width | 305 mm |
| Package Height | 420 mm |
| Package Weight | 17.80 Kg |
