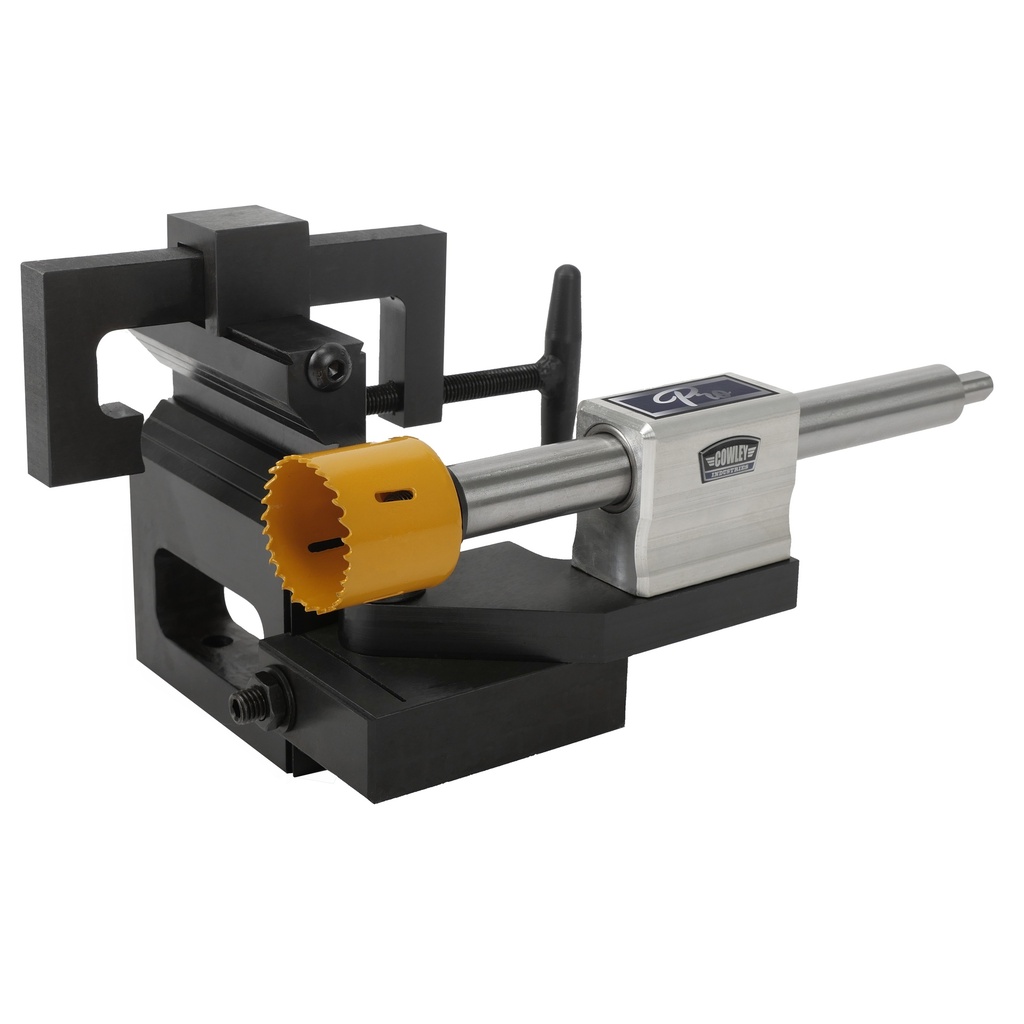

Pipe notcher pro
This professional precision pipe notcher is very suitable for making holes in pipes and tubes at different angles before they are welded.
Easy to mount on a work table and in particular to mount on drill presses.
This professional model features a robust steel frame, 2-axis adjustable pipe clamp, a polished steel drill shaft and double neelde bearings.
The base is height adjustable and rotatable, which makes the notcher very user-friendly in different angles.
Comes with a locking pin for the drill shaft.
The screw thread for the hole saw is M12 x 1,25. With an adaptor this is M16 x 1,50.
- pipe/tube capacity = 3/4" - 3" (19 - 76mm)
- spindle = 3/4" (19mm)
- angle adjustment = 0 - 50 degrees
- chromed steel
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 395 mm |
| Product Width | 200 mm |
| Product Height | 195 mm |
| Product Weight | 9.5 Kg |
| Package Dimensions: | |
| Package Length | 310 mm |
| Package Width | 160 mm |
| Package Height | 14 mm |
| Package Weight | 10.00 Kg |
| Package Type: | |
| 1 Pcs |
