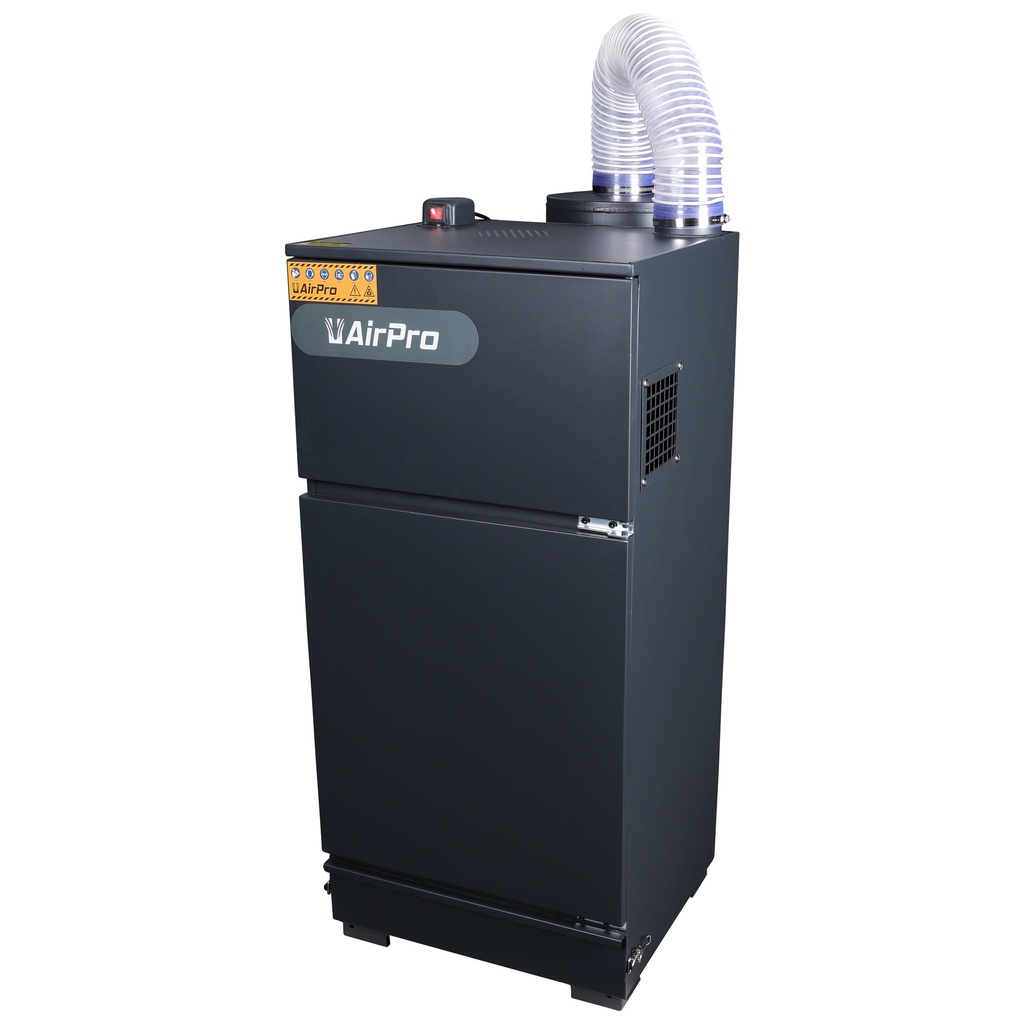

The AirPro cyclone dust extraction unit is designed for dust extraction at sandblasting cabinets and other applications where dry dust particles and fine dust must be removed. Continuous dust extraction supports visibility inside the blasting cabinet and helps to carry out blasting work in a controlled manner.
The construction and filtration are designed as a 2-stage system, in the first stage coarser and heavier particles are separated via cyclone separation, after which a cartridge filter filters the remaining fine dust down to approximately 8 microns. This setup helps to distribute the filter load and maintain stable extraction performance.
Maintenance remains straightforward thanks to the accessible placement of filter components for inspection and replacement. This dust extraction unit delivers an air flow rate of approximately 900 m³/hour and supports the removal of dust and particles during operation.
Key features:
- 2-stage cyclone and cartridge filter
Separates coarse and fine dust particles down to approx. 8 microns.
- Powerful extraction fan
Delivers an air flow rate of approx. 900 m³/hour for effective dust removal.
- Ideal for sandblasting cabinets
Supports visibility inside the cabinet and helps limit dust formation during blasting.
- Universally applicable
Suitable for workshop and industrial applications with dry dust particles.
- Accessible filter construction
Filter components are accessible for inspection, cleaning and replacement.
Specifications
| Power | 550 W |
| Power supply | 230V |
| Current | 2.3A |
| Frequency | 50 Hz |
| Rotation speed | 2820 r/min. |
| Airflow | 900 m³/h |
| Collection capacity | 2.9 kg/h |
| Filtertype | Cartridge filter |
| Filtration rating | 8 µm |
| Noise level | 75 dB |
| IP grade | IP44 |
| Air hose (recommended) | 102 mm |
| Product Dimensions: | |
|---|---|
| Product Length | 870 mm |
| Product Width | 520 mm |
| Product Height | 1,470 mm |
| Product Weight | 60.5 Kg |
| Package Dimensions: | |
| Package Length | 1,200 mm |
| Package Width | 590 mm |
| Package Height | 780 mm |
| Package Weight | 64.50 Kg |
