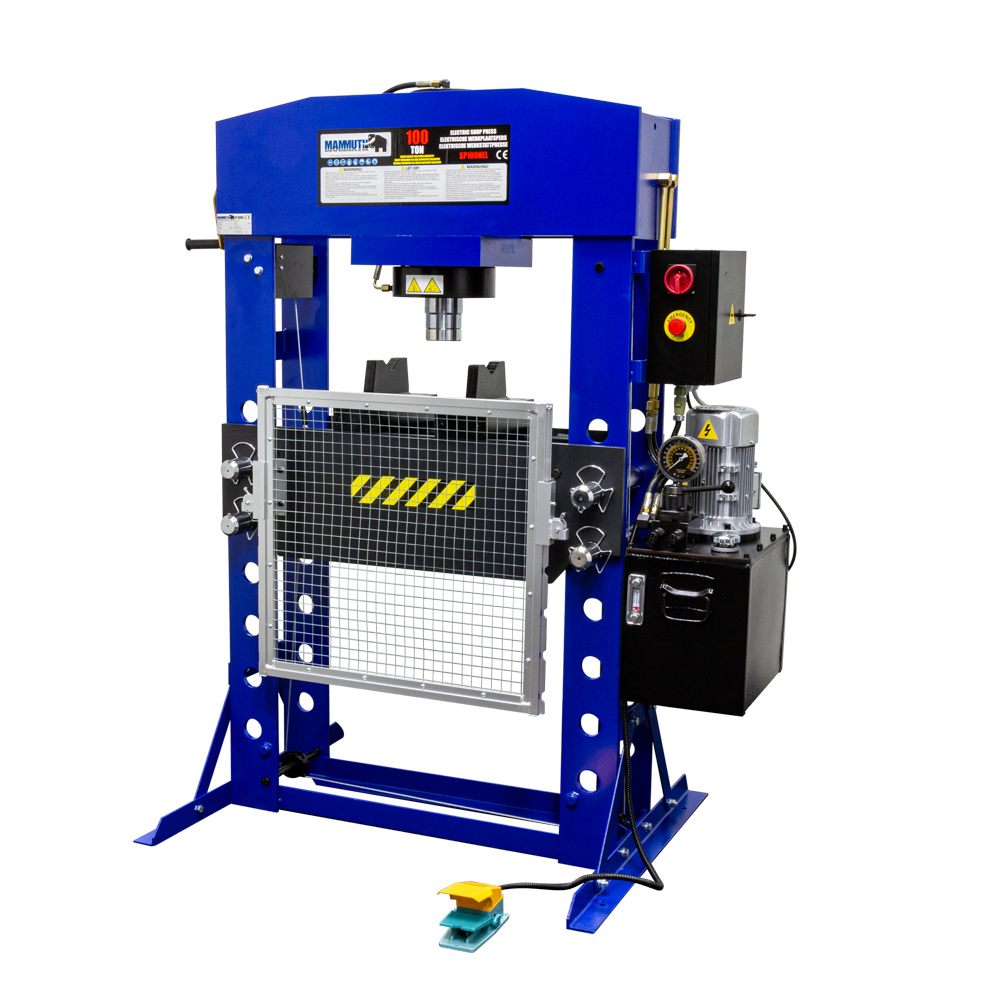

This Mammuth workshop press is a powerful and versatile machine. Thanks to the fully welded frame and electric hand or foot control, this press offers speed, power, and precision. This makes it a reliable choice for any workshop. Supplied with 2 pressing blocks.
- Electric control: Effortless and fast operation.
- Hand winch: Easily position the work table at 8 different heights and the cylinder is adjustable sideways.
- Interchangeable pressing cap: Easily removable for using other attachments.
- Safety screen: Provides extra protection during use.
- Foot pedal: Keeps your hands free.
Note: The press is supplied without CH22 hydraulic oil (24 liters).
Specifications
| Capacity | 100 ton |
| Workbed width | 800 mm |
| Workbed depth | 310 mm |
| Minimum working height | 113 mm |
| Maximum working height | 813 mm |
| Cylinder stroke | 250 mm |
| Cylinder diameter | ø90 mm |
| Voltage | 400V |
| Power | 1.5 kw |
| Motor speed | 1400 rpm |
| Pressing speed (outward) | 2.3 mm/sec |
| Pressing speed (inward) | 3.8 mm/sec |
| Oil capacity | 24 L |
| Oil type | OCH22 |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 1,140 mm |
| Product Width | 800 mm |
| Product Height | 1,860 mm |
| Product Weight | 755.0 Kg |
| Package Dimensions: | |
| Package Length | 1,000 mm |
| Package Width | 2,110 mm |
| Package Height | 1,220 mm |
| Package Weight | 823.00 Kg |
