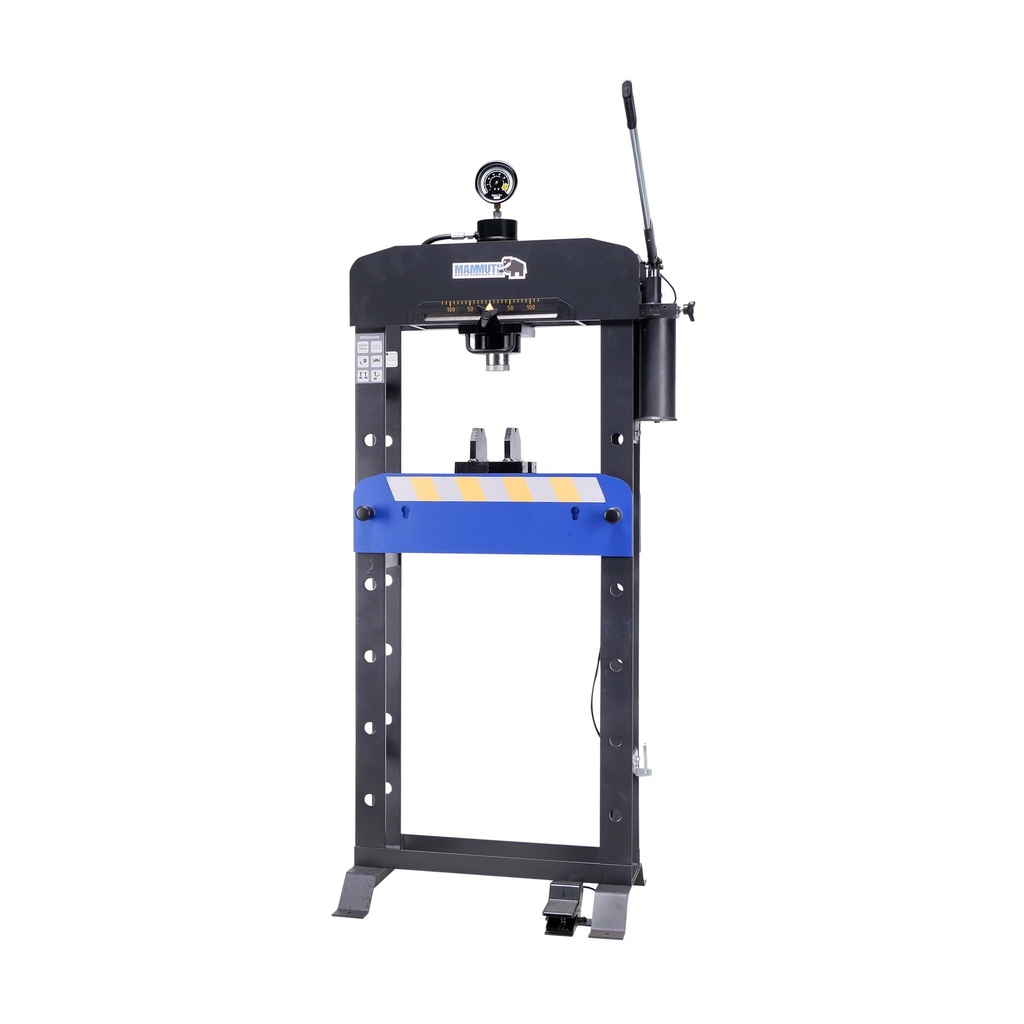

This Mammuth bearing press is ideal for installing bearings, pressing shafts and bolts, and other precise pressing tasks. Thanks to the fully welded frame and smooth operation, this press is a reliable choice for any workshop. The press comes with 2 press blocks.
- Two-stage pump: First fast, then precise pressing.
- Adjustable workbed: Easily secured at 6 different heights.
- Side-adjustable cylinder with scale: For precise positioning.
- Interchangeable press adapter: Easily removable for using other attachments.
-
Pneumatic foot pedal: Effortless operation and keeps your hands free.
Specifications
| Capacity | 30 ton |
| Workbed width | 540 mm |
| Workbed depth | 148 mm |
| Minimum working height | 75 mm |
| Maximum working height | 915 mm |
| Cylinder stroke | 180 mm |
| Cylinder diameter | ø60 mm |
| Working air pressure | 8 - 12 bar |
| Air connection | 1/4 NPT |
| Oil capacity | 1.2 L |
| Oil type | OKCH68 |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 840 mm |
| Product Width | 540 mm |
| Product Height | 1,850 mm |
| Product Weight | 131.0 Kg |
| Package Dimensions: | |
| Package Length | 1,600 mm |
| Package Width | 770 mm |
| Package Height | 330 mm |
| Package Weight | 145.00 Kg |
