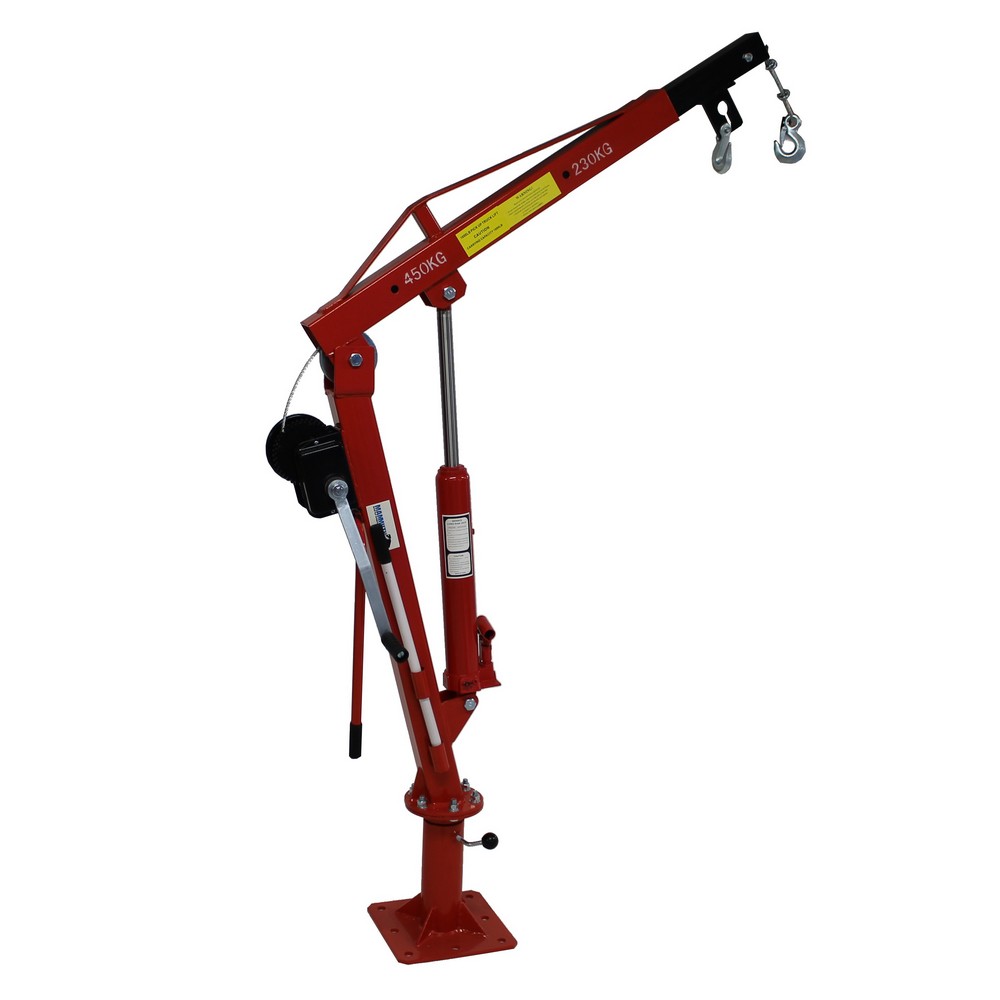

This Mammuth trailer crane with hand winch is a reliable choice for lifting and moving loads up to 450kg. Ideal for mounting on trailers and pick-ups, this crane offers the reliability and power needed for loading and unloading.
- Foldable: Takes up minimal space.
- 360-degree rotation: For maximum flexibility.
- Easy installation: Pre-drilled mounting plate for quick assembly.
- Hand winch: Lifts loads precisely with extra control.
- 2 positions: Choose the right position for every task
Position 1 (230Kg)
Minimum height: 0mm
Maximum height: 2150mm
Arm length: 1290mm
Position 2 (450Kg)
Minimum height: 0mm
Maximum height: 1595mm
Arm length: 870mm
The mounting plate has dimensions of 270x270mm, with a hole-to-hole distance of 205x205mm.
Specifications
| Material | Steel |
| Lifting capacity | 450 kg |
| Oil capacity | 0.51 L |
| Oil type | OKCH68 |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 720 mm |
| Product Width | 270 mm |
| Product Height | 1,450 mm |
| Product Weight | 52.0 Kg |
| Package Dimensions: | |
| Package Length | 1,130 mm |
| Package Width | 280 mm |
| Package Height | 180 mm |
| Package Weight | 53.00 Kg |
