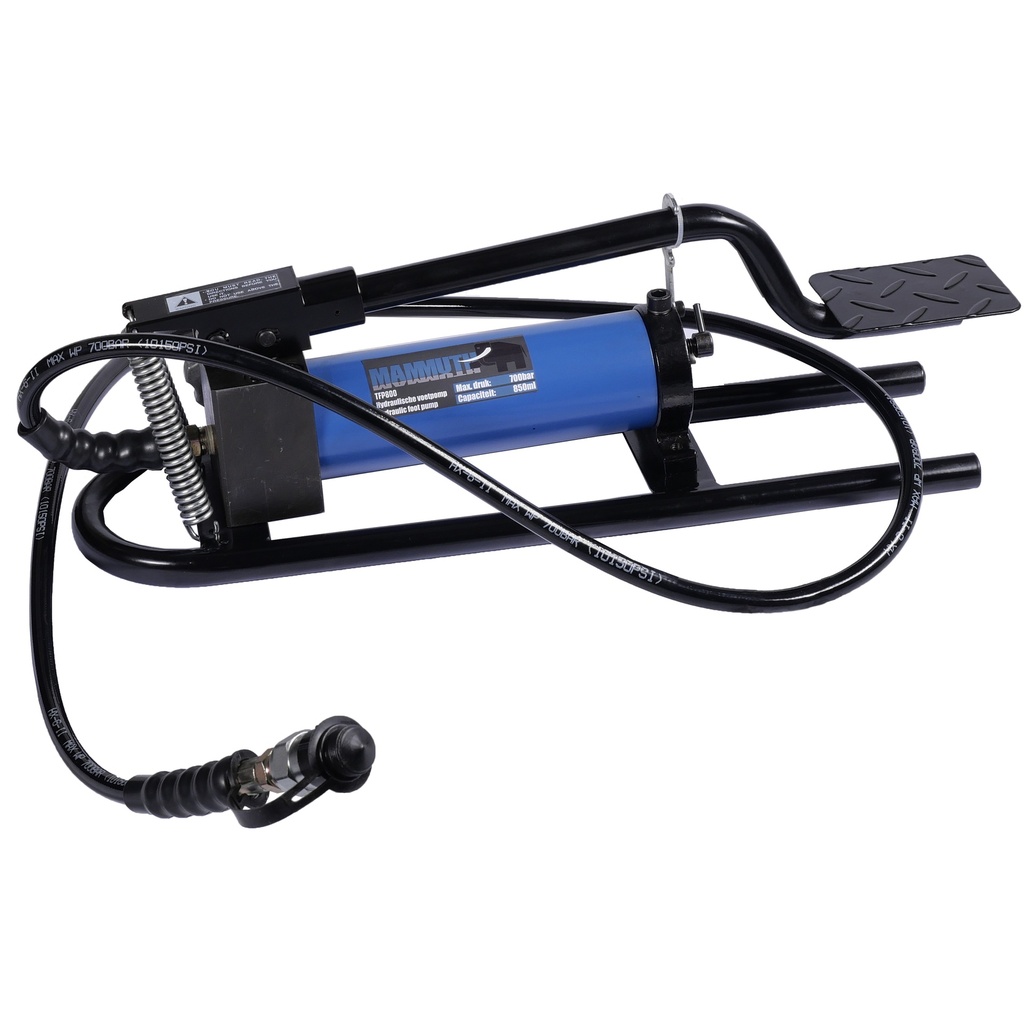

Powerful hydraulic foot-operated pump with dual-stage function for fast and precise operation. Ideal for use with hydraulic tools in workshops or industrial environments.
- Foot operation
Allows hands-free working, giving you full control over the connected tool.
- 700 bar working pressure
Suitable for heavy-duty applications requiring high pressure, such as presses, jacks, and pullers.
- Dual-stage pump
Fast oil delivery at low pressure and precise control at high pressure — efficient and accurate.
- Includes hose and C19M quick coupling
Ready to use straight out of the box with supplied hydraulic hose and universal coupling.
Specifications
| Working pressure max. | 700 bar |
| Oil capacity | 700 cc |
| Pressure low setting | 20 Bar |
| Pressure high setting | 700 Bar |
| Output volume low pressure | 11 ml per stroke |
| Output volume high pressure | 1.4 ml per stroke |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 450 mm |
| Product Width | 150 mm |
| Product Height | 200 mm |
| Product Weight | 13.5 Kg |
| Package Dimensions: | |
| Package Length | 600 mm |
| Package Width | 210 mm |
| Package Height | 235 mm |
| Package Weight | 15.00 Kg |
