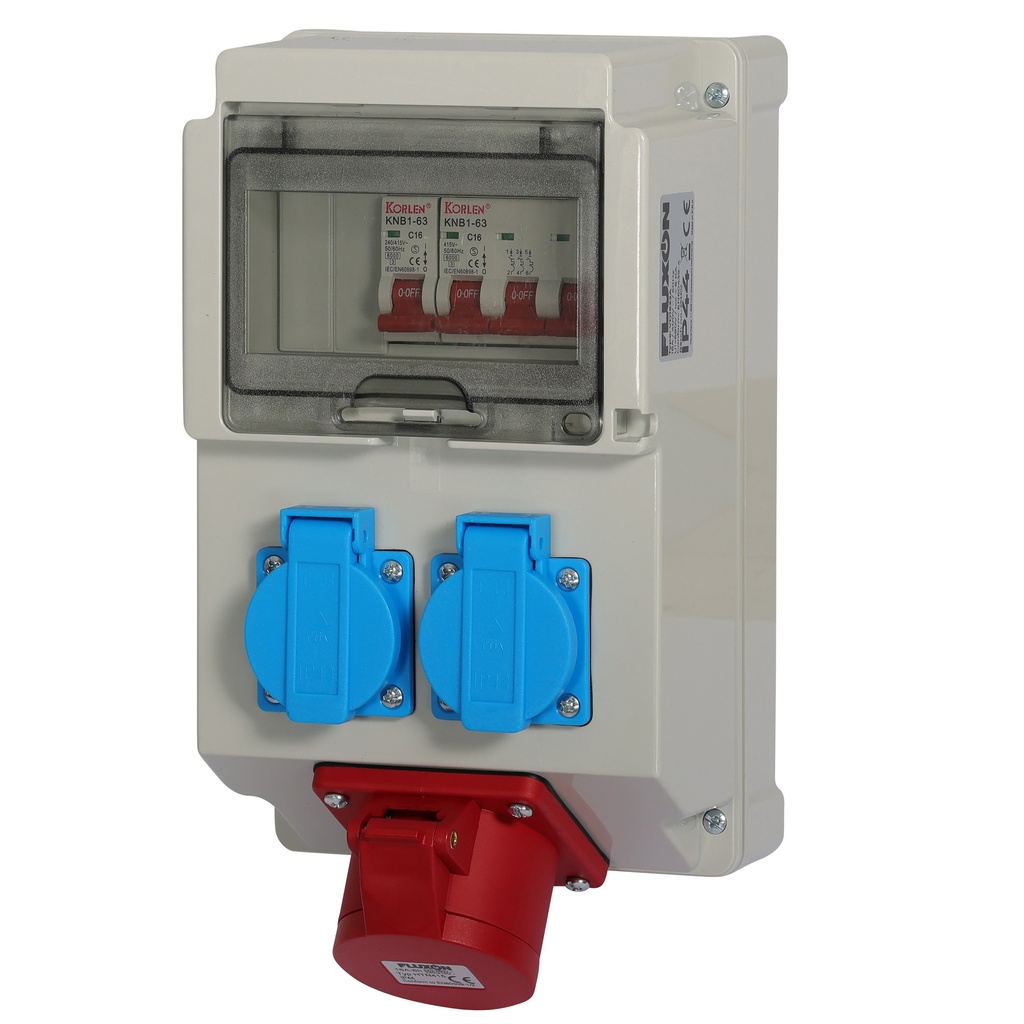

This Fluxon distribution box is designed to safely distribute power in a workshop, garage or small construction project. You connect one 400 V 3-phase input and distribute it to 1× 5-pin 16 A/400 V output and 2× 230 V EU sockets. The enclosure is IP44, IK08 impact resistant and suitable for wall mounting. Ideal for a protected power point for electric vehicles or heavier machines.
The box has a top and bottom entry (M25) and comes with 1× M25 cable gland and 1× M25 sealing plug, allowing flexible placement of the cable entry. All circuits are protected with 16 A breakers (single phase and three phase) and the breakers are built in.
- Built-in automatic breakers
Equipped with internal 16 A protection for both single phase and three phase connections.
- IP44 enclosure
Splash proof and suitable for use in dry workshops, garages and semi-outdoor spaces.
- IK08 impact resistance
Robust enclosure that withstands shocks and daily use.
- Compact and easy to install
Small, convenient distribution box that is easy to mount on the wall.
- Built according to EN 61439-4
Complies with the standard for safe temporary and fixed power distribution.
Specifications
| Input voltage | 3-phase 400V |
| Output voltage | 3-phase 400V & 1-phase 230V |
| Cable connector clamp | M25 (incl. 1× M25 cable gland and 1× M25 blind plug) |
| Output sockets | 230V: 2× EU 2-pin sockets, 16A, 400V: 1× 5-pin CEE, 16A |
| Circuit protection | 1-phase: 16A automatic circuit breaker (MCB), 3-phase: 16A automatic circuit breaker (MCB) |
| Isolation class | IP44 |
| Impact resistance | IK08 |
| Product Dimensions: | |
|---|---|
| Product Length | 155 mm |
| Product Width | 130 mm |
| Product Height | 300 mm |
| Product Weight | 1.48 Kg |
| Package Dimensions: | |
| Package Length | 320 mm |
| Package Width | 175 mm |
| Package Height | 165 mm |
| Package Weight | 1.66 Kg |
