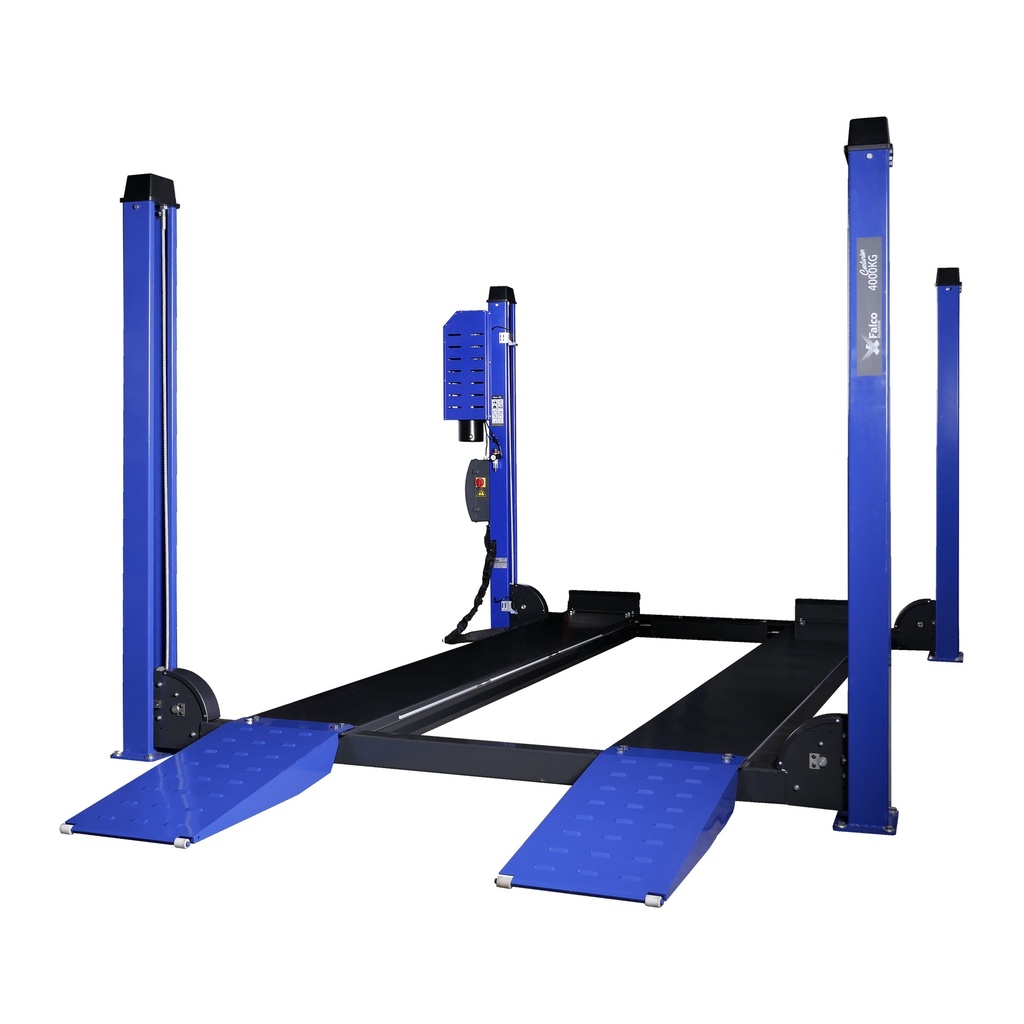

Four post lift 4000kg 4,5m Centurion

four post lift / alignment lift / four column lift / service lift / car lift / runway lift
This Falco Sollevatori four column lift bridge is of high quality and extremely suitable for professional use. At Falco lift bridges, quality and finish come first.
This 4 column lift bridge has the pump unit at the top of the column to save space. The model has a double locking system, which guarantees the safety of persons and equipment.
Thanks to its robust construction and well thought-out design, this 4-column lift bridge is equipped with the following handy features as standard:

• Pneumatic central unlocking
• Produced according to NEN 1493, suitable for APK
• Adjustable driving lanes
• Foot protection by acoustic signal
• Including LED lighting
• Rail for jacking beam installation

Technical specifications:

• capacity = 4000kg
• voltage = 230V / 1 phase
• motor power = 2.2kW
• minimum ramp height = 185mm
• maximum lifting height = 1850mm
• length of the lanes = 4516mm
• width of the lanes = 508mm
• distance between the lanes = 900mm
• passage width / distance between the columns = 2715mm
• height of the columns = 2370mm
• lifting time = +/- 120 seconds
