Gasoline engine hand start 6.5pk shaft size 19,05mm

Brand: Valkenpower

Product Code: YM168F19

EAN: 8720028054145

Availability: Available

https://www.valkenpower.com/web/image/product.template/50754/image_1920?unique=9163beb

€ 217.80 Incl. VAT 217.8 EUR € 217.80

€ 180.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

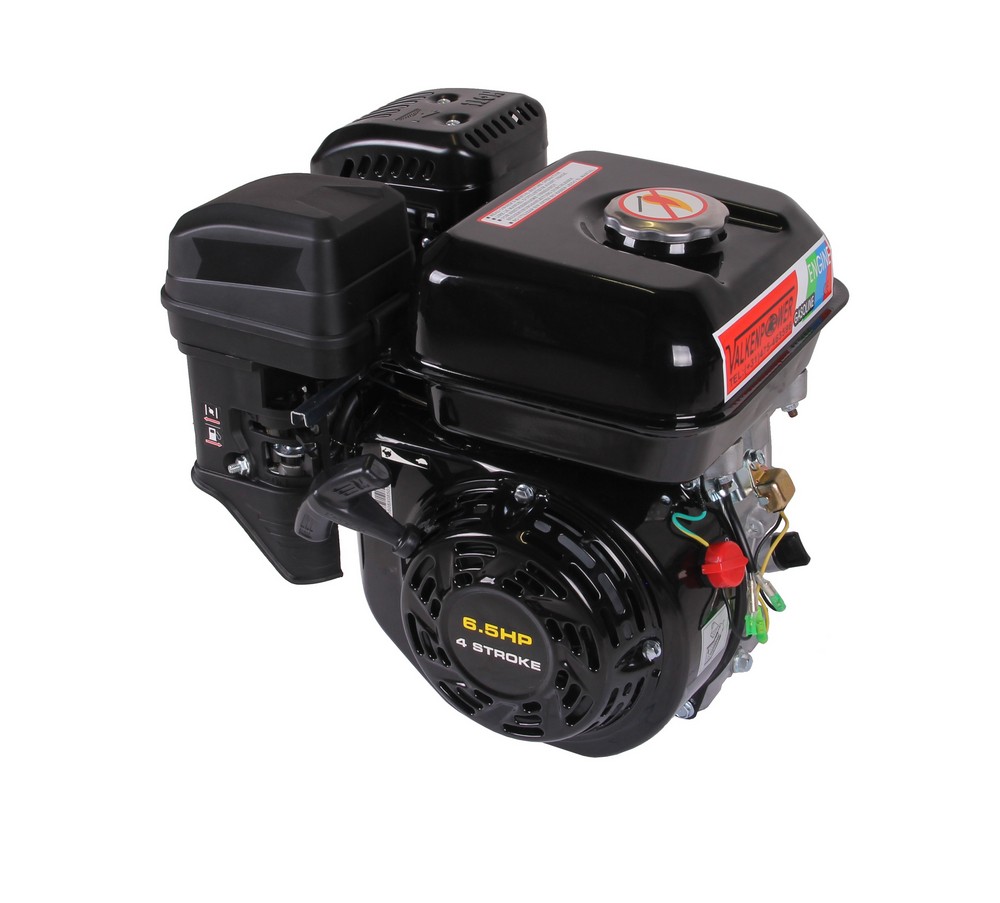

    Gasoline engine hand start

    This gasoline engine is used as a replacement for engines from wsater pumps, industrial and agricultural machinery. The engine starts quickly and is provided with an air filter.

    Technical specifications:

    • engine = OHV petrol engine with horizontal output shaft

    • type = 4-stroke / 1-cylinder

    • bore and stroke = 68 x 54mm

    • shaft size = 19,05mm

    • wedge width = 5mm

    • angle of inclination cylinder = 25 degrees

    • displacement = 196cm³

    • max. power = 4,77kW / 4000rpm

    • max. torque = 13,2Nm / 2500rpm

    • compression ratio = 8,5 : 1

    • oil capacity = 0,6L (SAE10W30)

    • tank capacity = 3,8L (unleaded 95/98)

    • air cooled

    • ignition = TCI

    • PTO rotation = left / anticlockwise

    Product Dimensions:
    Product Length 370 mm
    Product Width 320 mm
    Product Height 335 mm
    Product Weight 14.9 Kg
    Package Dimensions:
    Package Length 400 mm
    Package Width 330 mm
    Package Height 370 mm
    Package Weight 16.50 Kg

    • Oil protection

    • Without reduction
