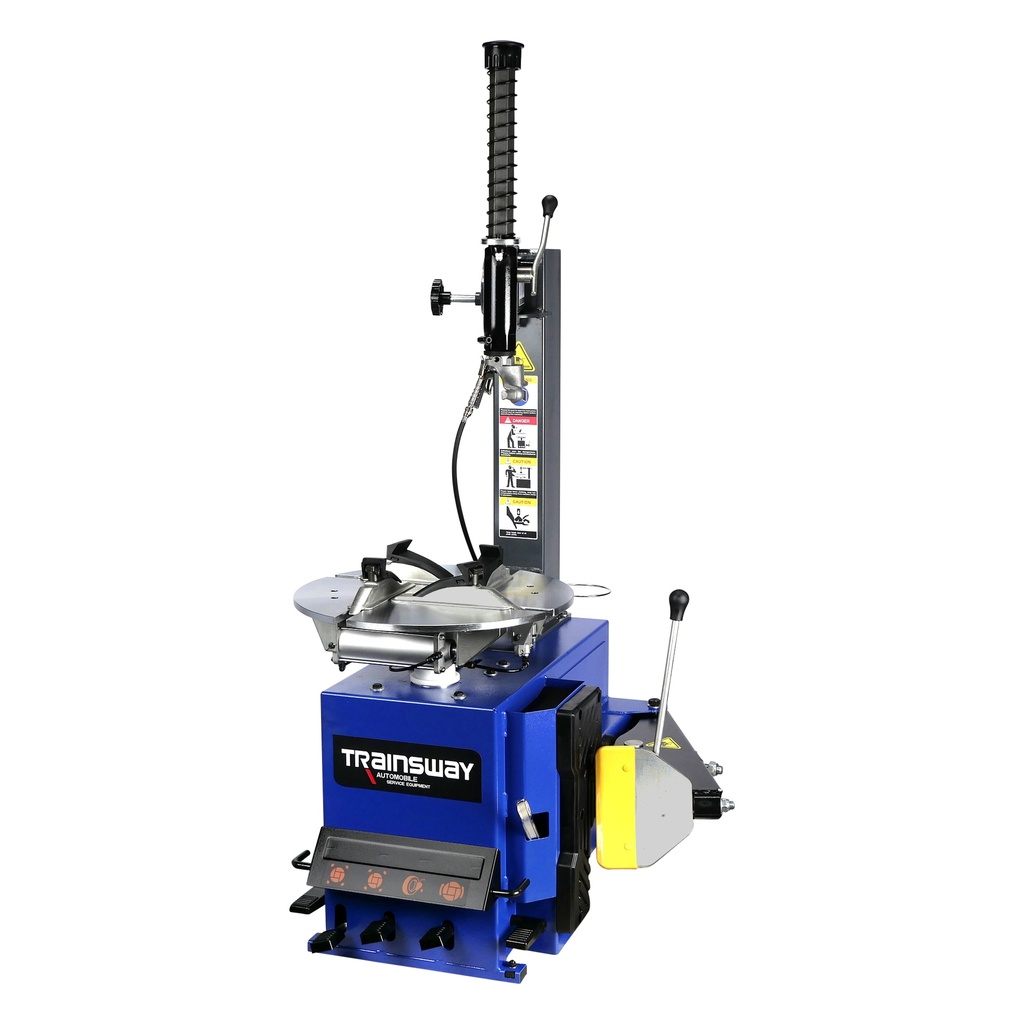

Car tyre changer
A tyre dis-mounting machine suiteable for car tyres as wel as motorcycle tyres. Thanks to it's stable swivel top arm it's
placeable against the wall.
Equipped with a mounting head for aluminum rims!
technical specification
- voltage = 230V
- frequency = 50Hz
- motor Power =
1.1Kw /1.5HP
- phase = 1
- bead breaker force = 2500Kg
- noise level = 75db
- pneumatic supply = 8 - 10bar
- rim clamping outside = 10'' - 18''
- rim clamping inside = 12'' - 22''
- max. wheel diameter = 96cm
- wheel width = 3'' - 11''
- type = ZH620
These machines are CE approved
Various accessories available!
Specifications
| Power supply | 220V / 380V / 110V |
| Frequency | 50 Hz |
| Phases | 1 |
| Bead breaker force | 2500 kg |
| Motor power | 0.75 kW / 1.1 kW |
| Wheel diameter max. | 38" (960 mm) |
| Wheel width max. | 13" (330 mm) |
| Rim clamping outside | 10" - 18" (254 - 457 mm) |
| Rim clamping inside | 12" - 22" (305 - 559 mm) |
| Air pressure | 8 - 10 Bar |
| Noise level | 70 dB |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 0 mm |
| Product Width | 0 mm |
| Product Height | 0 mm |
| Product Weight | 171.0 Kg |
| Package Dimensions: | |
| Package Length | 750 mm |
| Package Width | 970 mm |
| Package Height | 910 mm |
| Package Weight | 189.00 Kg |
| Package Type: | |
| 1 Pcs |
