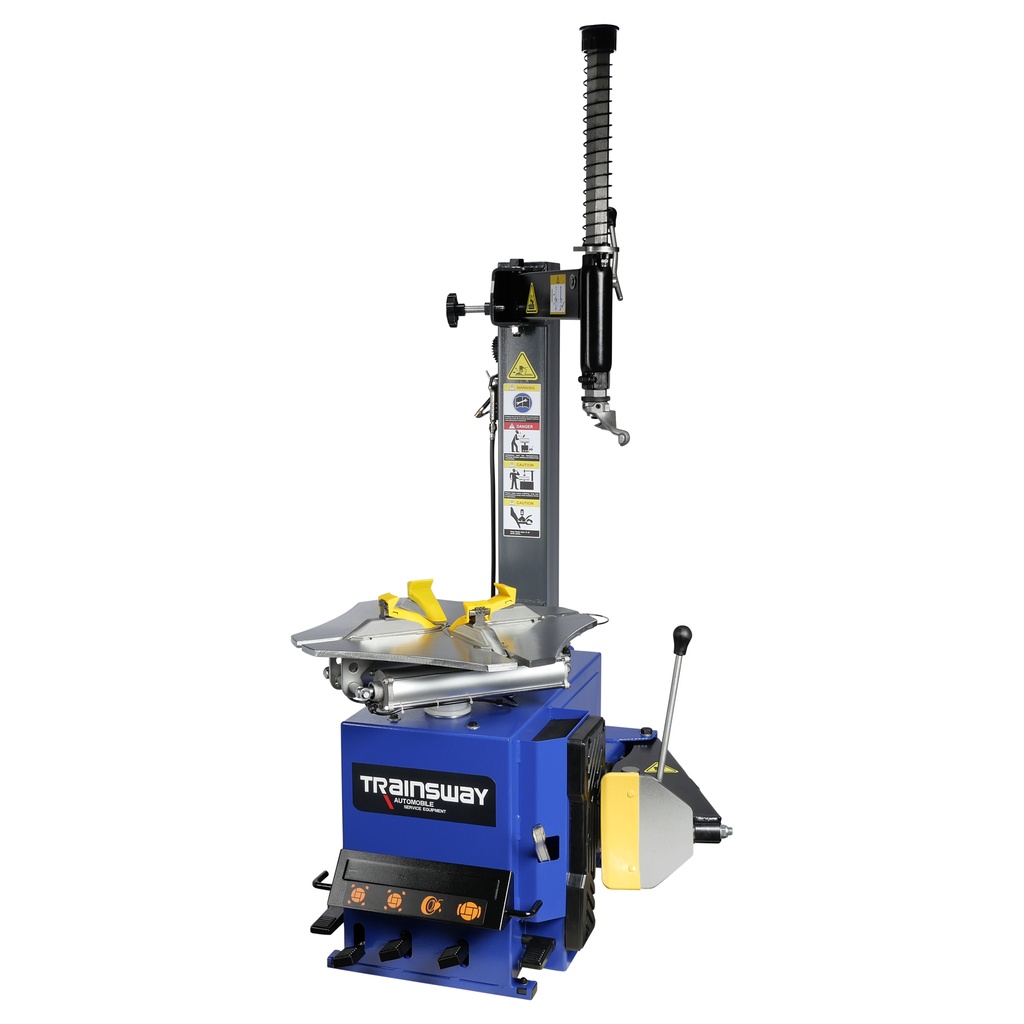

Car tyre changer
A tyre dis-mounting machine suiteable for car tyres as wel as motorcycle tyres. Thanks to it's stable swivel top arm it's
placeable against the wall.
Equipped with a mounting head for aluminum rims!
technical specification
- voltage = 230V
- frequency = 50Hz
- motor Power =
1.1Kw /1.5HP
- phase = 1
- bead breaker force = 2500Kg
- noise level = 75db
- pneumatic supply = 8 - 10bar
- rim clamping outside = 10'' - 21''
- rim clamping inside = 12'' - 24''
- max. wheel diameter =41''(1040mm)
- max. wheel height = 14'' (355mm)
- type = ZH626
These machines are CE approved
Various accessories available!
standart provided accessories :
beading lifting tool, air purifier, gun inflator, locking wedge protector, connector
Specifications
| Rim diameter range | 10" - 24" |
| Tire width max. | 14" (355 mm) |
| Wheel diameter max. | 41" (1040 mm) |
| External clamping range | 10" - 21" (254 - 533 mm) |
| Internal clamping range | 12" - 24" (305 - 610 mm) |
| Working air pressure | 8 - 10 Bar |
| Power supply | 230V |
| Frequency | 50 Hz |
| Motor capacity | 1.1 kW |
| Bead breaker force | 2500 kg |
| Rotation speed | 6 - 8 rpm |
| Mounting head shaft diameter | 30 mm |
| Sound level | 70 dB |
| Product Dimensions: | |
|---|---|
| Product Length | 960 mm |
| Product Width | 1,050 mm |
| Product Height | 1,825 mm |
| Product Weight | 196.0 Kg |
| Package Dimensions: | |
| Package Length | 750 mm |
| Package Width | 970 mm |
| Package Height | 910 mm |
| Package Weight | 202.00 Kg |
| Package Type: | |
| 1 Pcs |
