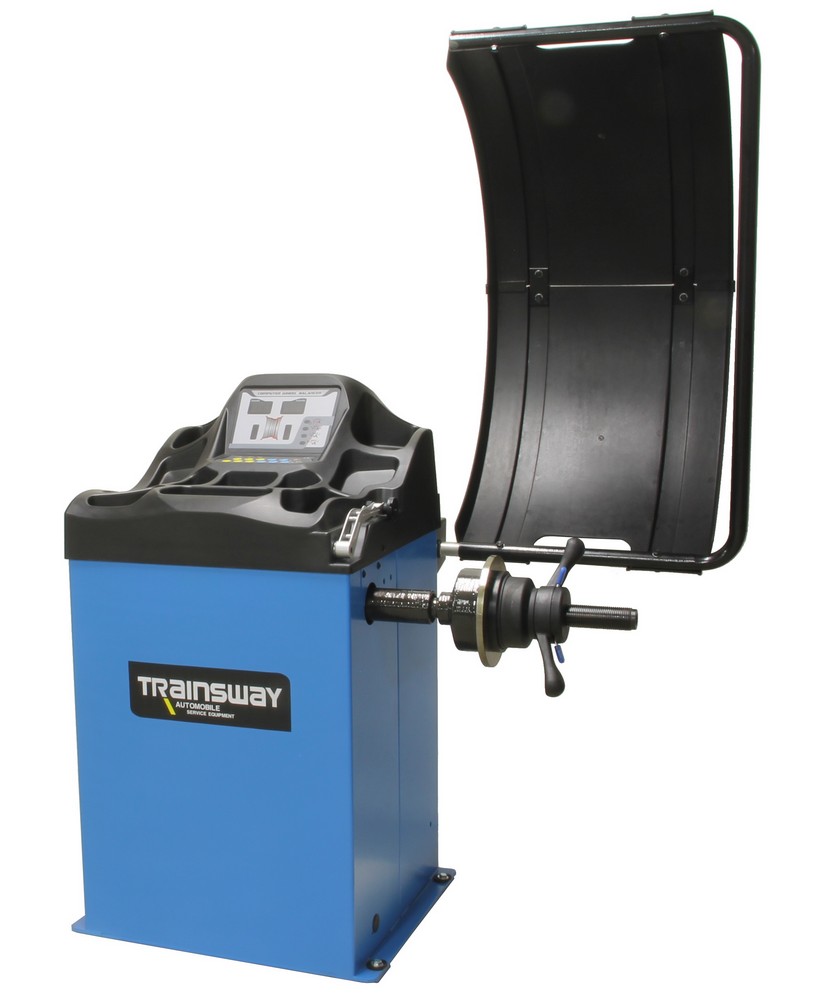

Tire balancer / wheel balancer
This Trainsway wheel balancing machine is suitable for balancing every car wheel and is standart equiped with the following functions:
- balancing program for steel rims
- 4 different alloy programs
- static and dynamic balancing mode
- special alu mode for uncommen rims
- manual wheeldata input
- start/stop function
- selfcalibration modus
- protection hood
Technical specifications:
- max. wheel weight = 65kg
- motor power = 0.2kW / 0.37kW
- power supply = 230V
- balancing accuracy = 1g
- balancing speed = 200rpm
- rim diameter = 10" ~ 24"
- rim width = 1.5" ~ 20"
- type = ZH825B (SBM95)
Max - Min cone size:
- 65mm - 45mm
- 80mm - 55mm
- 110m - 75mm
- 135mm - 95mm
All adapters connect to 36mm axles.
Standard provided accessories:
weightplier, 100gr calibration weight, conicset, rim measuring tool, mounting clamp.
Specifications
| Power supply | 230V / 110V |
| Motor power | 0.2 kW |
| Wheel weight max. | 65 kg |
| Wheel diameter max. | 1000 mm |
| Rim diameter range | 10" - 24" (254 - 610 mm) |
| Rim width range | 1.5" - 17" (38 - 432 mm) |
| Balancing accuracy (car wheels) | 1g |
| Balancing time | 7 sec. |
| Balancing speed | 200 rpm |
| Noise level | 70 dB |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 1,140 mm |
| Product Width | 670 mm |
| Product Height | 1,120 mm |
| Product Weight | 82.0 Kg |
| Package Dimensions: | |
| Package Length | 900 mm |
| Package Width | 560 mm |
| Package Height | 1,150 mm |
| Package Weight | 97.00 Kg |
