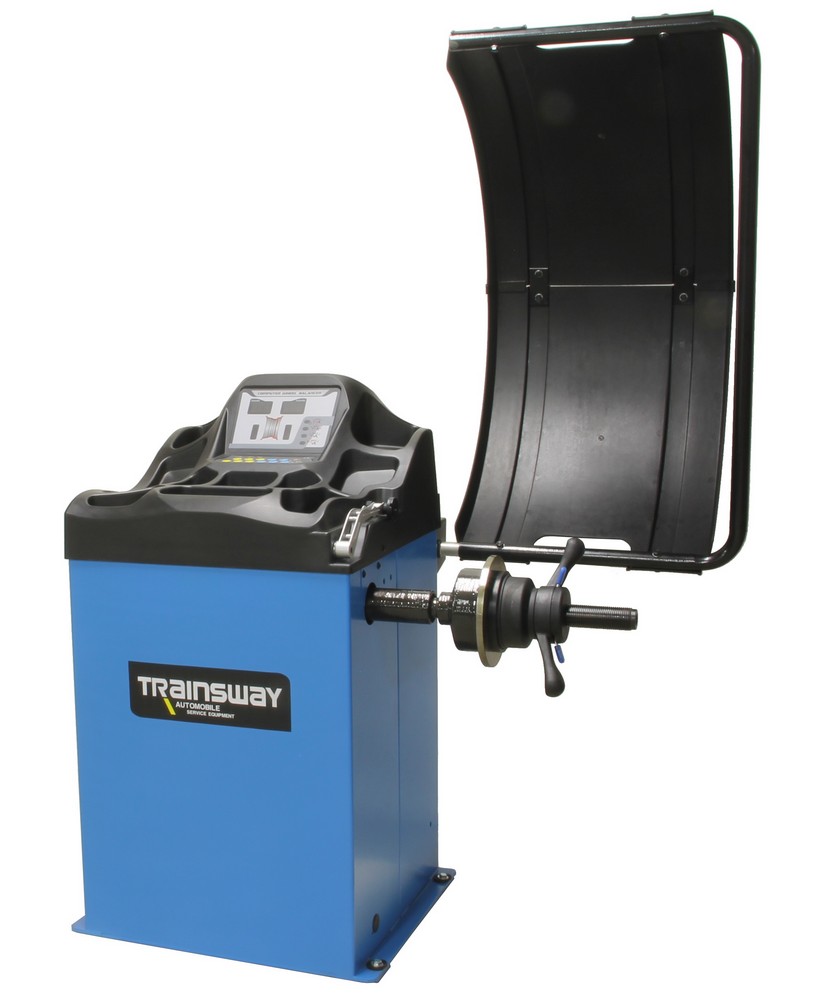

Tire balancer / wheel balancer
This Trainsway wheel balancing machine is suitable for balancing every car wheel and is standart equiped with the following functions:
balancing program for steel rims
4 different alloy programs
static and dynamic balancing mode
special alu mode for uncommen rims
manual wheeldata input
start/stop function
selfcalibration modus
protection hood
Technical specifications:
max. wheel weight = 65kg
motor power = 0.2kW / 0.37kW
power supply = 230V
balancing accuracy = 1g
balancing speed = 200rpm
rim diameter = 10" ~ 24"
rim width = 1.5" ~ 20"
type = ZH825B (SBM95)
Max - Min cone size:
65mm - 45mm
80mm - 55mm
110m - 75mm
135mm - 95mm
All adapters connect to 36mm axles.
Standard provided accessories:
weightplier, 100gr calibration weight, conicset, rim measuring tool, mounting clamp.
Specifications
| Power supply | 230V / 110V |
| Motor power | 0.2 kW |
| Wheel weight max. | 65 kg |
| Wheel diameter max. | 1000 mm |
| Rim diameter range | 10" - 24" (254 - 610 mm) |
| Rim width range | 1.5" - 17" (38 - 432 mm) |
| Balancing accuracy (car wheels) | 1g |
| Balancing time | 7 sec. |
| Balancing speed | 200 rpm |
| Noise level | 70 dB |
| Product Dimensions: | |
|---|---|
| Product Length | 1,140 mm |
| Product Width | 670 mm |
| Product Height | 1,120 mm |
| Product Weight | 82.0 Kg |
| Package Dimensions: | |
| Package Length | 900 mm |
| Package Width | 560 mm |
| Package Height | 1,150 mm |
| Package Weight | 97.00 Kg |
