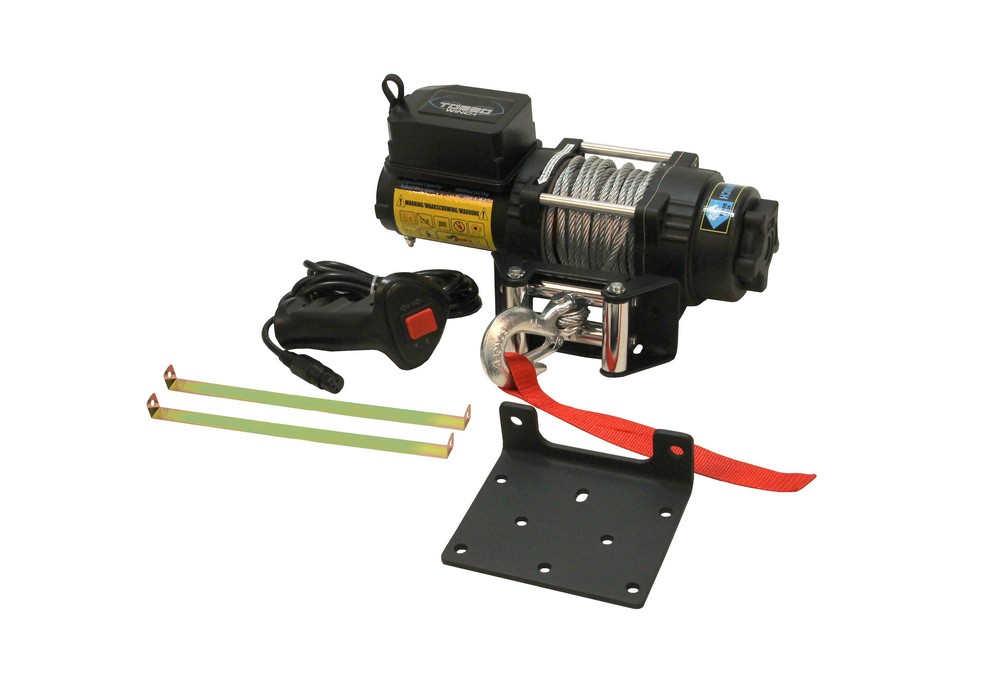

Electric winch 24V 4000lbs [CW04V24] Electric winch 24V 4000lbs
mm mm mm Kg

Car winch / bumperwinch

Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.
Torso winches are standard equiped with the following features:
- 4way fair load roller, for excellent cable mobility.
- control switch, with 3mtrs cable length.
- clevis pinned/latched hook.
- 1.5mtr battery conection cable .
- hand operated clutch for free spooling.
- automatic brake.
- 1.5t pulley block.

Wireless remote optional.

Optional mounting plate, ensures correct mounting of the winch.

The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.

Technical specifications:
- 24V single line
- rated pull = 4000lbs (1800kg)
- gear reduction ratio = 198:1
- Serie-wound motor = 24V 1.6HP
- drum size = 50x76,5mm
- cable length = 10m
- cable diameter = 6mm
- line pull = 0kg, 454kg, 907kg, 1800kg
- line speed = 4.9mpm, 3.2mpm, 2.8mpm, 1.5mpm
- amp draw = 17A, 70A, 105A, 180A
- layer of cable = 1, 2, 3, 4
- pull per layer = 1800kg, 1460kg, 1225kg, 1055kg
- cap per layer = 2m, 4.3m, 7.2m, 10m
- mounting dimensions heart to heart = 125 x 75mm

4x4 / Winches / Car winches / Electric winches 24V Torso CW04V24 8720028081738
€ 199.65 Incl. VAT https://schema.org/InStock
€ 199.65 199.65 EUR
Electric winch 24V 15000lbs [CW15V24] Electric winch 24V 15000lbs
mm mm mm Kg

Car winch / bumperwinch

Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.
Torso winches are standard equiped with the following features:
- 4way fair load roller, for excellent cable mobility.
- control switch, with 3mtrs cable length.
- clevis pinned/latched hook.
- 1.5mtr battery conection cable .
- hand operated clutch for free spooling.
- automatic brake.

Wireless remote optional.

Optional mounting plate, ensures correct mounting of the winch.

The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.

Technical specifications:
- 24V single line
- rated pull = 15000lbs (6804kg)
- gear reduction ratio = 262:1
- Serie-wound motor = 24V 6.8HP
- drum size = 76x224mm
- cable length = 25m
- cable diameter = 11mm
- line pull = 0kg, 907kg, 1814kg, 3629kg, 6804kg
- line speed = 6mpm, 3.1mpm, 2.6mpm, 2.4mpm, 1.2mpm
- amp draw = 70A, 150A, 200A, 250A, 420A
- layer of cable = 1, 2, 3, 4
- pull per layer = 6804kg, 5806kg, 4990kg, 4445kg
- cap per layer = 4.6m, 10.7m, 18.2m, 28m
- mounting dimensions heart to heart = 255 x 115mm

4x4 / Winches / Car winches / Electric winches 24V Torso CW15V24 8720028081592
€ 665.50 Incl. VAT https://schema.org/InStock
€ 665.50 665.5 EUR
Electric winch 24V 12000lbs [CW12V24] Electric winch 24V 12000lbs
mm mm mm Kg

Car winch / bumperwinch

Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.
Torso winches are standard equiped with the following features:
- 4way fair load roller, for excellent cable mobility.
- control switch, with 3mtrs cable length.
- clevis pinned/latched hook.
- 1.5mtr battery conection cable .
- hand operated clutch for free spooling.
- automatic brake.
- 1.5t pulley block.

Wireless remote optional.

Optional mounting plate, ensures correct mounting of the winch.

The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.

Technical specification:
- rated line pull = 12000Lbs / 5443Kgs
- motor: series wound = 24V: input: 5.4Kw/7.2HP output: 2.7Kw/3.6HP
- gear reduction ratio = 230:1
- cable (dia. x L) = 10.2mm x 25.5mm
- drum size (dia. x L) = 63mm x 226mm
- mounting dimensions heart to heart = 255 x 115mm

4x4 / Winches / Car winches / Electric winches 24V Torso CW12V24 8720028081646
€ 514.25 Incl. VAT https://schema.org/InStock
€ 514.25 514.25 EUR

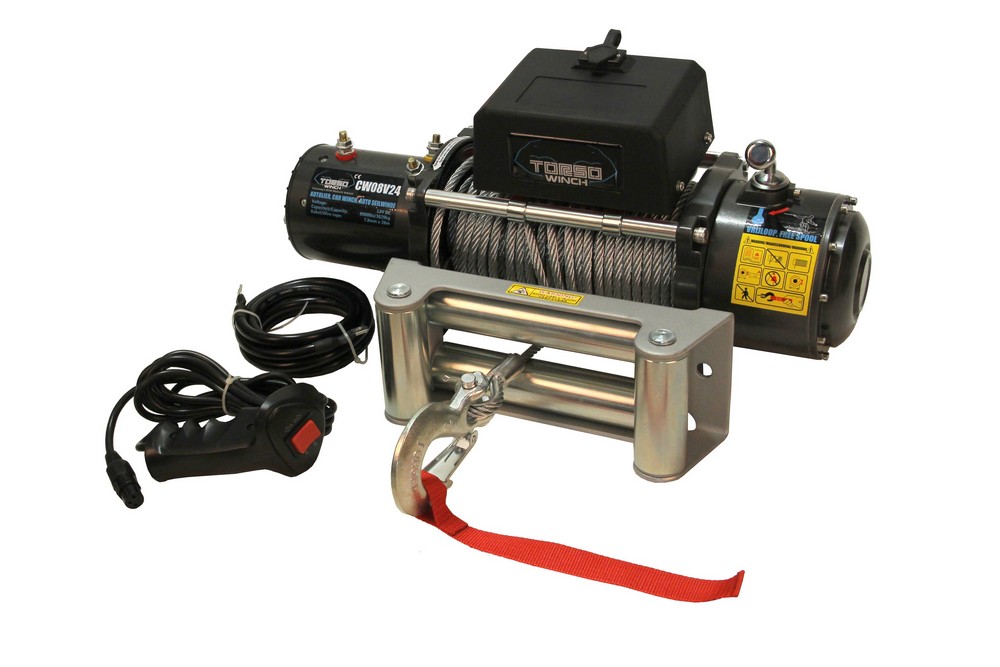

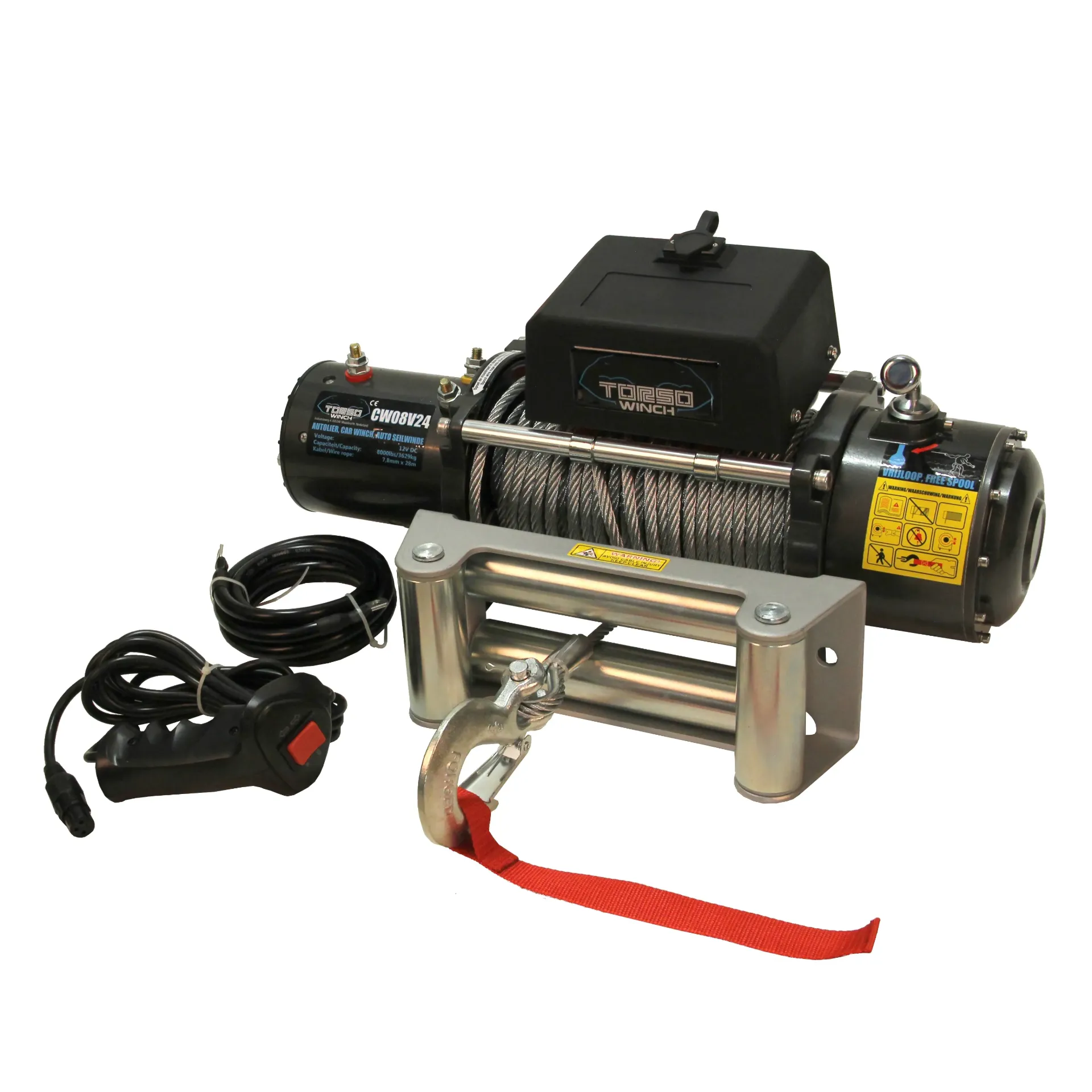

Electric winch 24V 8000lbs [CW08V24] Electric winch 24V 8000lbs
mm mm mm Kg

Car winch / bumperwinch

Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.
Torso winches are standard equiped with the following features:
- 4way fair load roller, for excellent cable mobility.
- control switch, with 3mtrs cable length.
- clevis pinned/latched hook.
- 1.5mtr battery conection cable .
- hand operated clutch for free spooling.
- automatic brake.
- 1.5t pulley block.

Wireless remote optional.

Optional mounting plate, ensures correct mounting of the winch.

The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.

Technical specifications:
- 24V single line
- rated pull = 8000lbs (3600kg)
- gear reduction ratio = 218:1
- Serie-wound motor = 24V 5.5HP
- drum size = 63.5x224mm
- cable length = 28m
- cable diameter = 7.8mm
- line pull = 0kg, 907kg, 1814kg, 2722kg, 3600kg
- line speed = 7.8mpm, 4.88mpm, 3.63mpm, 2.98mpm, 2.44mpm
- amp draw = 80A, 130A, 180A, 230A, 290A
- layer of cable = 1, 2, 3, 4
- pull per layer = 3600kg, 3012kg, 2540kg, 2177kg
- cap per layer = 6m, 13.2m, 22m, 28m
- mounting dimensions heart to heart = 255 x 115mm

4x4 / Winches / Car winches / Electric winches 24V Torso CW08V24 8720028064359
€ 423.50 Incl. VAT https://schema.org/InStock
€ 423.50 423.5 EUR

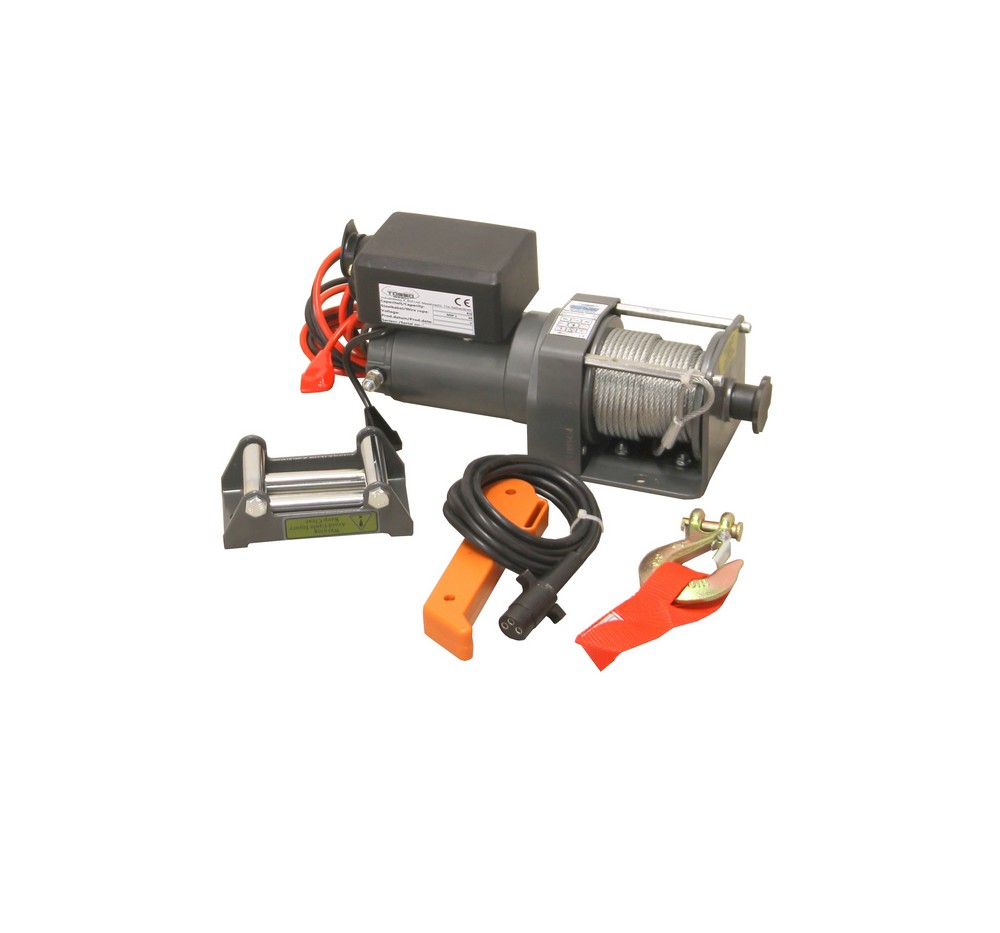

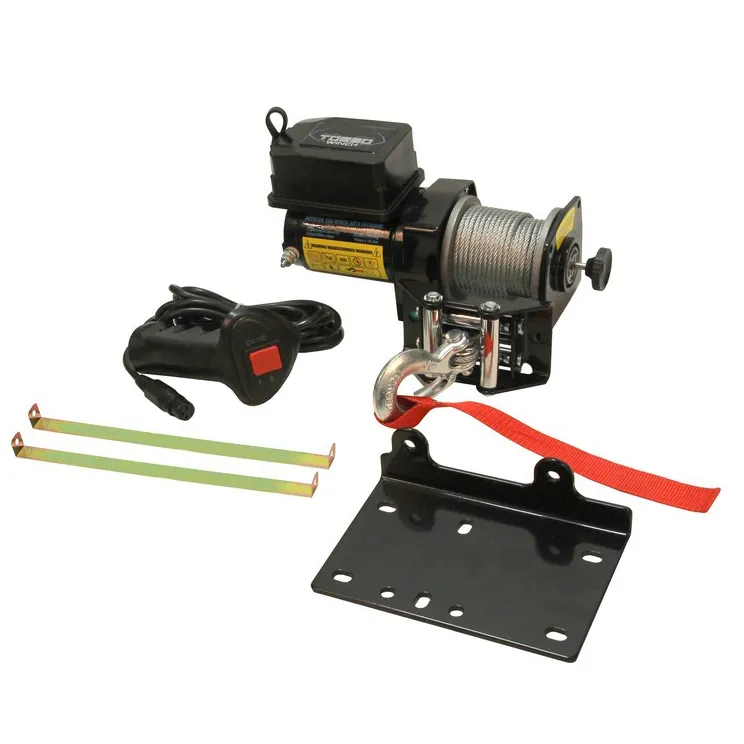

Electric winch 24V 2000lbs [CW02V24] Electric winch 24V 2000lbs
mm mm mm Kg

Car winch / bumperwinch

Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.
Torso winches are standard equiped with the following features:
- 4way fair load roller, for excellent cable mobility.
- mounting plate, ensures correct mounting of the winch.
- control switch, with 3mtrs cable length.
- clevis pinned/latched hook.
- 1.5mtr battery conection cable .
- hand operated clutch for free spooling.
- automatic brake.
- 1.5t pulley block.
- mounting dimensions heart to heart = 125 x 75mm

Wireless remote optional.

The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.

Technical specification:
- rated pull = 900Kg / 2000lbs
- reduction ratio = 153:1
- voltage = 24V

(not suitable to pull up cars, for this we advise a minimum of 8000lbs / 3600kg)

4x4 / Winches / Car winches / Electric winches 24V Torso CW02V24 8720028081769
€ 114.95 Incl. VAT https://schema.org/InStock
€ 114.95 114.95 EUR
