Air compressor silent This Zion Air silent compressor has got a PKZ safety switch, copper wiring for better durability and star delta. - power = 7,5kw / 10pk - voltage = 400V - air flow = 900lpm - pressure = 8bar - noise level = 85dBa 2 year warranty Spare parts such as seal kits and filters are seperately available.
Air compressor silent This Zion Air silent compressor has got a PKZ safety switch, copper wiring for better durability and star delta. - power = 7,5kw / 10pk - voltage = 400V - air flow = 800lpm - pressure = 12bar - noise level = 85dBa @ 7m 2 year warranty Spare parts such as seal kits and filters are seperately available.
Air compressor silent This Zion Air silent compressor has got a PKZ safety switch, copper wiring for better durability and star delta. - power = 5,5kw / 7,5pk - voltage = 400V - air flow = 670lpm - pressure = 8bar - noise level = 85dBa @ 7m 2 year warranty Spare parts such as seal kits and filters are seperately available.
Air compressor silent This Zion Air silent compressor has got a PKZ safety switch, copper wiring for better durability and star delta. - power = 5,5kw / 7,5pk - voltage = 400V - air flow = 600lpm - pressure = 12,5bar- sound level = 85dB @ 7m 2 year warranty Spare parts such as seal kits and filters are seperately available.
Air compressor silent This Zion Air silent compressor has got a PKZ safety switch, copper wiring for better durability and star delta. - power = 4kw / 5,5pk - voltage = 400V - air flow = 480lpm - pressure = 8bar - noise level = 85dBa @ 7m 2 year warranty Spare parts such as seal kits and filters are seperately available.

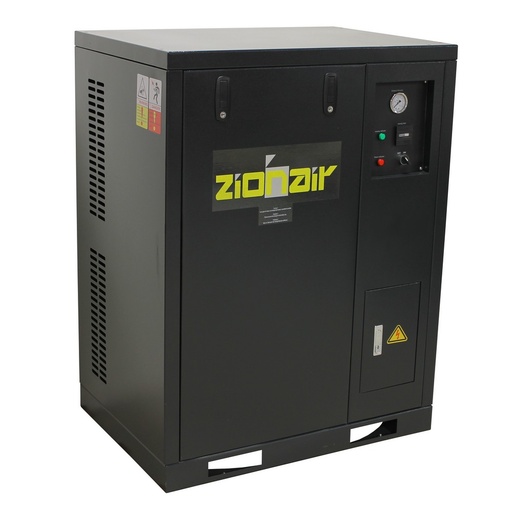

Air compressor silent This Zion Air silent compressor has got a PKZ safety switch, copper wiring for better durability and star delta. - power = 4kw / 5,5pk - voltage = 400V - air flow = 400lpm - pressure = 12,5bar - noise level = 85dBa @ 7m 2 year warrenty Spare parts such as seal kits and filters are seperately available.
Air compressor silent This Zion Air silent compressor has got a PKZ safety switch and copper wiring for better durability. - power = 3kw / 4pk - voltage = 400V - air flow = 360lpm - pressure = 8bar - sound level = 85dBa @ 7m 2 year warrantySpare parts such as seal kits and filters are seperately available.
Air compressor silent This Zion Air silent compressor has got a PKZ safety switch and copper wiring for better durability. - power = 3kw / 4pk - voltage = 400V - air flow = 300lpm - pressure = 12,5bar - sound level = 85dBa @ 7m 2 year warranty Spare parts such as seal kits and filters are seperately available.
Air compressor silent This Zion Air silent compressor has got a PKZ safety switch and copper wiring for better durability. - power = 2,2kw / 3pk - voltage = 400V - air flow = 250lpm - pressure = 8bar - sound level = 85dBa @ 7m 2 year warranty Spare parts such as seal kits and filters are seperately available.
Air compressor / silenced compressor / silent compressor

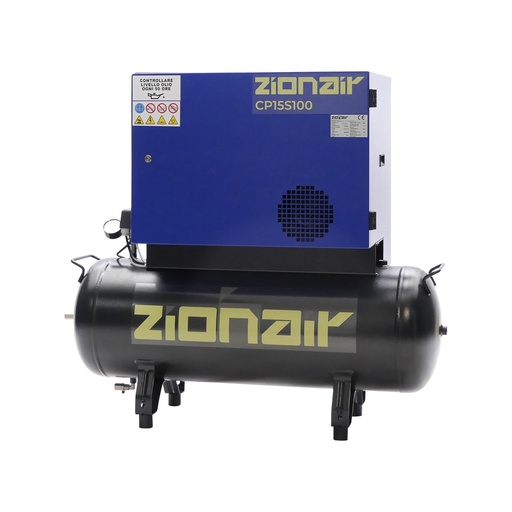

This ZionAir silenced compressor is produced in Italy under European quality standards and is equipped with a B2800B-Abac pump. This makes the compressor energy efficient, inexpensive to maintain, easy to use and guarantees maximum performance with minimum noise level.
The compressor is provided with a free start-up mode. This means that the compressor starts up freely up to 2 bar to avoid a high start-up peak.
The compressor is also equipped with a "fan on demand". These built-in fans turn on automatically when the compressor temperature rises.
Technical specifications:
power = 1.5kW
voltage = 230V
max. pump pressure = 10 bar
max. tank pressure = 11 bar
preset cut-off pressure = 8 bar
start-up pressure = 6 bar
suction volume = 250L/min
air output = 200L/min
tank volume = 100L
type pump = B2800B - Abac
speed = 1450rpm
duty cycle = 50%
noise level = 72.3dB (@ 1m)
molded plug with 1.8m 3x1.5mm² cable
connection = 1/2" NPT internal thread (side tank)
power = 2.2kW
suction volume = 320L/min
air output = 270L/min
tank volume = 200L
noise level = 73dB (@ 1m)
connection = 3/4" NPT internal thread (side tank)
This ZionAir silenced compressor is produced in Italy under European quality standards and is equipped with a B3800B-Abac pump. This makes the compressor energy efficient, inexpensive to maintain, easy to use and guarantees maximum performance with minimum noise level.
The compressor is equipped with a "fan on demand". These built-in fans turn on automatically when the compressor temperature rises.
power = 3kW
voltage = 400V
max. pump pressure = 11 bar
preset cut-off pressure = 10 bar
start-up pressure = 7.5 bar
suction volume = 500L/min
air output = 380L/min
type pump = B3800B - Abac
speed = 1400rpm
noise level = 74.5dB (@ 1m)
no plug, 1.5m 4x1.5mm² cable
This ZionAir silenced compressor is produced in Italy under European quality standards and is equipped with a K25 Chinook-Shamal pump. This makes the compressor energy efficient, inexpensive to maintain, easy to use and guarantees maximum performance with minimum noise level.
power = 4kW
suction volume = 600L/min
air output = 450L/min
tank volume = 270L
type pump = K25 Chinook - Shamal
noise level = 80dB (@ 1m)
no plug, 1.6m 4x1.5mm² cable
Star-delta switch to start the heavy engine step by step. The separate star-delta switch box must be mounted on the wall. There is a 1.7m cable between the compressor and switch box.
start-up pressure = 8 bar
noise level = 77dB (@ 1m)
no plug, 1.7m 5x2.5mm² cable

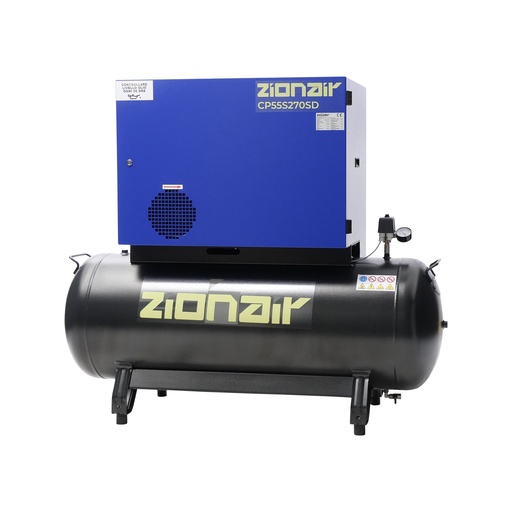

This ZionAir silenced compressor is produced in Italy under European quality standards and is equipped with a K30 Chinook-Shamal pump. This makes the compressor energy efficient, inexpensive to maintain, easy to use and guarantees maximum performance with minimum noise level.
Star-delta switch to start the heavy engine step by step. The separate star-delta switch box must be mounted on the wall. There is a 1.4m cable between the compressor and switch box.
power = 5.5kW
suction volume = 850L/min
air output = 730L/min
type pump = K30 Chinook - Shamal
speed = 1150rpm
connection = 3/4" NPT internal thread (side of tank)
Star-delta switch to start the heavy engine step by step. The separate star-delta switch box must be mounted on the wall. There is a 1.5m cable between the compressor and switch box.
preset cut-off pressure = 10.5 bar
air output = 710L/min
tank volume = 500L
noise level = 79dB (@ 1m)
no plug, 1.5m 5x2.5mm² cable
connection = 1" adaptor to 3/4" NPT internal thread (side of tank)
This ZionAir silenced compressor is produced in Italy under European quality standards and is equipped with a K50 Chinook-Shamal pump. This makes the compressor energy efficient, inexpensive to maintain, easy to use and guarantees maximum performance with minimum noise level.
Star-delta switch to start the heavy engine step by step. The compressor has integrated electronics, so it is not necessary to mount the switch box separately.
The compressor is also equipped with a "fan on demand". This built-in fan turns on automatically when needed using an internal temperature gauge.
power = 7.5kW
preset cut-off pressure = 9 bar
suction volume = 1200L/min
air output = 830L/min
type pump = K50 Chinook - Shamal
noise level = 72.6dB (@ 1m)
no plug, 3m 4x2.5mm² cable
Air compressor / silent compressor / maintenance-free compressor / oil-free compressor

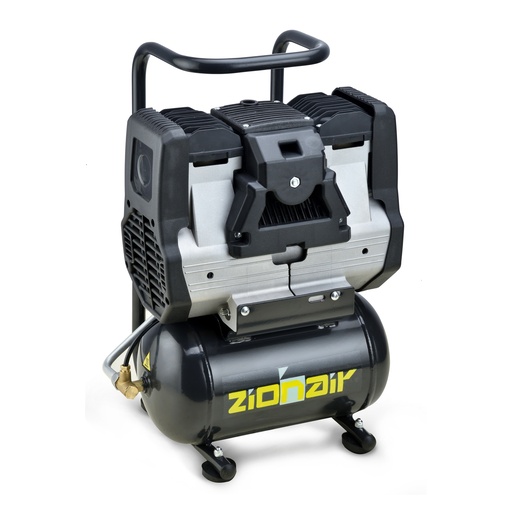

The new line of silent compressors from ZionAir have a low noise level and a high efficiency of air. The forced air cooling ensures a central flow of cool air, which increases the life and efficiency of the compressor. Thanks to the direct drive and oil-free operation, the silent compressors produce hundreds of hours of clean air without the need for maintenance. The silent compressors are also equipped with a free start-up mode up to 1.2 bar, which prevents a high start-up peak.
power = 0.56kW
set cut-out pressure = 8 bar
suction volume = 140L/min
air output = 112L/min
tank volume = 6L
speed = 1430rpm
duty cycle = 30%
noise level = 76dB (@ 1m)
molded plug with 1.4m 3x1.0mm² cable
connection = euroline quick coupling internal
power = 0.75kW
suction volume = 195L/min
air output = 150L/min
tank volume = 10L
speed = 1420rpm
duty cycle = 40%
suction volume = 230L/min
air output = 165L/min
tank volume = 50L
molded plug with 1.4m 3x1.5mm² cable
