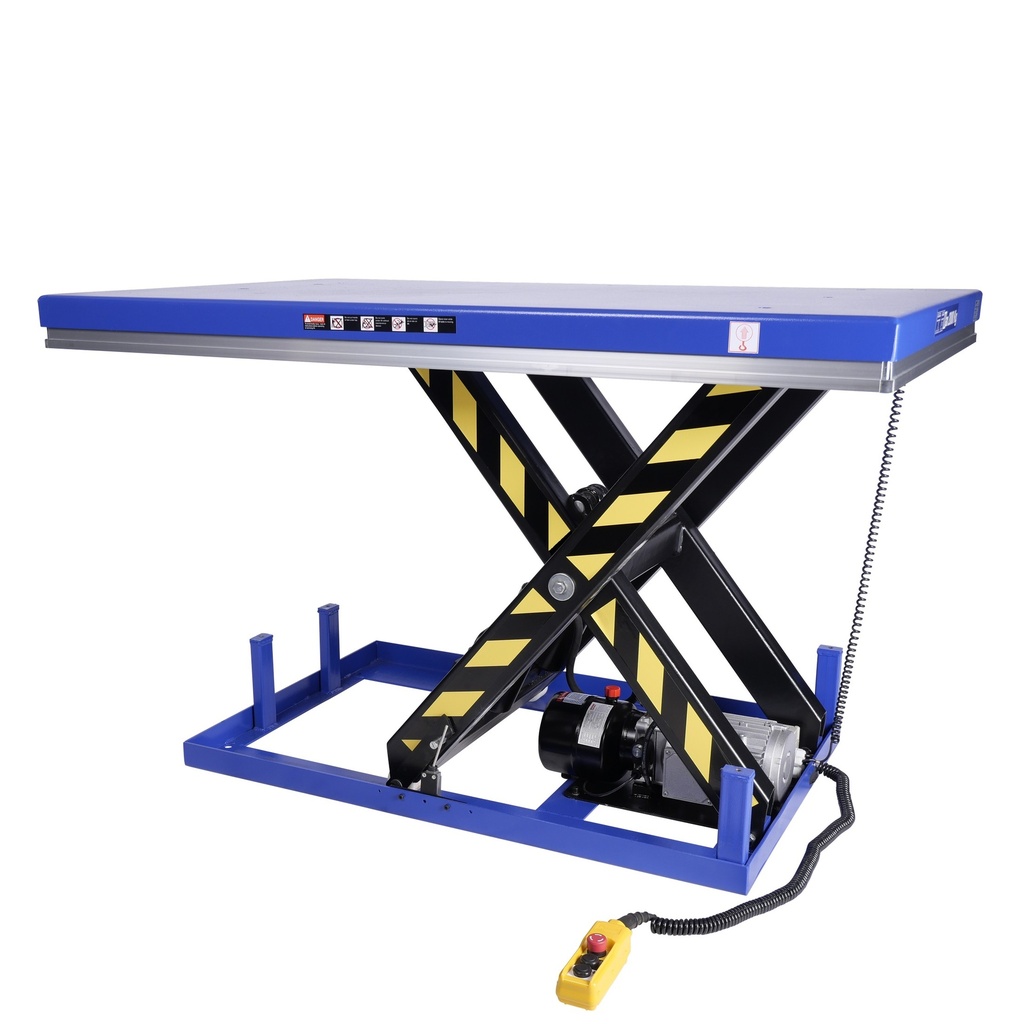

Scissor lift table / scissor table / platform lift / lift table / fixed lift table

This Mammuth fixed, electric lift table is ideal for moving machines and goods up to 1000kg in height. The table can be used both as built-in and surface-mounted. The lift is equipped with a switch box that is mounted under the table and a safety edge. This edge ensures that the lift stops lowering when something gets underneath.

Due to the electrical operation, ergonomic work is guaranteed.

Technical specifications:

• capacity = 2000kg

• minimum height = 230mm

• maximum height = 1000mm

• platform size = 1600 x 1000mm

• platform height = 60mm

• lifting time unloaded = 17 sec.

• cable control length = 3,7m

• voltage = 400V

• power = 2,2kW

• oil capacity = 3L

Note: The lifting table is supplied without a plug!

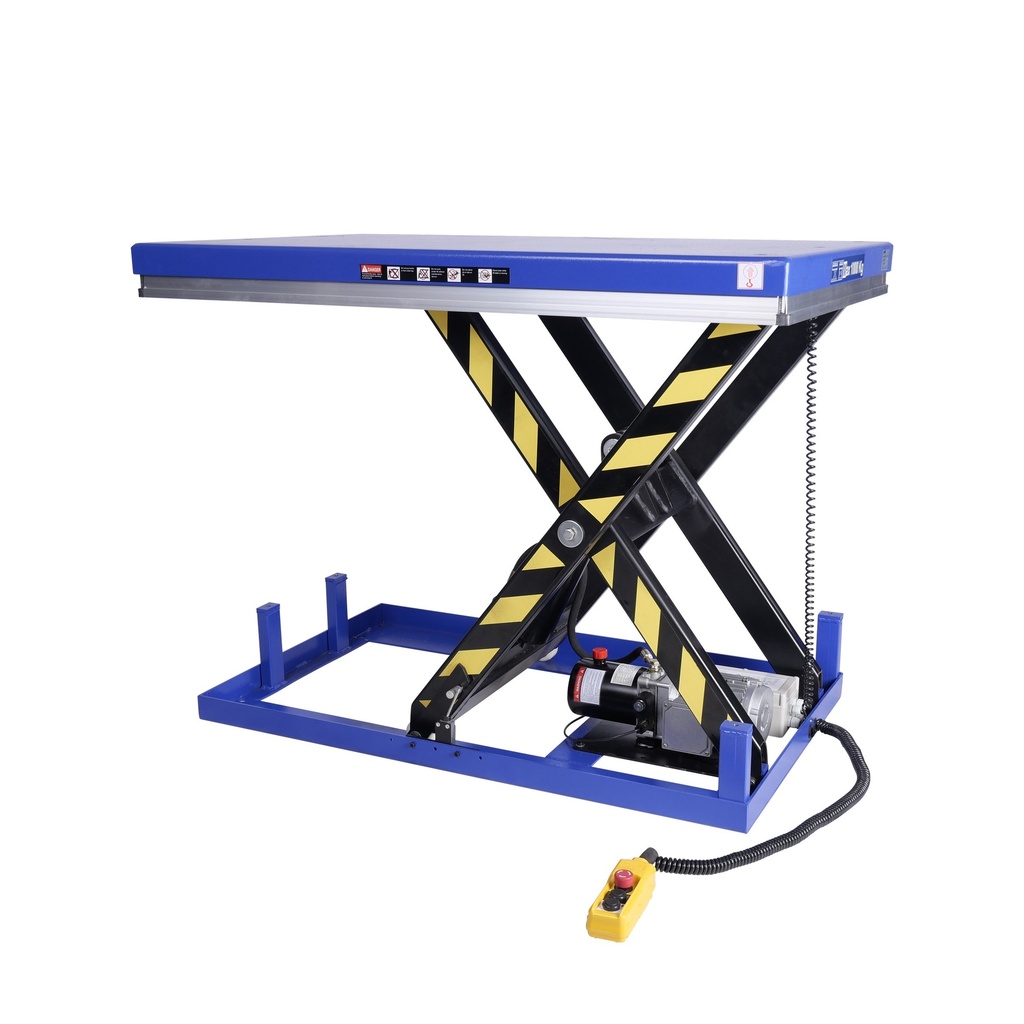

Scissor lift table / scissor table / platform lift / lift table / fixed lift table

This Mammuth fixed, electric lift table is ideal for moving machines and goods up to 1000kg in height. The table can be used both as built-in and surface-mounted. The lift is equipped with a switch box that is mounted under the table and a safety edge. This edge ensures that the lift stops lowering when something gets underneath.

Due to the electrical operation, ergonomic work is guaranteed.

Technical specifications:

• capacity = 1000kg

• minimum height = 210mm

• maximum height = 1000mm

• platform size = 1300 x 820mm

• platform height = 60mm

• lifting time unloaded = 21 sec.

• cable control length = 3,7m

• voltage = 230V

• power = 1,1kW

• oil capacity = 1,5L

Note: The lifting table is supplied without a plug!

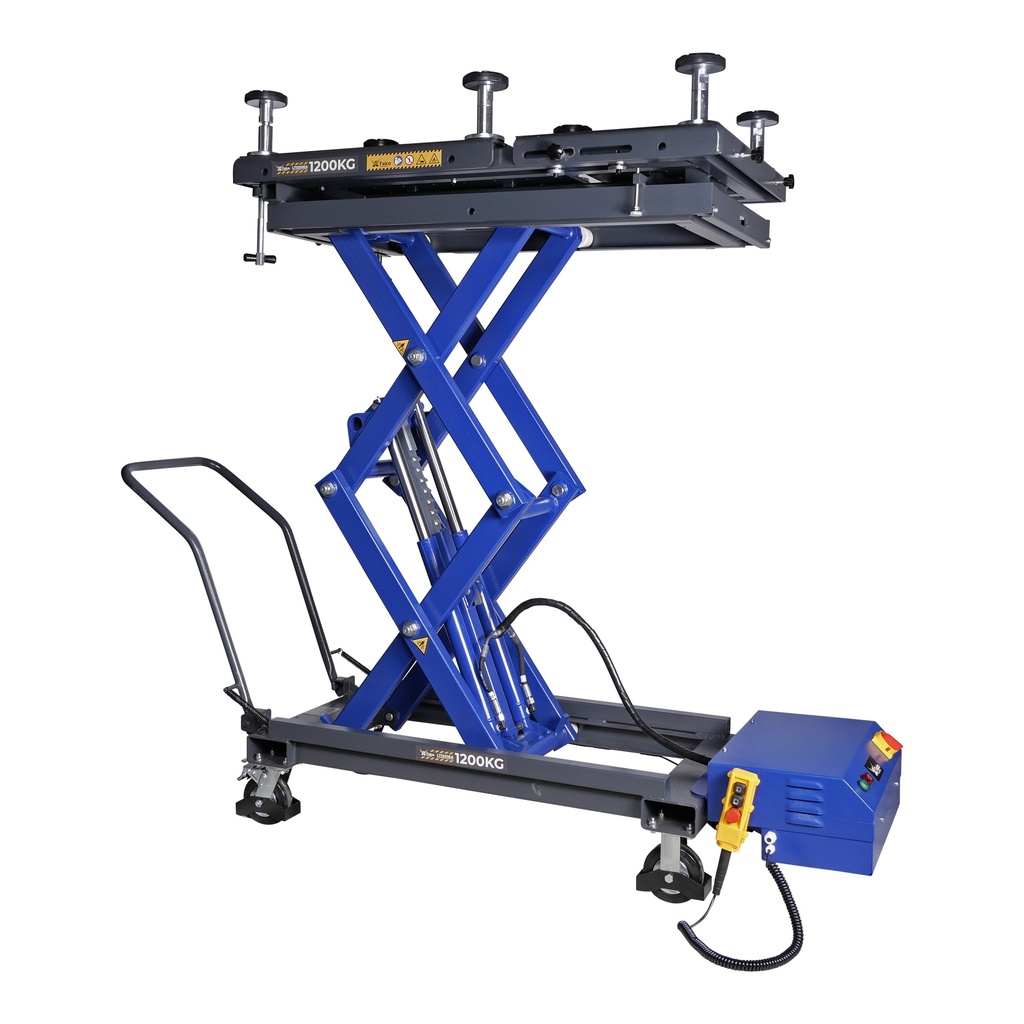

Mobile scissor lift table / scissor lift / lift table / electro hydraulic scissor table lift table

The Falco LT1200E electro hydraulic battery has been specially developed for electric vehicles and is ideal for (dis)assembling engines, gearboxes, lithium-ion car battery packs and other chassis components. The lifting table is infinitely adjustable in height and length, so it has a flexible field of application.

Features:

• The table top has 104 M10 threaded holes with a hole pattern of 100 x 100 mm for easy mounting of tools and lifting adapters

• Lifting table is easily adjustable in length and transverse direction and can be tilted 5 degrees

• Swivel wheels including brake for free movement and safe operation

• Collapsible rod for optimal workspace

• Integrated, electro-hydraulic unit 230V

Technical specifications:

• voltage = 230V 1-phase

• capacity = 1200kg

• lifting height = 580 - 1900mm

• table dimensions = 1300 x 770mm

• weight = 365kg
