Fully automatic scissor lift / car cleaning lift / scissor lift

This Falco Sollevatori single scissor lift is of high quality and suitable for professional use. With Falco lifts, quality and finishing go first.
Equipped with no less than four hydraulic cylinders (two per platform), this lift has a master-slave lifting system and also a locking system. This means that the lift is safe in any position and does not have to be lowered before work on the car can be done. It is also not necessary to first raise the lift to get out of the locking system, making the lift much easier to use and suitable for more applications than mechanically locked lifts.

Thanks to its robust construction and thoughtful design, this single scissor lift is standard equipped with the following useful features:

• platform length = 1460mm

• total length including ramps = 1995mm

• master-slave hydraulic system

• electrical hydraulic double pump

• equipped with 4 heavy hydraulic cylinders

• 8 hydraulic parachute valves for optimum safety

• automatic venting by means of venting button

• hydraulic synchronization

• photocell safety between the 2 platforms

• automatic overload protection

• control valve for controlling the speed when lowering

• limit sensors for limiting the maximum lift height and the minimum safety height

• dead man's operation when lifting and lowering

• foot protection including acoustic safety signal

• adjustable distance between scissor platforms to your own liking


• Dutch manual including maintenance protocol and CE certificate 2006/42/EC

• meets the NEN-EN1493 safety standard

Specifications:

• lifting capacity = 3200kg

• max. lifting height = 1000mm

• min. lifting height = 110mm

• platform length = 1460mm / 1995mm

• width of the platforms = 490mm

• recommended free space between platforms = 860mm (adjustable)

• lifting time = 40 sec

• voltage = 3-phase 400V

• power = 2,2kW

• weight = 640kg

• oil capacity = 15L (not included!)

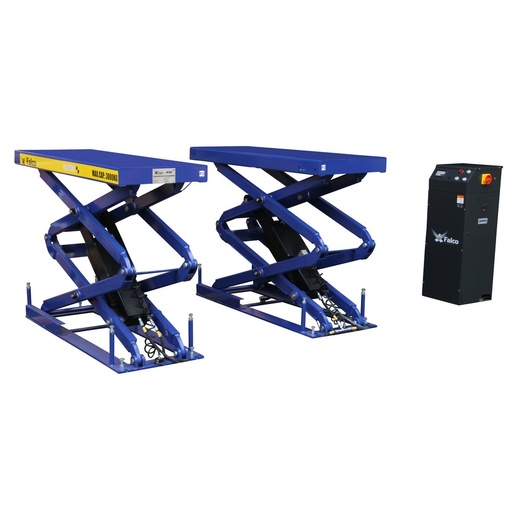

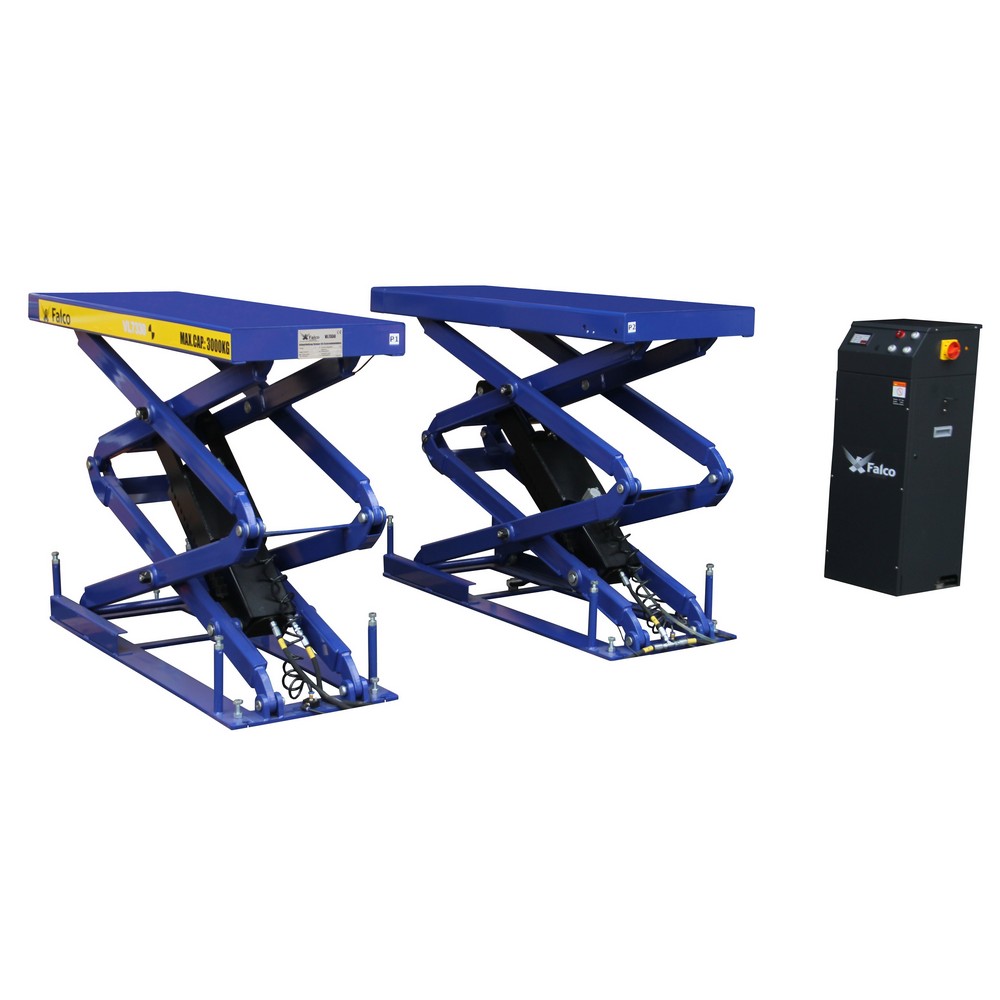

Fully automatic scissor lift / built-in lift

This Falco Sollevatori wheel-free double scissors lift is of high quality and suitable for professional use. With Falco lifts, quality and finishing go first.

This built-in double scissors lift model is accessible all around and suitable for many vehicles, including extra low cars. Because of the extendable platforms, the lift is also suitable for small vans.
Thanks to its robust construction and thoughtful design, the scissors lift is standard equipped with the following convenient features:

• platform length = 1540mm, extendable to 1745mm

• electro-hydraulic double transpump

• equipped with 2 heavy hydraulic cylinders

• automatic venting through vent button

• automatic synchronization

• automatic overload protection

• pneumatic unlocking made of high-quality material

• control valve for controlling the speed when dropping

• limit sensor for limiting the maximum lifting height and the minimum safety height

• deadman operation when lifting and lowering

• foot protection including acoustic protection signal

• Dutch manual including maintenance protocol and CE certificate 2006/42/EG

• complies with the NEN-EN1493 safety standard


Specifications:

• lifting capacity = 3000kg

• max. lifting height = 2030mm

• platform length = 1540 - 1745mm

• width of platforms = 550mm

• recommended space between platforms = 800mm

• lifting time = 60 seconds

• lower time = 60 seconds

• electric power = 400V

• oil capacity = 15L (not included!)

No time for installation?

Our professional installation team is specialized in the installation of Falco lifts!

Your bridge will be installed in a correct way.
The team thinks along with you about the position and placement of the lift.

For the above price is our installation team within a radius of 100km on site including 3 hours of labor for installation.

For the extended activities which are not included, there will be a hourly rate of € 75,00 excl. VAT.
For distances beyond the radius of 100km, we will charge 1,00 euro per kilometer.

Note!
The surface must at least meet the following requirements:
- concrete strength C20 - C25 250kg/com
- 200mm thickness
- newly poured concrete needs to cure for 28 days
Ask for the manual for more information about the surface requirements.

Transport of the lift is not included and depends on the unloading facilities.
Consult us first to make a suitable appointment for this.

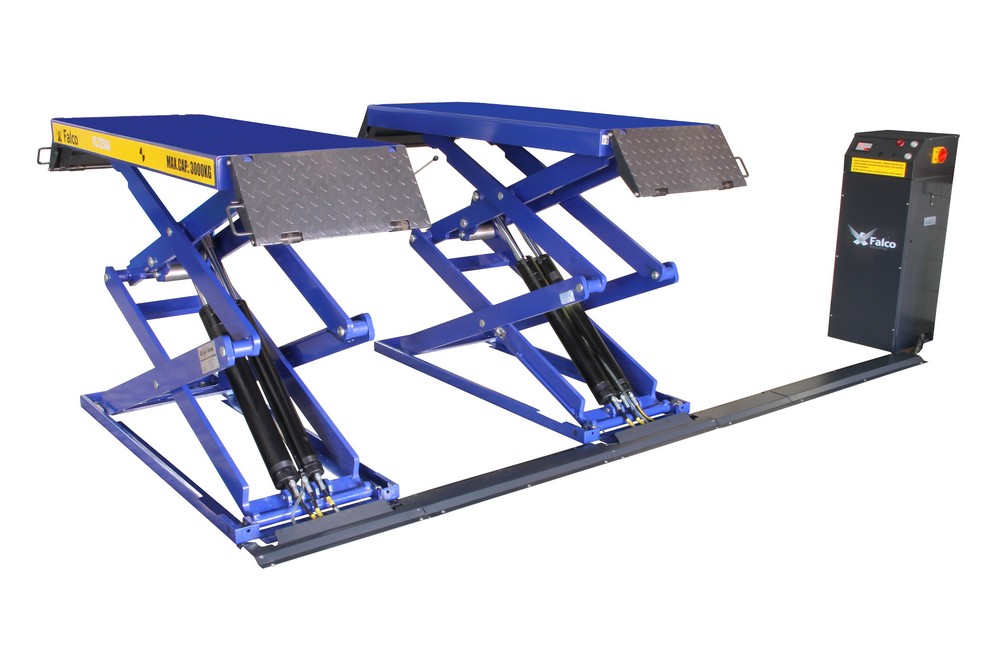

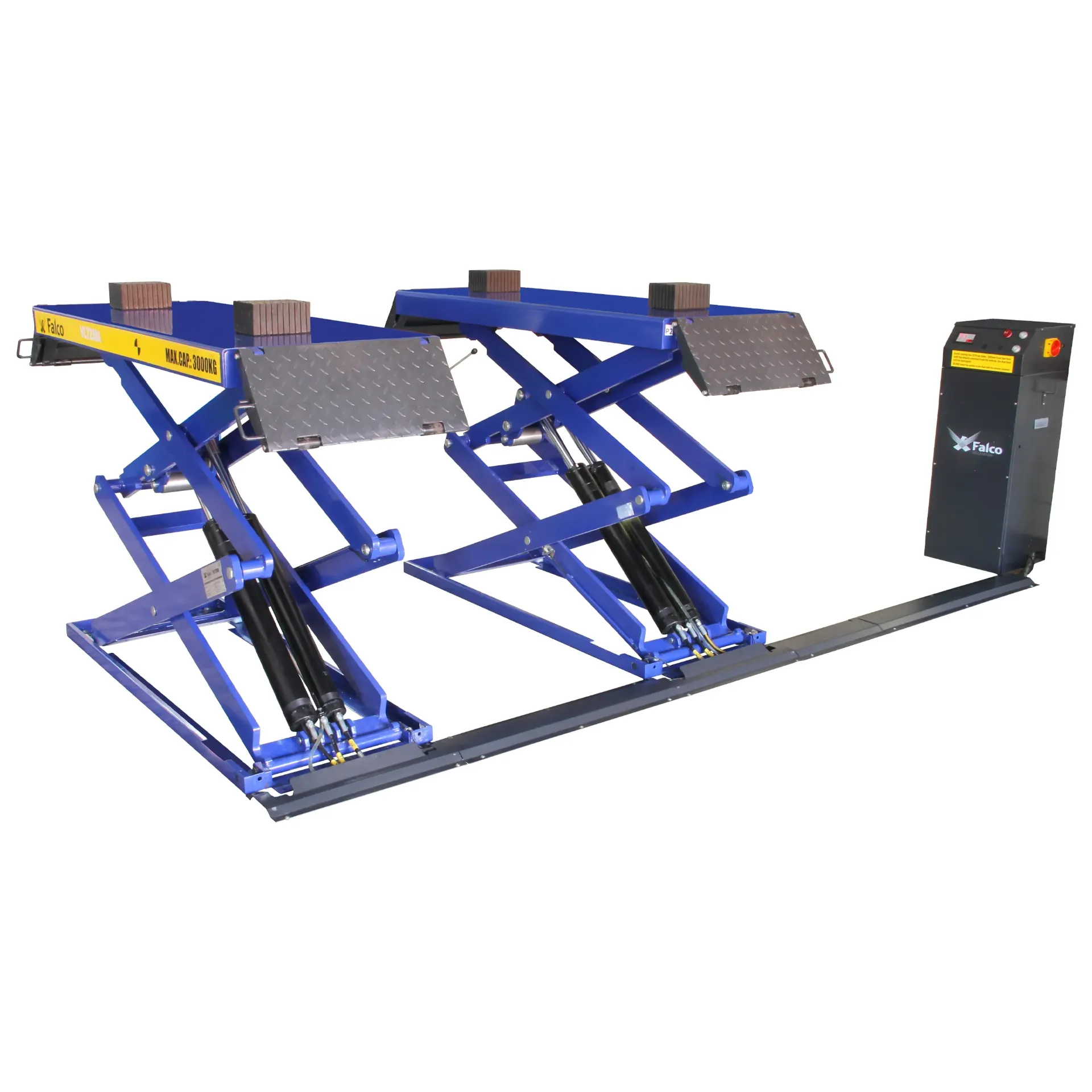

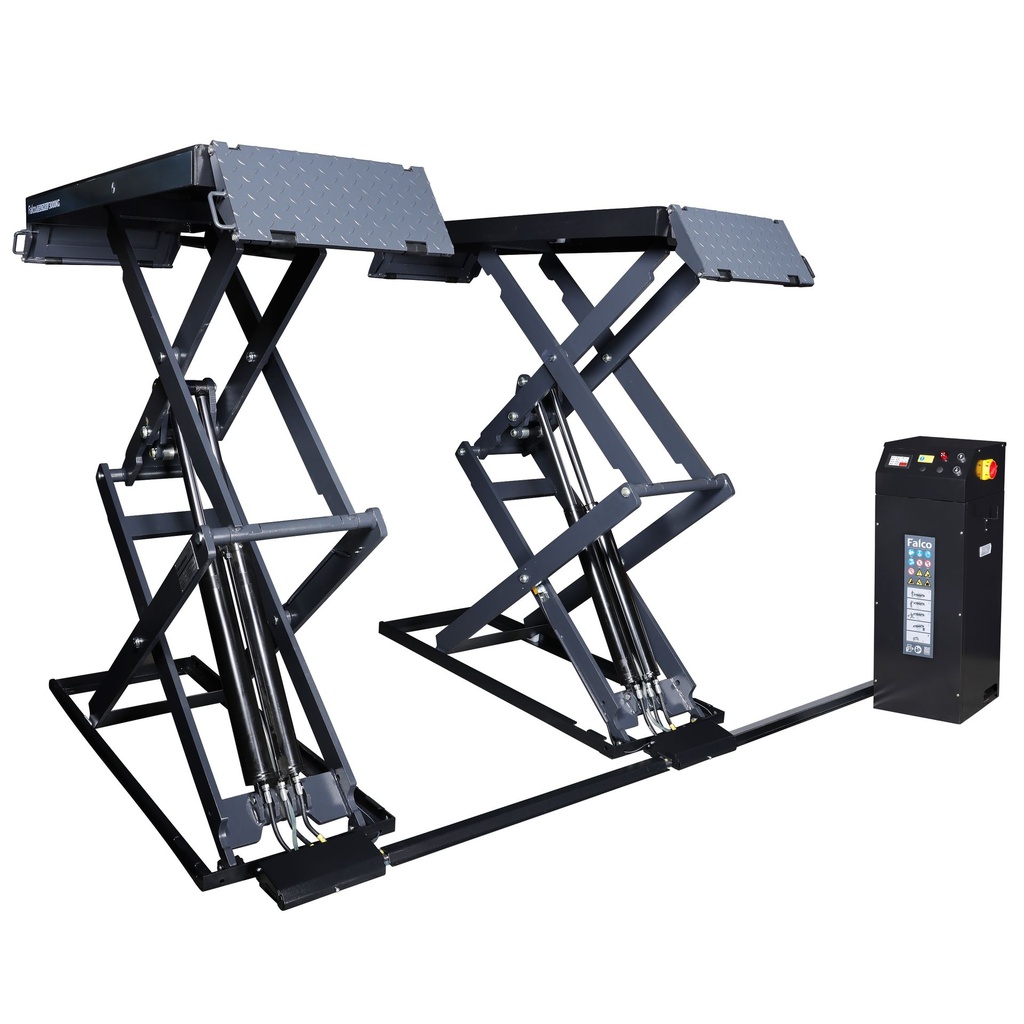

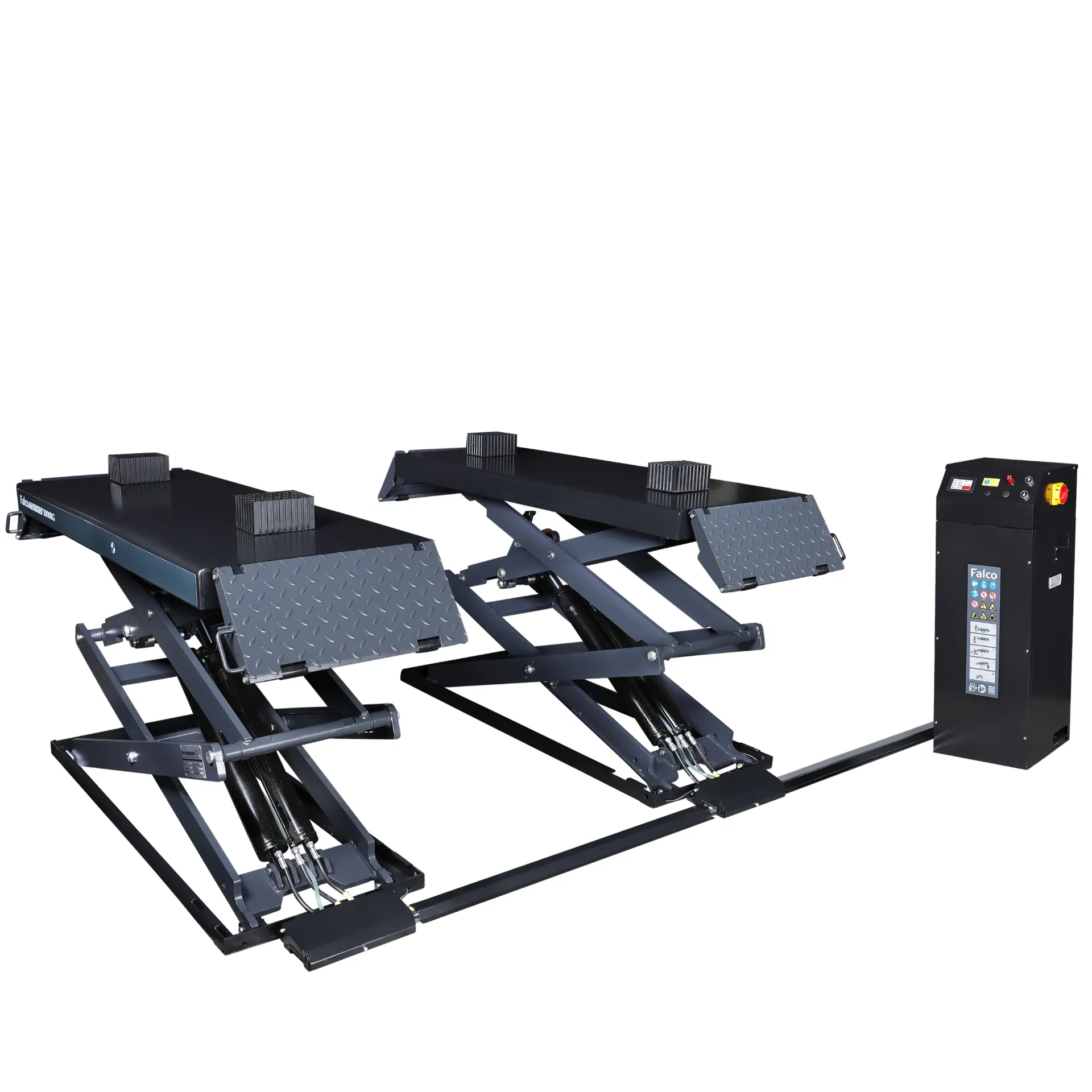

Fully automatic scissor lift / scissor lift

This Falco Sollevatori double scissors lift is of high quality and suitable for professional use. With Falco lifts, quality and finishing go first.
Equipped with no less than four hydraulic cylinders (two per platform), this lift has a master-slave lifting system and also a locking system. This means that the lift is safe in any position and does not have to be lowered before work on the car can be done. It is also not necessary to first raise the lift to get out of the locking system, making the lift much easier to use and suitable for more applications than mechanically locked lifts.

Thanks to its robust construction and thoughtful design, this double scissor lift is standard equipped with the following convenient features:

• total platform length of 2030mm

• master-slave hydraulic system

• electro-hydraulic lift with 4 cylinders

• automatic venting through vent button

• low profile with minimum lifting height of 117mm

• automatic synchronization

• automatic overload protection

• control valve for controlling the speed when dropping

• limit sensor for limiting the maximum lifting height and the minimum safety height

• deadman operation when lifting and lowering

• foot protection including acoustic protection signal

• Dutch manual including maintenance protocol and CE certificate 2006/42/EG

• homologated and certified product according to EN1493:2010


Specifications:

• lifting capacity = 3000kg

• max. lifting height = 1850mm

• min. lifting height = 117mm

• platform length = 1495 - 2030mm

• lifting time = 35 seconds

• electric power = 400V

• oil capacity = 15L (not included!)

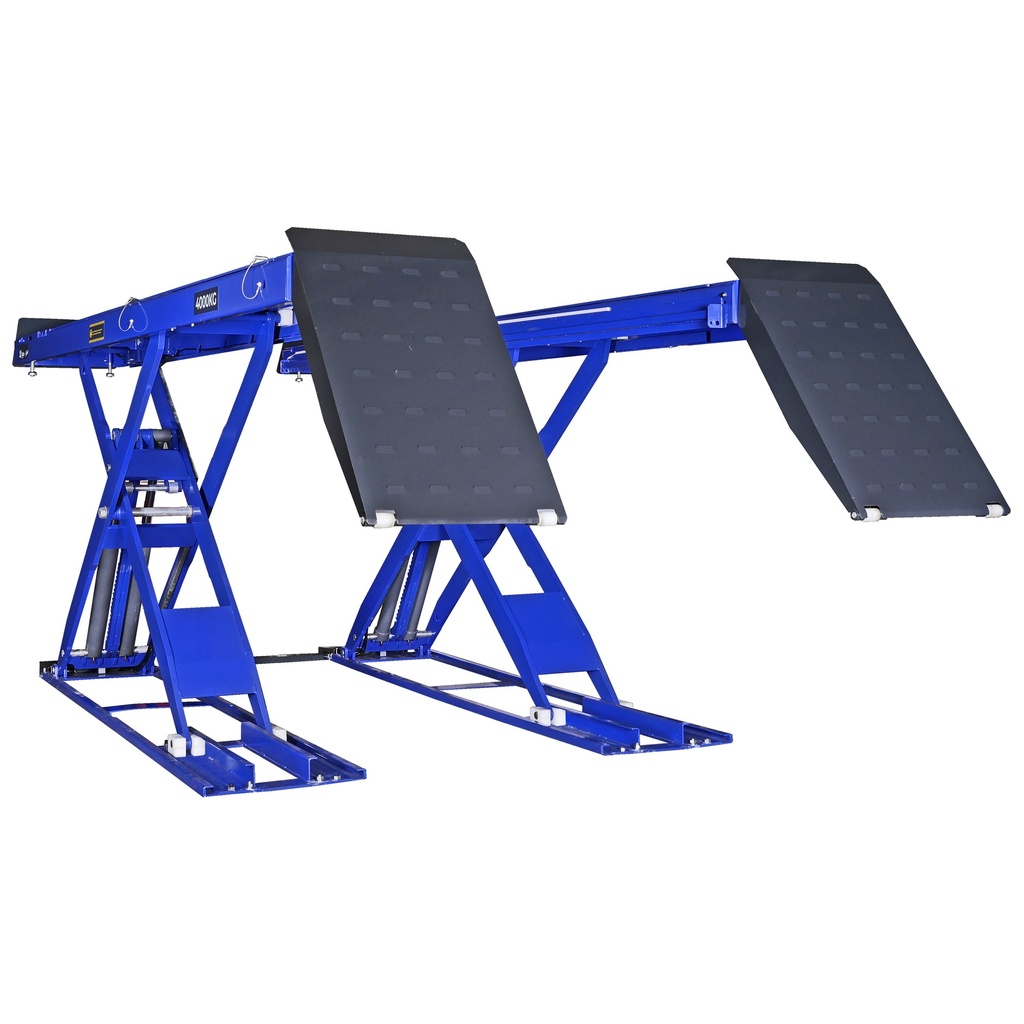

fully automatic scissor lift / scissor bridge / scissor lift
Thanks to the thoughtful design of Falco lifts, you save time and effort. The focus is on ease of use and efficient work flow. The different models are developed for various applications.
This Falco Sollevatori scissor lift is of high quality and suitable for professional use. At Falco Sollevatori quality and finish come first.
The overall design is very suitable for supporting lift vehicles, wheel alignment, runout processes for 3D wheel alignment and body inspection, and maintenance services.
Minimal size for lift in lowest position suitable for lifting low-profile vehicles. Also ideal for placing on the floor use and installation.
Due to the long carriageways of 4.5m, the lift is suitable for small and large passenger cars, buses and heavier commercial vehicles.
The hydraulic system is equipped with 4 hydraulic cylinders and an extra mechanical safety system. It’s more secure and reliable thanks to its robust construction and well thought-out design, this scissor lift is equipped with the following handy features as standard:

• Long lanes of 4.5 meters
• Minimum height is only 210mm, ideal for on ground installation
• Roadways equipped with alignment plates
• Electric Hydraulic Double Transpump
• The lift is suitable for both on floor and in floor installations
• Equipped with four powerful hydraulic cylinders
• Control system uses printing PCB and Siemens electrical parts
• Automatic air bleading function
• Automatic synchronization system
• Automatic overload protection
• Ramp with anti-slip profile
• Control valve for controlling the speed when descending
• Limit sensors for limiting the maximum lift height and the minimum safety height
• Dead man's operation when lifting and lowering
• Foot protection incl. acoustic safety signal
• Dutch manual incl. maintenance protocol and CE certificate 2006/42/EG
• Complies with the NEN-EN1493 safety standard

Technical specifications:

• lift capacity = 4000kg
• sub lift capacity = 3500kg
• minimum ramp height = 210mm
• maximum lifting height = 1800mm
• length of lanes = 4500mm
• lane width = 630mm
• voltage = 400V
• motor power = 3kW

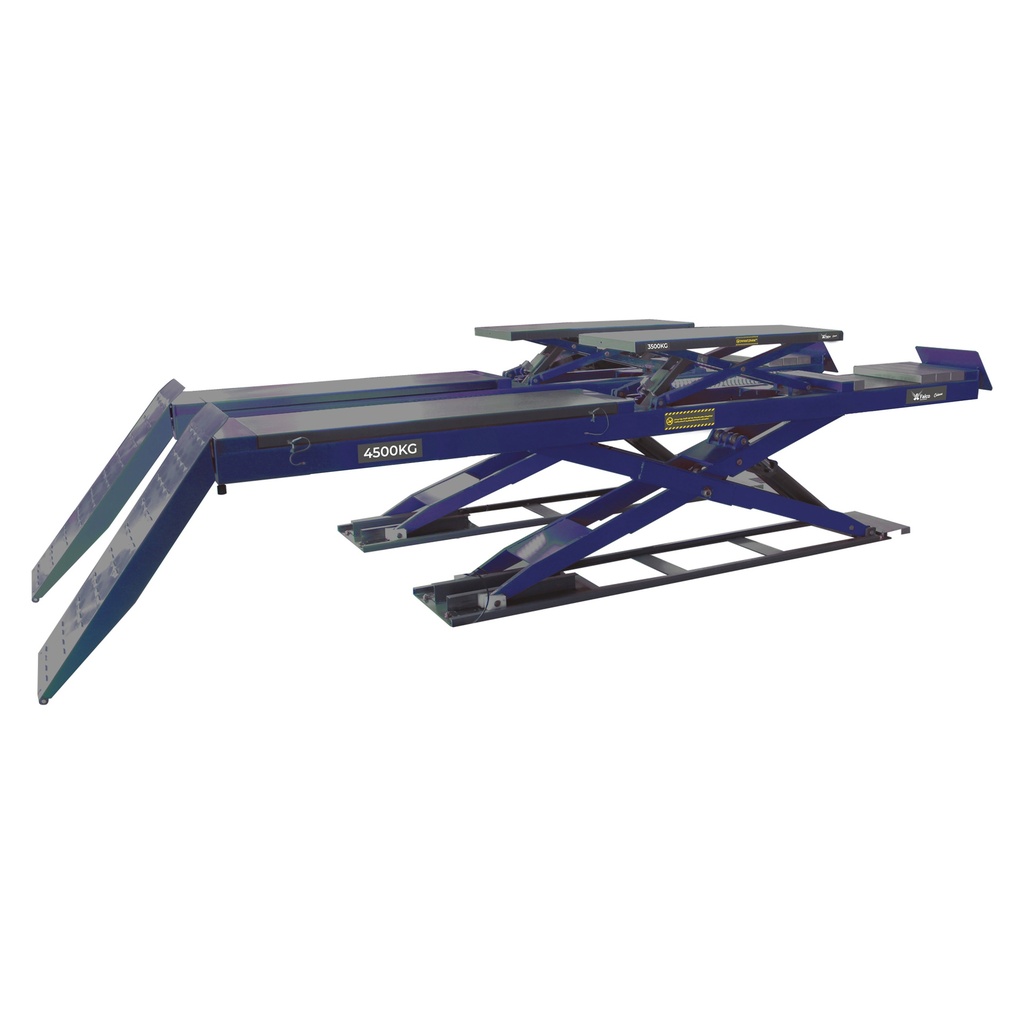

fully automatic double scissor lift / scissor bridge / scissor lift / scissor lift
This Falco Sollevatori double scissor lift is of high quality and extremely suitable for professional use. At Falco lift bridges, quality and finish come first.

This alignment model is equipped with a bridge jack, turntables and long rear wheel plates. With the aid of the bridge jack, wheel-free lifting is possible up to a height of 450 mm above the roadways.

Due to the long carriageways of 4.8m, the bridge is suitable for small and large passenger cars, buses and heavier commercial vehicles.

Thanks to its robust construction and well thought-out design, this double scissor bridge is equipped with the following handy features as standard:

• Long lanes of 4.8 meters
• Bridge jack for wheel-free lifting with a lifting range from 65 to 450mm
• Roadways with built-in turntables and rear wheel plates
• Electric Hydraulic Double Transpump
• Equipped with four powerful hydraulic cylinders
• Automatic venting by means of vent button
• Automatic sync
• Automatic overload protection
• Ramps with anti-slip profile
• Control valve for controlling the speed when descending
• Limit sensors for limiting the maximum lift height and the minimum safety height
• Dead mans operation when lifting and lowering
• Foot protection incl. acoustic safety signal
• Dutch manual incl. maintenance protocol and CE certificate 2006/42/EG
• Complies with the NEN-EN1493 safety standard

Technical specifications:

• capacity = 4500kg
• minimum ramp height = 240mm
• maximum lifting height = 1800mm (2250mm including bridge jack)
• length of lanes = 4800mm
• lane width = 600mm
• lifting range bridge jack = 65 - 450mm
• reach bridge jack lifting arms = 1450 - 1900mm
• voltage = 400V
• motor power = 3kW

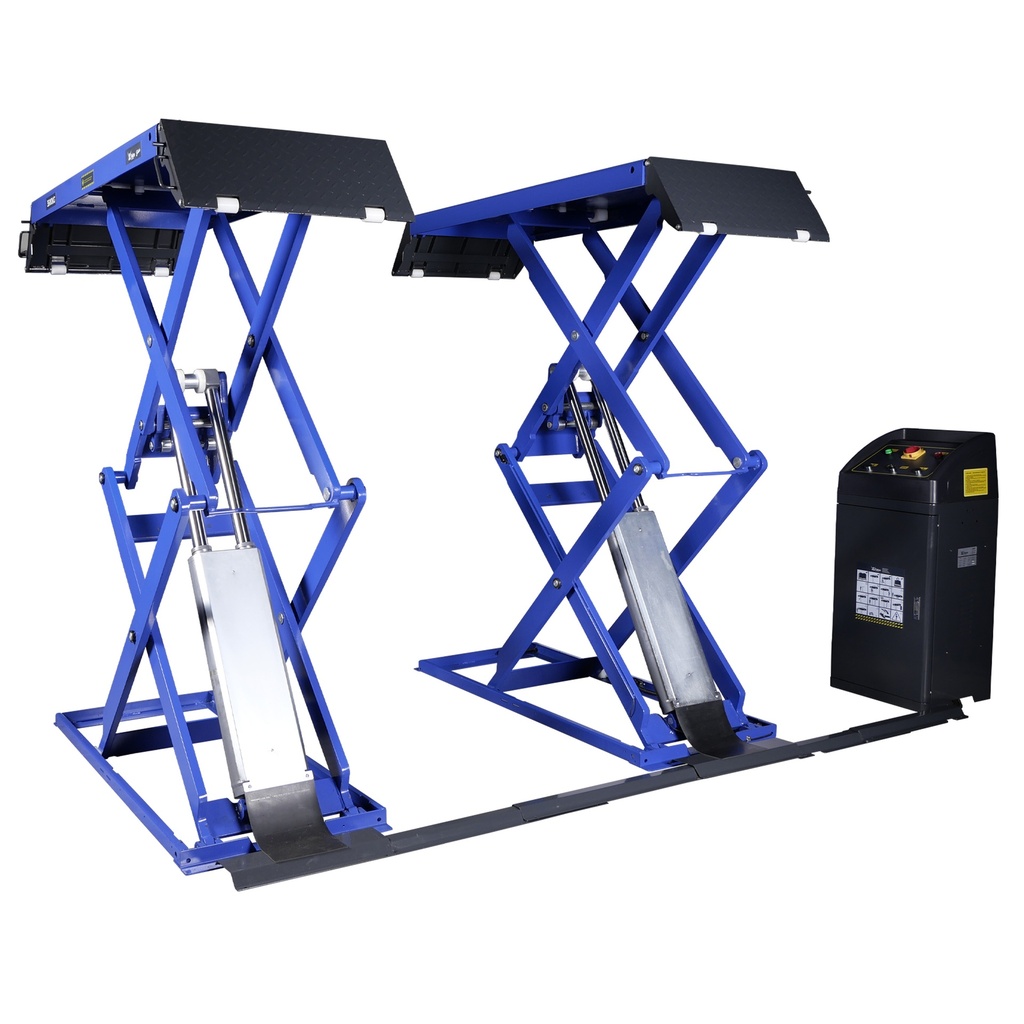

fully automatic scissor lift / scissor lift / double scissor bridge / auto lift / auto lift bridge / scissor bridge
This Falco Sollevatori double scissors lift is of high quality and suitable for professional use. With Falco lifts, quality and finishing go first.
Equipped with no less than four hydraulic cylinders (two per platform), this lift has a master-slave lifting system. This means that the lift is safe in any position and does not have to be lowered before work on the car can be done. It is also not necessary to first raise the lift to get out of the locking system, making the lift much easier to use and suitable for more applications than mechanically locked lifts.
Thanks to its robust construction and thoughtful design, this double scissor lift is standard equipped with the following convenient features:

• total platform length of 2042mm
• master-slave hydraulic system
• electro-hydraulic lift with 4 cylinders
• automatic air bleeding function
• photocell for safety and platform synchronisation
• low profile with minimum lifting height of 110mm
• automatic synchronisation
• automatic overload protection
• control valve for controlling the speed when dropping
• limit sensor for limiting the maximum lifting height and the minimum safety height
• deadman operation when lifting and lowering
• foot protection including acoustic protection signal
• deliverd incl 4pcs 25mm lifting blocks and 4pcs 65mm lifting blocks

• Dutch manual including maintenance protocol and CE certificate 2006/42/EG
• homologated and certified product according to EN1493:2010

Specifications:

• voltage = 400V / 3 Phase
• lifting capacity = 3500kg
• max. lifting height = 1900mm (incl. lifting pad 1965mm)
• min. lifting height = 110mm
• platform length = 1470 - 2042mm
• lifting time = 35 seconds
• oil capacity = 15L (not included!)

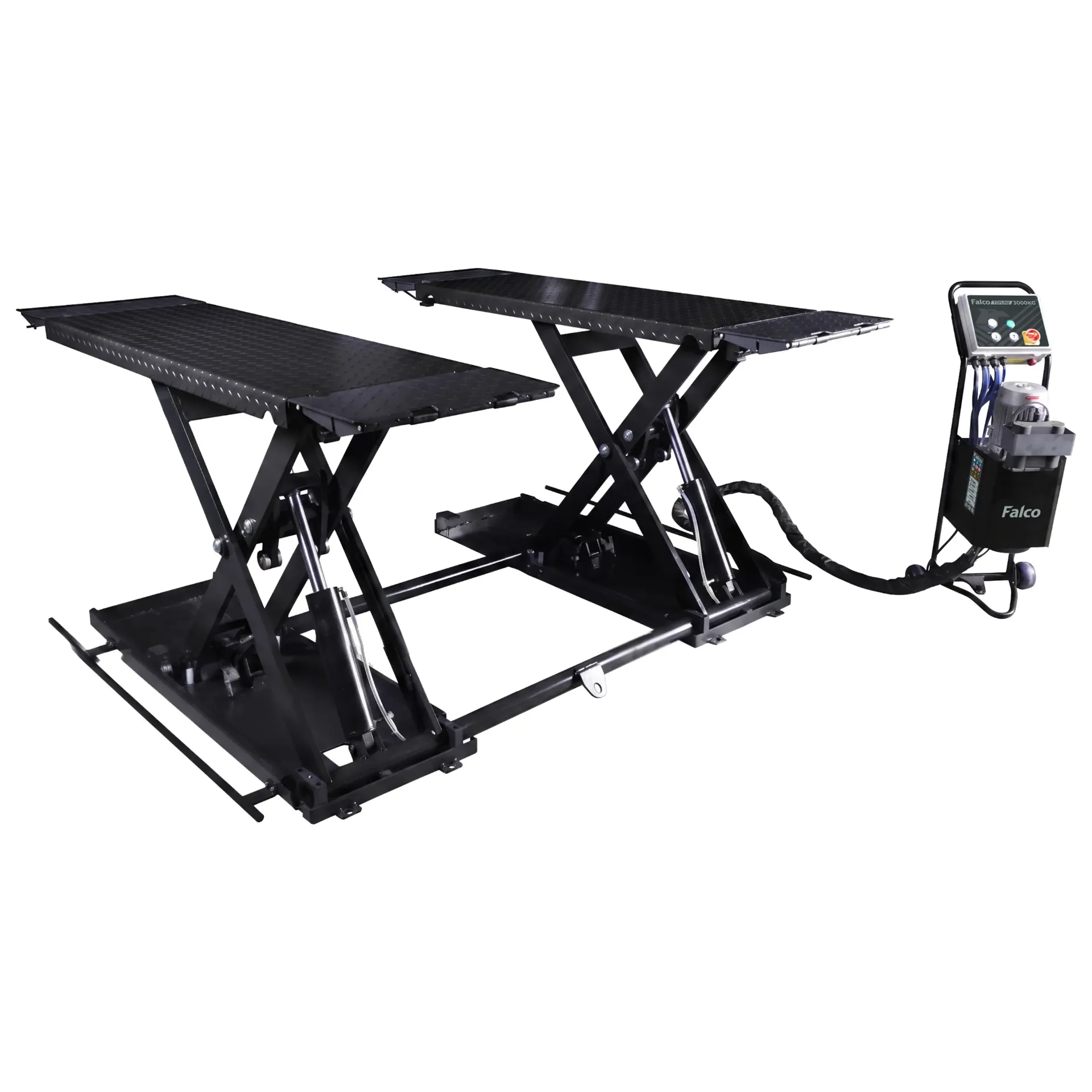

Fully automatic car bridge / cleaning bridge / scissor bridge / scissor lift / scissor lift bridge

This Falco tire bridge focuses on efficiency and ease of use. Thanks to the Sync safety system, it always drops synchronously. The bridge is equipped with an acoustic signal and a rail is fitted at the bottom for foot protection. The lanes are made of wear-resistant tear plate over the entire length. The stable solid design is easy to use anywhere on a straight surface and also includes mounting holes for fixed installation. It can be used both mobile and fixed. The bridge is supplied as standard including a wheel set, which makes it easy to move the bridge and allows you to make optimum use of your workshop.

Characteristics:

• Extra low ramp height of 110mm

• Mobile tire bridge

• Powerful hydraulic cylinders

• Fully automated electric safety interlock

• Foot protection incl. acoustic safety signal

• Start elevator

• Adjustable ramp / extension piece

• Foot protection switch

• Emergency lowering valve


• Incl. Wheel set, plug and rubber support blocks

Technical specifications:

• capacity = 3000 kg

• voltage = 230V

• motor power = 1,5kW

• min. lifting height = 115mm

• max. lifting height = 985 / 1025mm

• lock = automatic

• platform length = 1450 - 1984mm

• platform width = 515mm

• width between platforms = 810mm

• lifting time = 35 seconds

• drop time = 25 seconds

• weight = 680 kg

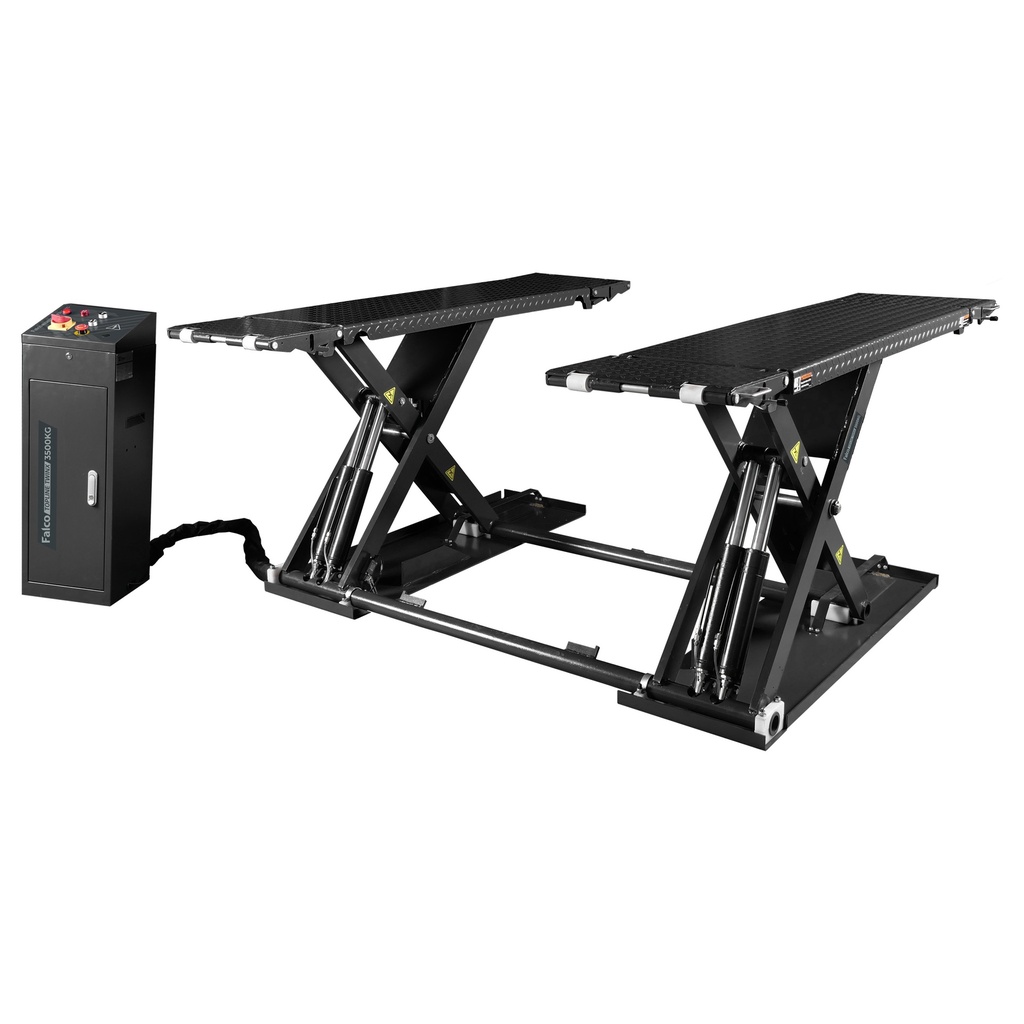

Car bridge / cleaning bridge / scissor bridge / scissor lift / scissor lift bridge

Thanks to the well-considered design of the Falco bridges, you save time and effort. The focus is on ease of use and an efficient work flow. Thanks to the stable solid design, the lift is easy to place on a straight surface. Equipped with no less than four hydraulic cylinders (two per platform), this lift has a TwinX lifting system. As a result, the bridge is safe in every position and it does not have to be lowered before work can be carried out on the car. Also, there is no need to raise the bridge first to release it from the lock, making the bridge much more convenient to use and suitable for more applications than mechanically locked bridges. Each bridge is supplied as standard with a wheel set, which makes it easy to move the bridge and allows you to make optimum use of your workshop. The bridge is especially suitable for large vehicles.

Characteristics:

• Total platform length of 2015mm

• TwinX hydraulic system

• Extra low ramp height of 105mm

• Mobile tire

• 4 Powerful hydraulic cylinders

• Foot protection incl. acoustic safety signal

• Start lift

• Adjustable ramp / extension

• Incl. wheel set and mounting blocks (40mm)

• Complies with NEN-EN1493 safety standard

Technical specifications:

• capacity = 3500 kg

• voltage = 230V / 1-phase

• motor power = 2.2 kW

• min. lifting height = 105mm

• max. lifting height = 960 / 1000mm

• locking = automatic

• length platform = 1400 / 2015mm

• width platform = 480mm

• width between platforms = 1000mm

• lifting time = 40 seconds

• weight = 630 kg

• oil capacity = 6L CH32 / CH46 (Not included)
