Two pole lift / spindle lift / car lift

Cascos car lifts are from 100% European production. Cascos has more than 50 years of experience in vehicle lifts, which results in a very reliable and extremely strong end product.
At Cascos lifts, three key words are central, namely: Reliability, functionality and safety.

The robust construction of the lifts and the high quality of the components ensure high reliabilty and low maintenance costs.
The double and triple long arms ensure that both symmetrical and asymmetrical work can be performed and ensures a very comfortable and fast positioning of the arms in the picking points, without taking a long time to perfectly center a vehicle.
The robust columns, the steel bearings, but especially the safety nuts ensure a very high safety.

Furthermore, the Cascos two pole lifts have a number of very thoughtful features:

• SlenderTec solid columns: Very robust, 10 to 23mm thick.

• Extendable symmetrical arms: Lifts have been developed to withstand the maximum load at any angle and all lengths.

• Large spindle diameter: 45mm, the largest spindle on the market. Provides less friction and therefore less wear on the working nut. Less lubrication is required.

• Steel bearings: Less wear and compared to nylon systems because they last longer. They also provide support for the columns.

• Safety nuts: Extra sturdy for lifts with a capacity up to 5500kg.

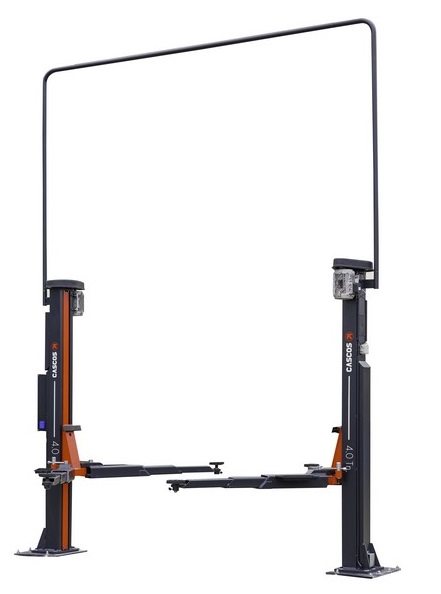

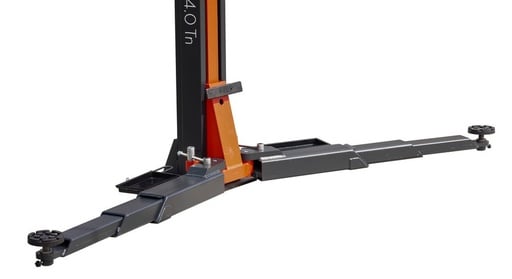

Thanks to the hight capacity of 4 tons, the design without base and the large reach of the lifting arms, this Cascos lift is indispensible in every professional garage or workshop. The lift is very versatile and suitable for almost every vehicle.

This lift has the following thoughtful features:

• ILC-system (Intelligent Lift Control): An innovative control system that controls the operation of the lift and can display the following on the LCD screen: safety warnings, useful information about the operation of the lift, operational reports, maintenance reports and troubleshooting.

• Electrical synchronization with electronic board and detectors: The electronic board is programmable and protected against voltage changes, and short circuits. In addition, this system enables quick and easy identification of the operating status of the lift and ables ILC system operating.

• Independent motors in each column.

• Level is controlled through 4 inductive sensors that ensure absolute synchronisation of the lift, so it is less sensitive to floor leveling and cable balancing, making it easy to work with very long vehicles.

• It is possible to connect both the motor through inground installation and work without arch for the same price. Ask one of our employees for the possibilities.

• Floorless: provides optimum working space between the columns.

• Both symmetrical and asymmetrical arms: 4 arms that extend 3 times.

• Double screw spindles for extra high picking.

Specifications:

• capacity = 4000kg

• voltage = 400V / 3-fase

• motor power = 3 + 3kW

• minimum height = 100mm

• maximum height = 1970mm

• lifting time = 45 seconds

• distance between the columns = 2700mm

• height of the columns = 2435mm

• total height = 4250mm

• range of triple arms = 668 - 1341mm

• total weight = 750kg

Note: The price for this lift does not include the delivery and placement of the lift. For more information regarding installation and service contracts you can contact one of our employees.

Two pole lift / spindle lift / car lift

Cascos car lifts are from 100% European production. Cascos has more than 50 years of experience in vehicle lifts, which results in a very reliable and extremely strong end product.
At Cascos lifts, three key words are central, namely: Reliability, functionality and safety.

The robust construction of the lifts and the high quality of the components ensure high reliabilty and low maintenance costs.
The double and triple long arms ensure that both symmetrical and asymmetrical work can be performed and ensures a very comfortable and fast positioning of the arms in the picking points, without taking a long time to perfectly center a vehicle.
The robust columns, the steel bearings, but especially the safety nuts ensure a very high safety.

Furthermore, the Cascos two pole lifts have a number of very thoughtful features:

• SlenderTec solid columns: Very robust, 10 to 23mm thick.

• Extendable symmetrical arms: Lifts have been developed to withstand the maximum load at any angle and all lengths.

• Large spindle diameter: 45mm, the largest spindle on the market. Provides less friction and therefore less wear on the working nut. Less lubrication is required.

• Steel bearings: Less wear and compared to nylon systems because they last longer. They also provide support for the columns.

• Safety nuts: Extra sturdy for lifts with a capacity up to 5500kg.

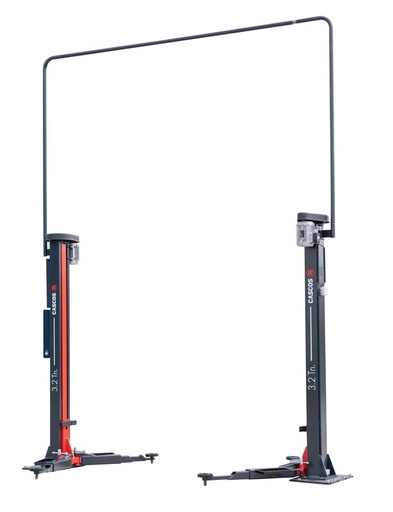

This Comfort model without base has a capacity of 3,2 tons and has the following features:

• ILC-system (Intelligent Lift Control): An innovative control system that controls the operation of the lift and can display the following on the LCD screen: safety warnings, useful information about the operation of the lift, operational reports, maintenance reports and troubleshooting.


• Electrical synchronization with electronic board and detectors: The electronic board is programmable and protected against voltage changes, and short circuits. In addition, this system enables quick and easy identification of the operating status of the lift and ables ILC system operating.


• Independent motors in each column.

• Level is controlled through 4 inductive sensors that ensure absolute synchronisation of the lift, so it is less sensitive to floor leveling and cable balancing, making it easy to work with very long vehicles.

• It is possible to connect both the motor through inground installation and work without arch for the same price. Ask one of our employees for the possibilities.

• Floorless: provides optimum working space between the columns.

• Both symmetrical and asymmetrical arms: 2 arms that extend 2 times and 2 arms that extend 3 times.

• Double screw spindles for extra high picking.

Specifications:

• capacity = 3200kg

• voltage = 400V / 3-fase

• motor power = 2,2 2,2kW

• minimum height = 100mm

• maximum height = 1960mm

• lifting time = 45 seconds

• distance between the columns = 2700mm

• height of the columns = 2435mm

• total height = 4250mm

• range of double arms = 710 - 1050mm

• range of triple arms = 597 - 1122mm

• total weight = 600kg

Note: The price for this lift does not include the delivery and placement of the lift. For more information regarding installation and service contracts you can contact one of our employees.

Two pole lift / spindle lift / car lift

Cascos car lifts are from 100% European production. Cascos has more than 50 years of experience in vehicle lifts, which results in a very reliable and extremely strong end product.
At Cascos lifts, three key words are central, namely: Reliability, functionality and safety.

The robust construction of the lifts and the high quality of the components ensure high reliabilty and low maintenance costs.
The double and triple long arms ensure that both symmetrical and asymmetrical work can be performed and ensures a very comfortable and fast positioning of the arms in the picking points, without taking a long time to perfectly center a vehicle.
The robust columns, the steel bearings, but especially the safety nuts ensure a very high safety.

Furthermore, the Cascos two pole lifts have a number of very thoughtful features:

• SlenderTec solid columns: Very robust, 10 to 23mm thick.

• Extendable symmetrical arms: Lifts have been developed to withstand the maximum load at any angle and all lengths.

• Large spindle diameter: 45mm, the largest spindle on the market. Provides less friction and therefore less wear on the working nut. Less lubrication is required.

• Steel bearings: Less wear and compared to nylon systems because they last longer. They also provide support for the columns.

• Safety nuts: Extra sturdy for lifts with a capacity up to 5500kg.

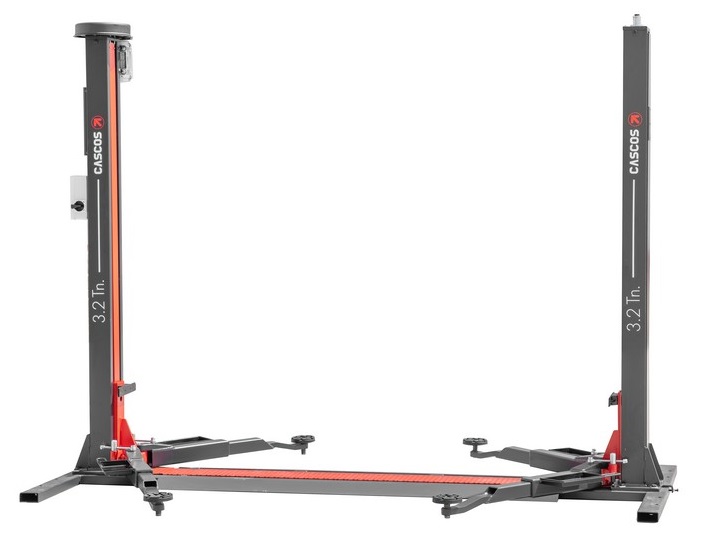

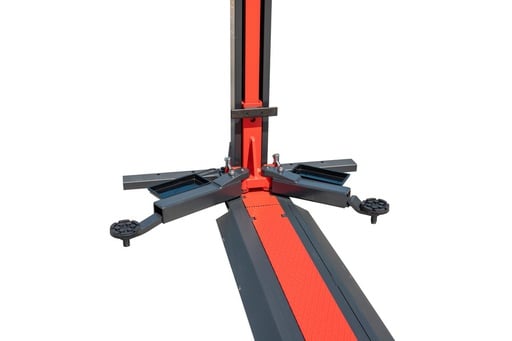

This Comfort model lift with base has a capacity of 3,2 tons and has the following features:

• Single motor: 3-phase, 400V

• Mechanical synchronization.

• Stable, sturdy floor plate.

• Both symmetrical and asymmetrical arms: 2 arms that extend 2 times and 2 arms that extend 3 times.

• Double screw spindles for extra high picking.

Specifications:

• capacity = 3200kg

• voltage = 400V / 3-fase

• motor power = 3,7kW

• minimum height = 100mm

• maximum height = 1960mm

• lifting time = 45 seconds

• distance between the columns = 2700mm

• height of the columns = 2435mm

• range of double arms = 710 - 1050mm

• range of triple arms = 597 - 1122mm

• total weight = 600kg

Note: The price for this lift does not include the delivery and placement of the lift. For more information regarding installation and service contracts you can contact one of our employees.

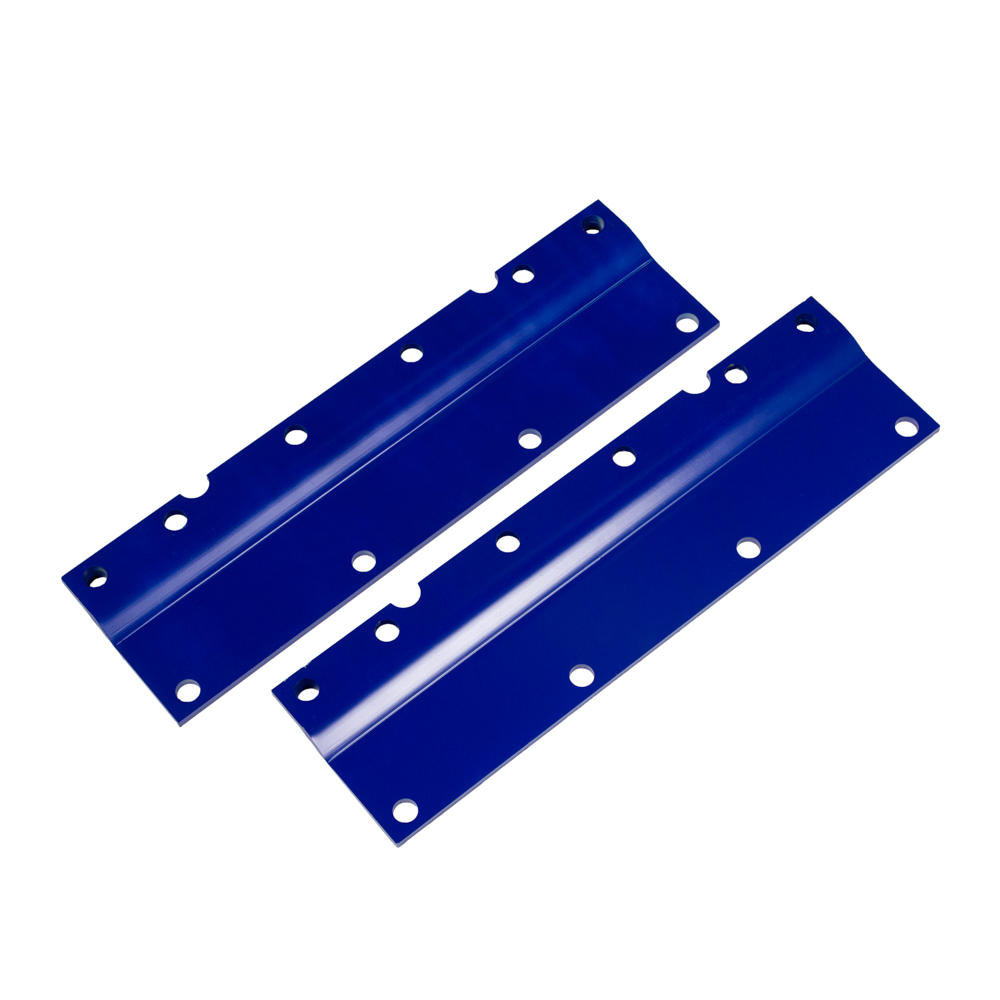

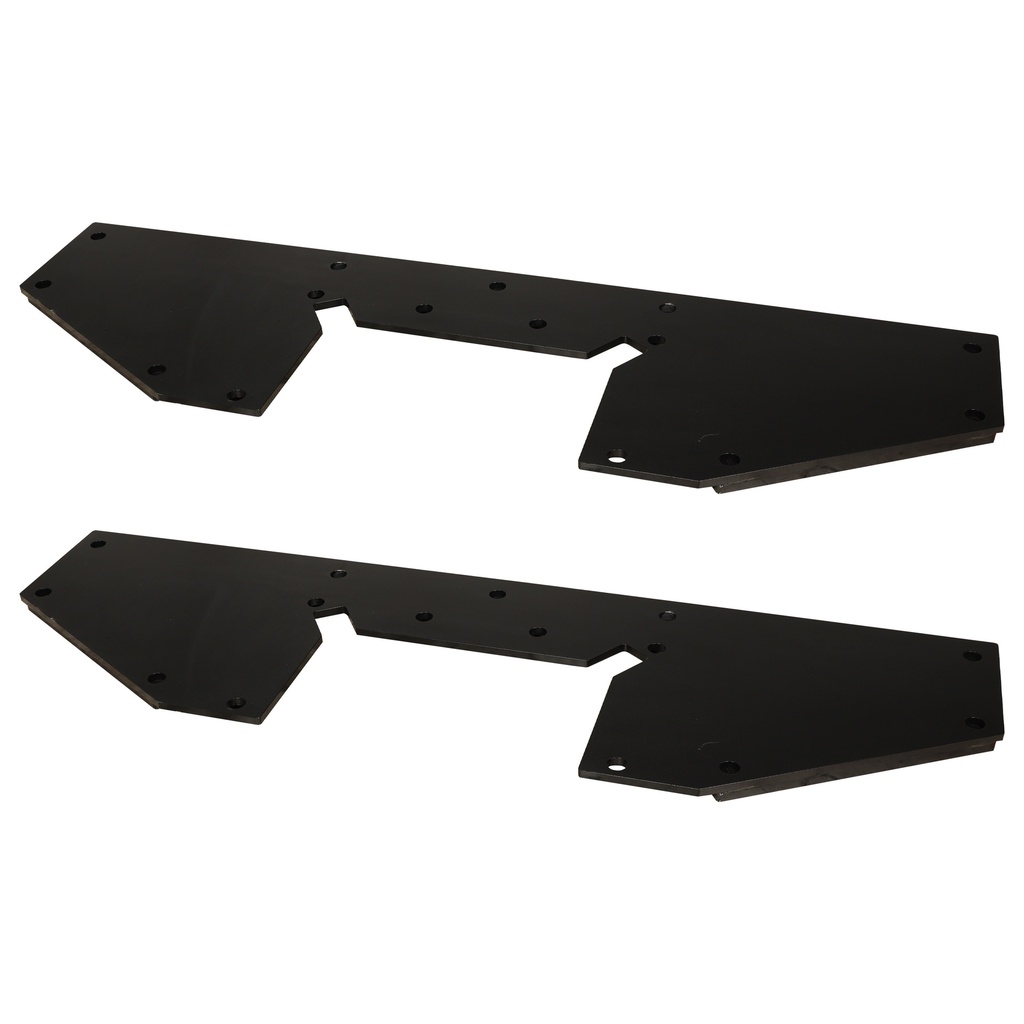

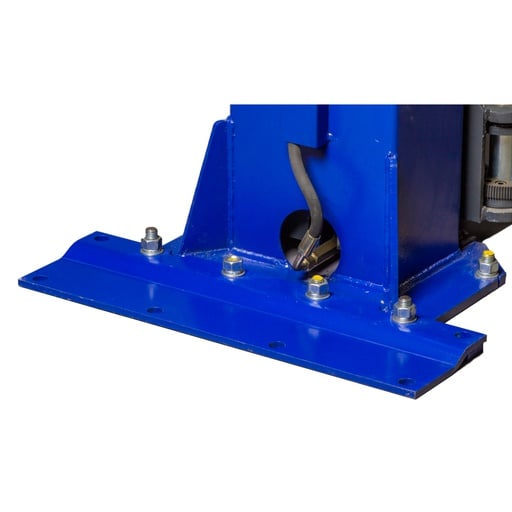

Adapter plate

Suitable for the post lifts VL35F230, VL35F230B and VL35F400.

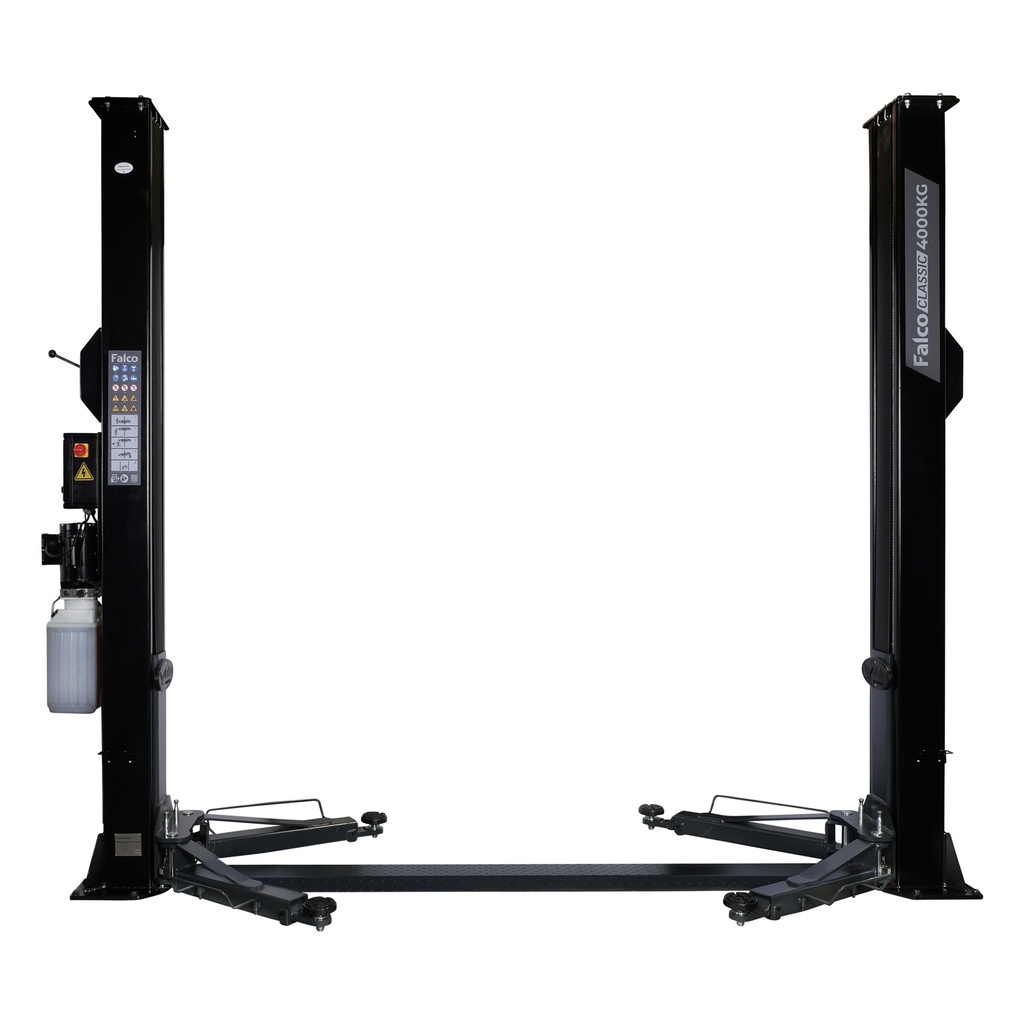

Two post lift / two colum lift

Thanks to the thoughtful design of Falco lifts, you save time and effort. The focus is on ease of use and efficient work flow. The different models are developed for various applications.
The "Classic" model is a very and succesful and reliable model. Due to its simple but sturdy structure, the lift has no weak superfluous components and is extremely durable. Thanks to the new manual sync lock system, the lift can easily be unlocked on both sides with just one action.

Features:

• double telescopic extendable lifting arms

• sync lock system

• good quality hydraulic pump

• in height adjustable lifting pads

• automatic support arm locking

• fully automatic electric detent

• protective rubbers door stop

• foot protection at every lifting arm

• protective caps on the inside of the columns

• robust columns manufactured from rolled steel

• hydraulic cylinder on both sides

• extreme low threshold of 45mm

• dead mans switch for lifting and lowering

• automatic protection against overcharge

• height limit switch

• 12 heavy M18 security bolts

Technical specifications:

• capacity = 4000kg

• voltage = 230V

• motor power = 2,2kW

• min. working height = 95mm

• max. lifting height = 2000mm

• reach short lifting arm = 600 - 870mm

• reach long lifting arm = 840 - 1320mm

• distance between the columns = 2815mm

• height of the columns = 2850mm

• weight = 610kg

• oil capacity = 10L CH32 (not included!)

All of Falco's car lifts comply with the NEN-EN1493 safety standard and are supplied with a Dutch manual including maintenance protocol and CE certificate 2006/42/EC.

No time for installation?

Our professional installation team is specialized in the installation of Falco lifts!

Your bridge will be installed in a correct way.
The team thinks along with you about the position and placement of the lift.

For the above price is our installation team within a radius of 100km on site including 3 hours of labor for installation.

For the extended activities which are not included, there will be a hourly rate of € 75,00 excl. VAT.
For distances beyond the radius of 100km, we will charge 1,00 euro per kilometer.

Note!
The surface must at least meet the following requirements:
- concrete strength C20 - C25 250kg/com
- 200mm thickness
- newly poured concrete needs to cure for 28 days
Ask for the manual for more information about the surface requirements.

Transport of the lift is not included and depends on the unloading facilities.
Consult us first to make a suitable appointment for this.

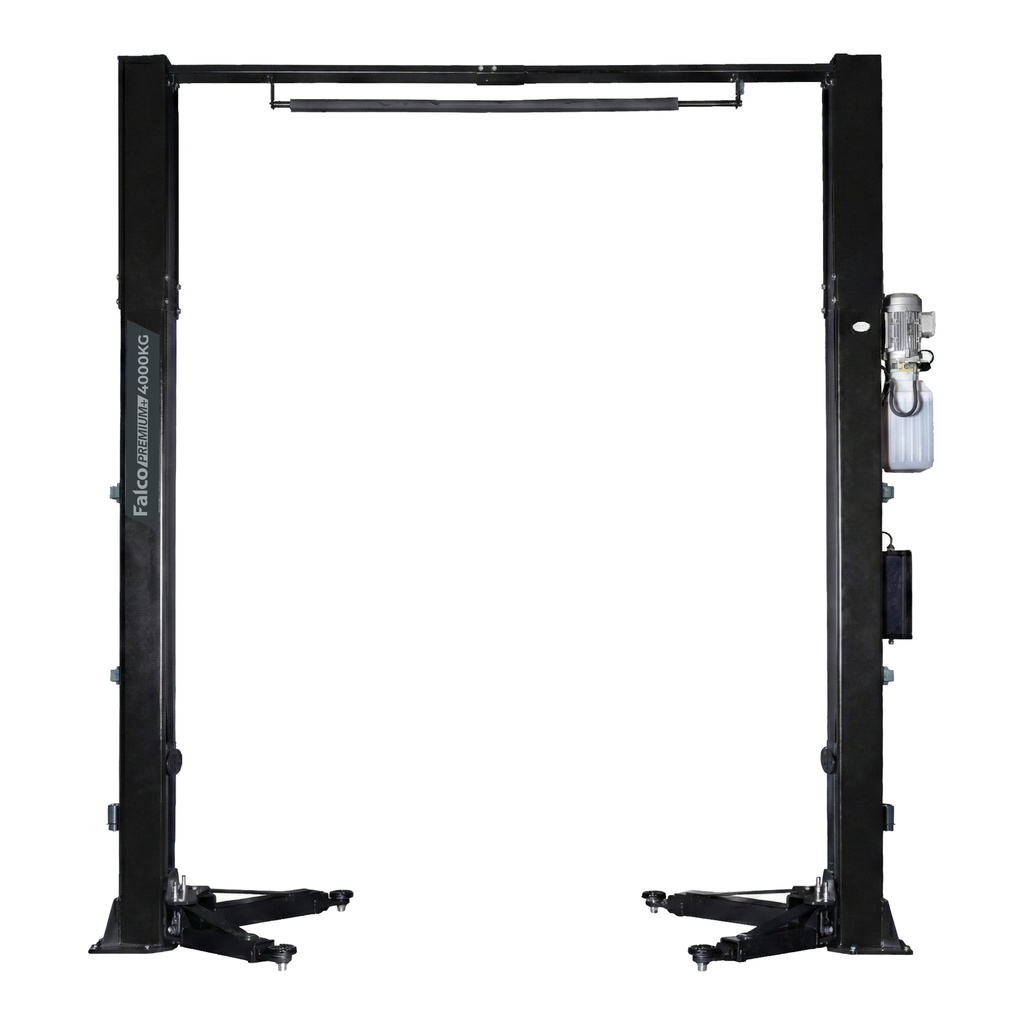

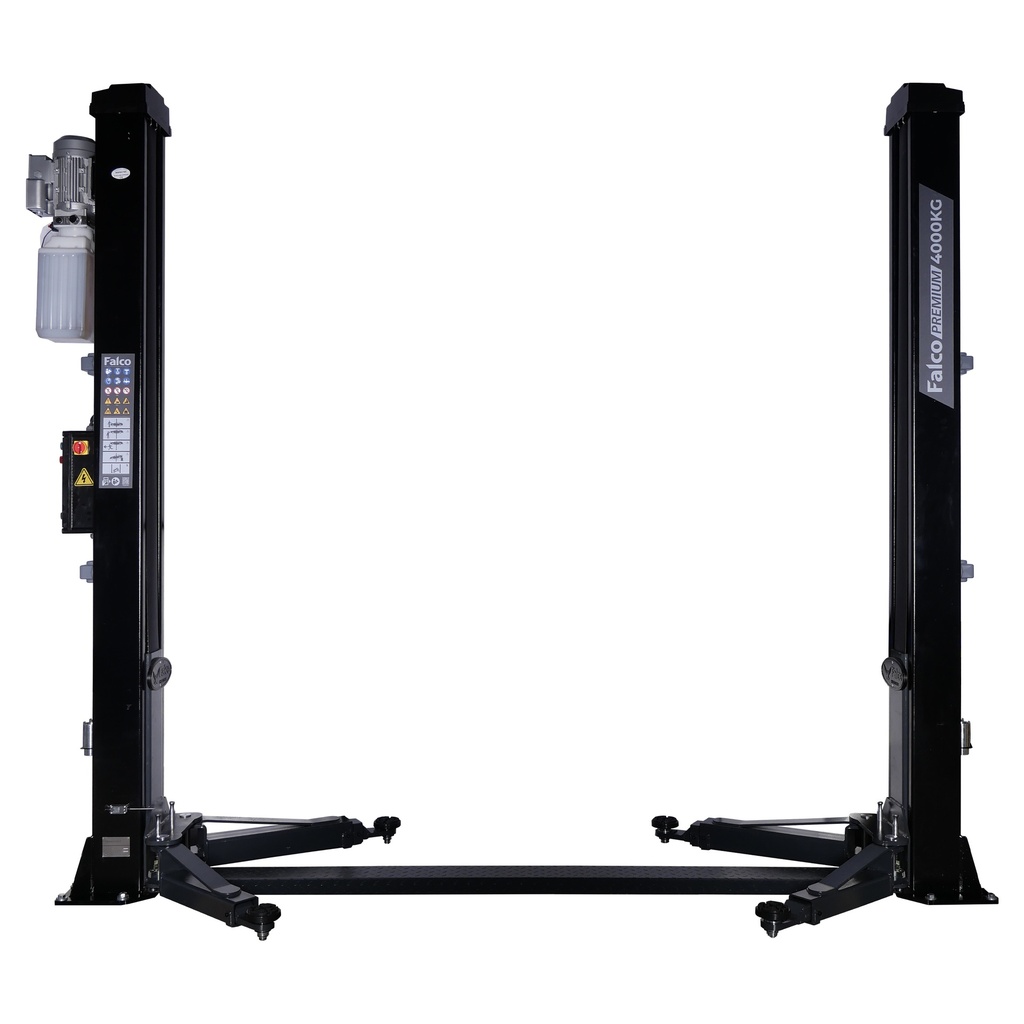

Zwei Säulen Hebebühne

Thanks to the thoughtful design of Falco lifts, you save time and effort. The focus is on ease of use and efficient work flow. The different models are developed for various applications.
The "Premium" fully automatic model is a very complete and reliable model, making the lift suitable for a large number of vehicles.

Features:

• double and triple telescopic extendable lifting arms

• steel cable synchronization control

• quality hydraulic pump incl. cooling fins

• clear oil reservoir incl, oil level

• foot protection incl. acoustic security signal

• turns off when the highest position is reached

• in height adjustable lifting pads with double spindles

• automatic support arm locking

• fully automatic electric detent

• protective caps on the inside of the columns

• protective rubbers door stop

• robust columns manufactured from rolled steel

• hydraulic cylinder on both sides

• extreme low threshold of 45mm

• dead man's switch for lifting and lowering

• automatic protection against overcharge

• height limit switch

• 12 heavy M18 security bolts

Technical specifications:

• capacity = 4000kg

• voltage = 400V

• motor power = 2,2kW

• min. working height = 95mm

• max. lifting height = 2050mm

• reach short lifting arm = 630 - 930mm

• reach long lifting arm = 830 - 1760mm

• distance between the columns = 2815mm

• height of the columns = 2806mm

• weight = 610kg

• oil capacity = 10L CH32 (not included!)

All of Falco's car lifts comply with the NEN-EN1493 safety standard and are supplied with a Dutch manual including maintenance protocol and CE certificate 2006/42/EC.

Zwei Säulen Hebebühne

Thanks to the thoughtful design of Falco lifts, you save time and effort. The focus is on ease of use and efficient work flow. The different models are developed for various applications.

The "Premium" fully automatic model is a very complete and reliable model, making the lift suitable for a large number of vehicles.

Features:

• double and triple telescopic extendable lifting arms

• steel cable synchronization control

• quality hydraulic pump incl. cooling fins

• clear oil reservoir incl, oil level

• foot protection incl. acoustic security signal

• turns off when the highest position is reached

• in height adjustable lifting pads with double spindles

• automatic support arm locking

• fully automatic electric detent

• protective caps on the inside of the columns

• protective rubbers door stop

• robust columns manufactured from rolled steel

• hydraulic cylinder on both sides

• extreme low threshold of 45mm

• dead man's switch for lifting and lowering

• automatic protection against overcharge

• height limit switch

• 12 heavy M18 security bolts

Technical specifications:

• capacity = 4000kg

• voltage = 230V

• motor power = 2,2kW

• min. working height = 100mm

• max. lifting height = 1850mm

• reach short lifting arm = 620 - 890mm

• reach long lifting arm = 790 - 1570mm

• distance between the columns = 2815mm

• height of the columns = 2806mm

• weight = 610kg

• oil capacity = 10L CH32 (not included!)

All of Falco's car lifts comply with the NEN-EN1493 safety standard and are supplied with a Dutch manual including maintenance protocol and CE certificate 2006/42/EC.

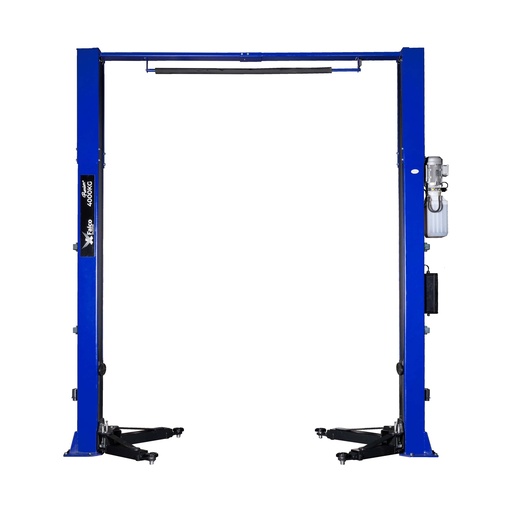

Two column lift bridge / two pile bridge / 2 column lift bridge

Thanks to the well thought-out design of the Falco bridges, you save time and effort. The focus is on ease of use and an efficient work flow. The different models are developed for various applications. The PremiumPlus is a fully automatic and barrier-free model, which makes this bridge very complete and suitable for a large number of different vehicles. The Falco Sollevatori Premium series has proven itself over the years as a very reliable and multi-usable bridge, for almost all common cars.

Characteristics:

• Floorless / barrier-free

• Double and triple telescopic adjustable wishbones

• Steel cable synchronization control (synchronization)

• Quality hydraulic pump incl. cooling fins

• 24V control box

• Transparent oil reservoir incl. oil level

• Foot protection incl. acoustic safety signal

• Exit when reaching highest position

• Height adjustable carrying pads with double spindles

• Standard elevated pickup buses

• Automatic wishbone lock

• Fully automatic electric detent

• Shield inside column

• chain guard

• Robust columns made of rolled steel

• Protective rubbers door stop

• Hydraulic cylinder on both sides

• Dead mans operation when lifting and lowering

• Automatic overload protection

• Height Limit Switch

• 12 heavy M18 locking bolts

Technical specifications:

• capacity = 4000kg

• voltage = 400V

• motor power = 2.2kW

• minimum recording height = 95mm

• maximum lifting height = 2050mm

• short lift arms reach = 625 - 932mm

• reach long lift arms = 825 - 1750mm

• distance between the columns = 2785mm

• height of the columns = 2806mm

• total height = 3756mm

• total width = 3540mm

• weight = 680kg

• oil capacity = 10L CH32 (not included!)

All Falco car bridges comply with the NEN-EN1493 safety standard and are supplied with a Dutch manual including maintenance protocol and CE certificate 2006/42/EG.

Two column lift bridge / two pile bridge / 2 column lift bridge

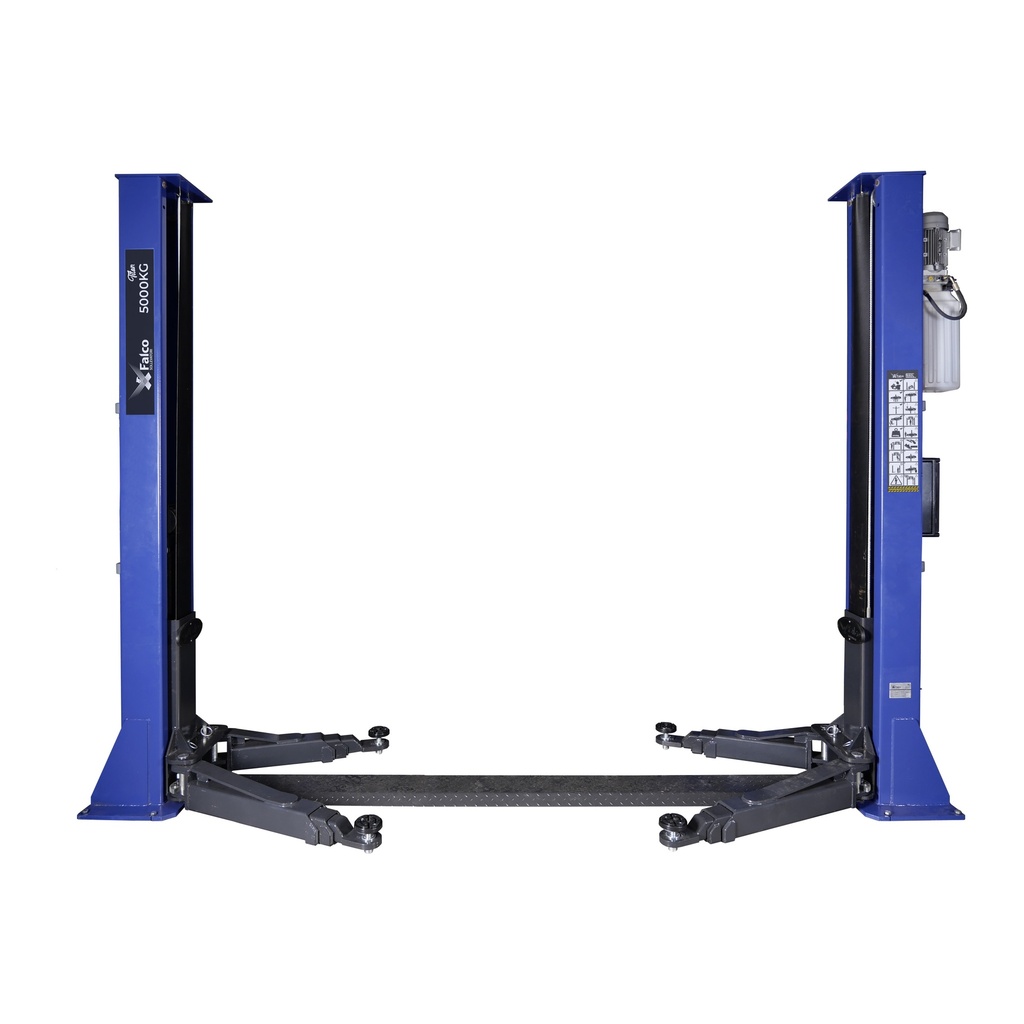

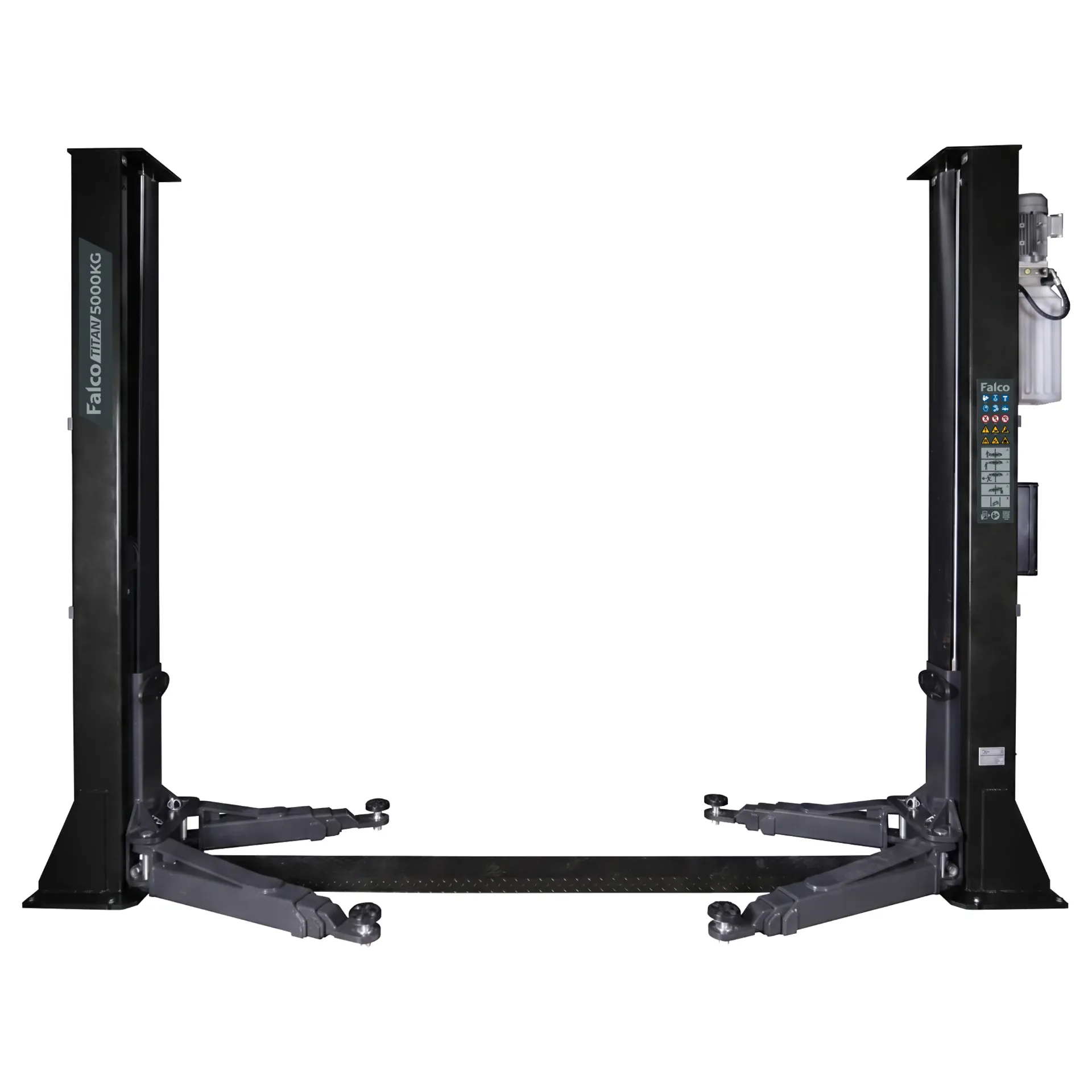

Thanks to the well thought-out design of the Falco bridges, you save time and effort. The focus is on ease of use and an efficient work flow. The different models are developed for various applications. The Titan fully automatic model has a large range, is a very complete and reliable model, making the lift suitable for large vehicles in particular.
