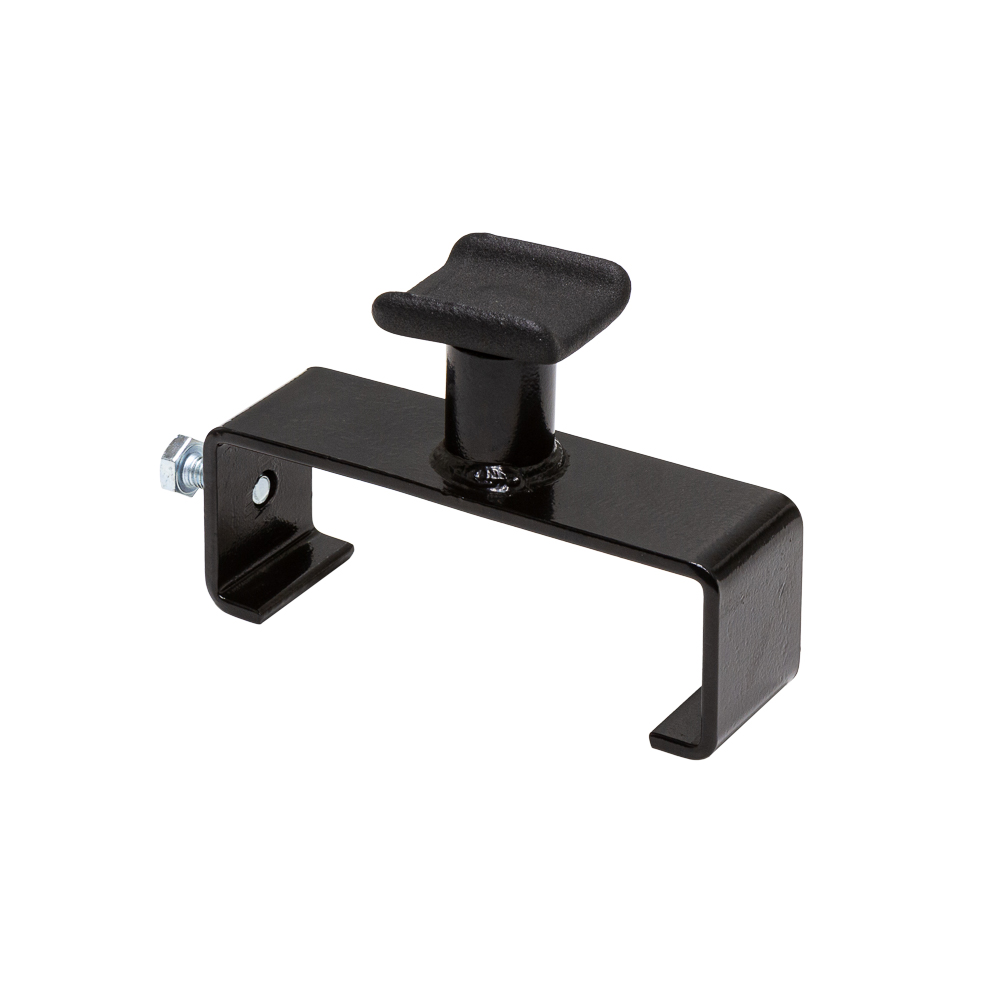

Adaptor

Adjustable in height:

• minimum height = 50mm

• maximum height = 70mm

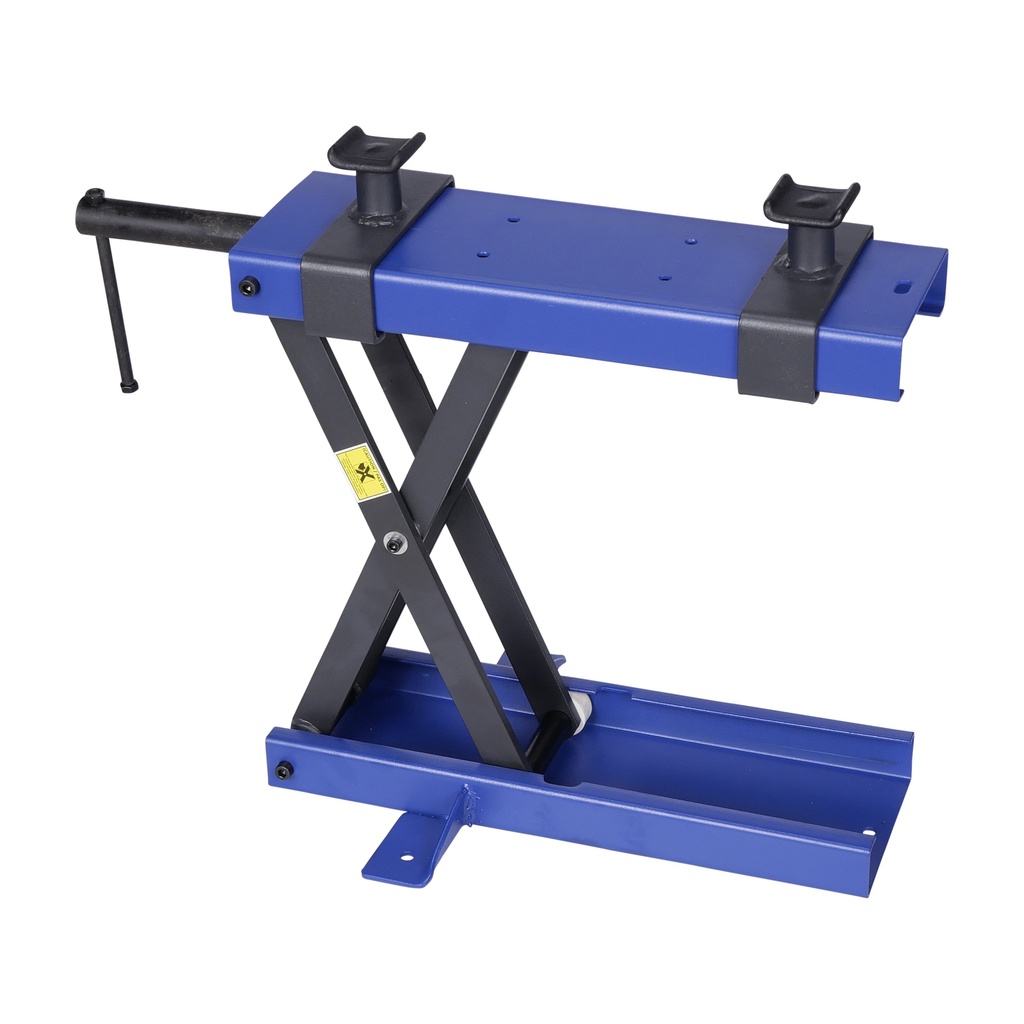

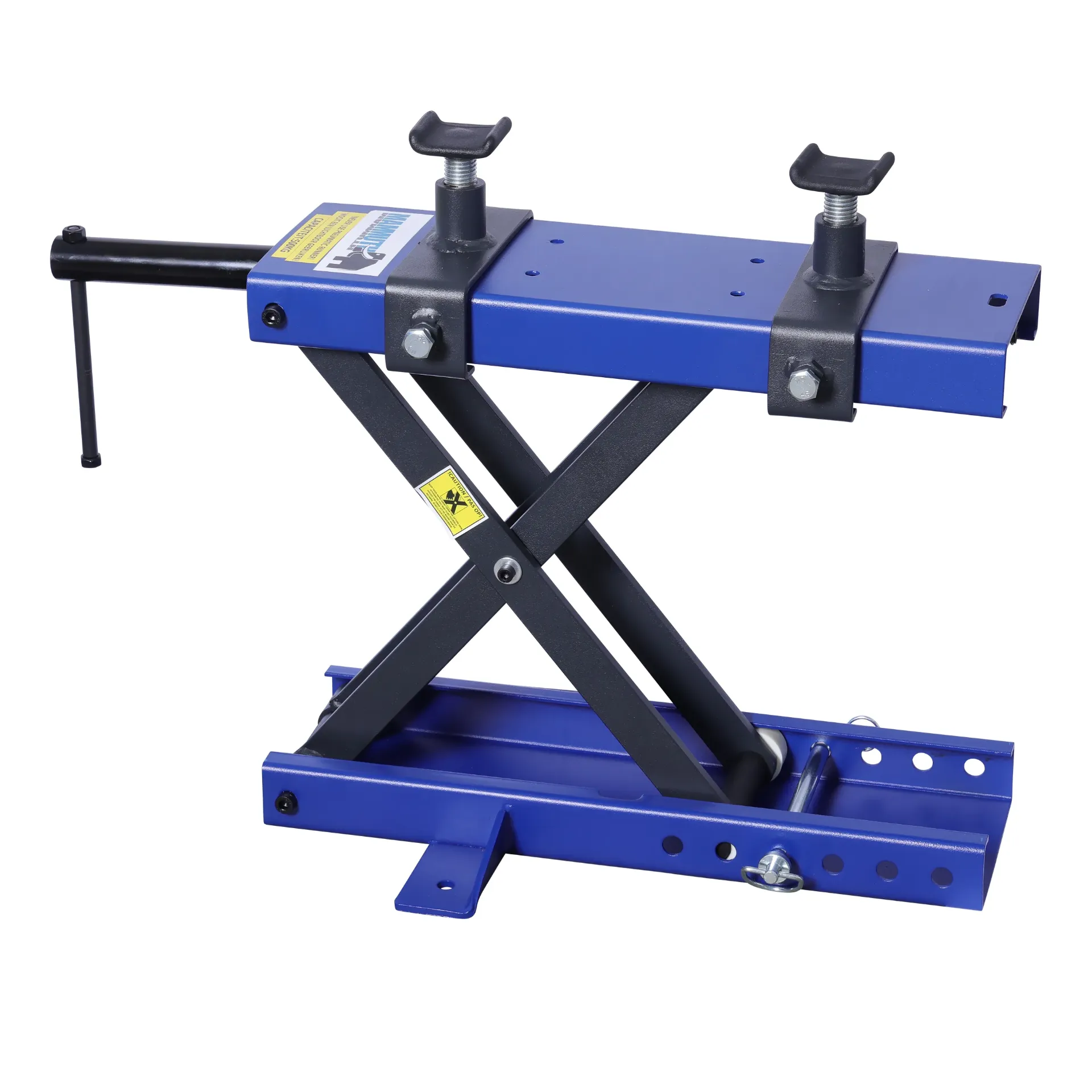

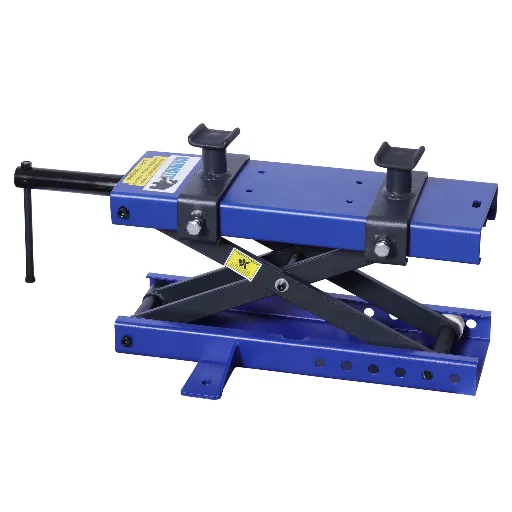

Suitable for the mini motorcycle lift ML34B.

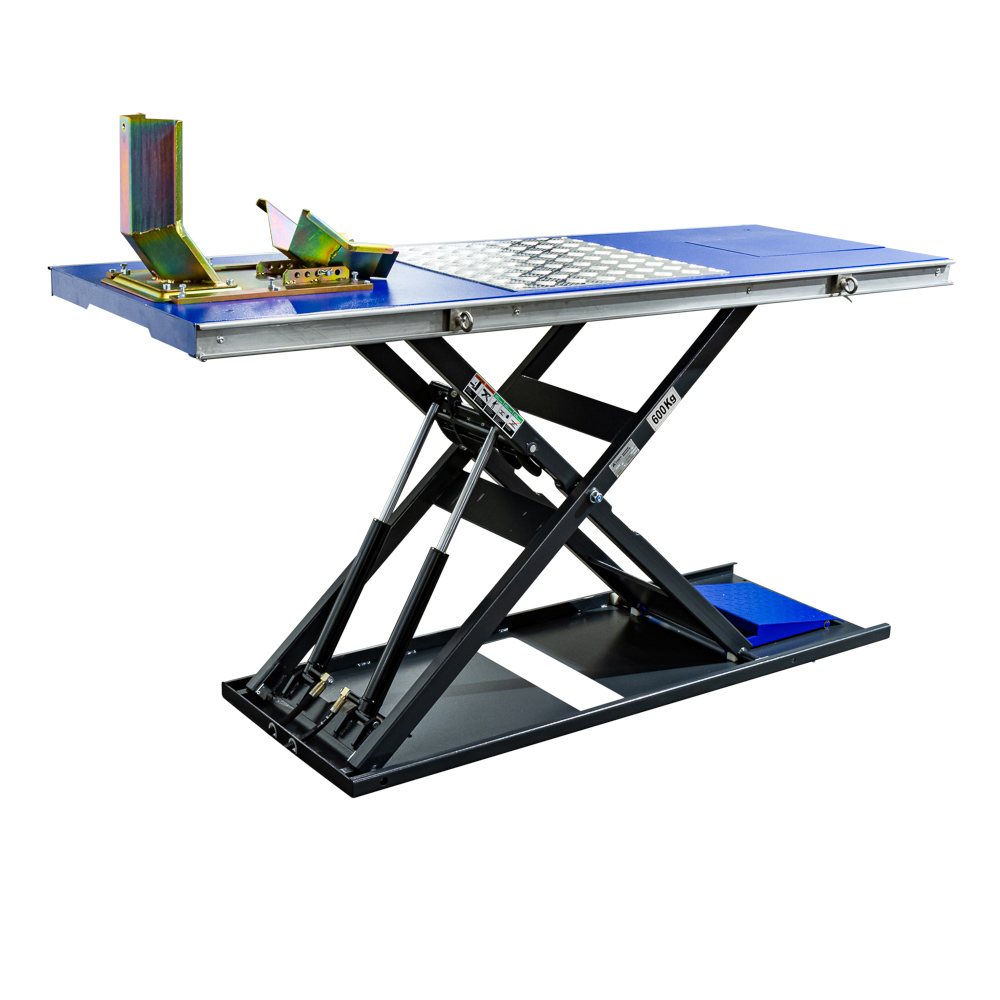

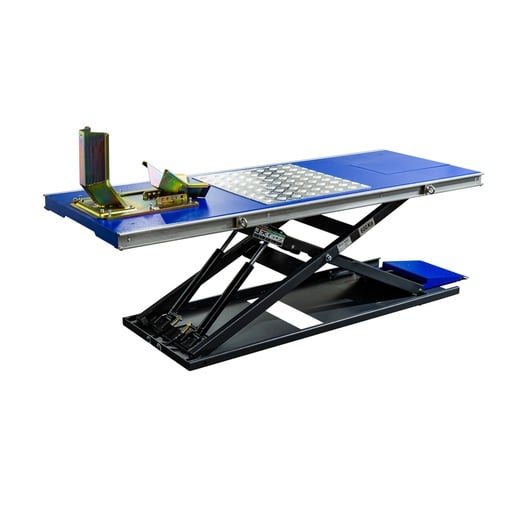

Motorcycle lift

Thanks to its unique design this Falco Sollevatori motorcycle lift is provided with the following standard features:

• Ultra low: Due to the external control unit, the minimum drive height is only 75mm

• Stepless security through the 2 cylinders, no extra action is needed to lower the lift

• Foldable back plate for easy mounting and dismounting of the rear wheel

• Automatically locking front wheel clamp when wheel is entered

• Ramp that stores itself when lifting, because of this, the lift takes less space

• Equipped with a stainless steel gutter on both sides. With this, the eye nuts can be used over the entire long side

• External 230V control unit

• Antislip tear plate for grip on the liftt

Technical specifications:

• capacity = 600kg

• electro motor = 230V / 50Hz, 10A, 1.1kW

• min. height = 75mm

• max. height = 1100mm

• heftijd = 17 seconds (unloaded)

• platform size = 2200 x 780mm

• oil tank capacity = +/- 3 liters of CH46V hydraulic oil (not included!)

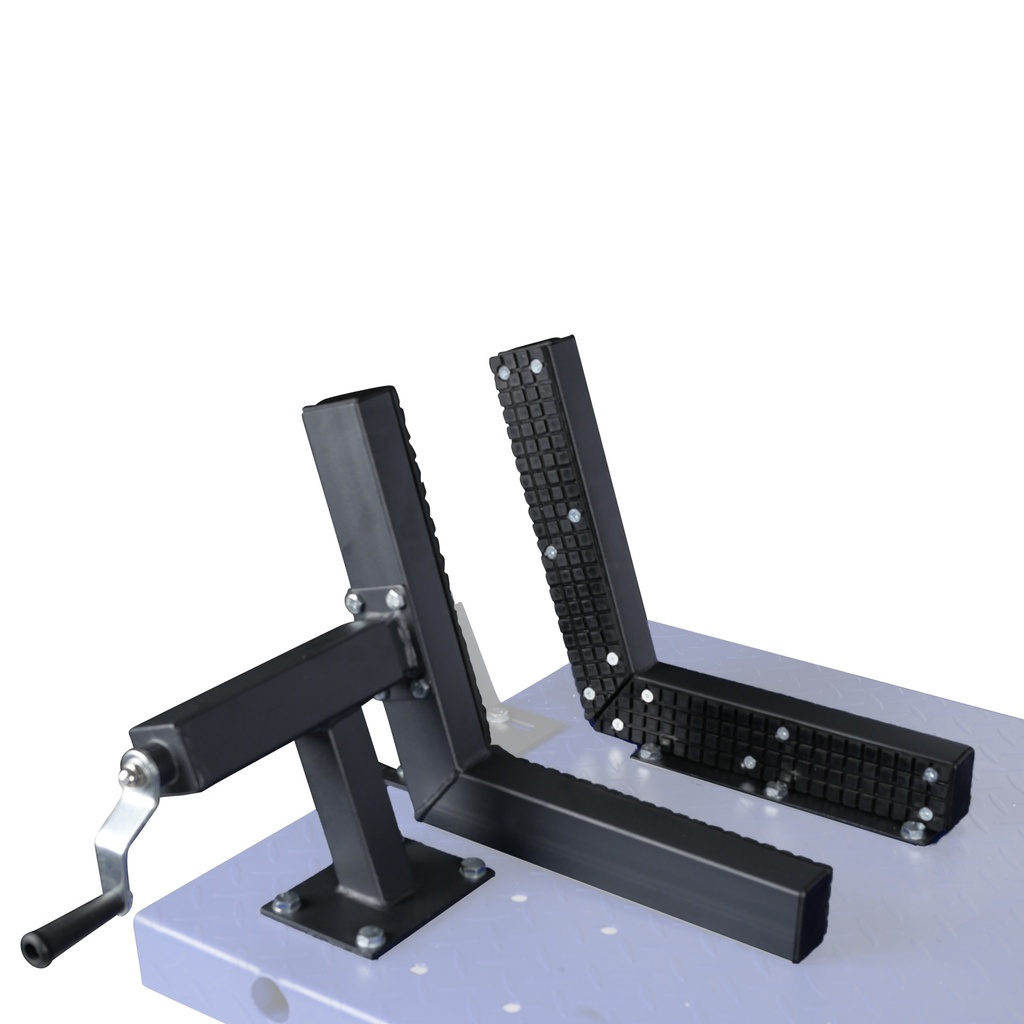

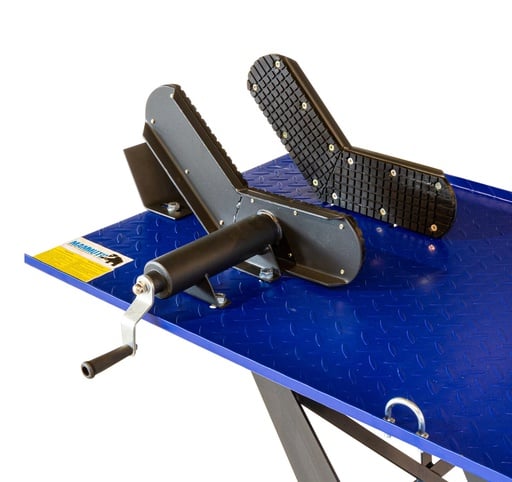

Motorcycle lift clamp

Suitable for the motorcycle lift table ML75HAS.

• max. opening = 205mm

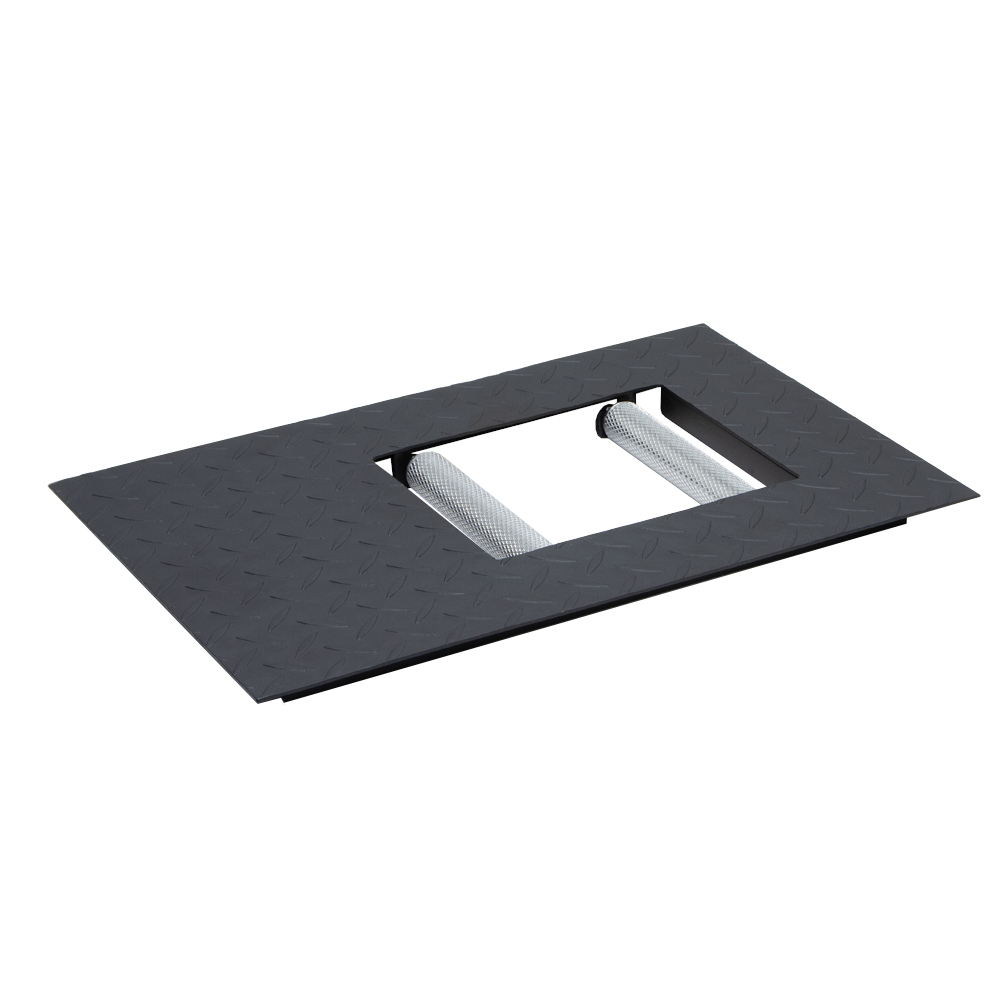

Roller plate

This plate is suitable as a replacement for the removable plate of the motorcycle lift ML75HAS. With the help of this plate, the rear wheel can roll without the motorcycle being lifted.

• distance between de rollers = 130mm

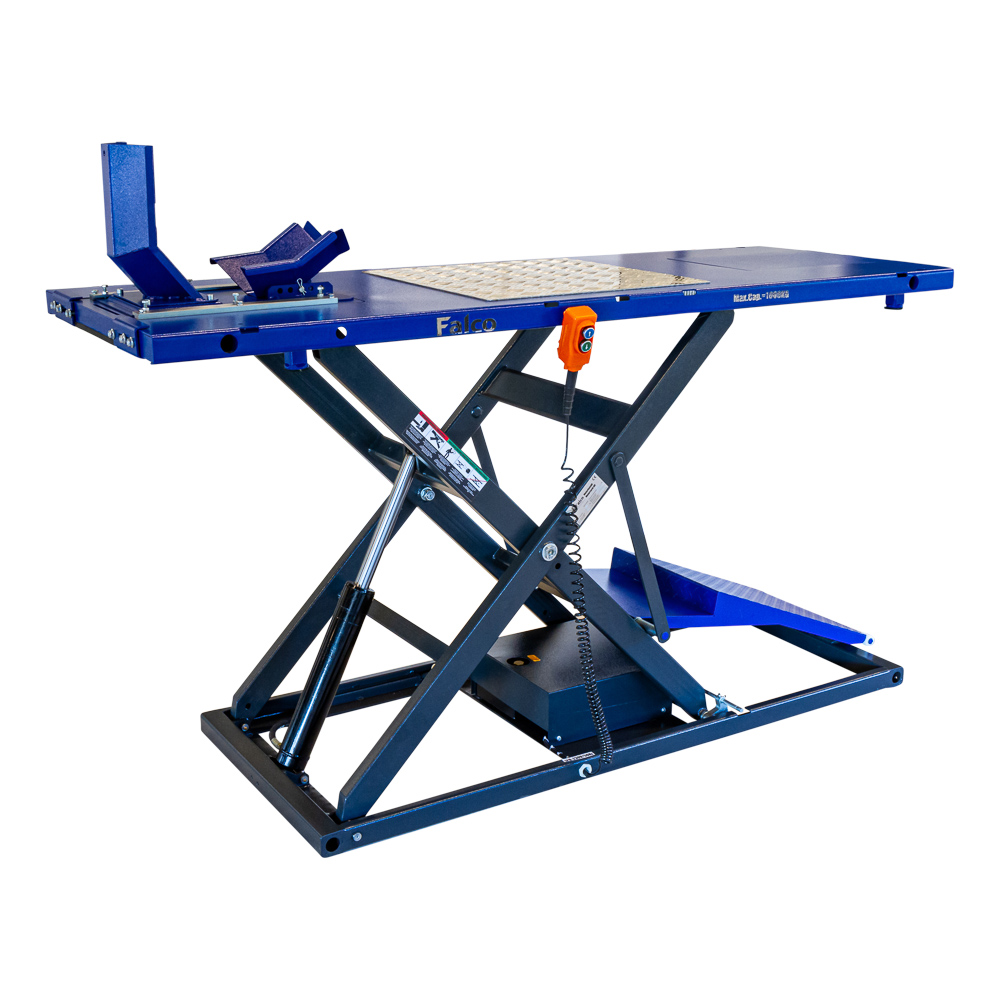

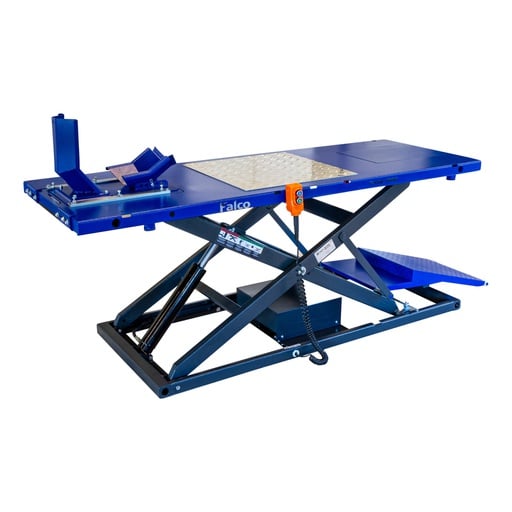

Motorcycle lift

Thanks to its unique design this Falco Sollevatori motorcycle lift is provided with the following standard features:

• lifting height of 123cm

• foldable plates for easy mounting and dismounting of the front and rear wheel

• automatically locking front wheel clamp when wheel is entered

• ramp that stores itself when lifting, because of this, the lift takes less space

• neat built-in, powerful electric unit, provides more space on the work floor

• handy, magnetic control unit

• tear plate for grip on the lift

• lift can be locked at six different heights, which ensures safety and reliability


Technical specifications:

• capacity = 1000kg

• electro motor = 230V / 50Hz, 10A, 1.1kW

• min. height = 180mm

• max. height = 1230mm

• platform size = 2250 x 800mm

• tire width = 50 - 150mm

• oil capacity = 3,5L

Optional for this lift:

• widening set, suitable for quads and ATV's, wides the lift from 80cm to 127cm

• front extension, in combination with the widening set this lift is also suitable for trikes, extends the lift with 55cm


For more information, see related products

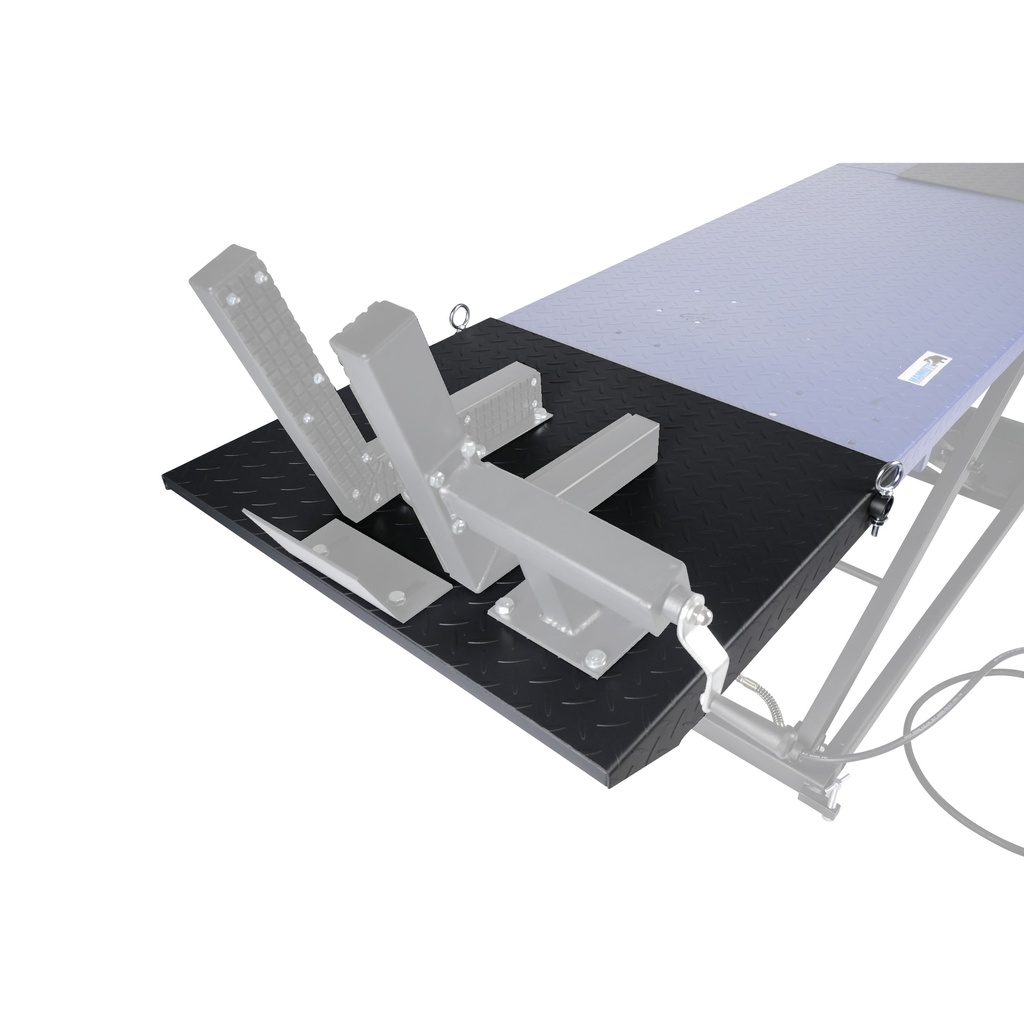

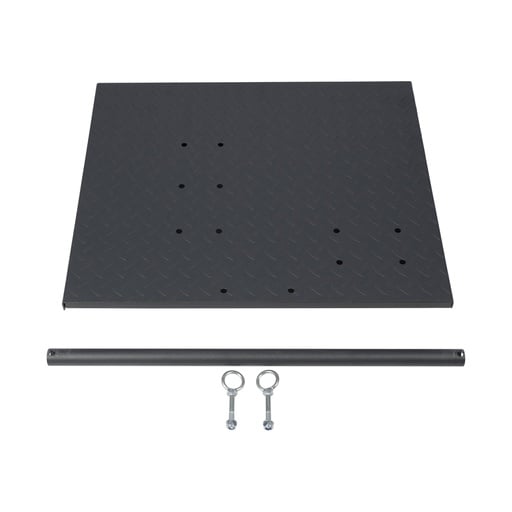

Extension / front panel

This extension provides a longer motorcycle lift and is suitable for the ML75HAS.
In combination with the widening set, the lift is also suitable for trikes.

• length panel = 720mm

• width panel = 610mm

• total extension motorcycle lift = 425mm

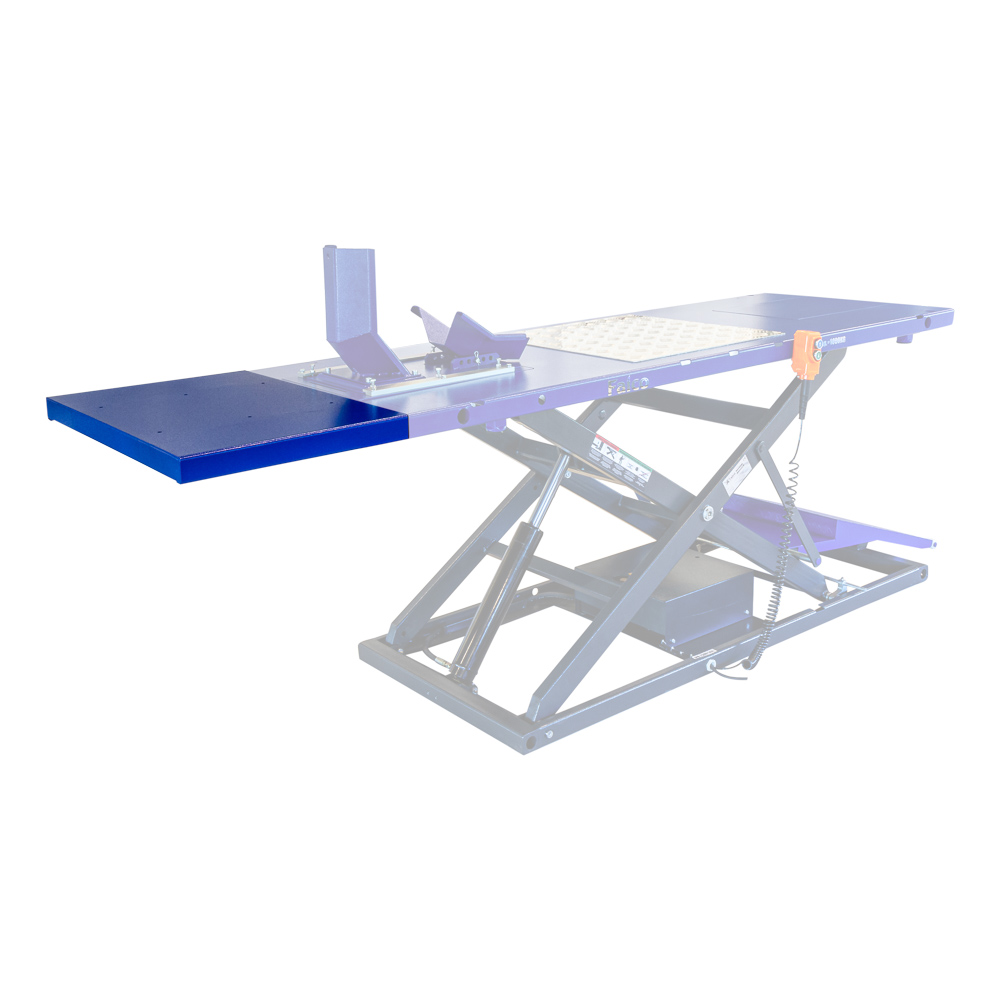

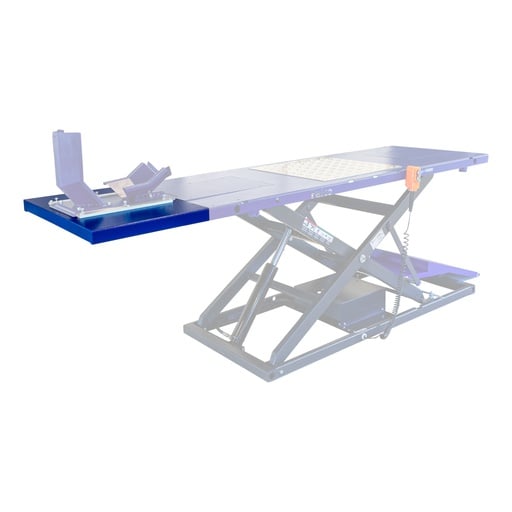

Extension / front panel

This extension provides a longer motorcycle lift and is suitable for the MLP100KE.
In combination with the widening set, the lift is also suitable for trikes.

- length panel = 550mm
- width panel = 800mm

Suitable for the motorcycle lifting jack ML70HK.

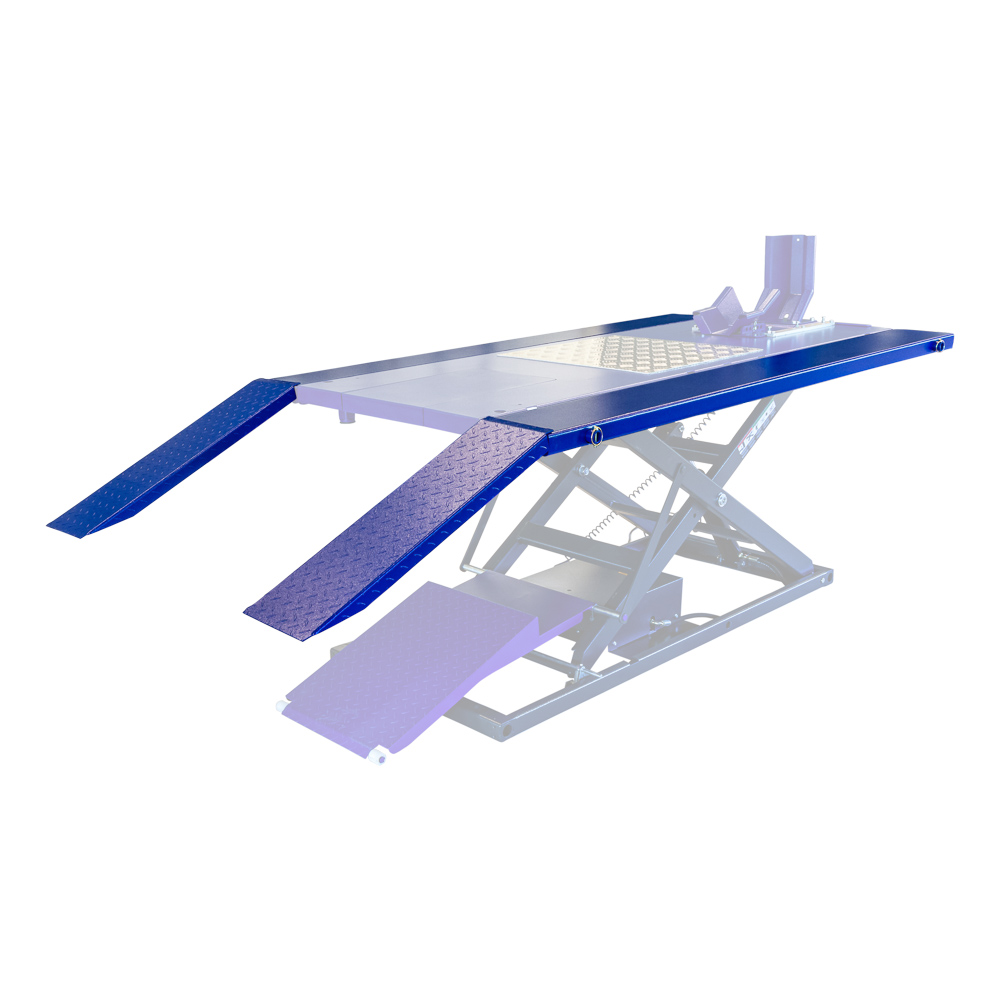

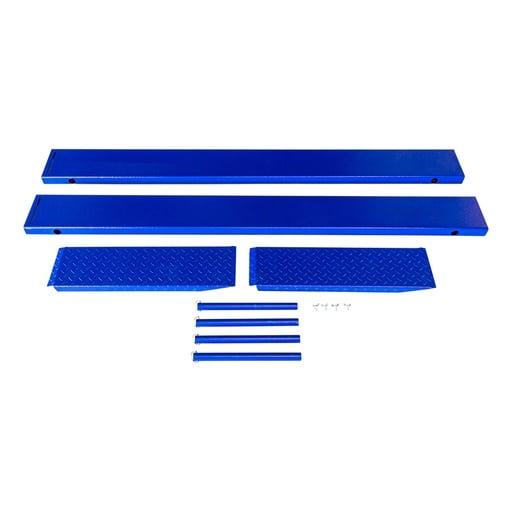

Widening set / side panels motorcycle lift

This widening set provides a wider motorcycle lift so it is also suitable for quads and ATV's. The set is suitable for the MLP100KE.
In combination with a front extension panel, the lift is also suitable for trikes.

- total width panels = 470mm (235mm per panel)

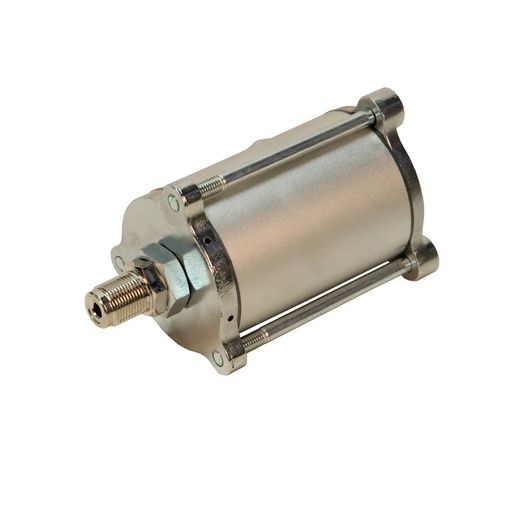

Air pump for hydraulic footpump

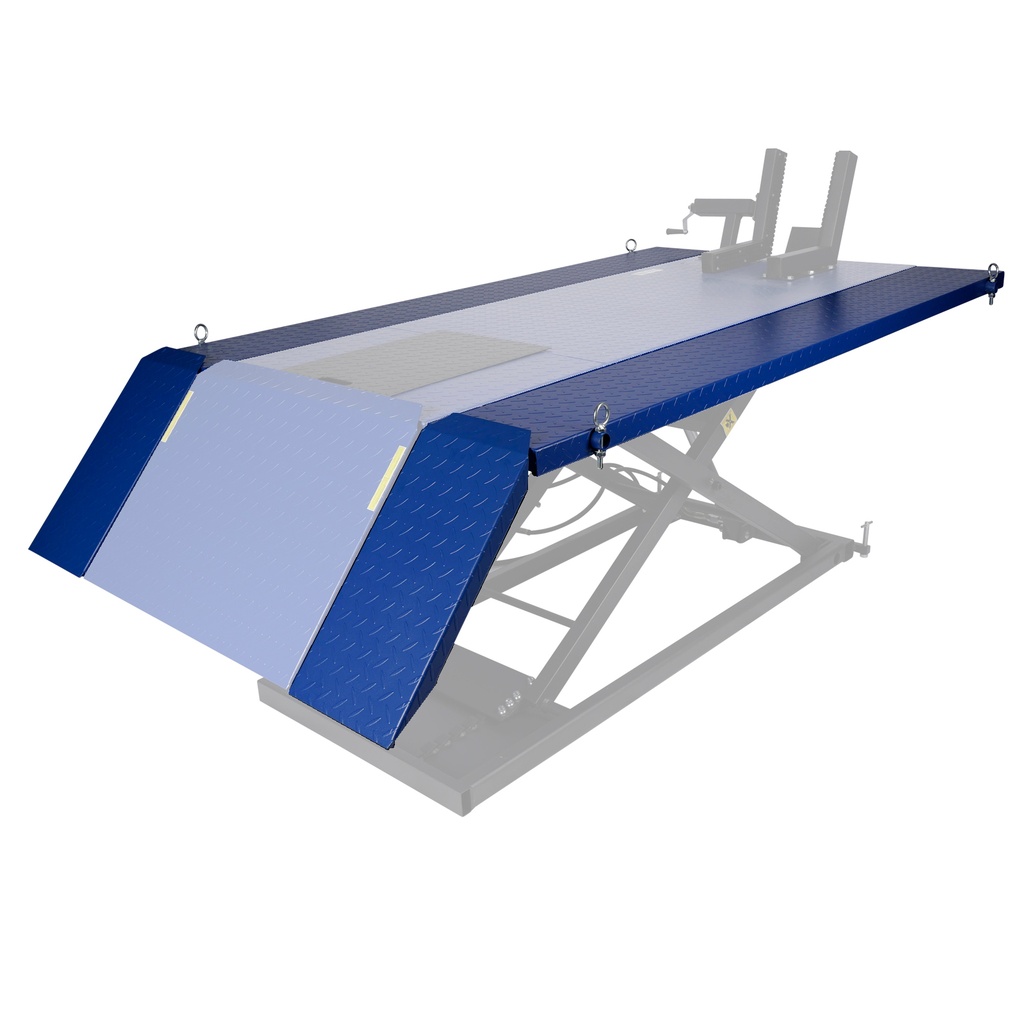

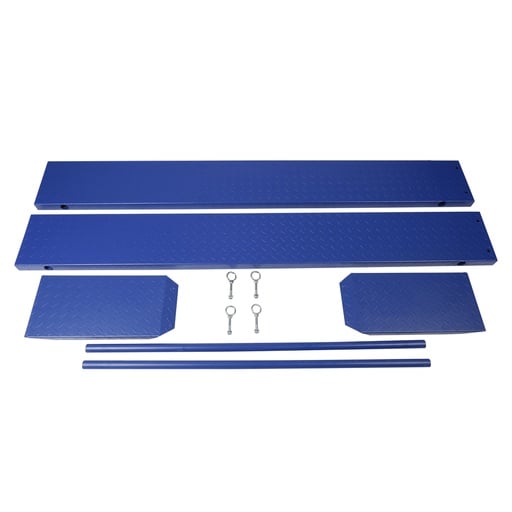

Widening set / side panels motorcycle lift

This widening set provides a wider motorcycle lift so it is also suitable for quads and ATVs. The set is suitable for the ML75HAS.
In combination with a front extension panel, the lift is also suitable for trikes.

• total width panels = 500mm

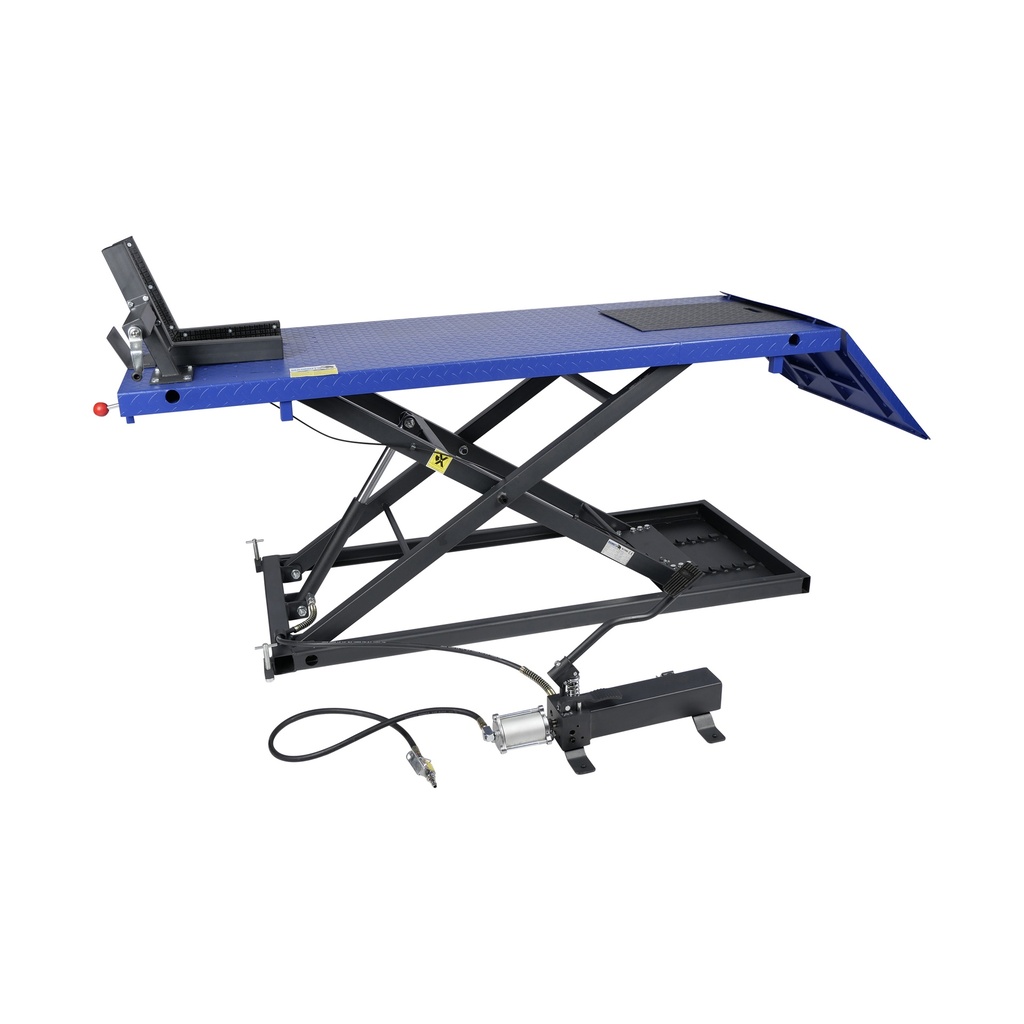

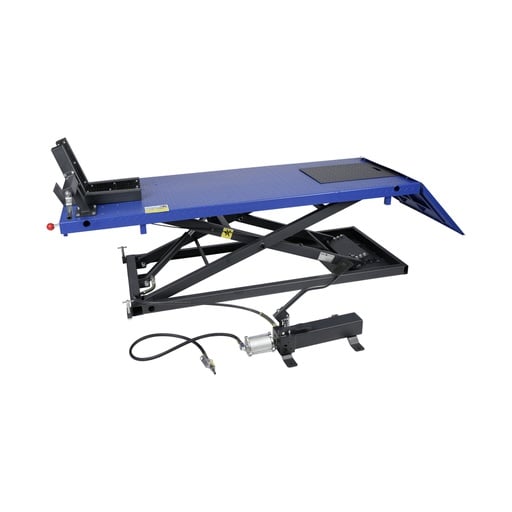

Motorcycle lift / motor lift table / lifting table

This motorcycle lift is suitable for the larger and wider motorcycles. The lift can be operated with both foot pump and air pump.
The scissor lift model provides a robust construction and extra stability. The locking works by means of teeth that can be unlocked with the aid of a lever. The lift is also equipped with a removable plate so that the rear wheel is free.
Furthermore, the lift is supplied with a front wheel clamp as shown and the lift can be widened and extended as an option.

Specifications:

• capacity = 675kg

• min. height = 185mm

• max. lifting height = 825mm

• platform size = 2000 x 710mm


• max. opening front wheel clamp = 210mm

• required air pressure = 8 bar

• ramp size = 710 x 555mm

Dimensions of the packing box = 205 x 84,5 x 49,5cm

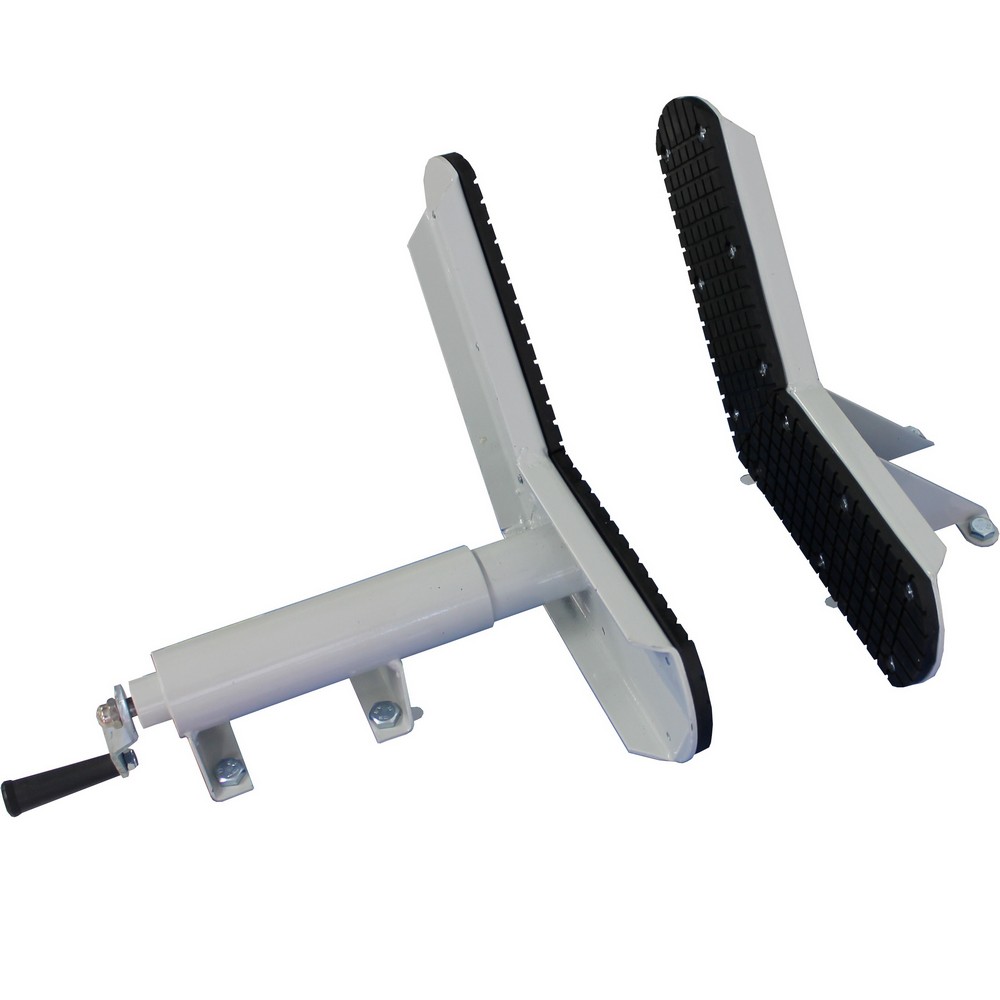

Motorcycle lift angle clamp

Suitable for all types of motorcycle lifts.

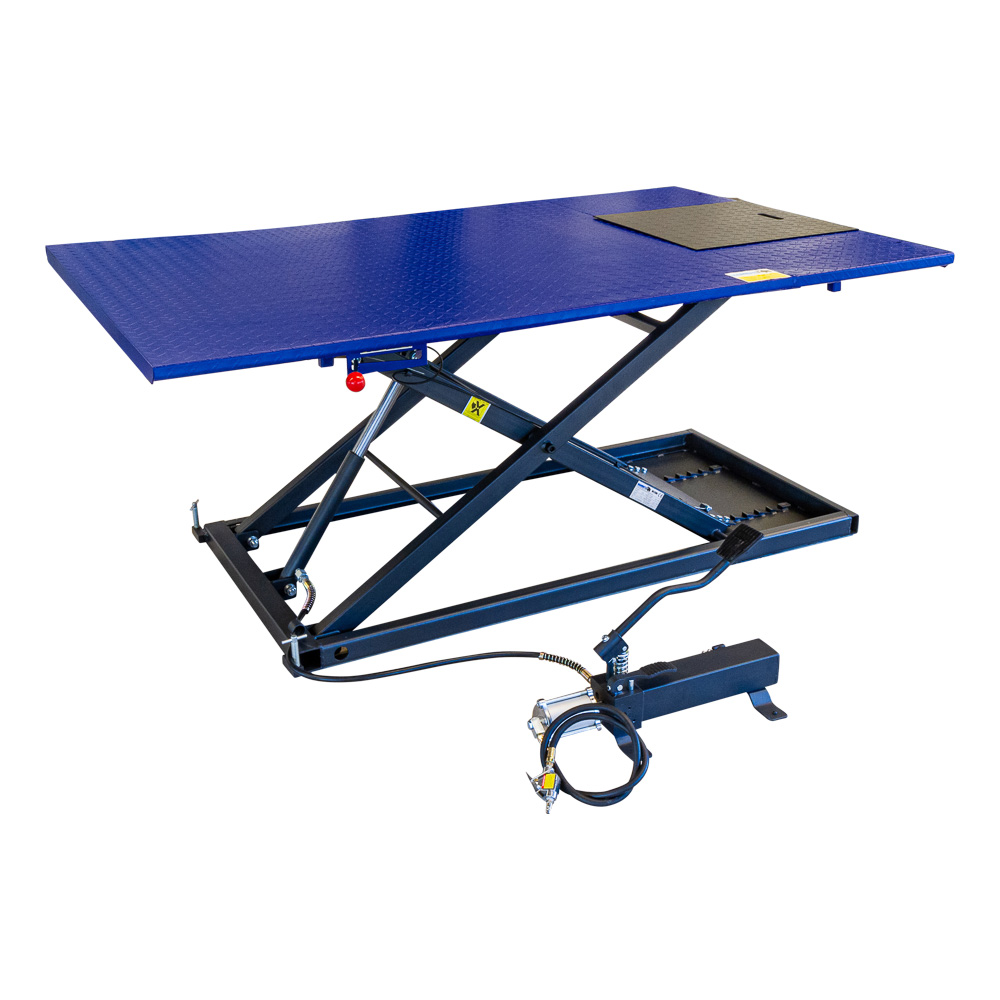

Quad lift / quad lift table / motorcycle lift / motor lift / ATV lift

This quad lift is suitable for the larger and wider bikes such as quads, trikes and ride-on mowers. The lift can be operated with both a foot pump and an air pump.
The scissor lift model provides a robust construction and extra stability. The locking works bij means of teeth that can be unlocked with the aid of a lever. The lift is also equipped with a removable plate.

Specifications:

• capacity = 675kg

• min. height = 185mm

• max. lifting height = 825mm

• platform size = 1995 x 1190mm

• ramp size = 650 x 1190mm

• required air pressure = 7 - 8 bar

Dimensions of the packing box = 205 x 124,5 x 31cm

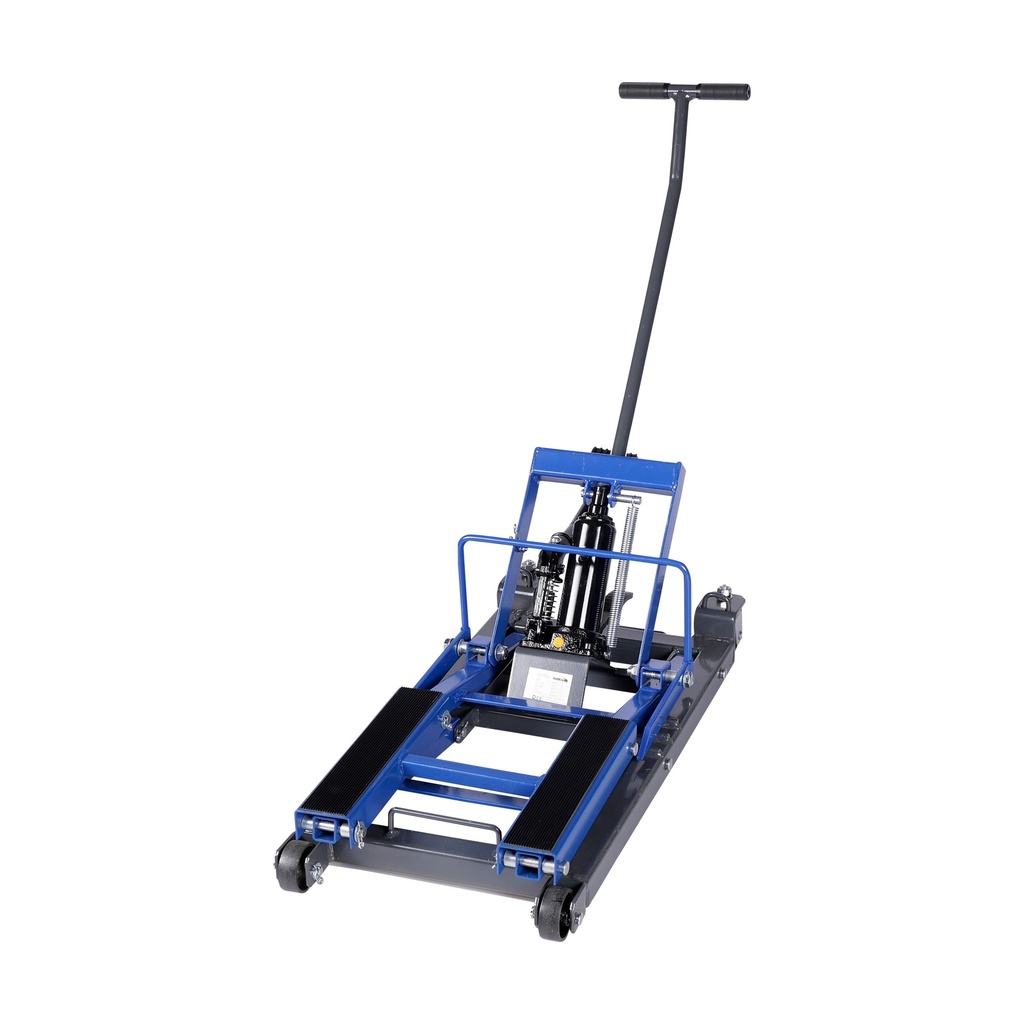

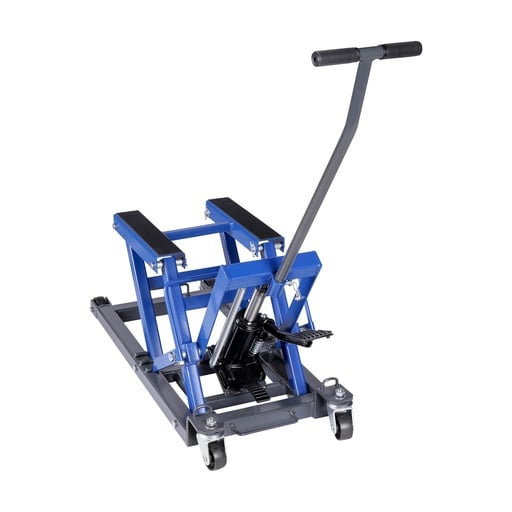

Motorcycle lift / Harley lift / Hydraulic motorcycle lift
This Mammuth Motorcycle lifting jack has a load capacity up to 680 kg equipped with a safety catch that ensures that the lift can be locked after lifting. Ideal for motorcycles and mopeds. You operate the lift with an ergonomic control (a foot pedal) which makes it easy to lift and maneuver.

The motorcycle lift is easy to operate due to the two swivel wheels with 2 fixed wheels and 2 swivel wheels including rubber support pads. The lift has 3 locking positions for long term parking of the motorcycle lift: the minimum height is 135 mm and the maximum height is 430 mm.

The platform where the motorcycle will stand is provided with a thick rubber layer, so that you never get damage to your motorcycle during lifting.
Technical specifications:

• Capacity = 680 kg
• Min. height = 135 mm
• Height position 1 = 285 mm
• Height position 2 = 365 mm

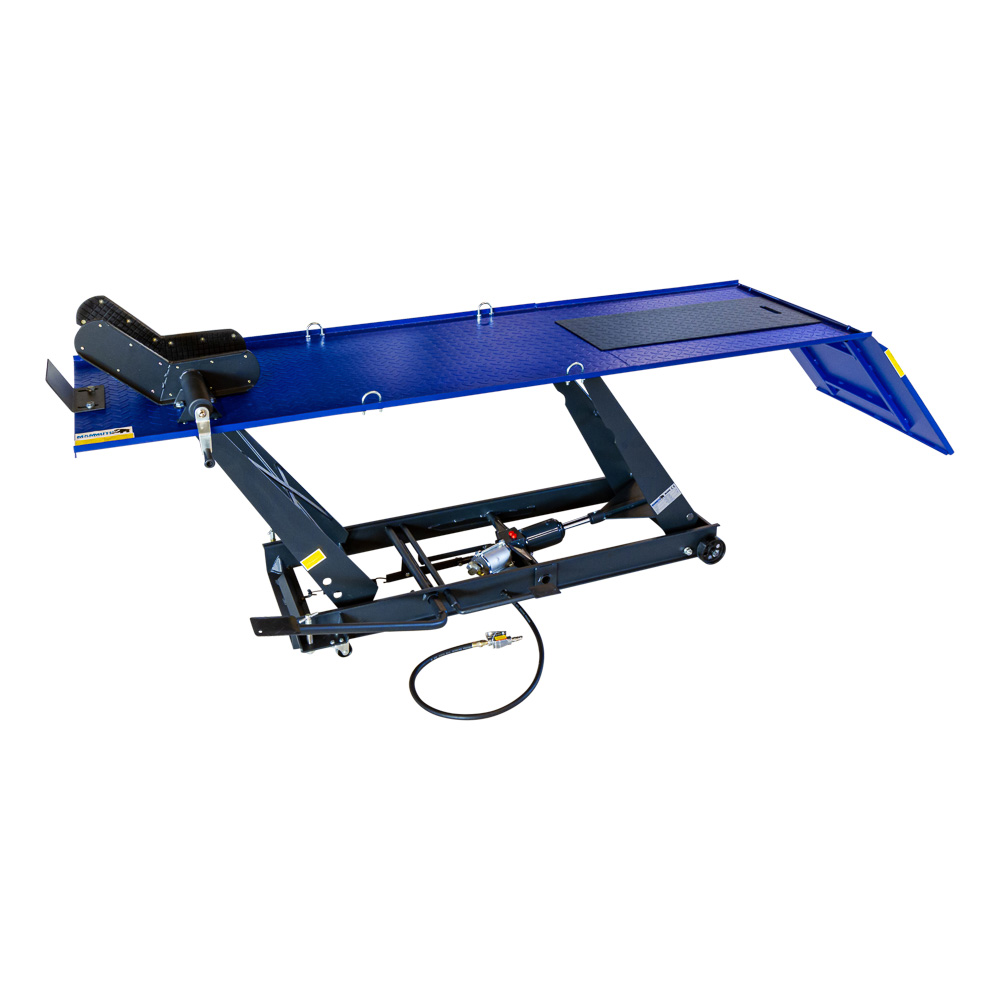

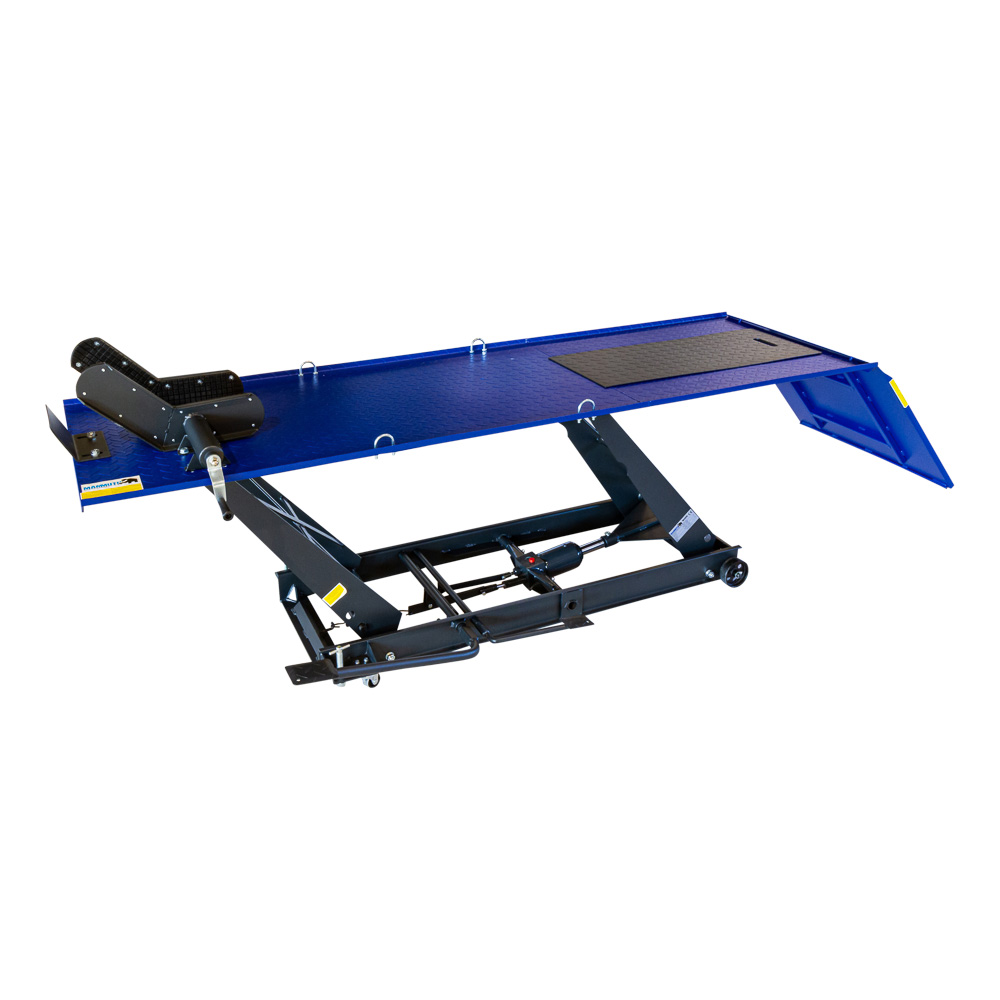

Motorcycle lift / motor lift table / lifting table

This motorcycle lift is suitable for large motorcycles, can be operated with a foot pump and is provided with a safety catch.
The parallel-shaped base provides a very spacious platform, making this lift suitable for the larger motorcycles. The lift is also equipped with a removable plate so that the rear wheel is free.
Furthermore, the lift is supplied with a front wheel clamp as shown and puttings for securing the vehicle using straps.

Specifications:

• capacity = 450kg

• min. height = 175mm

• max. lifting height = 790mm

• platform size = 2200 x 680mm

• ramp size = 650 x 680mm


Dimensions of the packing box = 210 x 84,5 x 24cm
