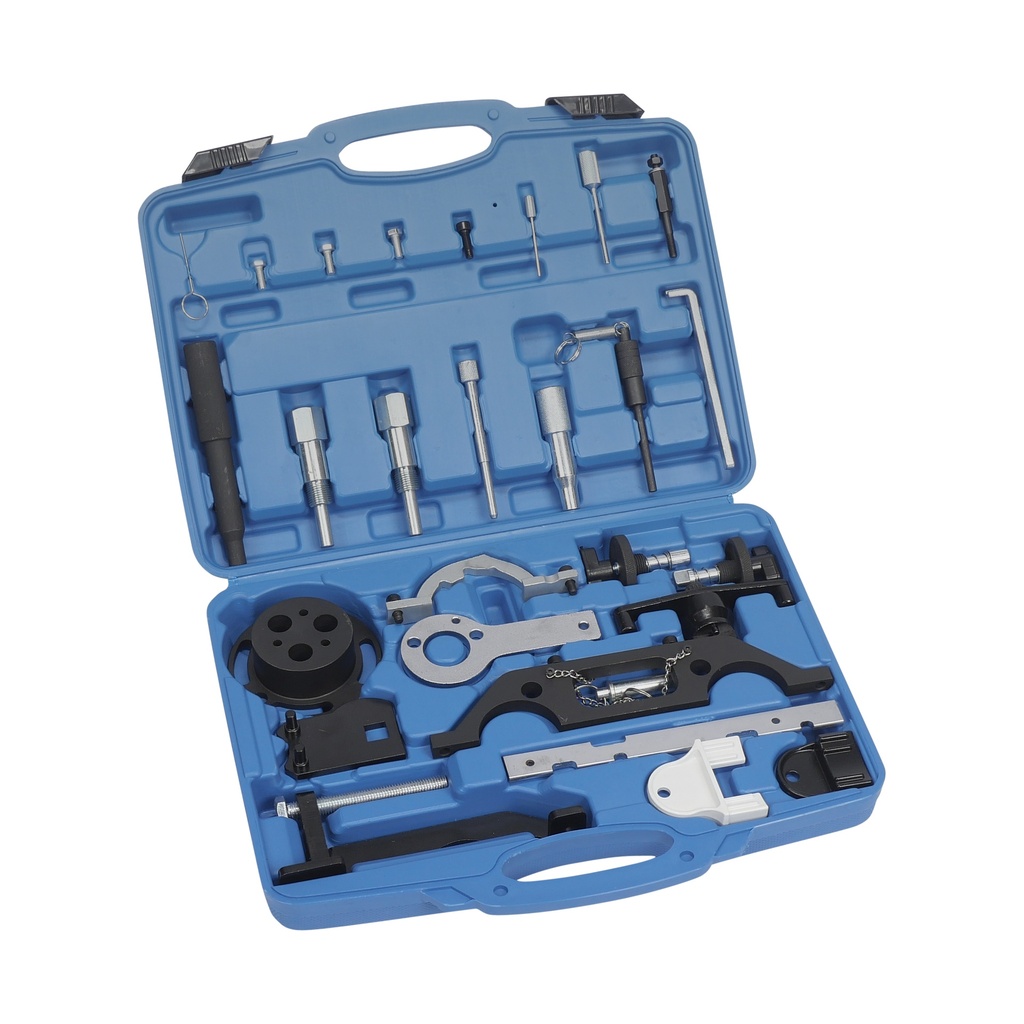

Camshaft timing kit Opel-Vauxhall

This set is suitable for setting the timing of many different Opel engines, both gasoline and diesel engines.

Compatible with the following models / types:

Agila, Astra, Corsa, Frontera, Meriva, Omega, Signum, Sintra, Speedster, Tigra, Vectra and Zafira.

Gasoline engines:

• 12V / 1.2 16V vanaf 1997 (Eco Tec) met motorcodes: X10XE / X12XE / Z10XE / Z12XE / Z10XEP / Z12XEP / Z14XEP / A10XEP / A12XER / B12XEL

• 1.4 / 1.6 / 1.8 / 2.0 / 2.2 16V vanaf 1995 (DOHC) met motorcodes: X14XE / X16XEL /X16SEJ / X18E1 / X18XE1 / Y16XE / Z14XE / Z16XE / Z18XE / Z18XEL / X18XE / C20SEL / X20XEV / Z20LET / X22XE / Y22XE / Z22XE / A14XEL / B14 NEH / A14NEL / B14NEL / B14NET / LUJ / LUV / LDD

Diesel engines:

• 1.3CDTi 16V / 1.9CDTi / 2.0DTi / 2.2DTi met motorcodes: Z13DT / X20DTL / X20DTH / Y20DTL / Y20DTH / X22DTH / Y22DTH / Y22DTR / Z19DT / Z19DTH / D223L

Engine codes:

• 169A1.000 / 188A8.000 / 188A9.000 / 199A2.000 / 199A3.000 / 199A9.000 / 199B1.000 / 199B4.000 / 199B8.000 / 223A9.000 / 225A2.000 / 263A2.000 / 263A6.000 / 312A8.000 / 312B1.000 / 312B2.000 / 330A1.000 / 330A1.000 / 55266963 / 955B2.000

• A13DTC / A13DTE / A13DTE / A13DTR / A13FD / BAAA / FD4 / D13A / F13DTE5 (FHZ) / FHY / FHZ / FHZ (F13DTE5) / LDV / Y13DT / Z13DT / Z13DTH / Z13DTJ

Brake bleeder kit / pneumatic brake bleeder kit

This brake bleeding set is suitable for bleeding brake and clutch systems of vehicles with an ABS system. The bleeder uses a standard air supply of 10 to 40 psi to efficiently flush and replenish the braking system on most vehicles. The low pressure tank can be pre-filled with compressed air, making the unit completely portable.
The set comes with a number of different European, Japanese and American adapters.

Specifications:

• tank capacity = 5L

• min. working pressure = 0,7bar / 10psi

• max. working pressure = 2,7bar / 40psi

• air consumption = 127L/min

Content:

• 1x tank with pressure gauge

• 1x collection bottle

• 1x fluid hose with quick coupling

• 17 piece adapter set

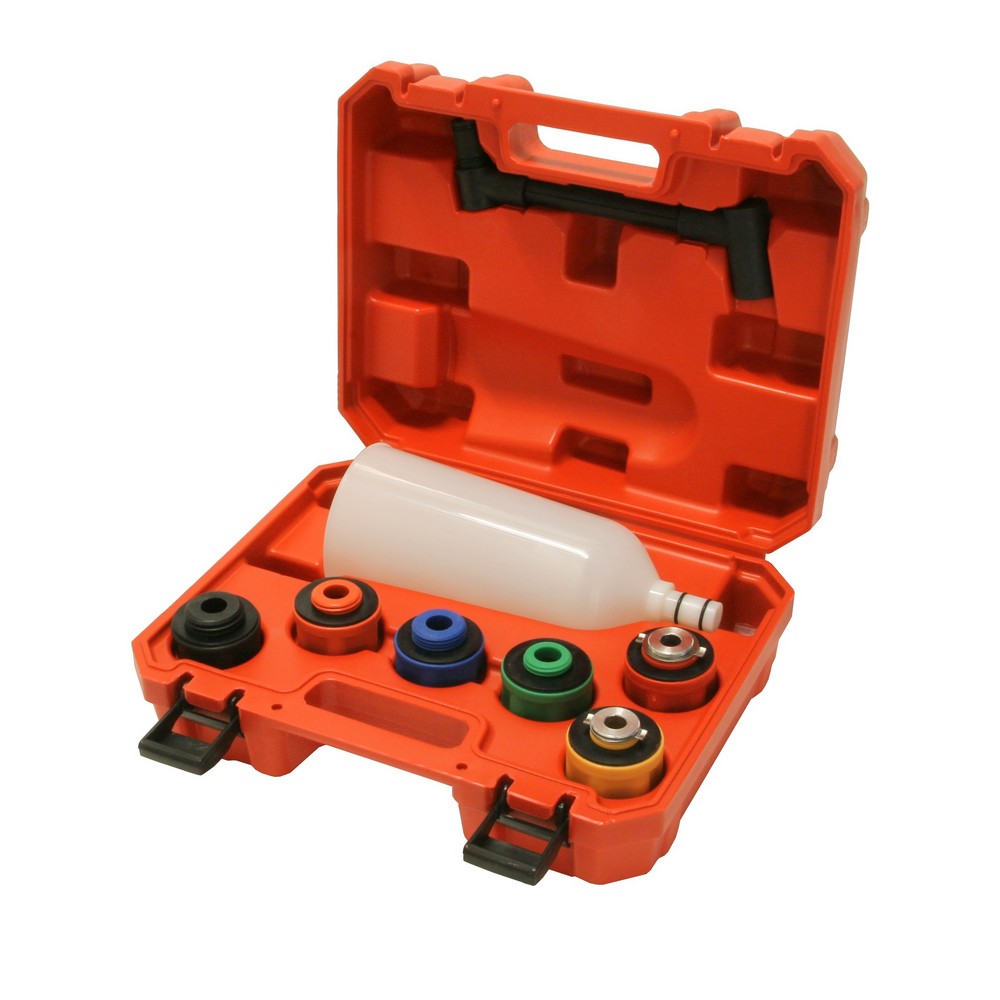

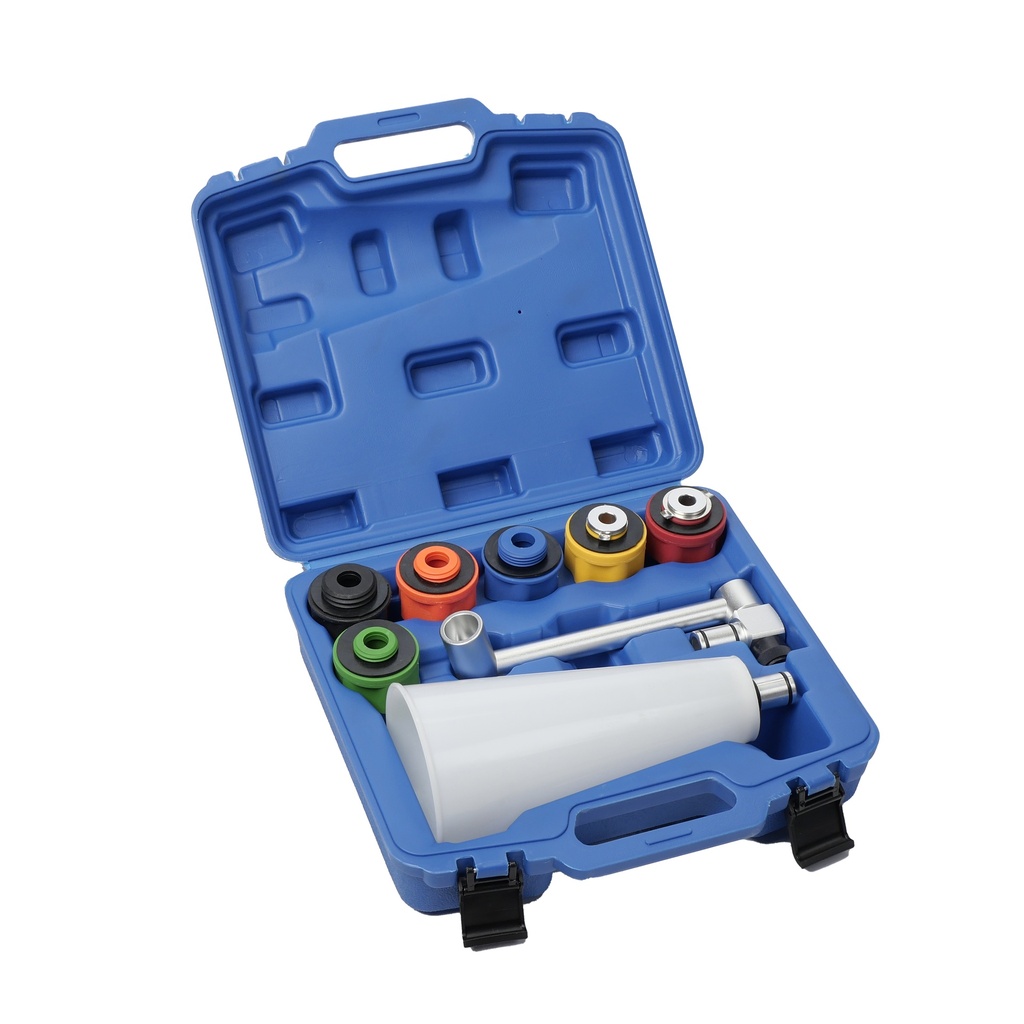

Oil fill set / oil funnel with adapters

This oil funnel set is suitable for quick and easy filling of engine oil without spilling. The set is suitable for many of the new cars.
The color-coded adapters can be connected directly to the funnel, but also with the help of an extension with swivel function, for the hard to reach places.
The funnel has a capacity of 2 liters.

Adapters:

• Red = Banyonet adapter for Audi, BMW, Dodge, Mercedes, Porsche, Volvo and VW

• Yellow = Banyonet adapter for Toyota and Lexus 3.0 & 3.3L V6


• Green = thread adapter M32 x 3.5 for Dodge, Honda, Acura, Nissan, Jaguar and Ford

• Orange = thread adapter M35 x 4.0 for Mazda

• Blue = thread adapter M37 x 3.0 for Toyota, Lexus, Scion and Pontiac

• Black = thread adapter M42 x 4.5 for Subaru

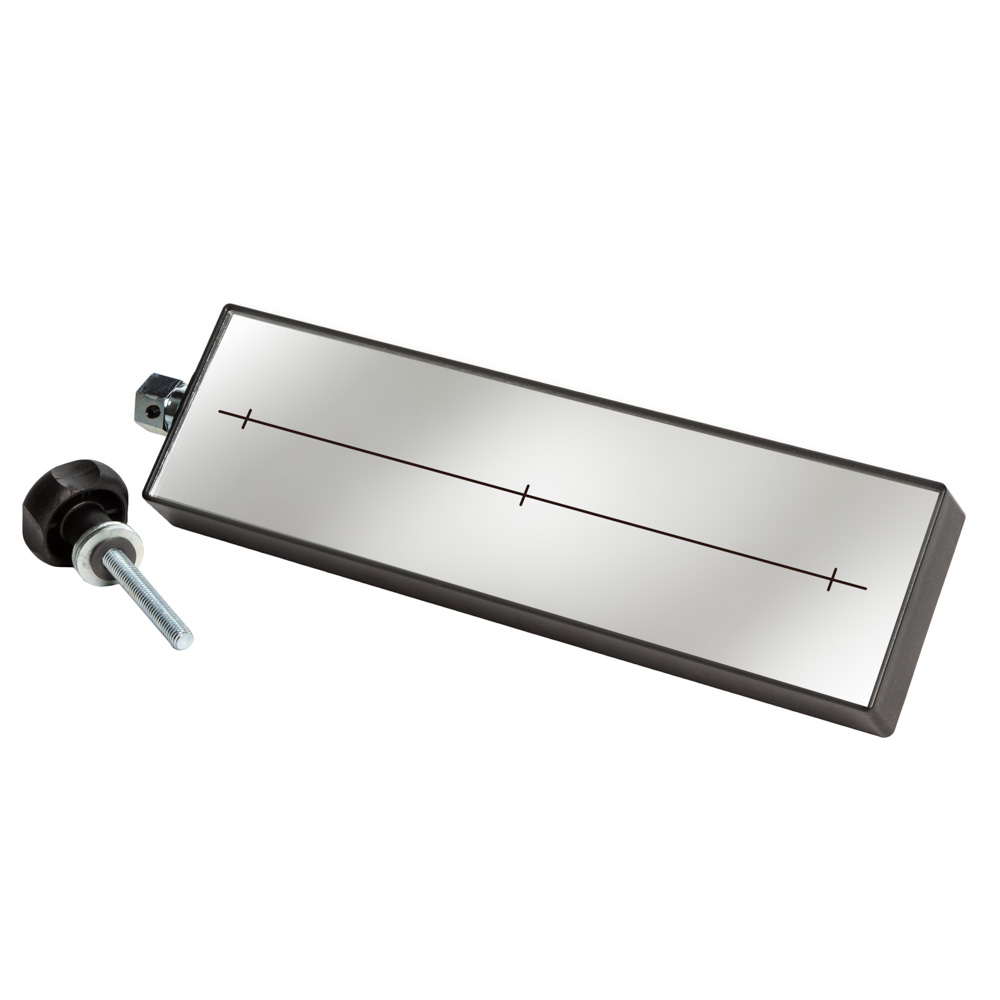

Mirror for headlight tester

Suitable for the KT01A and KT01AL headlight testers.

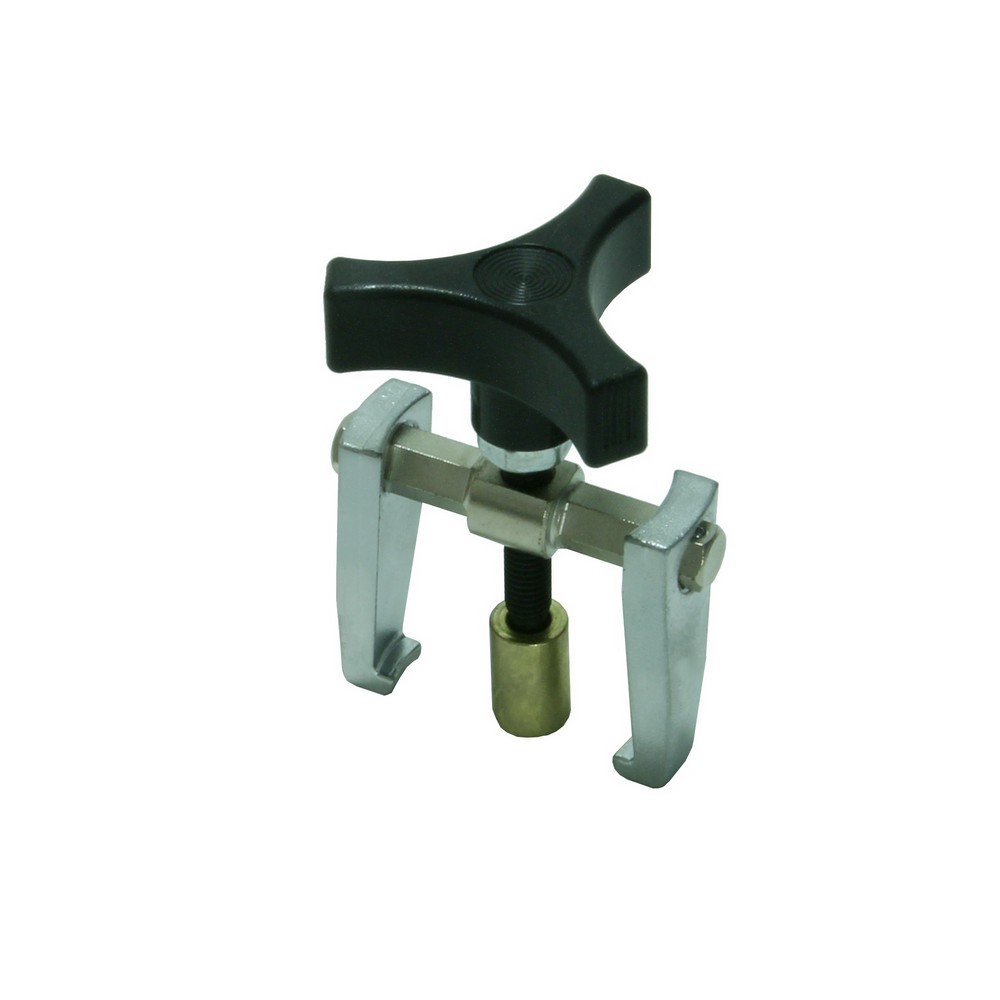

Universal windscreen wiper arm puller

- for removing of front and rear wiper arms
- brass pressure sleeve prevents damage to the thread
- 360 degrees rotatable puller arms
- handwheel, no additional tool required
- chrome plated base, press sleeve brass made hardened spindle

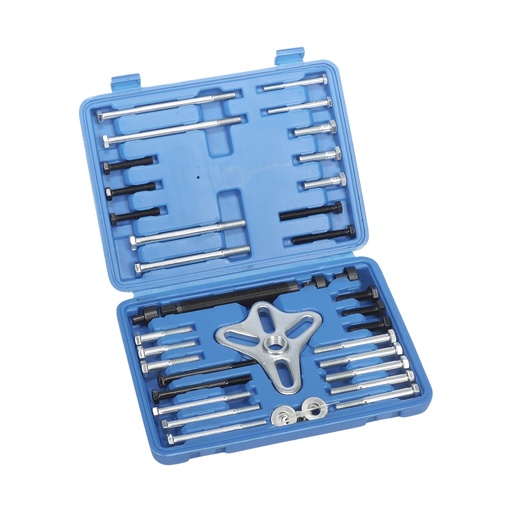

Universal puller set

This very extensive universal puller set is suitable for disassembling crankshaft pulleys and crankshaft dampers, among other things. The set is also suitable for the power steering and dynamo pulley. The puller is suitable for pulling with 2 or 3 bolts and the flange is provided with bolt slots.

Content:

• 1x puller flange with 4 holes

• 1x small centering adapter

• 1x large centering adapter

• 1x flat shaft adapter

• 3x 35mm bolts, M10 x 1,5mm

• 3x 45mm bolts, M8 x 1,25mm

• 2x 65mm bolts, M8 x 1,25mm

• 2x 90mm bolts, M8 x 1,25mm

• 3x 1-1/2" bolts, 3/8", 24 thread

• 3x 2" bolts, 3/8", 16 thread

• 5x 3" bolts, 3/8", 16 thread

• 2x 4-1/2" bolts, 3/8", 16 thread

• 2x 6" bolts, 5/16", 18 thread

• 3x 3-1/2" bolts, 5/16", 18 thread

• 2x 2-1/2" bolts, 1/4", 28 thread

• 11x flat rings

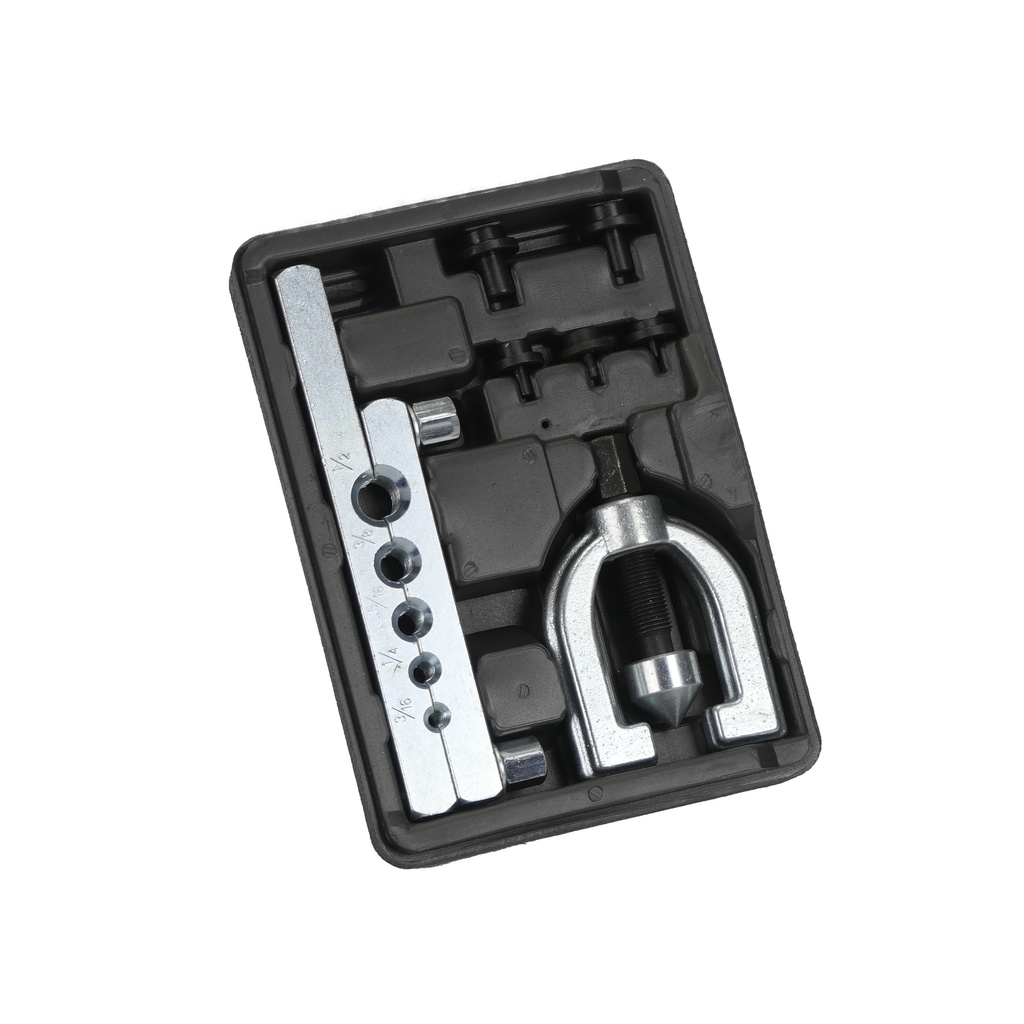

Brake line flare set

This flaring set is suitable for double and single flares of copper, aluminum and mild steel brake lines and brass tubes up to 45 degrees.

Content:

• 5 adapters in the sizes = 3/16", 1/4", 5/16", 3/8" and 1/2" (4.8, 6.4, 7.9,9.5 and 12.7mm)

• pipe holder

• spreader

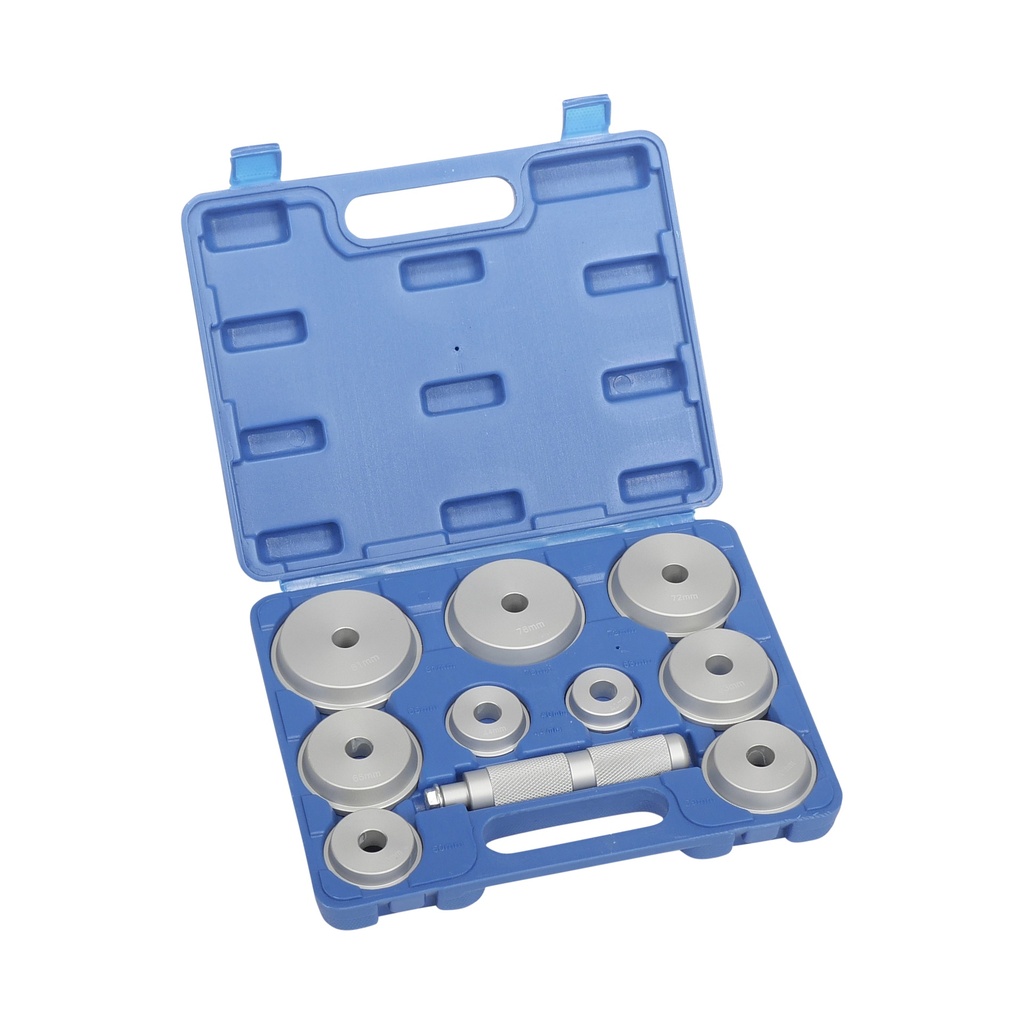

Bearing race and seal driver set / seal mounting set

This set is suitable for assembling shafts, bearings and seals without damaging the housing of the shaft. The flanges are made of sturdy aluminum and go up to 81mm. This makes the set suitable for almost all standard wheel bearings. The flat side of the flange is used for the seals and the other side for installing the seal rings. The handle has a ribbed area for extra grip.

Content:

• 1x handle

• 9x aluminum flange = 39,5 / 44,5 / 50 / 59 / 63 / 65 / 72 / 76 and 81mm

• drive = 14mm

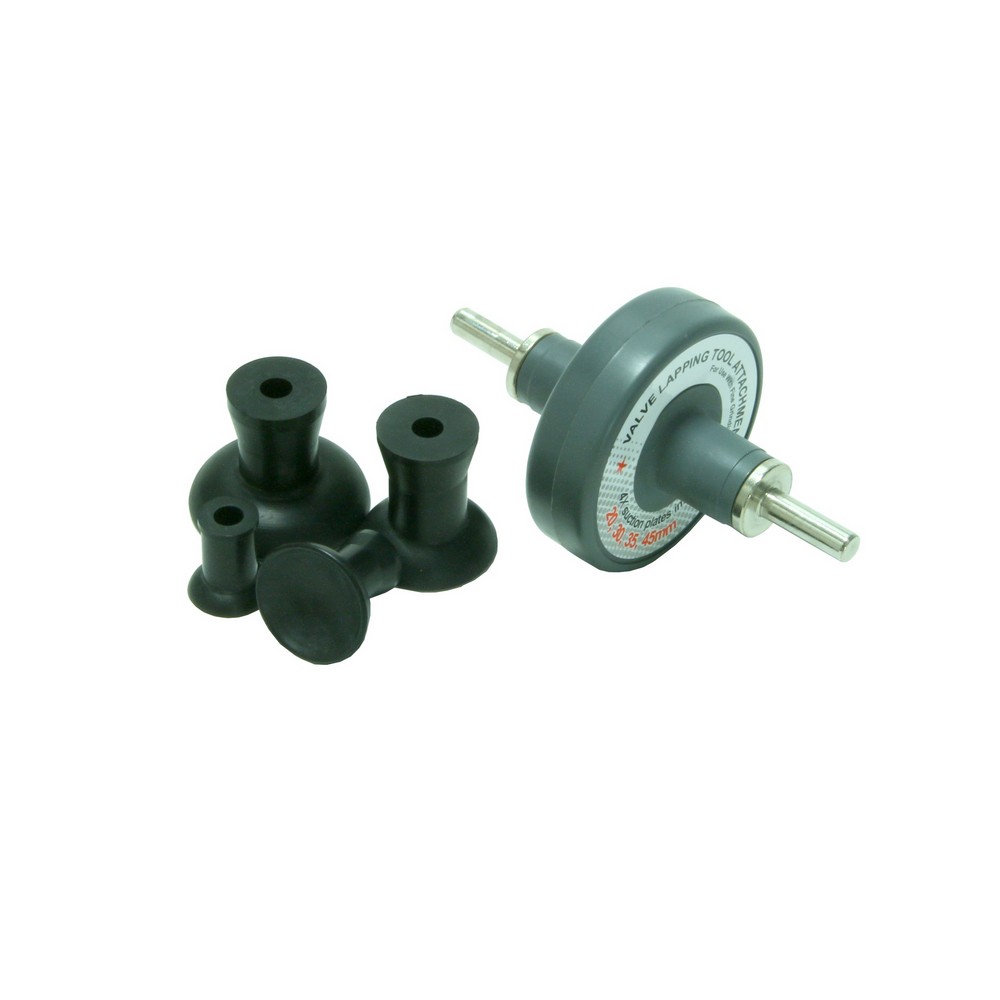

Valve lapping tool attachment

- facilitates the insertion of valves
- automatic change in direction
- for use with fine grinding paste
- with 8mm shank
- min. working speed = 1000rpm
- max. working speed = 1250rpm
- 4 suction plates = 20, 30, 35 and 45mm
- 8mm shaft for attaching the suction cups

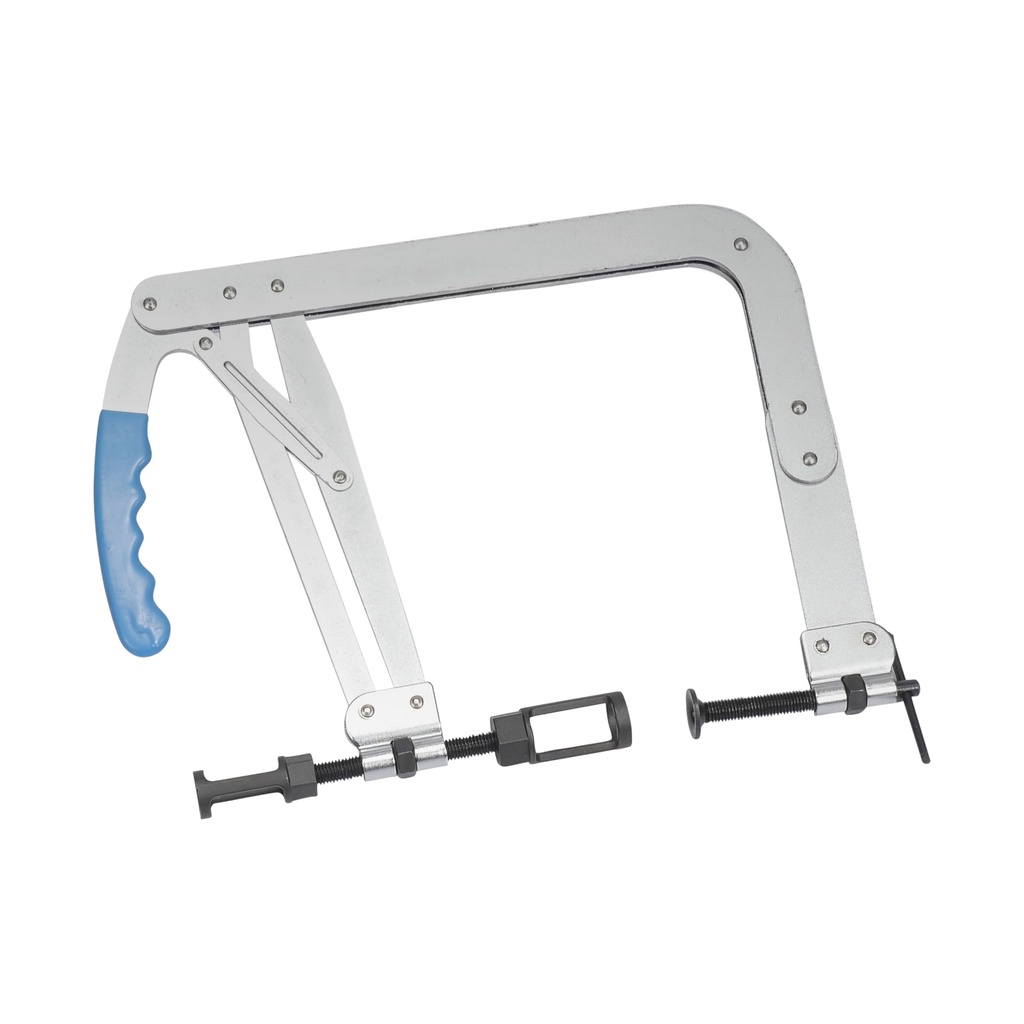

Valve spring plier / valve spring lifter

This heavy duty valve spring compressor is suitable for both old-fashioned and modern cylinder heads with deep-set valves. The valve spring plier is also suitable for larger cylinder heads due to the large lever and robust construction. The valve wedge cam be converted, making the valve spring compressor also suitable for smaller cylinder heads.

• clamping range = 35 - 200mm

• 2 adapters with 25 and 30mm diameter

• suitable for +/- 95% of the cars

• suitable for both gasoline and diesel engines

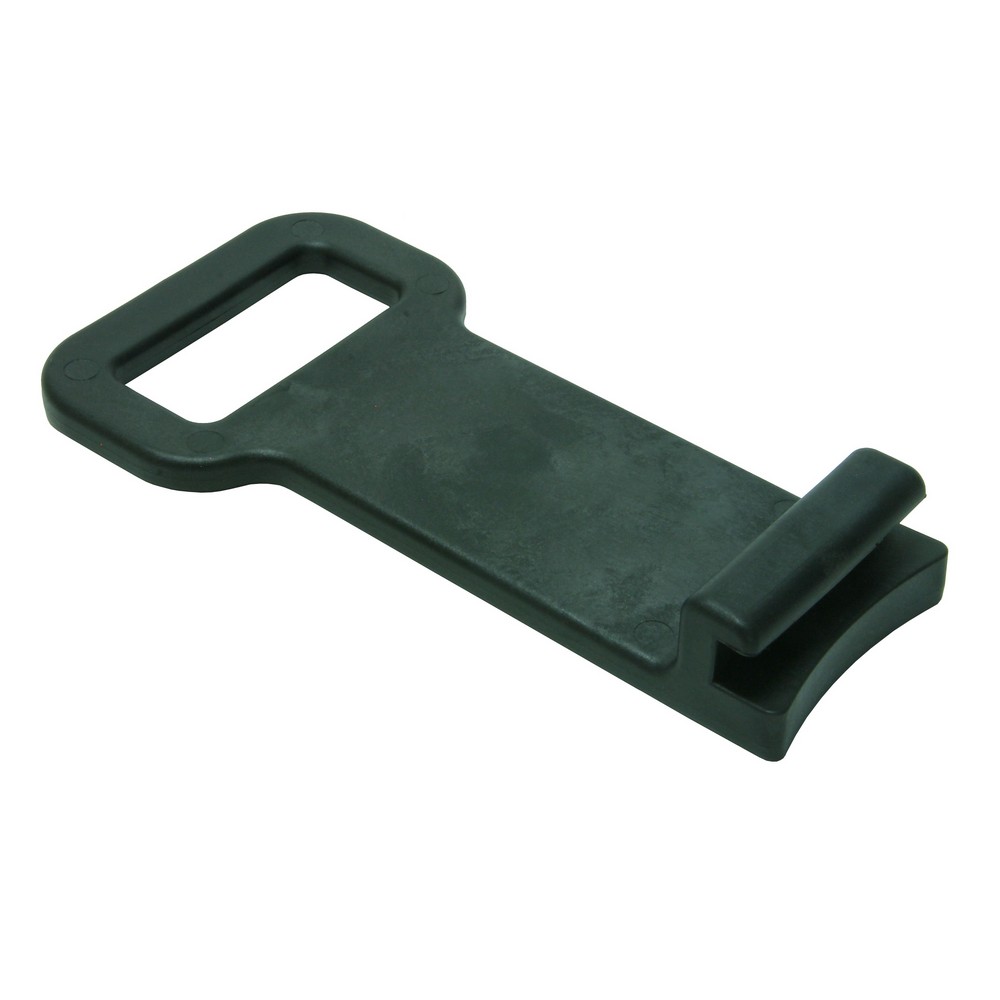

Tire bead retainer

- facilitates wheel mounting on rim

- material = fiberglass

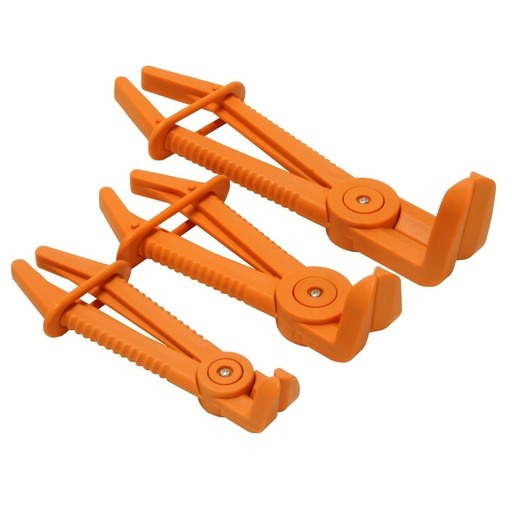

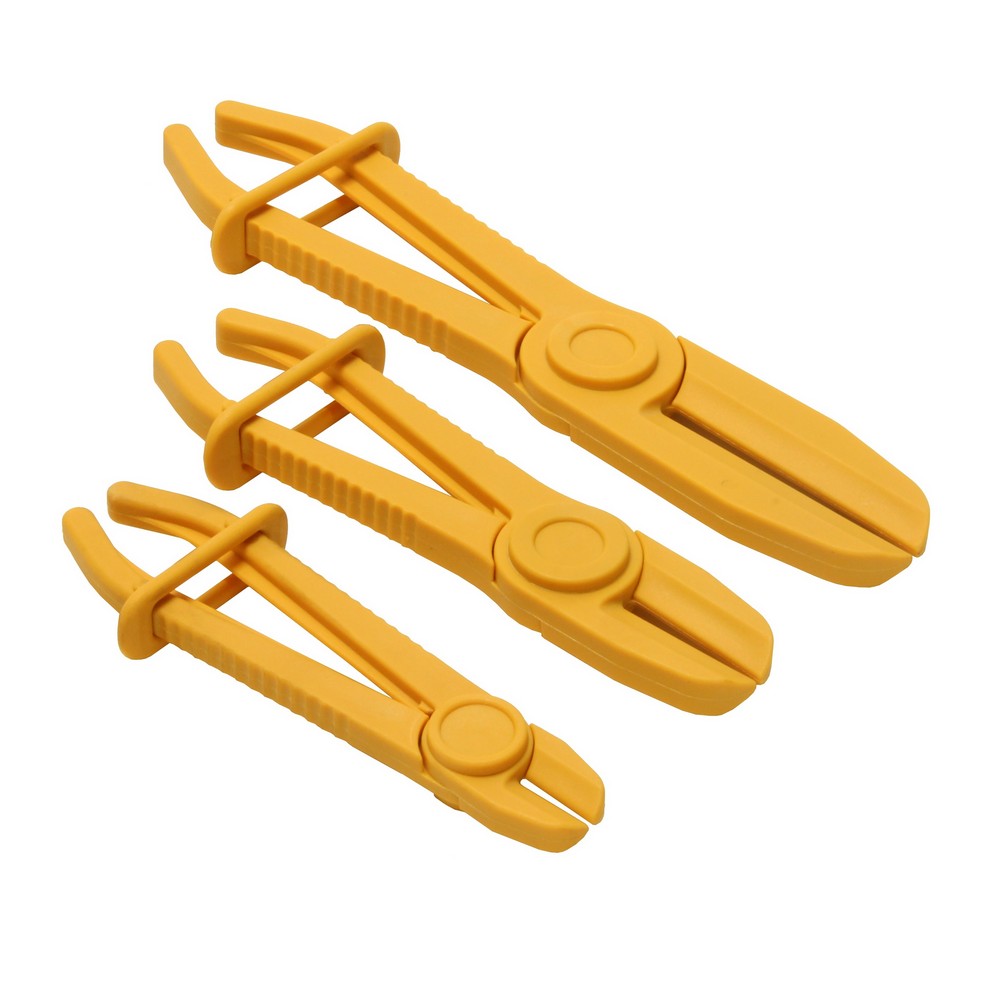

Hose clamp pliers set

- for straightforward clamping of flexible hose pipes
- adjustable locking ring with locking function
- for complete stopping on the flow
- the hose is squeezed against the stable surface over a wide area, avoiding damage to the hose
- ideal for maintenance work with petrol, oil, water and anti freeze
- protects against leakage of petrol, oil, water and anti freeze
- suitable for cars, vans, MPV's, commercial vehicles, tractors, agricultural, construction and industrial uses
- temperature resistance of up to 160 degrees celcius
- material = special plastic

- 155mm plier = suitable for a hose diameter of 3 - 15mm
- 185mm plier = suitable for a hose diameter of 6 - 20mm
- 255mm plier = suitable for a hose diameter of 8 - 45mm

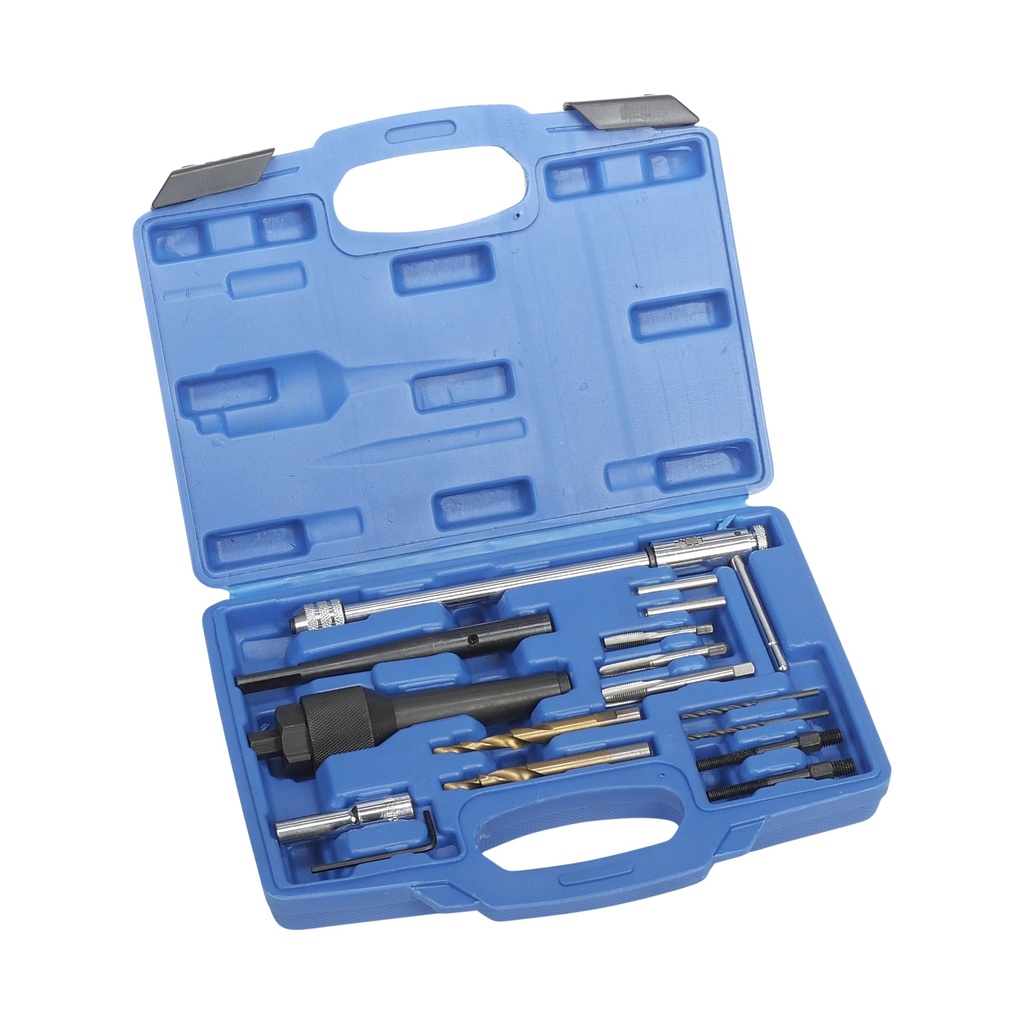

Glow plug repair set / glow plug puller kit

This set is suitable for removing damaged or hard to reach glow plugs from the cylinder head and repairing damaged threads. Suitable for glow plugs with either an M8 x 1.0 thread or and M10 x 1.0 thread. The expanded set has everything to remove the damaged glow plug without damaging the cylinder head.
The set is specially designed for clearing and cleaning the glow plug bore and sealing seat. Any unwanted carbon can also be removed from the borehole.

Content:

• 1x puller for stuck glow plugs

• 2x step drill = 7 x 5.5mm and 9 x 5.5mm

• 2x HSS drill = 3.5mm

• 3x thread tap = M8 x 1.0 / M10 x 1.0 / 6.3 (1/4") - 28UNF

• 1x T-handle with ratchet function

• 1x E10 torx socket

• 1x drill adapter

• 1x power bolt

• 1x power nut

• 1x Allen key

• 2x centering socket for drill 3.5mm
