Tire balancer / wheel balancer
The Fasep "Compact" balancing machine is equipped with all the important functions needed to balance tires accurately, easily and quickly. The machine has the following features:
19" LCD screen with separate control panel.
ALU-SE: Automatic measuring arm including adapter for placing stick-on weights.
TriSensor: 3-sensor system to measure the imbalance.
IFS: Integrated-flange shaft for maximum centering accuracy.
3D size entry for automatic entry of the rim width.
Laser line: System for the precise application of stick-on weights in the rim. The laser line clearly shows where the weight should be applied.
Electromagnetic brake to lock the wheel.
Safety cover with space-saving design.
Storage space for weights, cones and tools.
This automated balancing machine is suitable for wheels on cars, vans, SUV`s and small trucks.
Technical specifications:
voltage = 230V / 50Hz
power = 400W
motor power = 50W
speed = 98rpm
rim diameter = 10" (254mm) - 26" (650mm)
max. wheel diameter = 34" (850mm)
max. rim width = 16" (415mm)
max. capacity = 75kg
cycle duration = 8 - 15 sec.
measurement accuracy = 1 gram
angle accuracy = 256 divisions
noise level = <70dB
Each V548 comes standard with: balancing clamp 40mm, cone set, rim width meter, wheel pliers, spanner and 4 ground anchors.

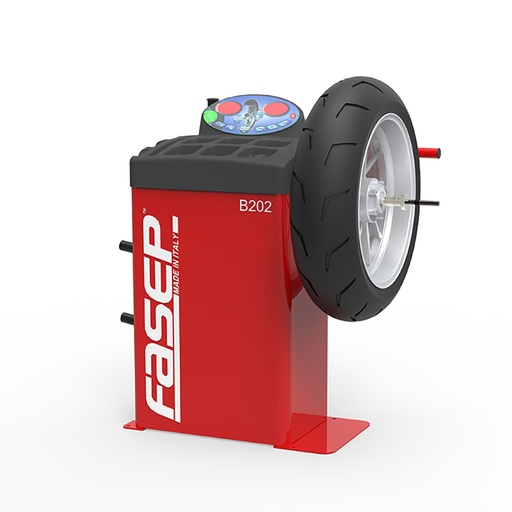

The Fasep "Moto" balancing machine is ideal for accurate, simple and fast balancing of motor wheels. It is no longer necessary to convert standard balancing machines with adapters and such, which saves a lot of time.
The machine has the following features:
3D-console with control panel for easy access to all functions.
Motor shaft of 14mm with multiple adapters to tension most motor wheels.
Flange holders on the side of the machine
ISO 9001 standard
motor power = 5W
speed = 75 - 125rpm
rim diameter = 8" (200mm) - 26" (650mm)
max. capacity = 70kg
cycle duration = 4 - 15 sec.
Each B202 comes standard with: a motor shaft 14mm, cone set, rim width meter, open-ended spanner and 4 ground anchors.

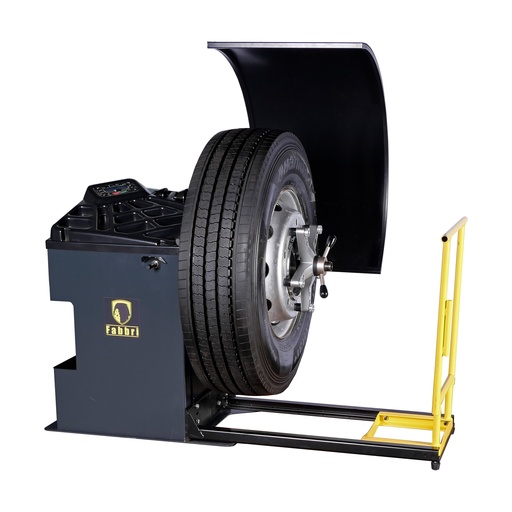

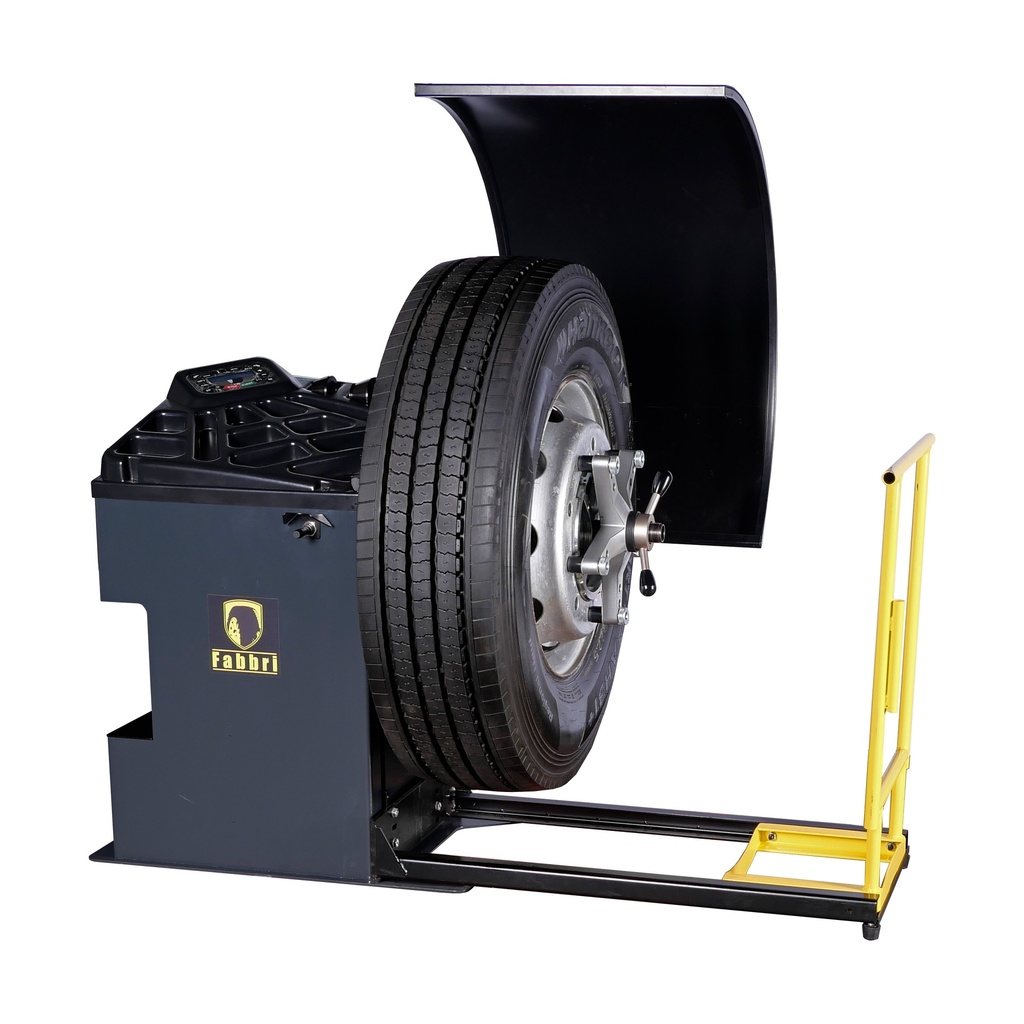

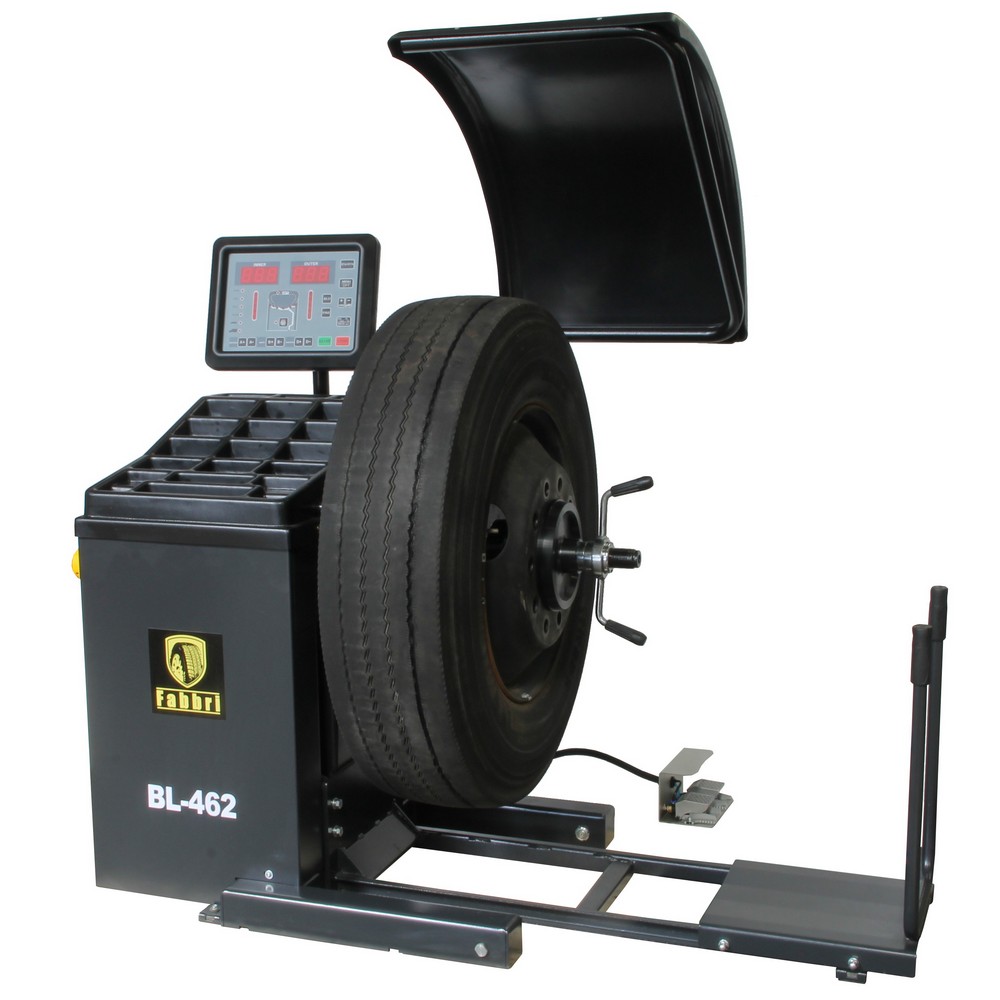

Truck tyre balancer This Fabbri professional wheel balancer is provided with a pneumatic lift for easy mounting of heavy wheels. Features:
for balancing both truck and car wheels
automatic braking after spin
automatic start/stop when the hood is lowered/raised
STOP pushbutton to stop the machine immediately
static and dynamic balancing modes
four ALU balancing modes
rapid optimization (OPT)
self diagnosis and calibration
exceptional stability in reading the unbalance between planes
display in grams or ounces, mm or inch
- power supply = 110V / 220V / 230V 1Ph
- motor power = 250W
- shaft diameter = 40mm
- max. wheel weight = 200kg
- wheel diameter = 1200mm
- rim diameter = 255 - 810mm / 10" - 32"
- wheel width = 39 - 510mm / 1,5" - 20"
- balancing precision = 1g for car mode and 10g for truck mdoe
- cycle time = 7s for car mode and 15s for truck mode
- balancing speed = 150rpm for car mode and 90rpm for truck mode
- noise level = < 70dbA
- air supply = 8 - 10bar
The "Nano" is the basic model tire balancer from Fasep. Thanks to the inverter electromotor the NANO has a very low rotation speed which makes the protective cover superfluous. Because of this and the compact build of the machine, it takes very little space. Despite the small format, the balancer is equipped with the full package of options and balancing programs! Fasep balancing equipment is strictly manufactured in Italy, here only parts of the highest quality are being used. Standard functions:
Automatic start-stop function
Self diagnosis - self-calibration mode
Stop-on-top mode - unbalance on 12 o'clock
SPLIT mode - Divide weight behind spokes
Statistics - Memory
FFC - Fast Flange Calibration modus voor adapter's
4 ALU-programs for aluminum rims
ALU-S - Aluminum program
16 Bit Flash memory
DYN - Dynamic balancing mode
MARS Automatic static unbalance minimalisation
- power supply = 230V 50-60Hz 1Ph
- power = 60W
- rotational speed = 98 RPM
- rim diameter = 8''~ 26'' (200-650mm)
- wheel diameter = 34'' (850mm)
- max rim width = 16'' (415mm)
- max capacity = 75 kg
- cycle time = 8 - 15 sec
- accuracy = 1 gr
Standard accessories:
- 40mm thread hub
- haweka quality quick-release clamp
- calibration weight
- balance weight pliers
- anchoring bolts
- rimwidth meter
- conus set
Extra options for blind rims and motor/scooter wheels are available!

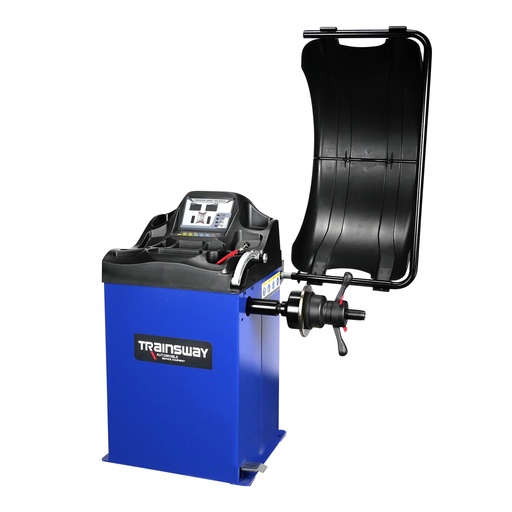

This Trainsway wheel balancing machine is suitable for balancing every car wheel and is standart equiped with the following functions:
balancing program for steel rims
4 different alloy programs
static and dynamic balancing mode
special alu mode for uncommen rims
manual wheeldata input
start/stop function
selfcalibration modus
protection hood
max. wheel weight = 65kg
motor power = 0.2kW / 0.37kW
power supply = 230V
balancing accuracy = 1g
balancing speed = 200rpm
rim diameter = 10" ~ 24"
rim width = 1.5" ~ 20"
type = ZH825B (SBM95)
Max - Min cone size:
65mm - 45mm
80mm - 55mm
110m - 75mm
135mm - 95mm
All adapters connect to 36mm axles.
Standard provided accessories:
weightplier, 100gr calibration weight, conicset, rim measuring tool, mounting clamp.

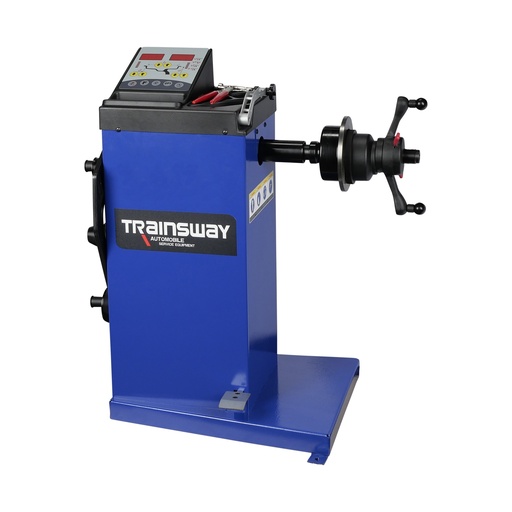

This Trainsway tyre changer without engine is operated manually and is equipped with a foot pedal and a special balancing clamp.Technical specifications:
max. wheel weight = 40kg
power = 230V
balancing speed = 70 - 200rpm
rim diameter = 10" - 24"
rim width = 1,5" - 20"
Max - min cone size:
All adapters connect to 36mm axles.Standard provided accessories: weightpliers, conicset,rim measuring tool, mounting clampVarious accessories available!
