Electrode welding inverter / welder / welding machine / welding device

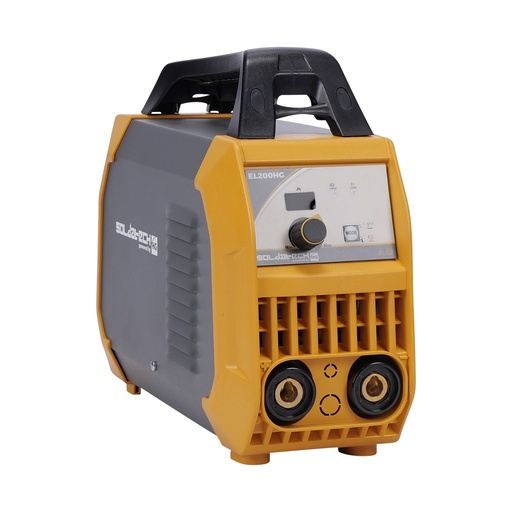

This Soldatechpowered by HG electrode welding machine is very suitable for welding at any location because of its compact, light, manageable and powerful design.
The easily adjustable welding current ensures that the EL200HG can be used quickly for welding jobs with different materials and thicknesses. Lift TIG welding is also possible with this device, but a different torch is then required, naturally.
The hot-start / anti-stick function quickly increases the welding current so that the electrode does not stick to the workpiece. The device is also equipped with an ARC force function; this sets the weld depth.
The modern IGBT inverter technology not only ensures that the EL200HG delivers long-lasting performance with more power, but it also makes the device lightweight and portable. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.
Ideal for welding carbon steel, low alloy steel and stainless steel. Welds perfectly with rutile (E 6013) and basic (E 7018).
Each EL200HG comes standard with:
Twistlock electrode torch with 3m 16mm² cable
Welding ground clamp with 2m 16mm² cable
Neoprene power with 2m 3x2.5mm² cable
European dinse couplers 13mm
Sturdy storage case
Welding and cutting equipment / Electrode welding machines
voltage = 230V - 1 phase
frequency = 50/60Hz
circuit breaker = 16A C-char
input power = 8.8kVA
no load voltage = 82V
duty cycle (at 20°C ambient temperature) = 40% - 200A
duty cycle (at 40°C ambient temperature) = 15% - 200A
- welding current range MMA = 41 - 200A
- welding current range lift TIG = 15 - 200A
- welding electrodes = 1.6 - 4.0mm
protection class = IP21S
dimensions = 400 x 154 x 300mm
weight = 5.8kg
