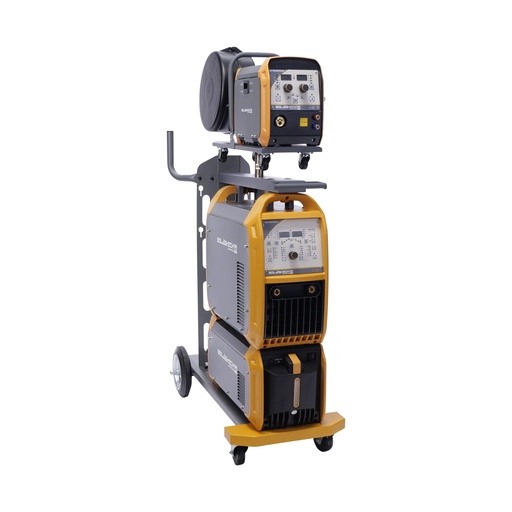

Pulse MIG/MAG 500A synergetic inverter / welding machine
The Soldatech powered by HG MIG Double Pulse is one of the most versatile MIG devices on the market, equipped as standard with a solid trolley that can easily hold a 50L bottle. This synergetic machine makes it possible to easily perform various welding processes including Pulse, Double Pulse, MIG welding and also electrode welding.
The modern IGBT inverter technology ensures that the ML500YHGM delivers sustainable performance with more power and a high duty cycle. In addition, the ML500YHGM is equipped as standard with a powerful water cooler which prevents overheating in combination with a built-in fan and ensures that high-quality welding performance is guaranteed over a long period of time.
The Soldatech pulse invertor has a very extensive database that allows for 500 different programs with welding settings to be stored. This makes it easy to manage the ideal settings.
The mobile wire feeder unit is also equipped with a digital control panel on which the gas after-current settings, welding voltage and current, among other things, can be easily adjusted and read. The power source is also equipped with preprogrammed synergetic programs for aluminum, steel, stainless steel, CuMn, CuSiMn and CuZn materials.
Ideal for welding aluminum, stainless steel, carbon steel, low alloy steel and other alloys.Each ML500YHGM comes standard with:
Welding ground clamp with 3m 50mm² cable
European dinse couplers 13mm
Gas line including quick coupling 12m
Intermediate cable bundle grommet 10m
5-pin 32A plug with 3m 4x4mm² cable
Spare steel inner liner
10x wire feed rollers: (0.8 + 1.0 and 1.2 + 1.6)(0.8 + 1.0U and 0.8 + 1.0V and 1.2V + 1.6V)
Technical specifications:
voltage = 400V - 3 phase
frequency = 50/60Hz
circuit breaker = 32A B-char
input power = 27.5kVA
no load voltage = 80V
duty cycle (at 20°C ambient temperature) = 60% - 500A
duty cycle (at 40°C ambient temperature) = 40% - 500A
welding current range MIG/MAG = 30 - 500A
weldable welding wire = 1.0 / 1.2 / 1.6mm
cooling unit content = 6L
protection class = IP21S
dimensions = 1133 x 498 x 1508mm
weight = 120kg

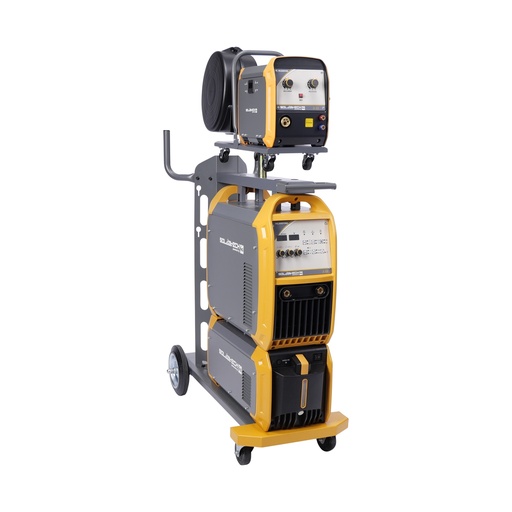

MIG/MAG 500A welding inverter / synergetic inverter / welding machine
This Soldatech powered by HG MIG / MAG welding machine can be set both synergistically and manually, equipped as standard with a solid trolley that can easily hold a 50L bottle. This synergetic machine makes it possible to perform various welding processes including MIG welding and also electrode welding with ease.
The modern IGBT inverter technology ensures that the ML500YHG delivers sustainable performance with more power and a very high duty cycle. The ML500YHG is also standard equipped with a powerful water cooler that, in combination with a built-in fan, prevents overheating and ensures high-quality welding performance is guaranteed for a long time.
The mobile wire feeder unit is also equipped with a control panel on which the welding voltage and current, among other things, can be easily adjusted. The power source is also equipped with preprogrammed synergetic programs for welding various materials.
Ideal for welding stainless steel, carbon steel, low alloy steel and aluminium (without pulse).
Each ML500YHG comes standard with:
Water-cooled Soldatech MLT501M4 MIG torch
Intermediate connection bundle 5m
4x wire feed roll: 2x 0.8 + 1.0 and 2x 1.2V + 1.6V
no load voltage = 73V
duty cycle (at 20°C ambient temperature) = 100% - 500A
duty cycle (at 40°C ambient temperature) = 60% - 500A
welding current range MIG/MAG = 40 - 500A
welding current range MMA = 40 - 490A
weldable welding wire = 0.8 / 1.0 / 1.2 / 1.6mm
weight = 112kg

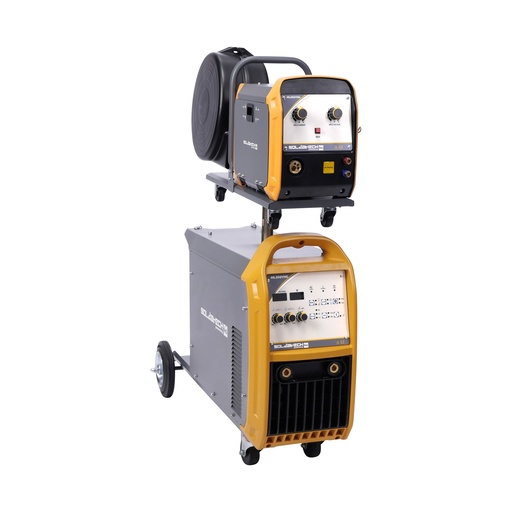

MIG/MAG 350A welding inverter / synergetic inverter / welding machine
This Soldatech powered by HG MIG / MAG welding machine is standard equipped with a carrying platform to attach the gas bottle. This machine makes it possible to carry out various welding processes with ease, including MIG welding and also electrode welding.
The modern IGBT inverter technology ensures that the ML350YHG delivers sustainable performance with more power and a very high duty cycle. The ML350YHG is also equipped with thermal safety as standard, which in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.
Furthermore, the mobile wire feed unit is equipped with a control panel on which welding voltage and current strength, among other things, can be easily adjusted. The power source is also equipped with preprogrammed synergetic programs for welding various materials.
The hot-start/anti-stick function increases the welding current quickly, so that the electrode does not stick to the workpiece during ARC welding.
Each ML350YHG comes standard including:
Soldatech MLT36M4 MIG torch with Euro connector and 4m cable
Welding ground clamp with 3m 35mm² cable
Gas line including quick coupling 7m
Intermediate cable bundle grommet 5m
5-pin 32A plug with 3.5m 4x4mm² cable
4x Wire drive roll: 2x 0.8 + 1.0 and 2x 1.2 + 1.6
input power = 16.8kVA
welding current range MIG/MAG = 40 - 350A
welding current range MMA = 40 - 350A
dimensions = 1000 x 420 x 1200mm
weight = 69kg

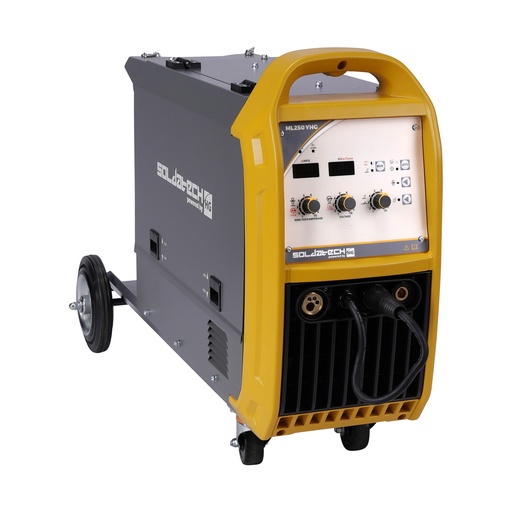

MIG/MAG 250A welding inverter / inverter / welding machine
The modern IGBT inverter technology ensures that the ML250YHG delivers sustainable performance with more power and a very high duty cycle. The ML250YHG is also equipped with thermal safety as standard, which in combination with a built-in fan prevents overheating and ensures high-quality welding performance for a long time.
Each ML250YHG comes standard with:
MLT24M3 MIG torch with Euro connector 3m cable
Welding ground clamp with 3m 25mm² cable
Gas line including quick coupling 4m
voltage = 400V
circuit breaker = 3x 16A C-char
input power = 11kVA
start-up voltage = 55V
duty cycle (at 20°C ambient temperature) = 80% - 250A
duty cycle (at 40°C ambient temperature) = 60% - 250A
welding current range MIG/MAG = 30 - 250A
welding current range MMA = 20 - 200A
dimensions = 990 x 495 x 720mm
weight = 45.5kg

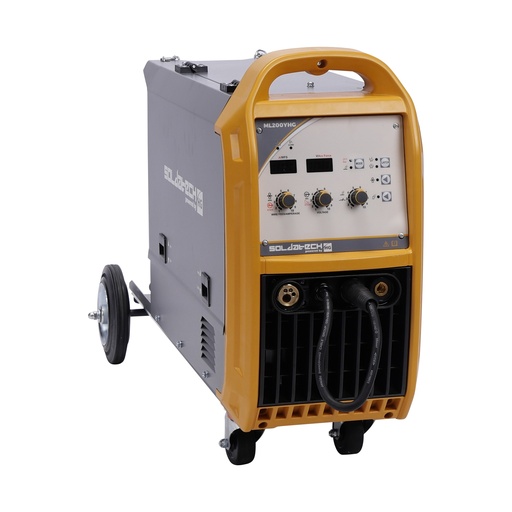

MIG/MAG 200A welding inverter / inverter / welding machine
The modern IGBT inverter technology ensures that the ML200YHG delivers sustainable performance with more power and a very high duty cycle. The ML200YHG is also equipped with thermal safety as standard, which in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.
Inclides:
European 13mm Dinse couplers
3-pin 32A plug with 3m 3x4mm² cable
2x wire feed roll: 0.8 + 1.0
voltage = 230V - 1 phase
circuit breaker = 16A C-char
input power = 10kVA
no load voltage = 76V
duty cycle (at 20°C ambient temperature) = 100% - 200A
duty cycle (at 40°C ambient temperature) = 60% - 200A
welding current range MIG/MAG = 30 - 200A
weldable welding wire = 0.8 / 1.0 / 1.2mm
weight = 44.5kg

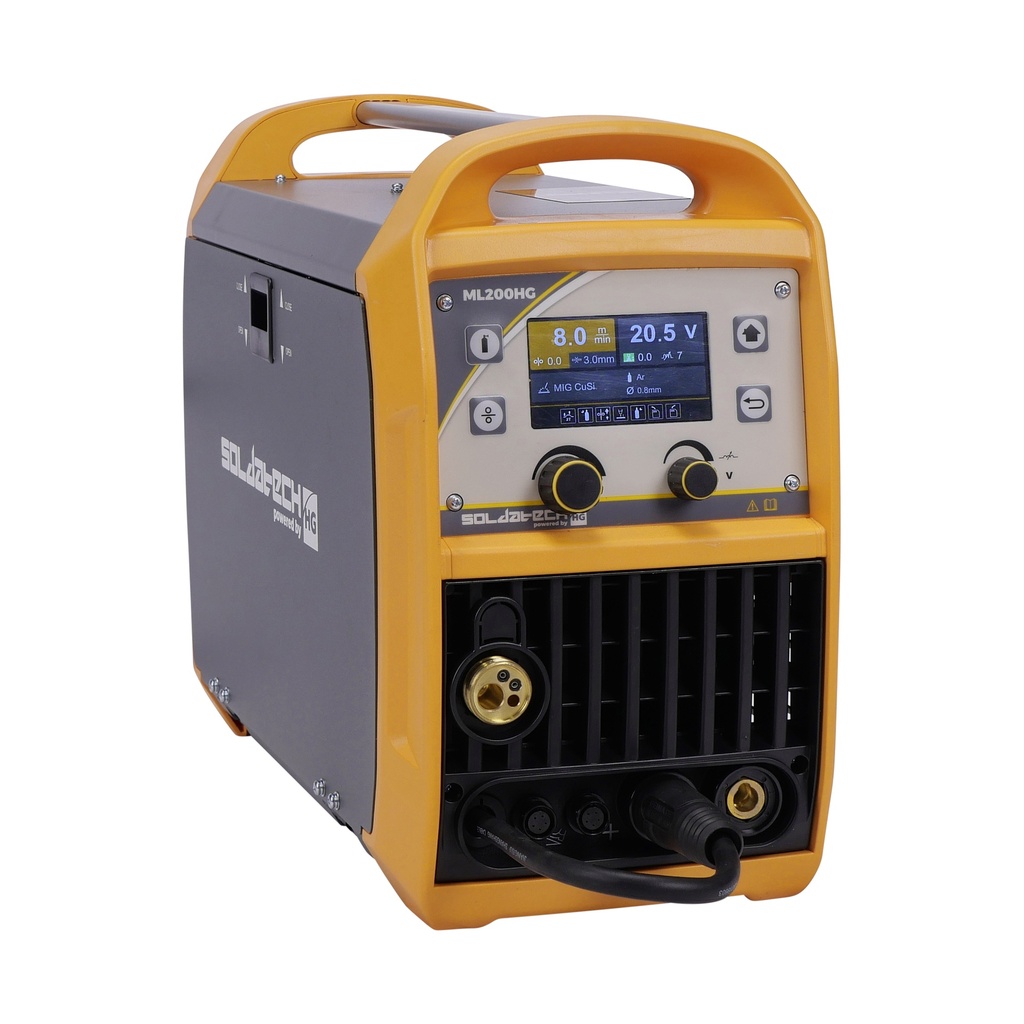

MIG/MAG 200A welding inverter / synergetic inverter / welding machine
This portable Soldatech powered by HG synergistic welding machine makes it possible to perform different welding processes including MIG welding, Lift-TIG and also electrode welding with ease. The wire speed is automatically adjusted to the set amperage, ensuring professional results.
The clear LCD display makes the ML200HG very easy to set up and all welding settings can be easily managed. The applications in the LCD screen and the synergistic properties of the machine make welding with this unit a real pleasure for almost all materials without the need for complicated settings.
With this machine it is possible to braze with CuSi3, the copper-silicon alloy has a lower melting temperature than steel, so that less temperature enters the material to be soldered and there is less chance of deformation of (thin) plates. It is also possible to solder different materials together (eg. aluminum to steel).
The welding torch is also equipped with the latest torch-control technology, making it very easy to adjust the welding machine remotely and even while welding.
The modern IGBT inverter technology ensures that the ML200HG delivers sustainable performance with more power and a very high duty cycle. The ML200HG is also equipped with thermal safety as standard, which in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.
The Soldatech inverter has a very extensive database that makes it possible to save 5 different programs with welding settings. This makes it easy to manage the ideal settings.
Ideal for welding stainless steel, carbon steel, low alloy steel, copper and aluminum (MIG).
Each ML200HG comes standard including:
Soldatech MLT25M3R remote control MIG torch with Euro connector and 3m cable
Twistlock electrode torch with 3m 16mm² cable
Welding ground clamp with 2m 16mm² cable
Gas line including quick coupling 3m
input power = 8.6kVA
no load voltage = 69V
weldable welding wire = 0.6 / 0.8 / 1.0 / 1.2mm
dimensions = 550 x 245 x 405mm
weight = 19kg

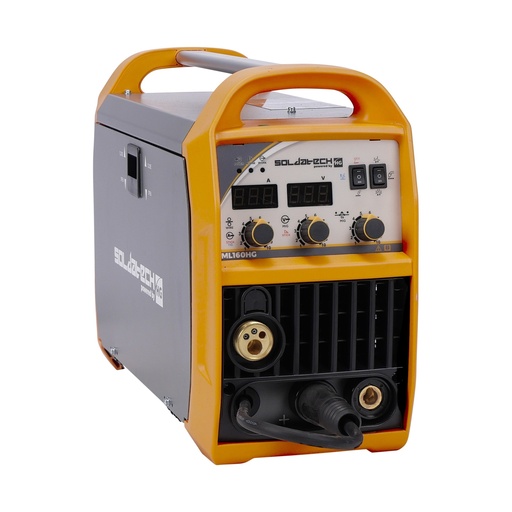

MIG/MAG 160A welding inverter / welding machine
This Soldatech powered by HG portable welding machine is a handy and versatile machine with which various welding processes including MIG welding, Lift-TIG and also electrode welding can be performed with ease.
The wire speed is automatically adjusted to the set amperage, ensuring professional results.
The modern IGBT inverter technology ensures that the ML160HG delivers sustainable performance with more power and a very high duty cycle. The ML160HG is also equipped with thermal safety as standard, which in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.
Ideal for welding stainless steel, carbon steel, low alloy steel and aluminium (MIG).
Each ML160HG comes standard including:
Soldatech MLT15M3 MIG torch with Euro connector and 3m cable
European Dinse couplers 13mm
Gas line including NW5 quick coupler 3m
fuse protection = 16A B-char
input power = 6.84kVA
no load voltage = 68V
duty cycle (at 20°C ambient temperature) = 40% - 160A
duty cycle (at 40°C ambient temperature) = 20% - 160A
welding current range MIG/MAG = 30 - 160A
welding current range MMA = 30 - 130A
welding current range lift TIG = 20 - 160A
weldable welding wire = 0.6 / 0.8 / 1.0mm
dimensions = 490 x 200 x 335mm
weight = 11kg

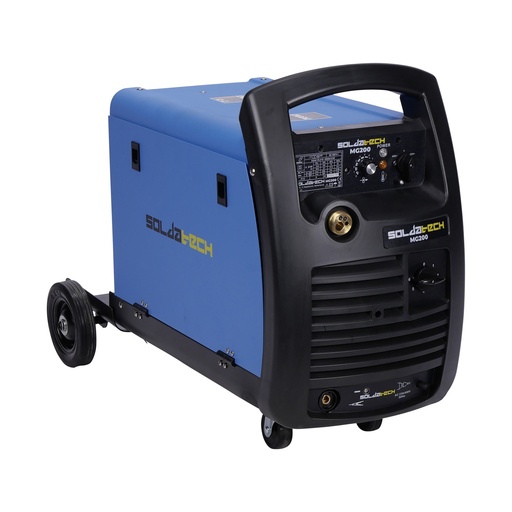

MIG welding machine
Thanks to the 230/400V switch, the Soldatech Original MG200 can be used everywhere. The transformer welding machine is suitable for both welding with gas as FLUX welding without gas, and is used for welding of steel/aluminum or stainless steel when using the appropriate optional accessories. The machine has a continuous adjustable wire speed with 6 welding positions. Furthermore, the device is equipped with thermal protection and is cooled by a fan.Ideal for welding carbon steel, low alloy steel and stainless steel.
Every MG200 comes standard including:
Adapter 230V to 400V with 30cm cable
MLT24M3 MIG torch with euro connector and 3m cable
Welding ground clamp with 1.5m 16mm² cable
3x welding spit: 0.6 / 0.8 / 1.0mm
2x hose clamps
1x thread drive roll: 0.6 + 0.8mm
Note: Comes without a regulator.
voltage = 230V - 400V
frequency = 50Hz
input power = 9.2kW
duty cycle (at 20°C ambient temperature) = 25% - 200A
duty cycle (at 40°C ambient temperature) = 10% - 200A
voltage range MIG = 18 - 38V
insulation class = H
dimensions = 850 x 420 x 590mm
weight = 50kg
