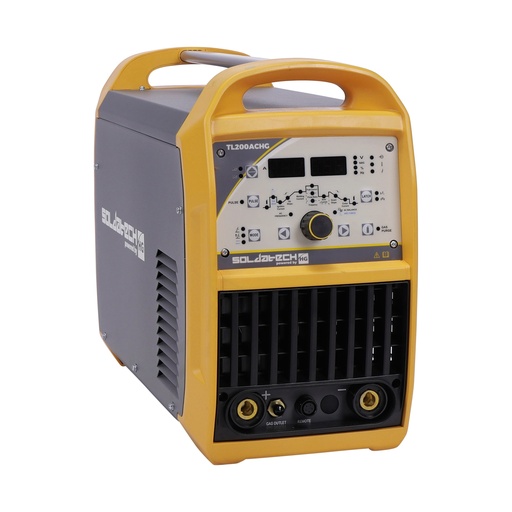

TIG AC / DC welding inverter 200A / IGBT TIG AC / DC inverter / welder / welding machine
This portable Soldatech powered by HG TIG welding machine is a convenient and easy to use device that is capable of handling a wide range of materials with different welding processes, including AC/DC Pulse, TIG and MMA welding. The adjustment and selection buttons allow for all parameters of the TL200ACHG to be easily set correctly, so that every welding job can be completed with high-quality results.
The modern IGBT inverter technology ensures that the TL200ACHG delivers sustainable performance with more power and a higher duty cycle. Overload protection in combination with a built-in fan prevents overheating and ensures high-quality welding performance over a long period of time.
The infinitely adjustable digital display shows the welding processes and options very clearly. The HF ignition ensures that the device starts up without any problems at all times.
The supplied TLT24M4 flex torch has a flexible head that allows TIG welding in any position. The TIG torch is also equipped with remote control with which the ampere range can be variably adjusted during welding.
The hot-start/anti-stick function increases the welding current quickly, thereby preventing the electrode from sticking to the workpiece during ARC welding.
Ideal for welding aluminum stainless steel, carbon steel, low alloy steel, copper and special aluminum alloys.
Each TL200ACHG comes standard with:
Soldatech TLT26M4 remote flex TIG torch with 4m cable
Welding ground clamp with 3m 16mm² cable
European dinse couplers 13mm
Gas line including quick coupling 3m
3-pin 32A plug with 2m 3x4mm² cable
Technical specifications:
voltage = 230V - 1 phase
frequency = 50/60Hz
fuse protection = 16A B-char
input power = 8.05kVA
no load voltage = 68V
duty cycle (at 20°C ambient temperature) = 35% - 200A
duty cycle (at 40°C ambient temperature) = 35% - 200A
welding current range MMA = 5 - 170A
dimensions = 508 x 241 x 408mm
weight = 19.5kg
TIG welding inverter 200A / IGBT TIG inverter / welding machine
This portable Soldatech powered by HG TIG welding machine is a convenient and easy-to-use device that is capable of handling a wide range of materials using different welding processes including Pulse, TIG and MMA welding. All parameters of the TL200HG can easily be set correctly using the setting and selection buttons, so that every welding job is completed with high-quality results.
The modern IGBT inverter technology ensures that the TL200HG delivers sustainable performance with more power and a higher duty cycle. Overload protection in combination with a built-in fan prevents overheating and ensures high-quality welding performance over a long period of time.
The supplied TLT24M4 flex torch has a flexible head that allows TIG welding in any position.
Ideal for welding stainless steel, carbon steel, low alloy steel and copper.
Each TL200HG comes standard with:
Soldatech flex TIG torch with 4m cable
3-pin 32A plug with 2m 3x2.5mm² cable
circuit breaker = 16A B-char
input power = 8.7kVA
no load voltage = 66V
welding current range = TIG 5 - 200 / MMA 20 - 200
protection class = IP21S
dimensions = 440 / 175 / 340mm
weight = 9kg

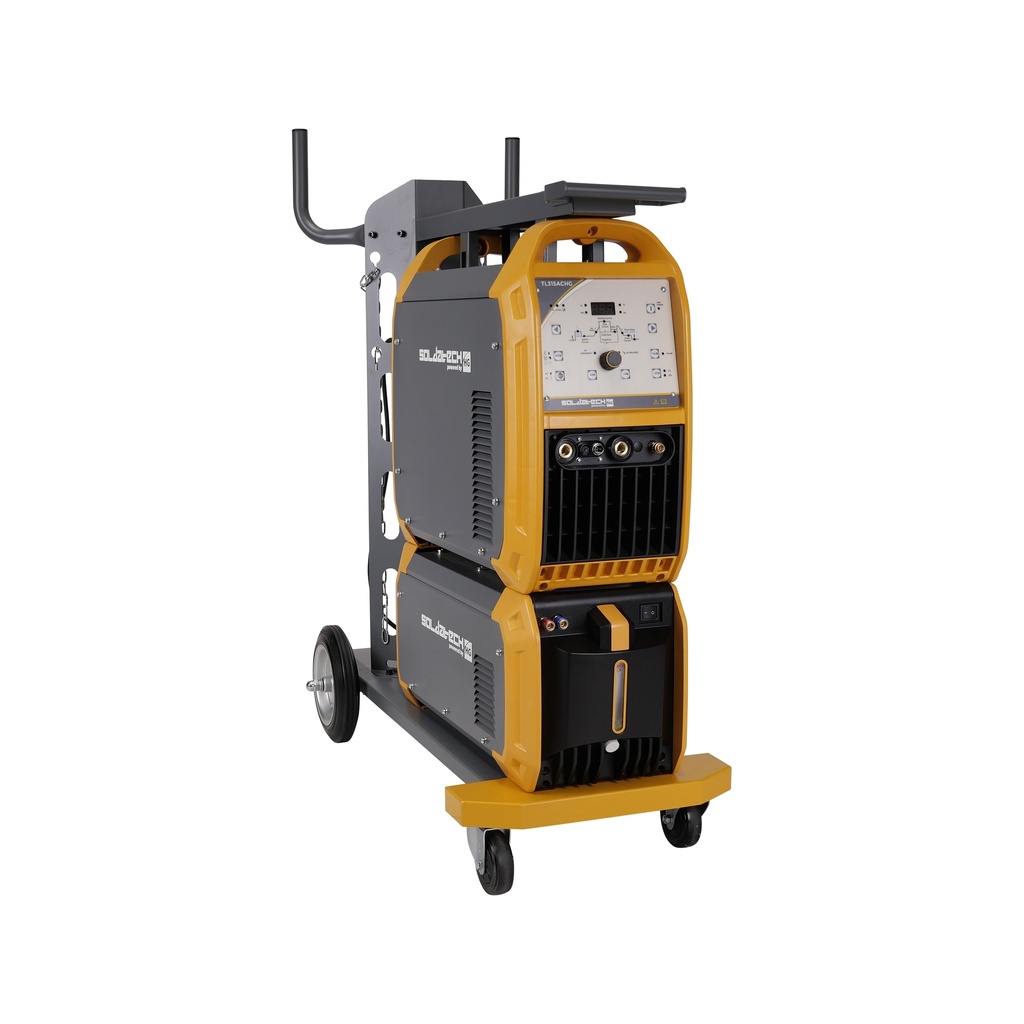

TIG AC/DC welding inverter 315A / IGBT TIG AC/DC inverter / welding machine
This Soldatech powered by HG TIG welding machine is standard equipped with a solid trolley that easily carries a 50L gas bottle and processes a huge range of materials with different welding processes including AC/DC Pulse, TIG and MMA welding. With the setting and selection buttons, all parameters of the TL315ACHG can easily be set in the correct way, so that every welding job is completed with high quality results.
The modern IGBT inverter technology ensures that the TL315ACHG delivers sustainable performance with more power and a high duty cycle. In addition, the TL315ACHG is equipped as standard with a powerful water cooler which prevents overheating in combination with a built-in fan and ensures that high-quality welding performance is guaranteed over a long period of time.
The digital continuously adjustable display shows very clearly the welding processes and possibilities. Thanks to the HF ignition, the device starts up smoothly at all times.
The supplied TLT18M4 torch is equipped with water cooling for a long service life when welding with high amperage.
Due to the hot-start / anti-stick function, the welding current is quickly increased, so that the electrode does not stick to the workpiece during ARC welding.
Ideal for welding aluminum, stainless steel, carbon steel, low alloy steel, copper and special aluminum alloys.
Every TL315ACHG comes standard including:
Water-cooled Soldatech TLT18M4 TIG torch with 4m cable
Welding ground clamp with 3m 25mm² cable
Gas line including quick coupling of 4m (8mm inner diameter)
5-pin 32A plug with 2m 4x2.5mm² cable
Wear parts = 3x collet (1.6 / 2.0 / 2.4mm), 1x collet chuck 3.2mm, 3x gas nozzle (6, 7, 8mm), 1x insulation ring, 1x sealing cap short and 1 sealing cap long
voltage = 400V - 3 pfase
frequency = 50 / 60Hz
circuit breaker = 25A B-char
input power = 13.8kVA
no load voltage = 70V
duty cycle (at 20°C ambient temperature) = 60% - 315A
duty cycle (at 40°C ambient temperature) = 35% - 315A
welding current range DC TIG = 10A - 315A
welding current range AC TIG = 20A - 315A
welding current range MMA = 20A - 250A
cooling unit content = 6L
dimensions = 1110mm x 520mm x 1265mm
weight = 94kg

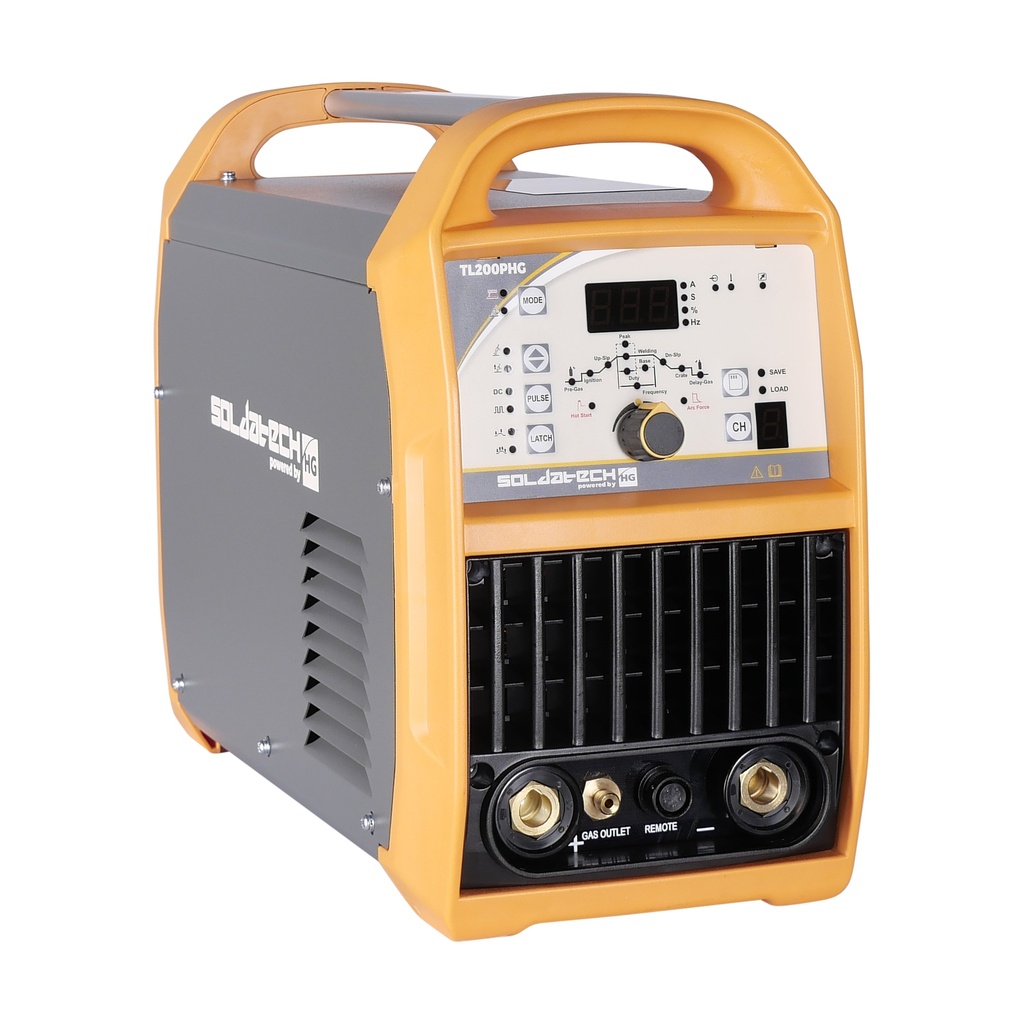

TIG welding inverter 200A / IGBT TIG DC inverter / welding machine / welding machine
This portable Soldatech powered by HG TIG welding machine is a handy and easy-to-handle device that processes a huge range of materials with different welding processes including Pulse, TIG and MMA welding. With the adjustment and selection buttons it is easy to set all parameters of the TL200PHG in the right way, so that every welding job is completed with high-quality results.
The modern IGBT inverter technology ensures that the TL200PHG delivers sustainable performance with more power and a higher duty cycle. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time. The digital infinitely adjustable display clearly shows the welding processes and possibilities. Thanks to the HF ignition, the device starts up without any problems at all times.
The supplied TLT26M4 flex torch has a flexible head that allows TIG welding in any position. The TIG torch is also equipped with remote control with which the ampere range can be variably adjusted during welding. The hot-start/anti-stick function quickly increases the welding current, so that the electrode does not stick to the workpiece during ARC welding. Ideal for welding stainless steel, carbon steel, low alloy steel and copper.
Every TL200PHG is supplied as standard including:
3m gas line including quick coupling
3-pin 32A plug with 1m 3x4mm² cable
no load voltage = 82V
dimensions = 460 x 200 x 340mm
weight = 9.5kg
