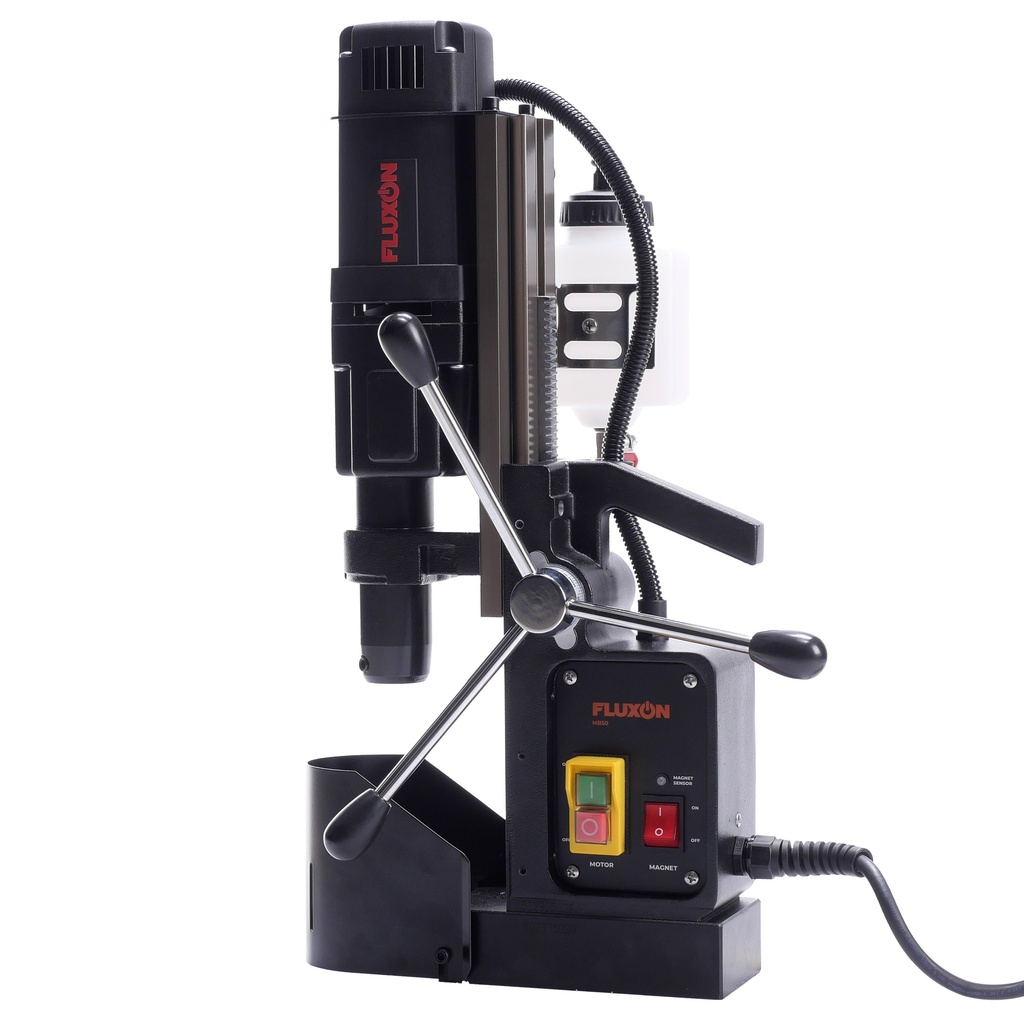

Core drill machine / magnetic core drill

This magnetic drilling machine is very suitable for fast and accurate drilling of holes with a maximum diameter of 50mm.
The thoughtful design has the following unique features:

- shielded air inlet protects the engine against liquid and dirt
- adjustable speed: 2 gears
- very compact lightweight machine: only 12kg
- reliable motor protection: both when the machine is switched on and when its in use
- fixing slot including safety strap: with this strap the machine can be attached to the surface and therefore provides extra safety
- oil-filled gearbox: prevents wear of the internal gears
- automatic cooling system
- easily adjustable stroke up to 230mm

Technical specifications:
- voltage = 230v
- max. diameter core drills = 50mm
- max. diameter twist drills = 13mm
- rated power = 1700W
- no-load speed = 325 / 435rpm
- clamping force magnet = 16500N / 1650kg
- max. drilling depth = 40mm
- stroke = 230mm
- drive = 19,05 Weldon

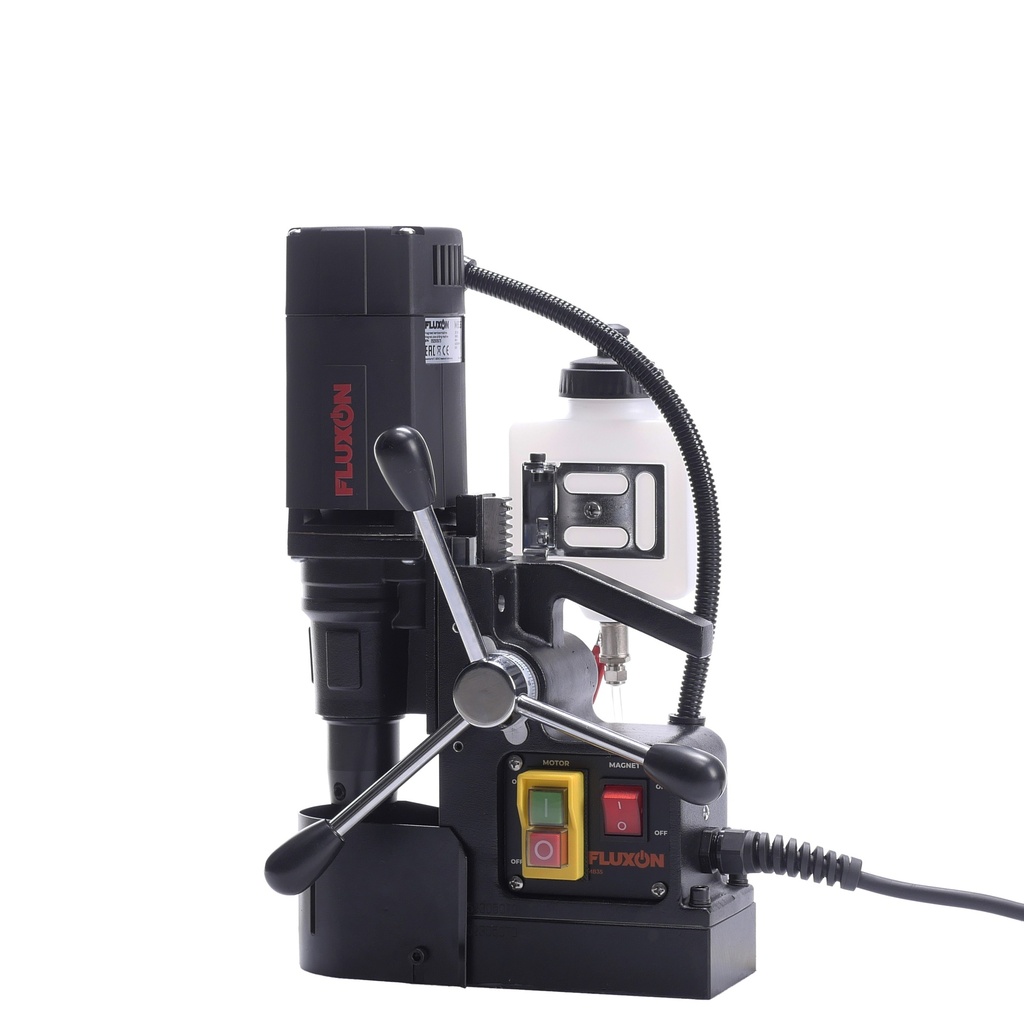

Core drill machine / magnetic core drill

This magnetic drilling machine is very suitable for fast and accurate drilling of holes with a maximum diameter of 35mm.
The thoughtful design has the following unique features:

- shielded air inlet protects the engine against liquid and dirt
- very compact lightweight machine: only 11kg
- reliable motor protection: both when the machine is switched on and when its in use
- fixing slot including safety strap: with this strap the machine can be attached to the surface and therefore provides extra safety
- oil-filled gearbox: prevents wear of the internal gears
- automatic cooling system
- easily adjustable stroke up to 210mm

Technical specifications:
- voltage = 230v
- max. diameter core drills = 35mm
- max. diameter twist drills = 13mm
- rated power = 1600W
- no-load speed = 700rpm
- clamping force magnet = 16000N / 1600kg
- max. drilling depth = 35mm
- stroke = 210mm
- drive = 19,05 Weldon
