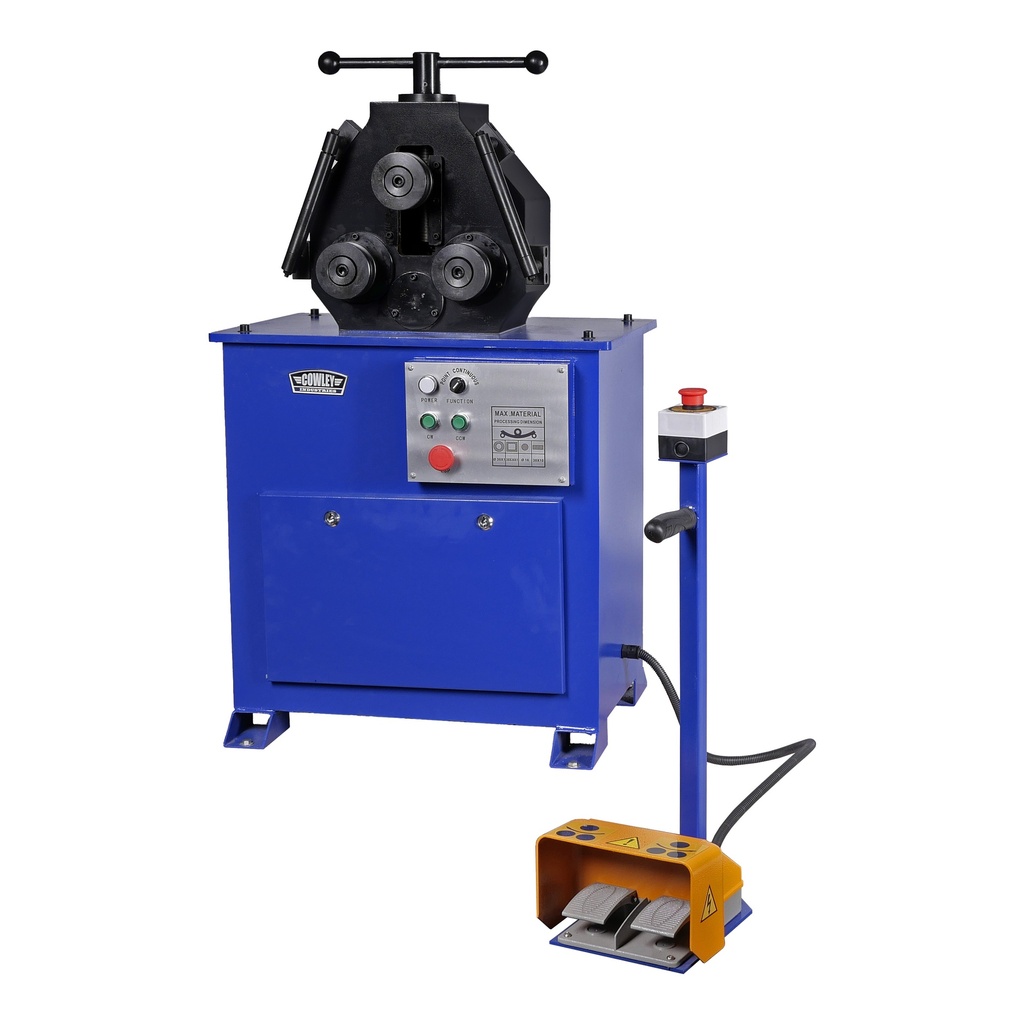

Round bending machine

- diameter of roller = 30mm

- power = 1,1kW / 1,5HP

- spindle speed = 9rpm

- max. pipe = 30 x 30 x 1mm

- solid round = 16mm

- solid square = 30 x 10mm

- square = 30 x 30 x 1mm

- standard deliverd with rolls as on image

- vertical operation

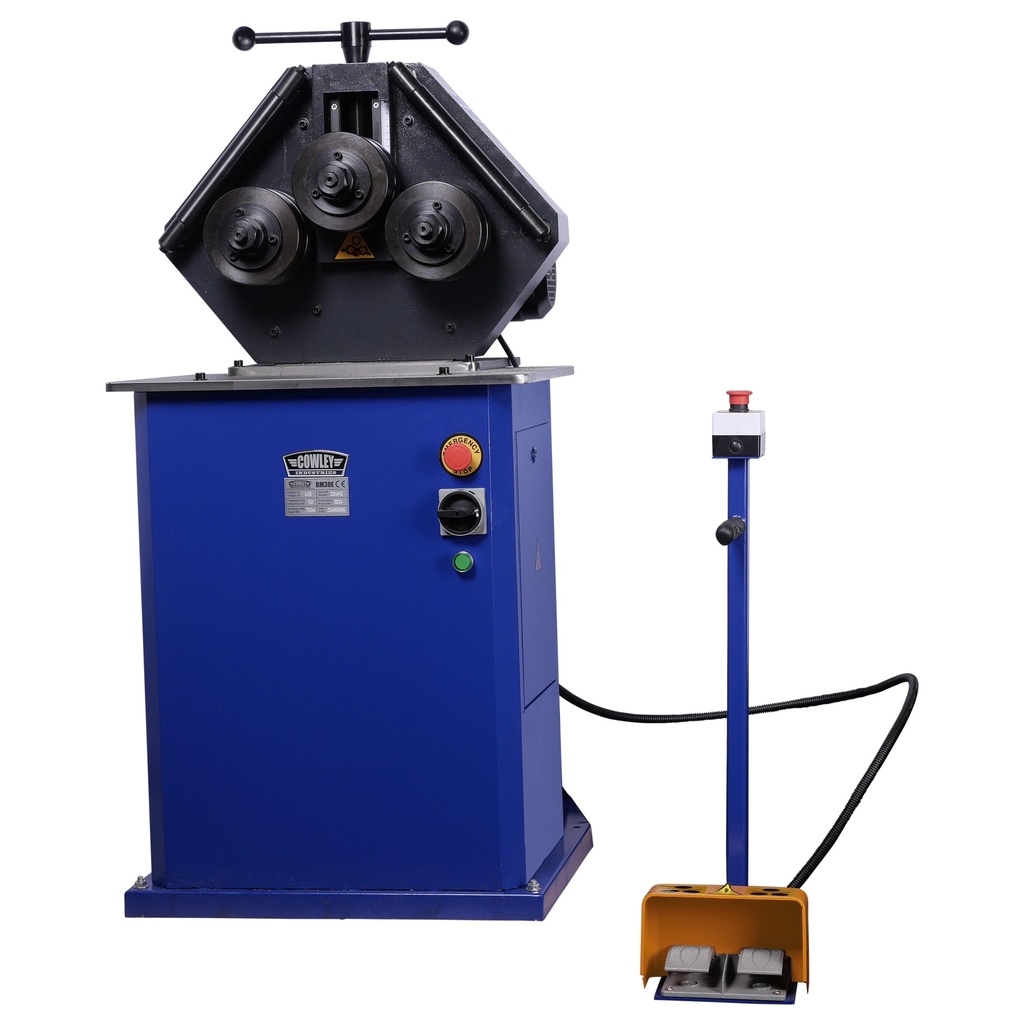

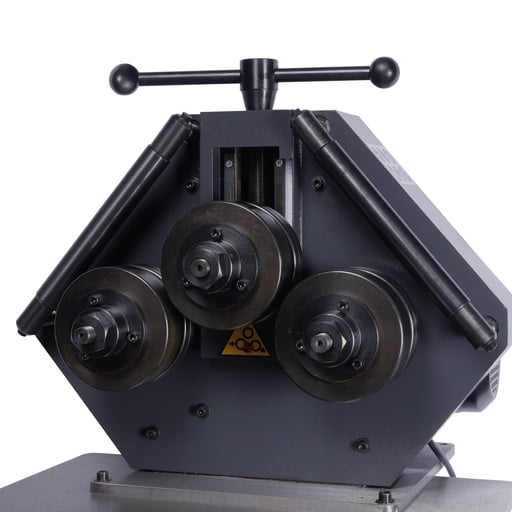

Round bending machine

- max. capacity:
pipe steel = 30 x 1mm
square tube steel = 30 x 30 x 1mm
round steel = 16mm
flat steel = 30 x 10mm

- diameter of roller shaft = 30mm
- motor power = 0,75kW / 1HP
- power = 400V / 16A
- rotate speed = 9rpm
- standard deliverd with rolls as on image
- horizontal en vertical operation

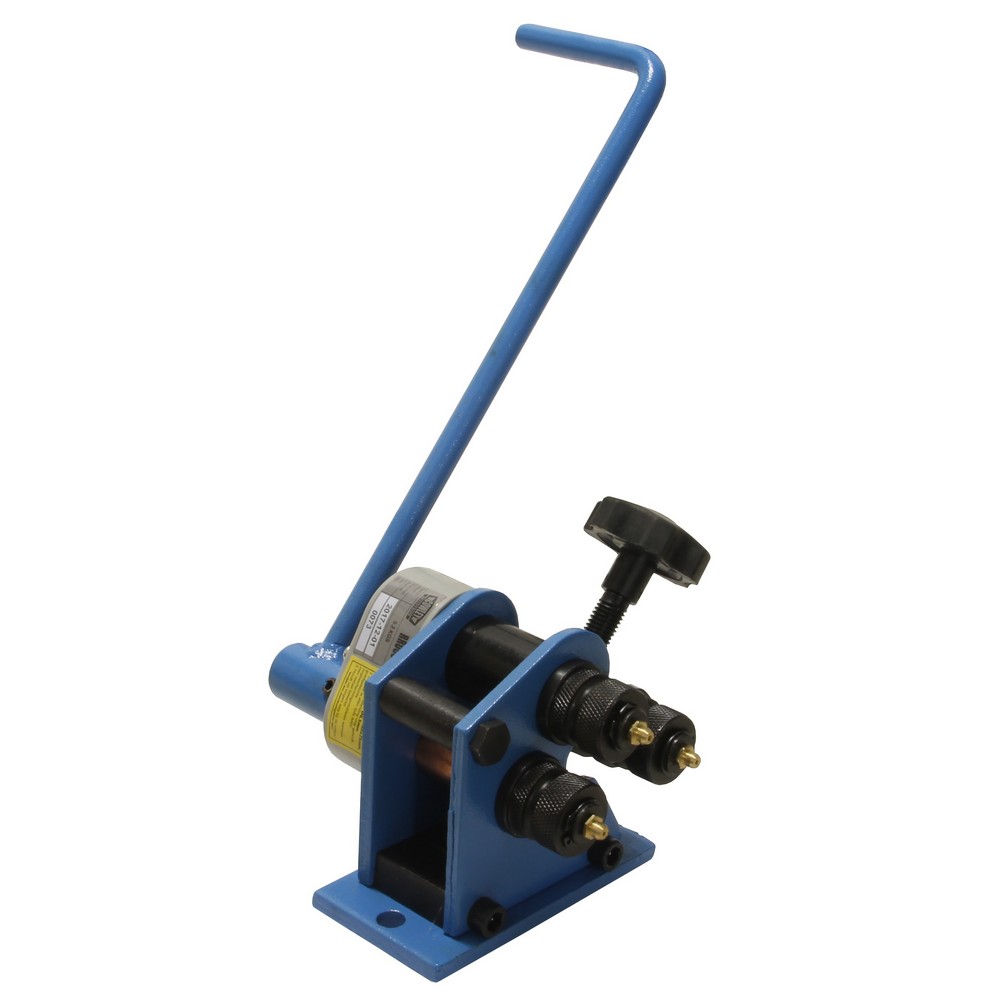

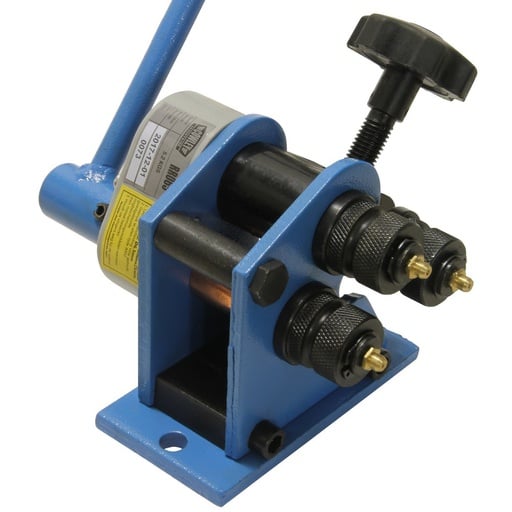

Ring roller

Ideal for rings and seal rings to form round or flat material.

- diameter of rolls = 32mm
- round steel capacity = 6,5mm
- plate steel capcatity = 25 x 5mm
- length handle = 320mm
