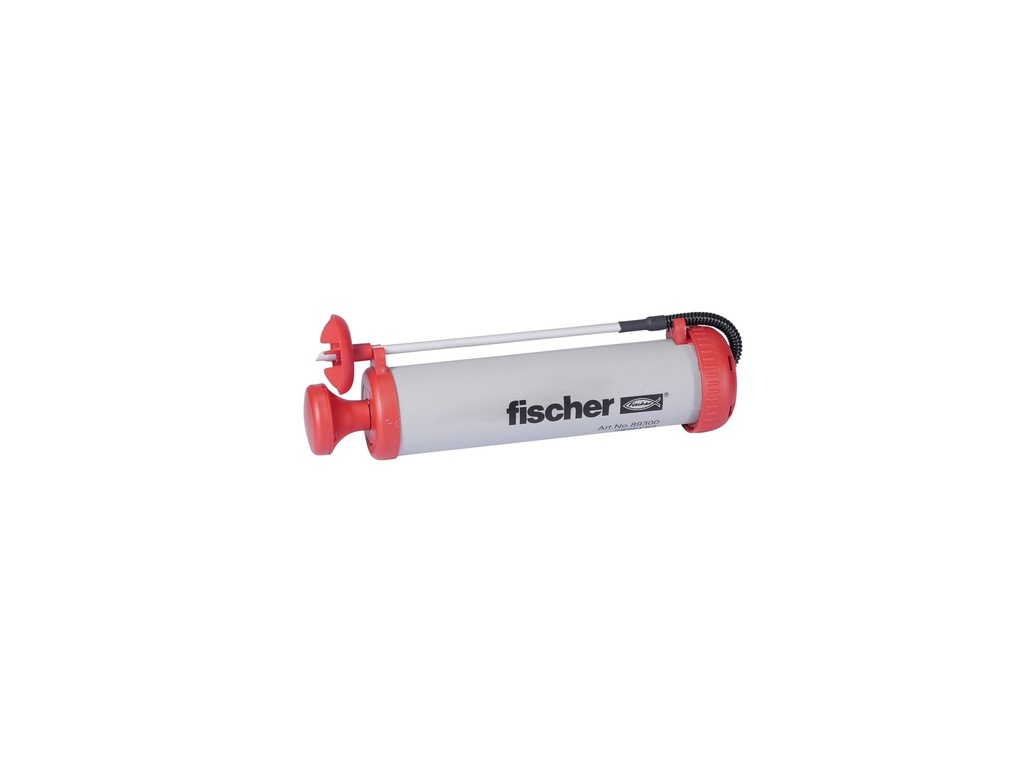

This Fischer Blow-out pump is suitable for cleaning the drill hole before fitting the anchor. Can be used for drill hole cleaning in all solid and hollow building materials.
ABG is a manually operated blow-out pump for cleaning drill holes.
Because of the high blowing pressure, the drill hole cuttings are reliably removed from the drill hole.
The drill hole cap directs the drill hole cutting sideways out of the drill hole, thus reducing dust exposure of the user.
A sealing washer prevents drill hole cuttings from penetrating into the cylinder. This allows for a trouble-free functioning and a prolonged service life of the ABG.
The tube can be attached to the blow-out pump, thus providing for space-saving storing and transport of ABG.
Chemical anchor / injection mortar
The Fischer high-performance mortar FIS V is the universal all-rounder for the highest requirements. The styrene-free vinyl ester hybrid mortar with its numerous fixing elements is approved for fixations in cracked and non-cracked concrete as well as in masonry. However, the injection mortar is also used with the approved system components for rebar connections, the Fischer remedial wall tie VBS 8, the Fischer weather facing wall tie FWS II, and the stand-off installation system Thermax. The variant FIS VS LOW SPEED enables an extended processing time at higher processing temperatures or a greater drill hole depth. The shorter hardening time of the variant FIS VW HIGH SPEED enables swift work progress even at low temperatures.
The injection mortar FIS V has a range of system approvals, for cracked and non-cracked concrete, masonry, and rebar connections, for example. FIS V is therefore the universal injection mortar family with guaranteed safety for almost every application.
FIS VW HIGH SPEED has a significantly shorter hardening time than FIS V, which ensures swift work progress even at low temperatures.
The FIS VS LOW SPEED has an extended processing time that prevents the premature hardening of the mortar at higher temperatures. It is ideally suited to large drill hole depths.
The extensive range of accessories is perfectly tailored to the injection mortar family FIS V, increases the high flexibility of the system, and thus enables a broad range of applications.
Approved for anchorings in: Concrete C20/25 to C50/60, cracked and non-cracked, hollow blocks made from lightweight concrete, hollow blocks made from concrete, vertically perforated brick, perforated sand-lime brick, solid sand-lime brick, aerated concrete, solid brick.
Approved for: Rebar connections, remedial wall tie VBS 8, weather facing reconstruction system FWS II, stand-off installation Thermax.
content = 300ml / 490g
1 cartridge, 2x static mixer FIS MR Plus
content = 10x 300ml / 490g
10 cartridges, 20x static mixer FIS MR Plus

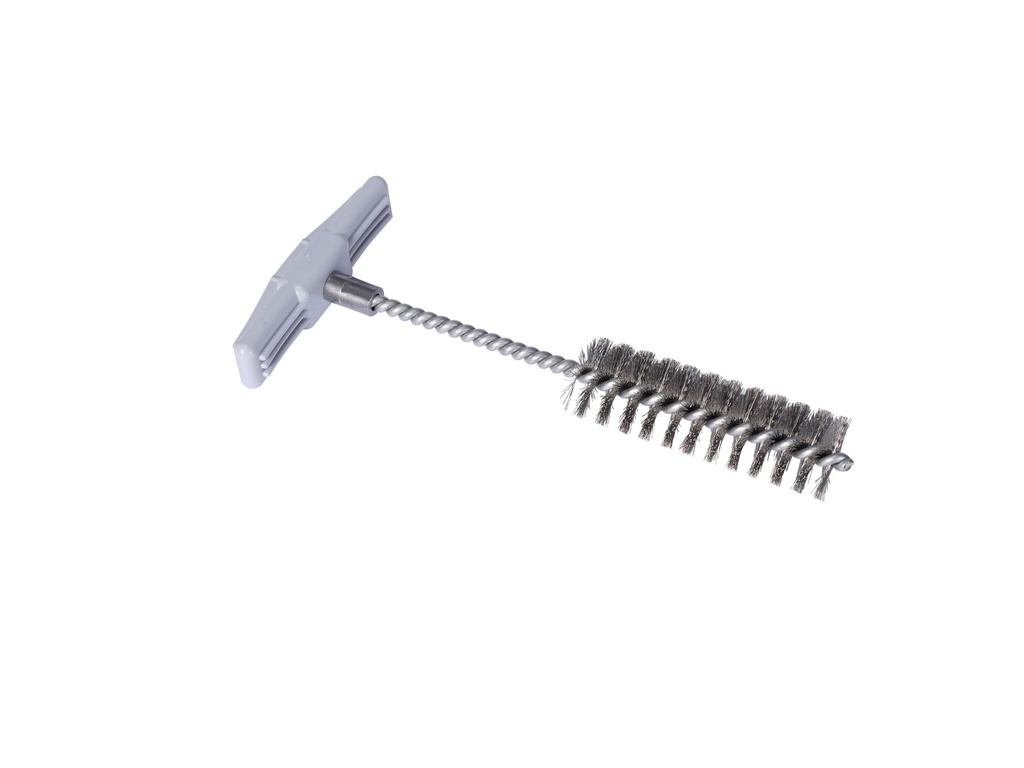

This Fischer cleaning brush is suitable for approval-compliant drill hold cleaning before fitting the anchor in concrete. High-quality, durable design made from metal with removable metal handle. Can be used for drill hole cleaning in all solid and hollow building materials.
The steel brushes BS with stainless steel bristles are approved for cleaning drill holes in concrete and masonry.
Brushes can either be used automatically or manually using the attached handle, depending on the cleaning procedure required.
Note: Before use, check whether the brushes still have the required diameter. They must generate a noticeable resistance when being inserted into the drill hole. Brushes that are too small must no longer be used.
