This connection kit is suitable for connecting a silent air compressor with an air tank.

hose connector T-piece / copper T connector tube / hose connector / lab tee adapter
T-piece brass fitting for 10mm hoses.
The 90° tee, also known as hose connector T-piece, is a fitting with a barb connection. It is used for connecting 3 hoses together. The connector is resistant to corrosion and is manufactured according to European standards.

Technical specifications:

• model = T-piece
• hose connection = 10mm
• material = brass

Corundum / aluminum oxide / blasting sand

This highly durable abrasive is universally applicable.
The most commonly used applications are:
- the removal of paint layers and rust
- roughening and matting of the surface
- pre-treatment for the application of all common paint systems
- blasting of glass

This abrasive differentiates itself from other abrasives due to its very long life. Therefore it can be used frequently.

Specifications:
- grain size = 0,35 - 0,70
- grain shape = sharp
- packed in a 25kg bag

These grinding wheels are resistant to a speed of no less than 25000rpm and are easy to use due to the small diameter.

Suitable for the pneumatic grinders ACT01N and ACT02L.

• diameter = 75mm

• thickness = 1,8mm

• bore hole diameter = 9,5mm

• 5 pieces

Dust extraction unit / dust collector

This ZionAir dust extraction unit is very suitable for vacuuming shavings and fine dust. Useful when using saw and sanding machines. The unit is placed on wheels and therefore easy to move.

- voltage = 230V / 50Hz
- motor power = 0,75kW
- sound level = 86,5dB
- diameter inlet = 100mm
- diameter fan = 230mm
- capacity bag = 57L
- diameter bag = 370mm
- height bag = 640mm
- collection capacity = 1000m³/hour

Dust extraction unit

This ZionAir dust extraction unit is very suitable for vacuuming shavings and fine dust. Useful when using saw and sanding machines. The unit is placed on wheels and therefore easy to move.

- voltage = 230V / 50Hz
- motor power = 1,5kW
- sound level = 87,1dB
- diameter inlet = 1:100mm / 2:125mm
- diameter fan = 300mm
- capacity bag = 153L
- diameter bag = 500mm
- height bag = 850mm
- collection capacity = 2500m³/hour

Ecoblast / abrasive

ECOBLAST is an abrasive based on calcium silicate. It fulfills the requirements for silicone-free blasting media on the basis of DIN EN ISO 11126-6 and meets the requirements for occupational safety (IFA test certificate for testing blasting media for the content of siliconogenic, toxic and carcinogenic components).

Chemical composition:

SiO2 44 - 52 %

CaO 25 - 36%

Al2O3 7 - 14 %

MgO 5 - 8%

Fe2O3 1 - 2 %

REACH Reg No.: 01-2119487456-25

Customs Tariff Number: 2619 00 90

EC-No.: 266-002-0

CAS No.: 65996-69-2

Technical specifications

• grain size = 0.1 - 0.5mm

• shape = angular

• color = dark green, black-grey

• raw density = approx. 2.6 g/cm3

• bulk weight = approx. 1.3 g/cm3

• Mohs hardness = 7

Foam band for sand blast cabinet 420ltr

Foil set

- dimensions = 550 x 250mm
- suitable for SB11A sand blasting cabinet
- 5 pieces

Foil set

- dimensions = 550 x 250mm
- suitable for SB22A sand blasting cabinet
- 5 pieces

Foil set

• dimensions 1st foil = 670 x 300mm

• dimensions 2nd foil = 900 x 260mm

• suitable for SB99A and SB120A sand blasting cabinet

• 2 pieces

Handle for air impact wrench 1"

Suitable for the IW10L air impact wrench.

Collar and gas connector nozzle male / brass gas nozzle / hose barb / hose barb fittings / brass male hose nipple / hose barb fittings
Hose barb fittings are suitable for use with various hose and tubing. The fitting is made of brass, which guarantees excellent strength and ductility, corrosion resistance, good bearing properties, and low magnetic permeability.
Technical specifications:

• Hose connection size: 10mm
• Thread type external: BSP 1/4
• Material = brass
• Temperature range = -20ºC to +70ºC
• Working pressure = 15 bar

Collar and gas connector nozzle male / brass gas nozzle / hose barb / hose barb fittings / brass male hose nipple / hose barb fittings
Hose barb fittings are suitable for use with various hose and tubing. The fitting is made of brass, which guarantees excellent strength and ductility, corrosion resistance, good bearing properties, and low magnetic permeability.
Technical specifications:

• Hose connection size: 6mm
• Thread type external: BSP 1/8
• Material = brass
• Temperature range = -20ºC to +70ºC
• Working pressure = 15 bar

Air impact wrench extra short

This durable extra short air impact wrench is due to its very compact construction, only 87mm, ideal for small spaces.

- square drive = 1/2''
- capacity = 15mm
- free speed = 9000rpm
- suitable torque = 34 - 306Nm
- max. torque = 510Nm
- air inlet = 1/4''
- avg. air consumption = 300 L/min
- working pressure = 6,3 bar
- length = 87mm

This ZionAir pneumatic drill can be used both left and right, has a 13mm quick-release head and is very suitable for all kinds of jobs.

Specifications:

• max. drill head diameter = 10mm

• direction of rotation = left / right

• free speed = 1800rpm

• average air consumption = 113L/min

• air inlet = 1/4" (male connector included)

• working pressure = 6,3bar

The specified air consumption is indicated at a pressure of 6,3 bar.
The air output at compressors is measured at ambient pressure, so these 2 values cannot be compared with each other.
If you need advise, consult one of our experts.

Keyless reversible air drill

- drilling capacity = 13mm
- free speed = 2200rpm
- air inlet = 1/4''
- air hose = 3/8''
- avg. air consumption = 4 SCFM /115 L/min
- working pressure = 6,3 bar

These hardened chisels have a hexagon drive that prevents the chisels from turning

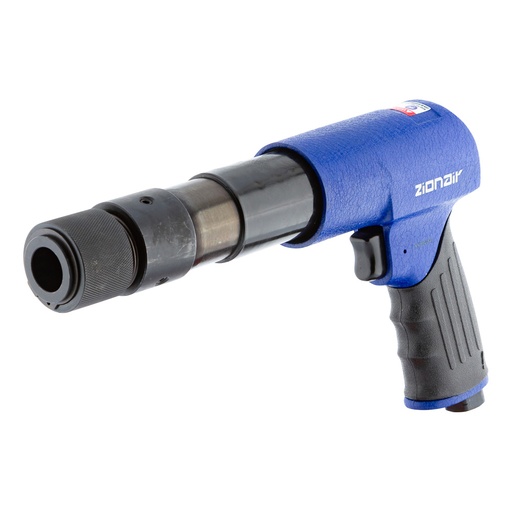

Suitable for the pneumatic chisel AC01L.

• pointed chisel

• flat chisel curved

• flat chisel straight

• flat chisel with small angle

• flat chisel with large angle

Loose needles

These hardened needles are suitable for the pneumatic needle scaler NBH12H.

• 12 pieces

• diameter = 3mm
