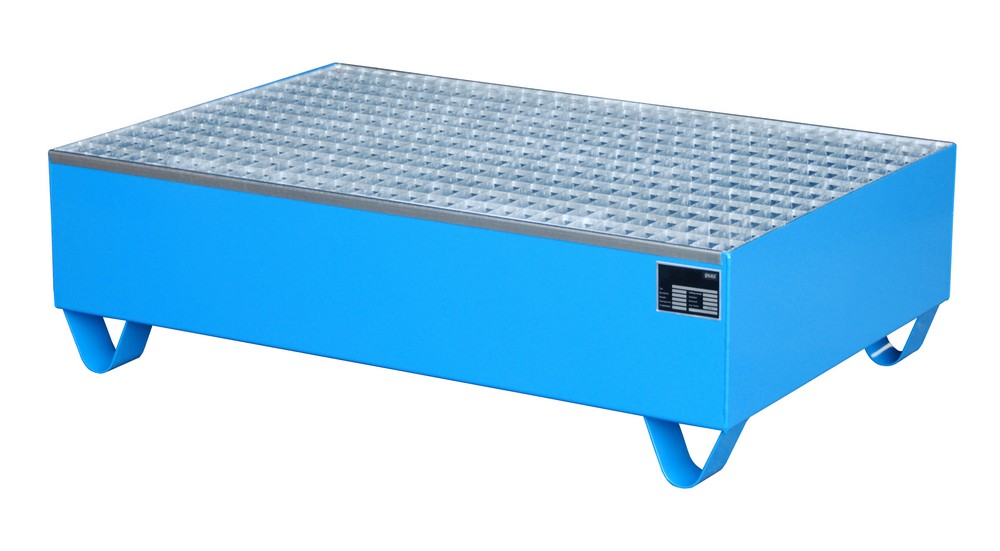

Drip tray / retention basin This ECO type retention tray is suitable for the storage of max. 2 drums with 200 liters, but is also combinable with 60 liter drums and small tins. - type = ECO 2/200, without raised platform - construction made of 2mm steel sheeting - 100mm ground leeway - galvanized grid - load capacity = 1000kg/m³ - retention capacity = 245L - finish = RAL 5012 The following applies to all ECO drip trays: - certified manufacturer EN ISO 9001 - manufacturing processes under TÜV surveillance - every unit is tested for leakage - flammable liquids of the GHS-categories 1-3 - water pollution liquids of the GHS-categories 1-4

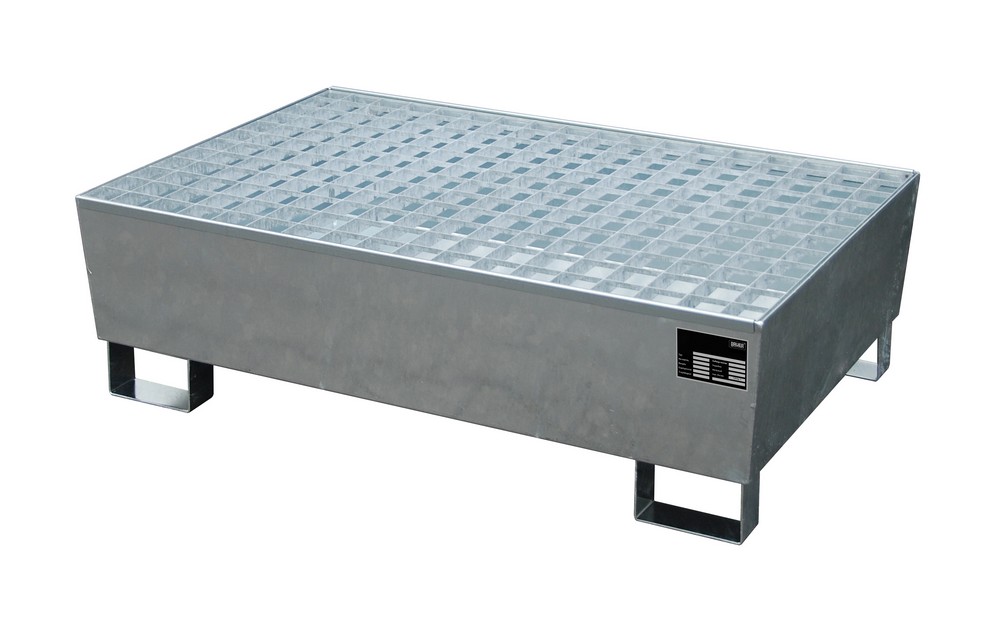

Drip tray / retention basin This conical ECO-S type retention tray is suitable for the storage of max. 2 drums with 200 liters, but is also combinable with 60 liter drums and small tins. Technical specifications:
type = ECO-S 2/200
construction made of 2mm steel sheeting
100mm ground leeway
conical construction
can be stacked
for use with a pallet truck or forklift truck
galvanized grid
capacity = 650kg
retention capacity = 232L
material = S235JR

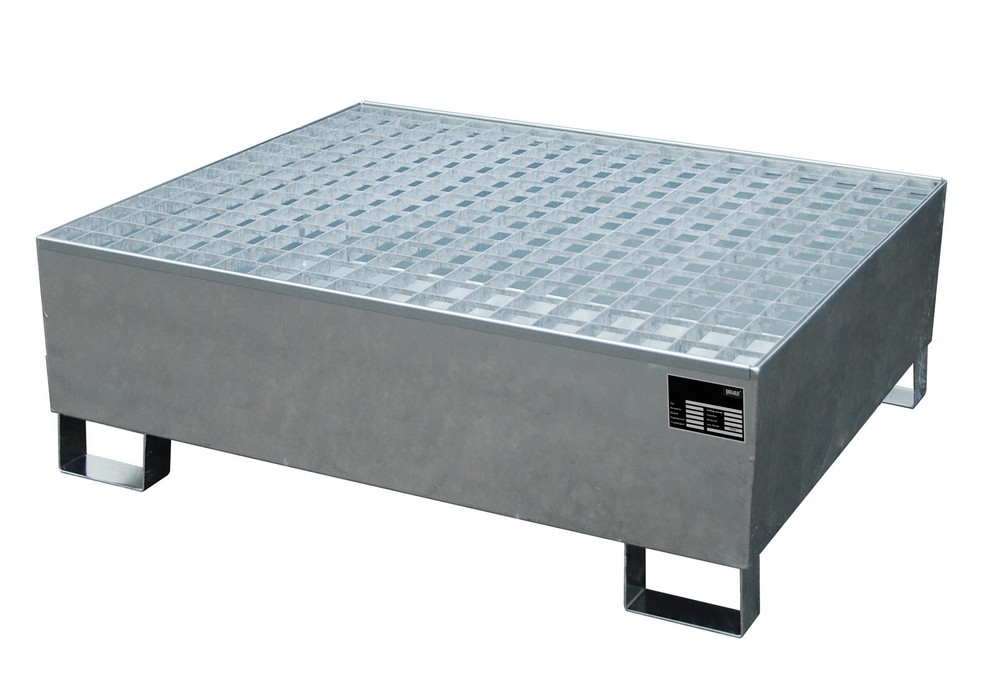

Drip tray / retention basin This conical ECO-S type retention tray is suitable for the storage of max. 4 drums with 200 liters, but is also combinable with 60 liter drums and small tins. Technical specifications:
type = ECO-S 4/200
load capacity = 650kg/m³
retention capacity = 240L
finish = hot-dip galvanized

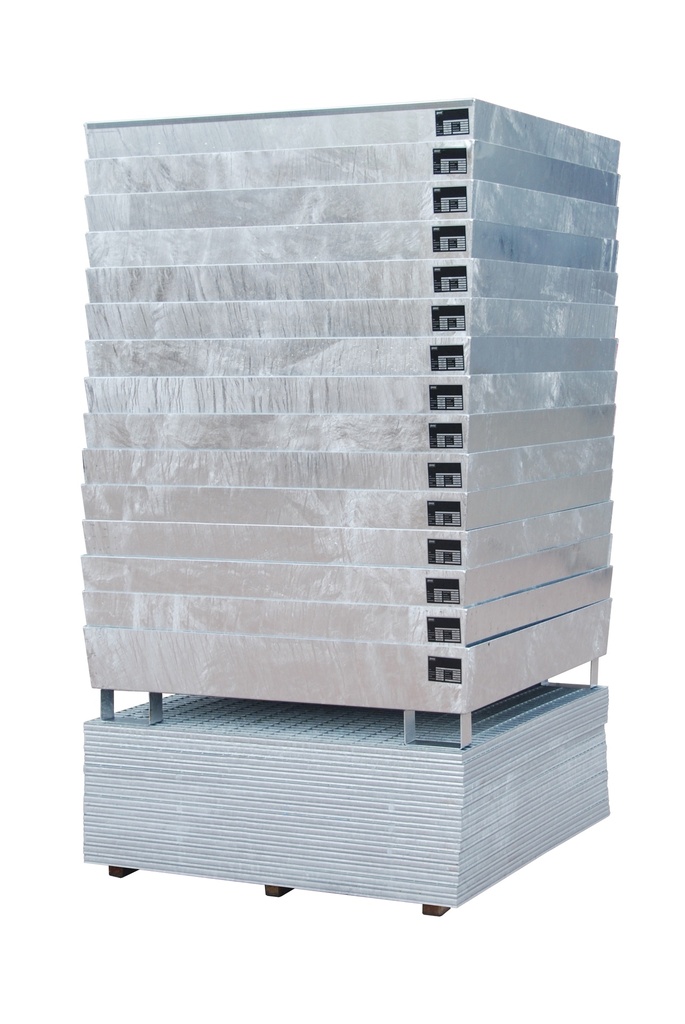

Drip tray / retention basin 15 piecesThis conical ECO-S type retention tray is suitable for the storage of max. 4 drums with 200 liters, but is also combinable with 60 liter drums and small tins.Technical specifications:
number = 15 pieces

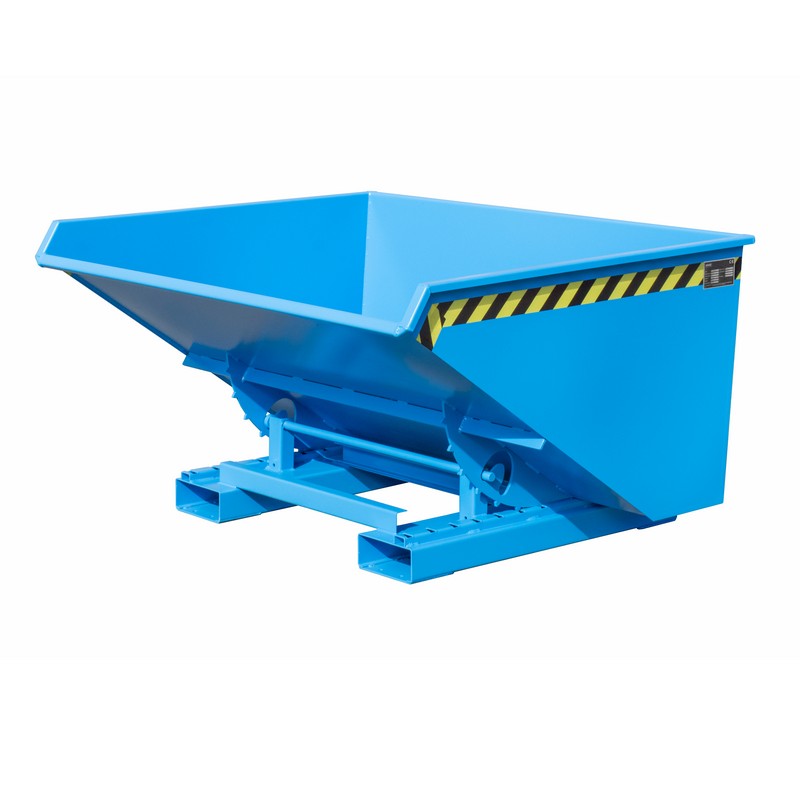

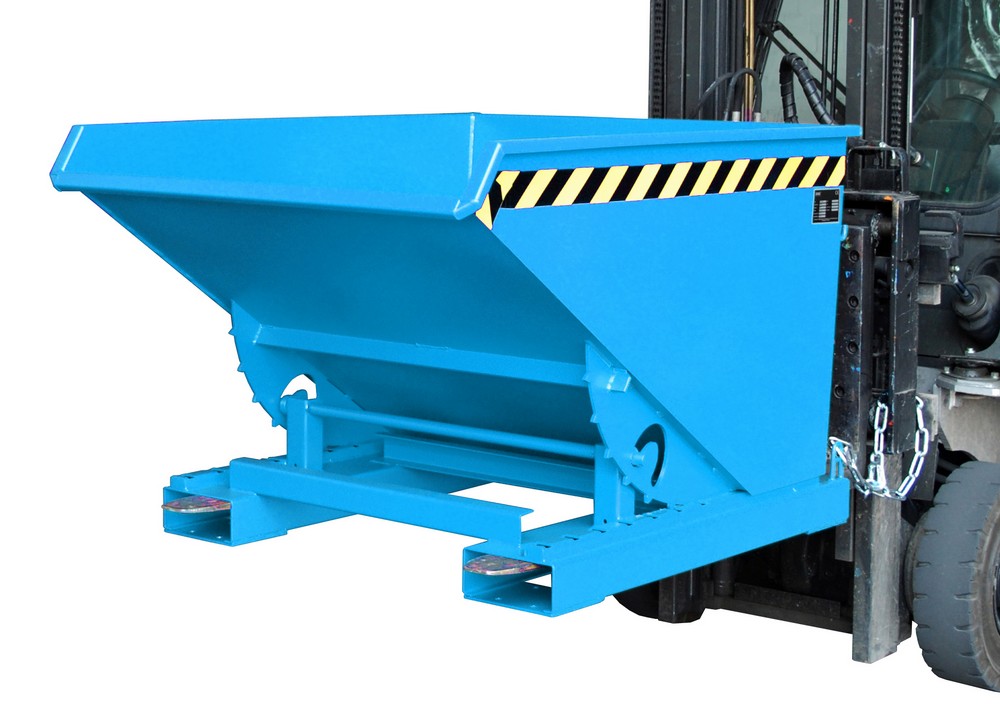

Tilting container / tipping container / tipper
This compact EXPO tilting container with rolling mechanism is very suitable for moving bulk goods, industrial waste and mass products using the forklift truck.
Features:
ideally situated loading centre of gravity
can be emptied at any height by using a cable, operated from the driver's seat
body wall with reinforced edging
sturdy frame with fork sleeves
secured to prevent slipping and unintentional emptying
wheels can be fitted later
Technical specifications:
capacity = 1000kg
volume = approx. 0,60m³
dimensions = 1260 x 1070 x 835mm
volume = approx. 0,90m³
dimensions = 1260 x 1570 x 835mm

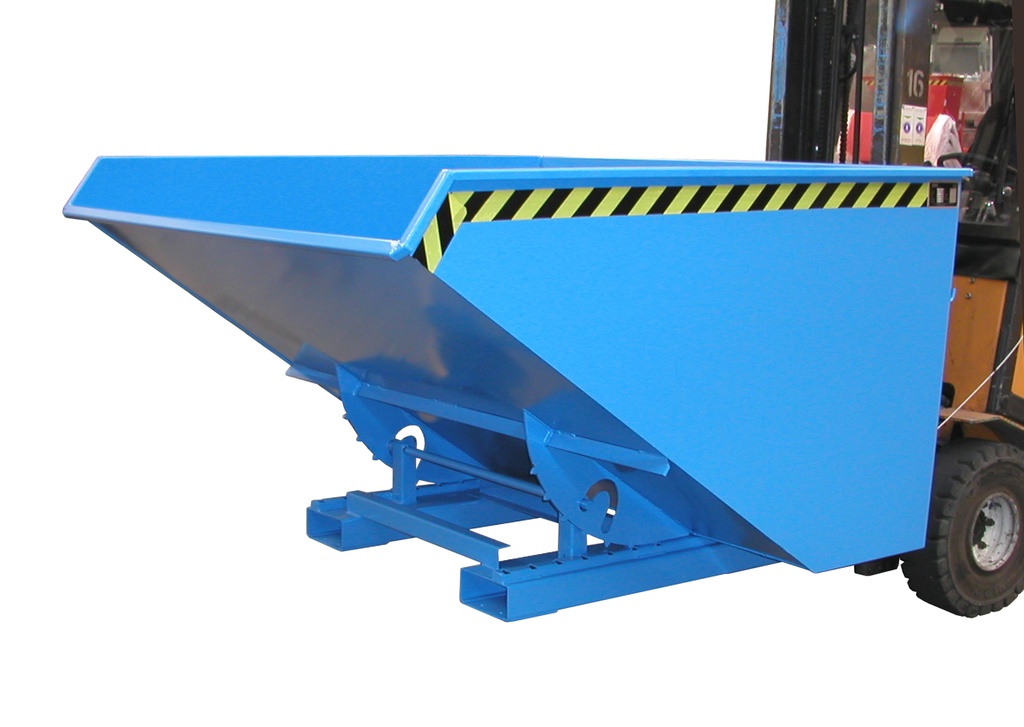

capacity = 1500kg
volume = approx. 1,20m³
dimensions = 1720 x 1070 x 1095mm

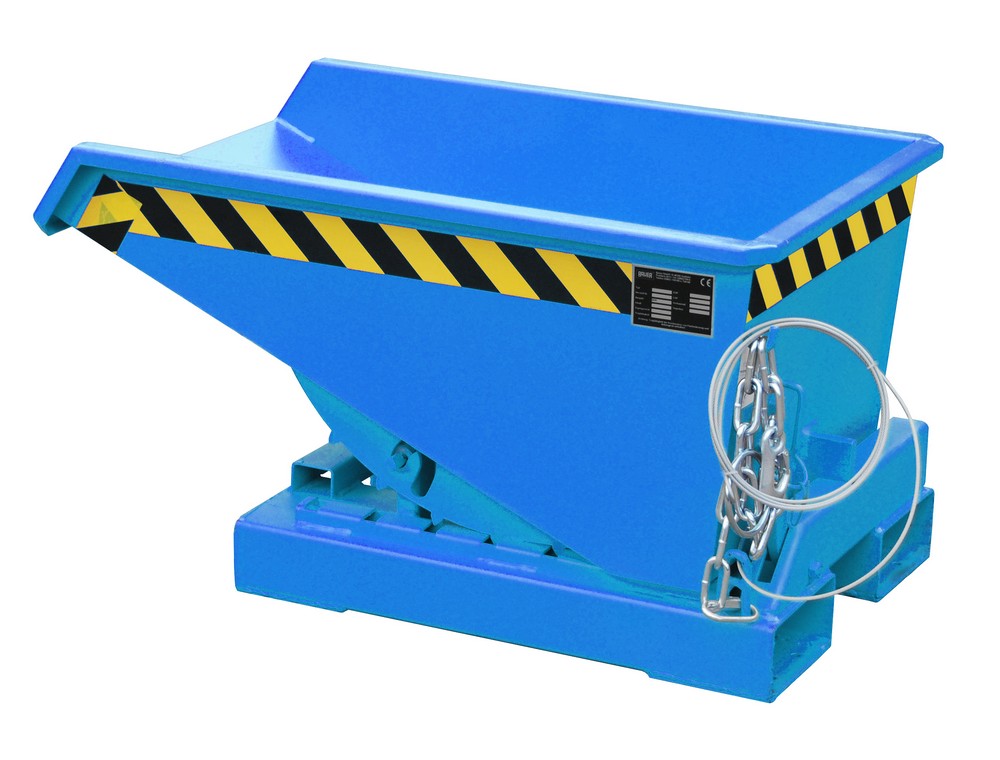

capacity = 750kg
volume = approx. 0,15m³
dimensions = 960 x 640 x 540mm
