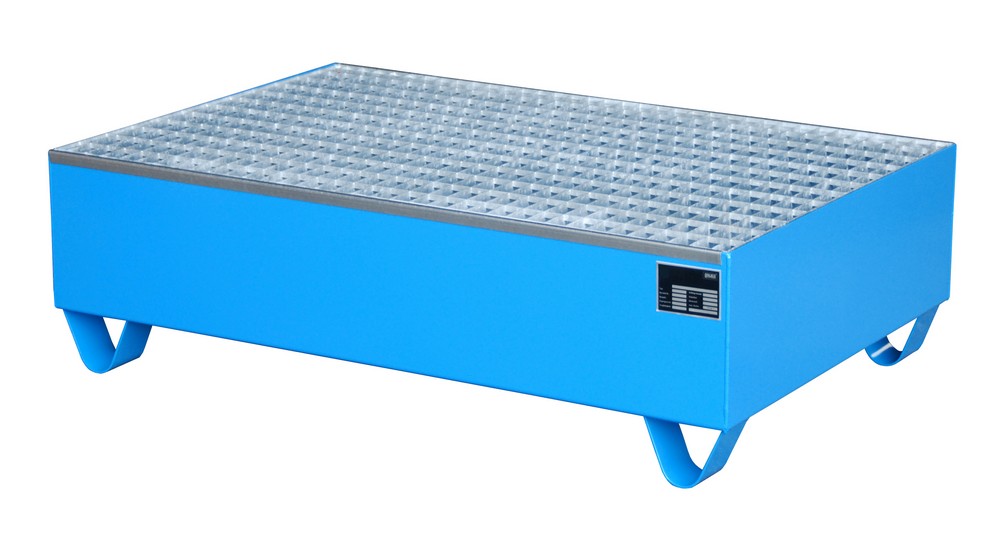

Auffangwanne

This ECO type retention tray is suitable for the storage of max. 2 drums with 200 liters, but is also combinable with 60 liter drums and small tins.

- type = ECO 2/200, without raised platform
- construction made of 2mm steel sheeting
- 100mm ground leeway
- galvanized grid
- load capacity = 1000kg/m³
- retention capacity = 245L
- finish = RAL 5012

The following applies to all ECO drip trays:
- certified manufacturer EN ISO 9001
- manufacturing processes under TÜV surveillance
- every unit is tested for leakage
- flammable liquids of the GHS-categories 1-3
- water pollution liquids of the GHS-categories 1-4

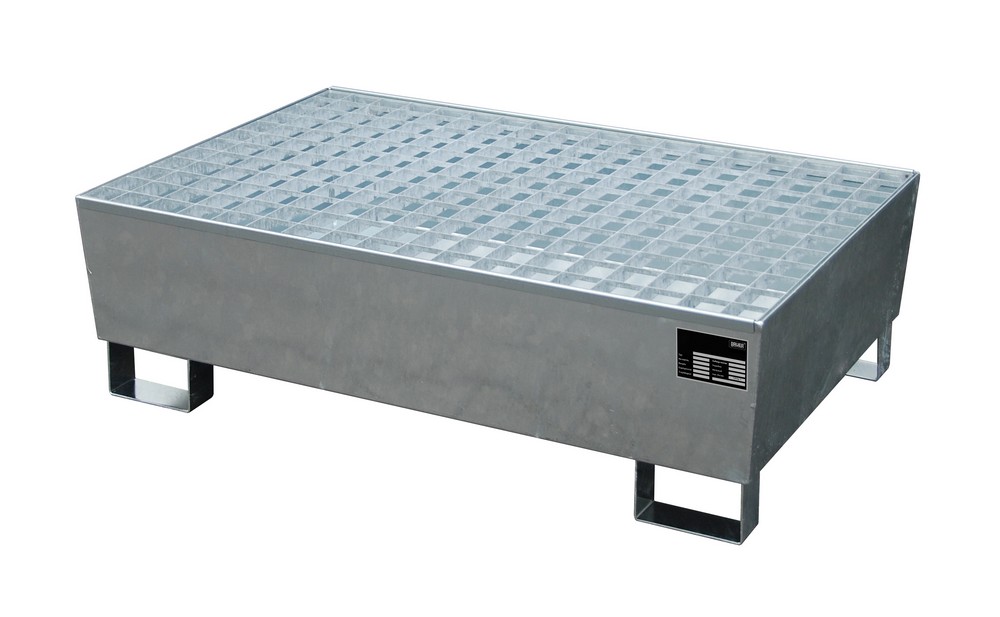

Auffangwanne

This conical ECO-S type retention tray is suitable for the storage of max. 2 drums with 200 liters, but is also combinable with 60 liter drums and small tins.
Technical specifications:

• type = ECO-S 2/200

• construction made of 2mm steel sheeting

• 100mm ground leeway

• conical construction

• can be stacked

• for use with a pallet truck or forklift truck

• galvanized grid

• capacity = 650kg

• retention capacity = 232L

• material = S235JR

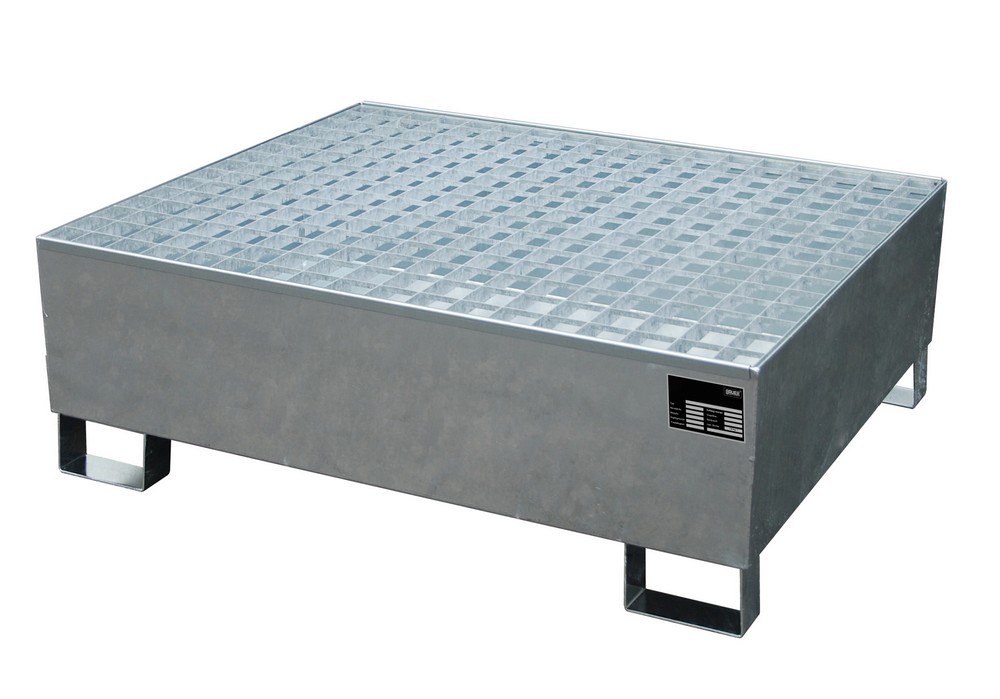

Auffangwanne

This conical ECO-S type retention tray is suitable for the storage of max. 4 drums with 200 liters, but is also combinable with 60 liter drums and small tins.
Technical specifications:

• type = ECO-S 4/200

• construction made of 2mm steel sheeting

• 100mm ground leeway

• galvanized grid

• load capacity = 650kg/m³

• conical construction

• for use with a pallet truck or forklift truck

• retention capacity = 240L

• finish = hot-dip galvanized

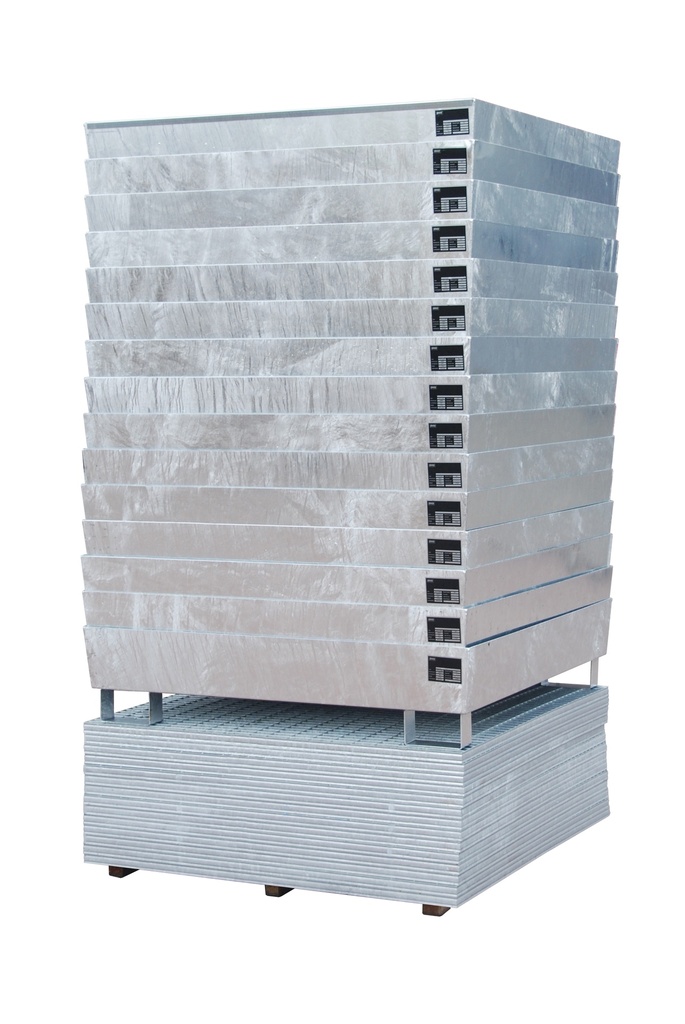

Auffangwanne  15 Stück

This conical ECO-S type retention tray is suitable for the storage of max. 4 drums with 200 liters, but is also combinable with 60 liter drums and small tins.
Technical specifications:

• number = 15 pieces

• type = ECO-S 4/200

• construction made of 2mm steel sheeting

• 100mm ground leeway

• conical construction

• can be stacked

• for use with a pallet truck or forklift truck

• galvanized grid

• capacity = 650kg

• retention capacity = 240L

• material = S235JR

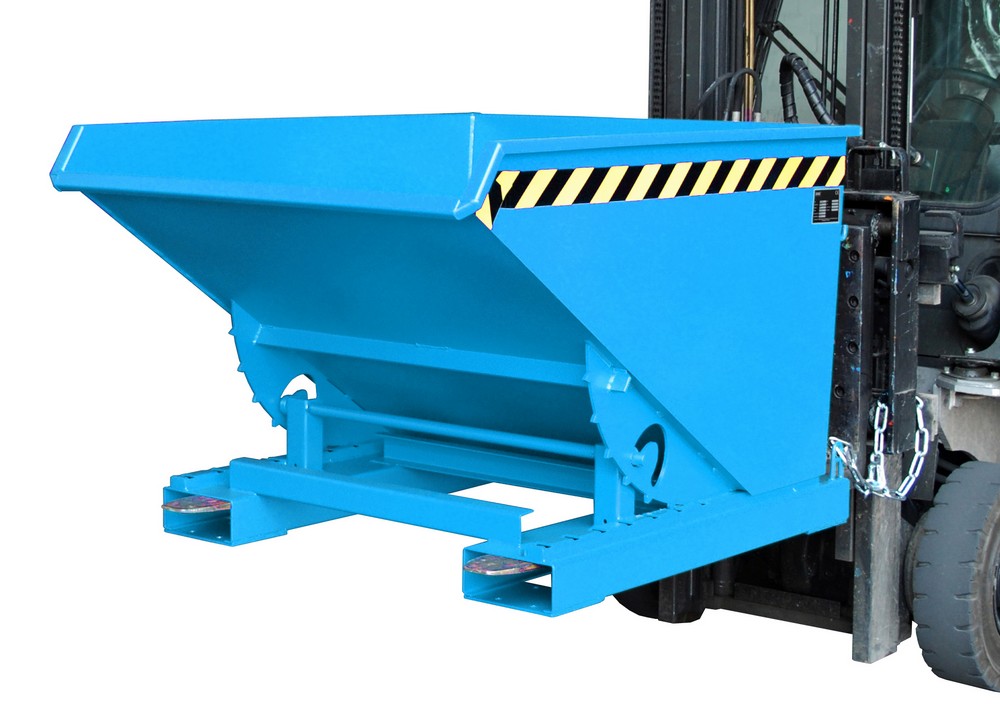

Kippbehälter

This compact EXPO tilting container with rolling mechanism is very suitable for moving bulk goods, industrial waste and mass products using the forklift truck.

Features:

• ideally situated loading centre of gravity

• can be emptied at any height by using a cable, operated from the driver's seat

• body wall with reinforced edging

• sturdy frame with fork sleeves

• secured to prevent slipping and unintentional emptying

• wheels can be fitted later


Technical specifications:

• capacity = 1000kg

• volume = approx. 0,60m³

• dimensions = 1260 x 1070 x 835mm

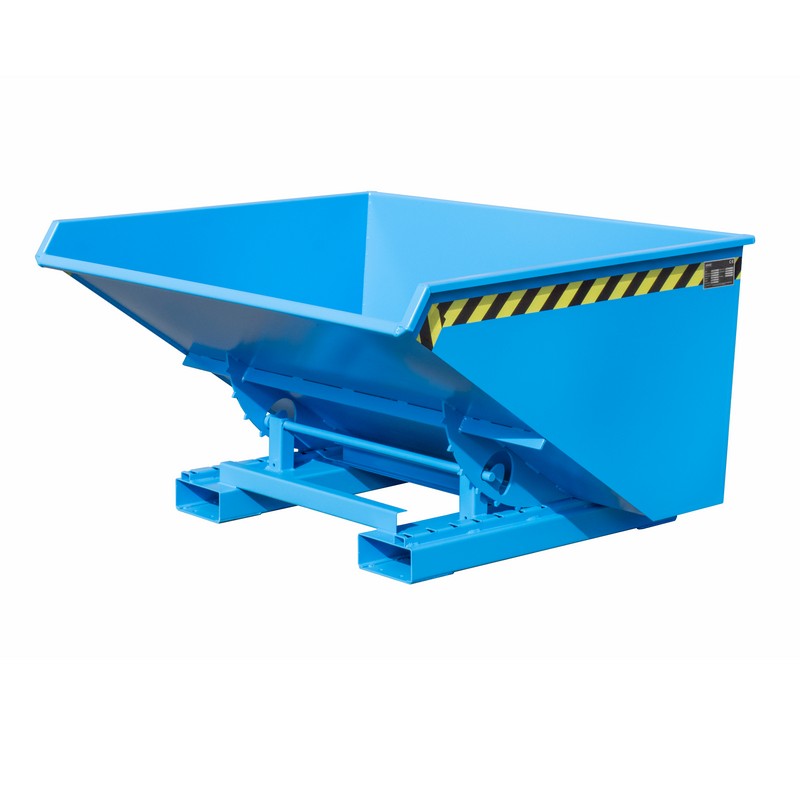

Kippbehälter

This compact EXPO tilting container with rolling mechanism is very suitable for moving bulk goods, industrial waste and mass products using the forklift truck.

Features:

• ideally situated loading centre of gravity

• can be emptied at any height by using a cable, operated from the driver's seat

• body wall with reinforced edging

• sturdy frame with fork sleeves

• secured to prevent slipping and unintentional emptying

• wheels can be fitted later


Technical specifications:

• capacity = 1000kg

• volume = approx. 0,90m³

• dimensions = 1260 x 1570 x 835mm

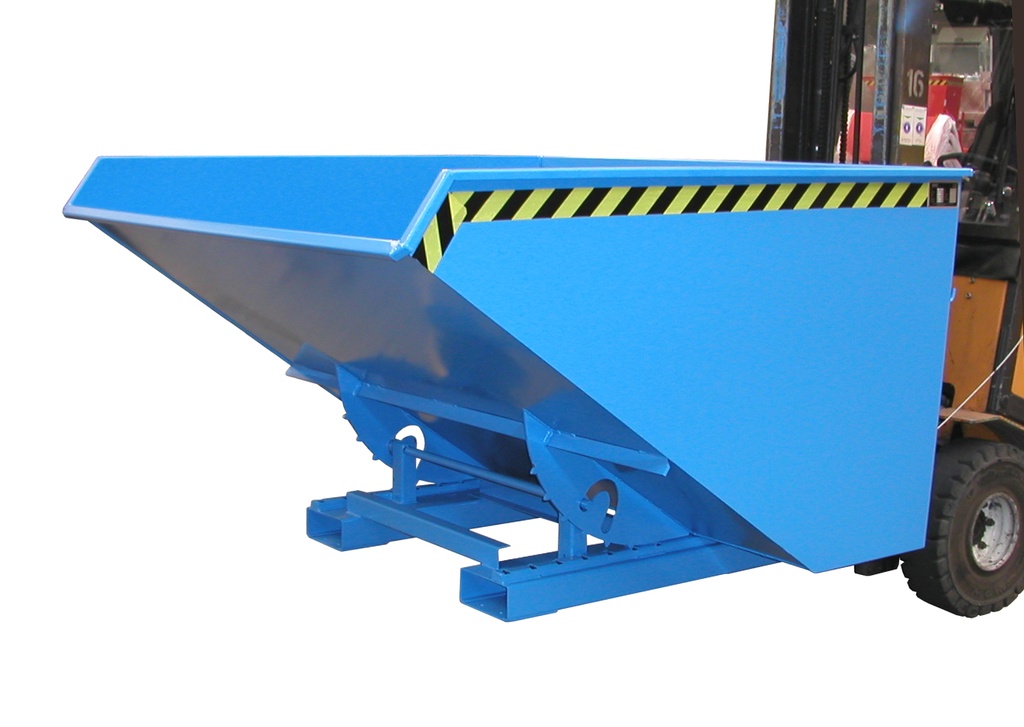

Tilting container / tipping container / tipper

This compact EXPO tilting container with rolling mechanism is very suitable for moving bulk goods, industrial waste and mass products using the forklift truck.

Features:

• ideally situated loading centre of gravity

• can be emptied at any height by using a cable, operated from the driver's seat

• body wall with reinforced edging

• sturdy frame with fork sleeves

• secured to prevent slipping and unintentional emptying

• wheels can be fitted later


Technical specifications:

• capacity = 1500kg

• volume = approx. 1,20m³

• dimensions = 1720 x 1070 x 1095mm

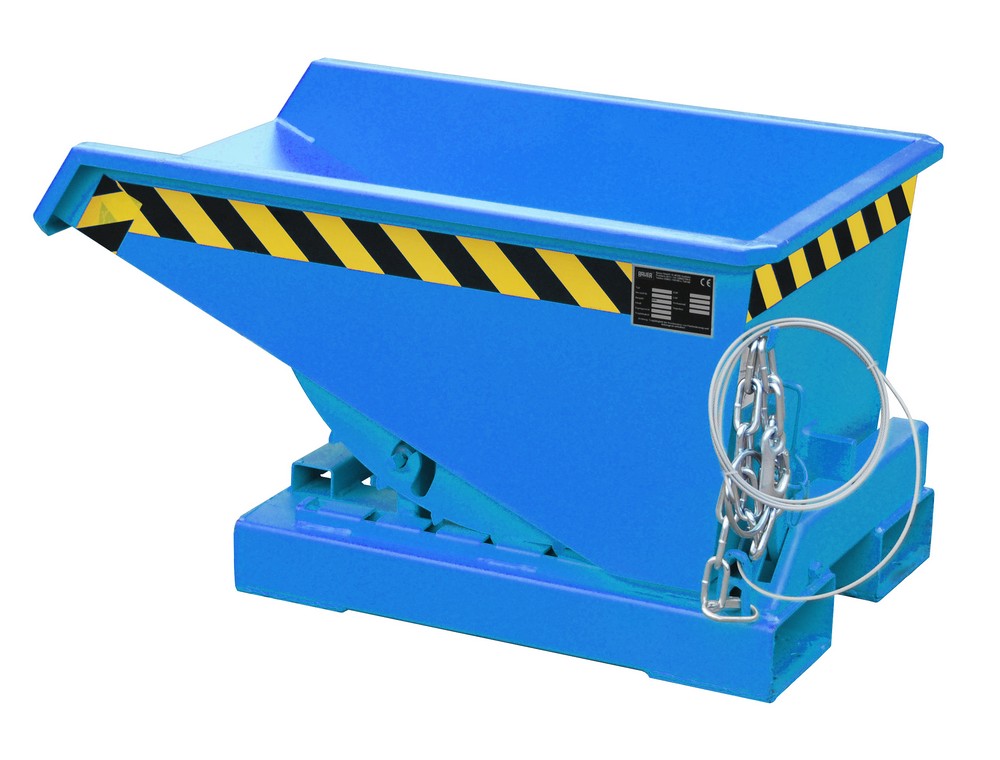

Kippbehälter

This compact EXPO tilting container with rolling mechanism is very suitable for moving bulk goods, industrial waste and mass products using the forklift truck.

Features:

• ideally situated loading centre of gravity

• can be emptied at any height by using a cable, operated from the driver's seat

• body wall with reinforced edging

• sturdy frame with fork sleeves

• secured to prevent slipping and unintentional emptying

• wheels can be fitted later


Technical specifications:

• capacity = 750kg

• volume = approx. 0,15m³

• dimensions = 960 x 640 x 540mm
