Beam clamp
This beam clamp is designed to make a safe connection from a beam to a for example chain hoist.
- capacity = 2 ton / 2000kg
- width = 75 - 220mm

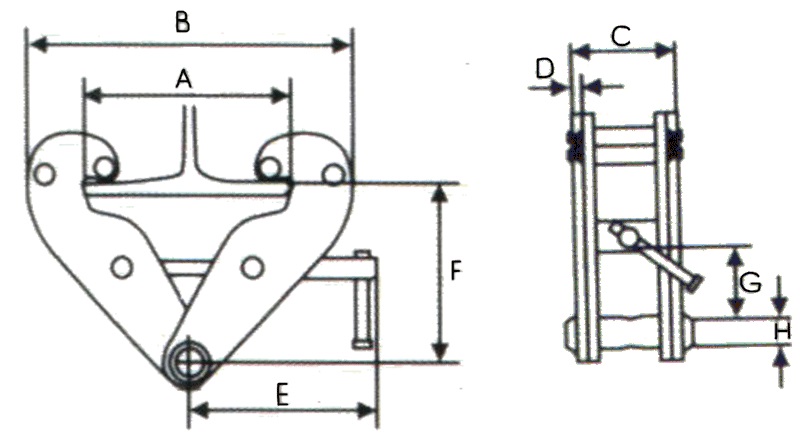

Dimensions corresponding to the image:
- max. A = 260mm
- min. / max. B = 180 / 360mm
- C = 74mm
- D = 6mm
- E = 215mm
- min. / max. F = 102 / 155mm
- G = 25mm
- H = 22mm
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 360 mm |
| Largeur du produit | 74 mm |
| Hauteur du produit | 250 mm |
| Poids du produit | 4,8 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 430 mm |
| Largeur du paquet | 175 mm |
| Hauteur du paquet | 95 mm |
| Poids du Colis | 5,00 Kg |
