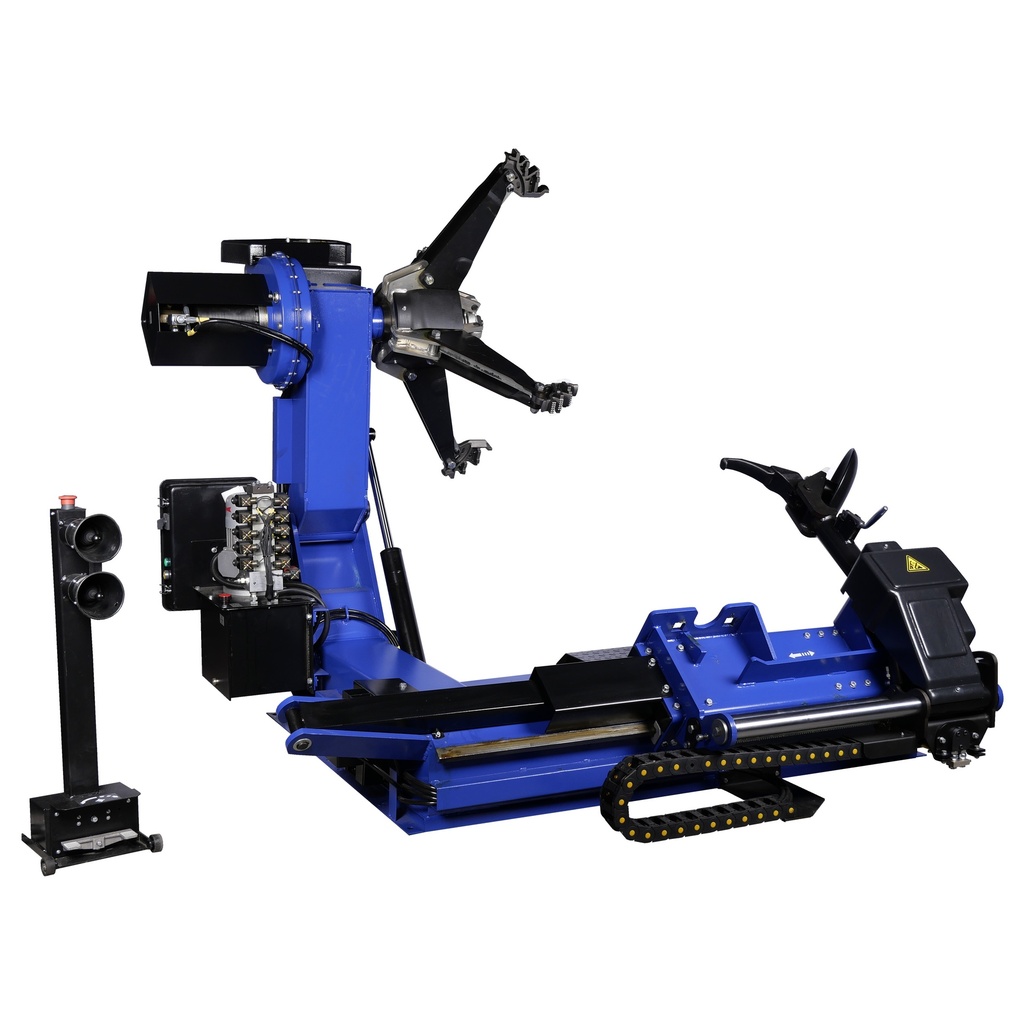

truck tire dismantling machine / truck dismantling device professional
Universal truck tire from Fabbri dismantling device for heavy wheels from 14'' - 56''. Equipped with double speed, movable control system and automatic space-saving arm.
Heavy duty tyre changer suggested for professional truck tyre service and high volume shops, bus and agriculture tyres. Suitable for both tube and tubeless tyres.
Technical specifications:
- Clamping capacity = 14" - 56''
- Maximum tire weight = 1500kg
- Max. tire diameter = 2300m (90.5'')
- Max. tire width = 1100mm (42'')
- Hydraulic unit = 1.1kw / 400V
- Hydraulic power unit motor = 1.3 / 1.8kw 400V - 3 phase
- Max. operation pressure = 130bar
- Bead breaking force = 2690kg
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 2 020 mm |
| Largeur du produit | 1 800 mm |
| Hauteur du produit | 950 mm |
| Poids du produit | 854,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 2 140 mm |
| Largeur du paquet | 1 870 mm |
| Hauteur du paquet | 1 080 mm |
| Poids du Colis | 1 205,00 Kg |
