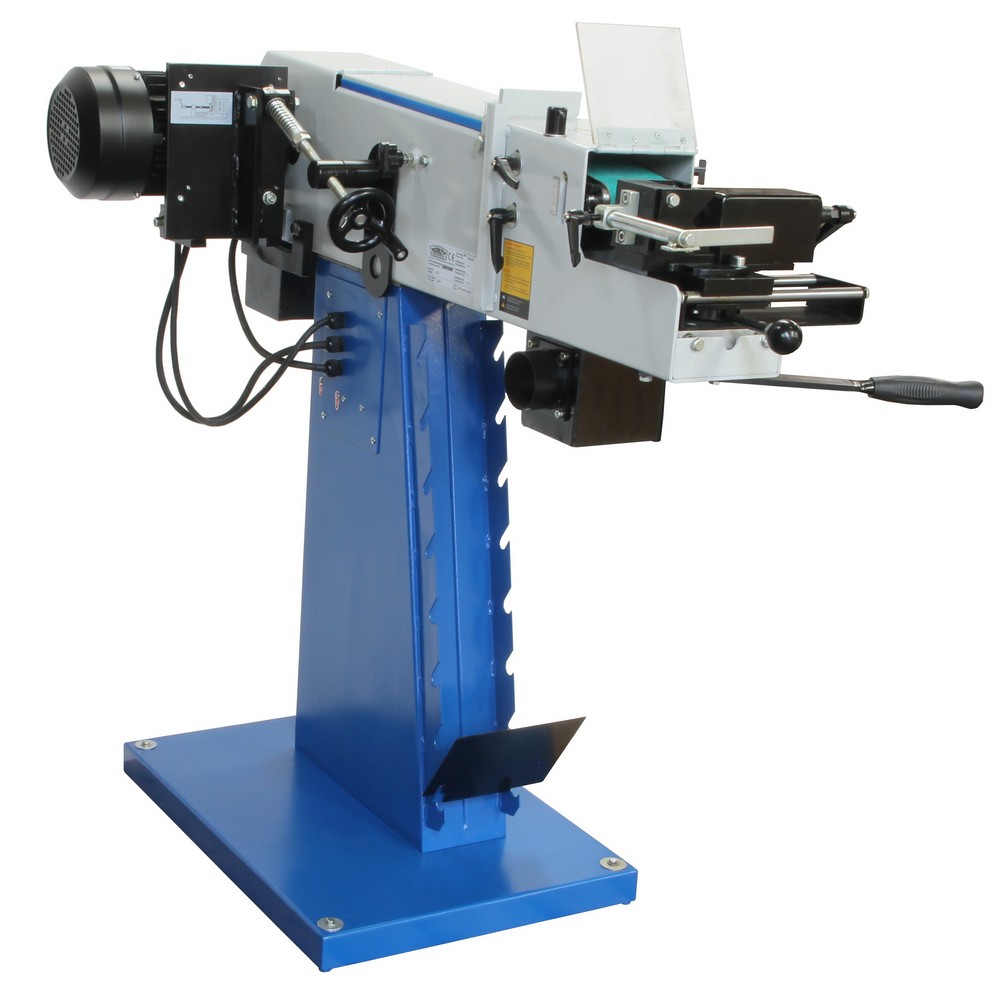

[BSM100MF] Combi grinding machine 3 in 1

Profile and pipe notcher / belt grinder
This Cowley combi machine is a mulitfunctional grinding machine which is suitable for the grinding of front ends of tubes and profiles, face and round grinding. The pipe notching is done at the front of the machine, face grinding on top and round grinding at the back.

The combi machine comes standard with the following grinding rollers: 20mm, 25mm, 32mm, 40mm, 50mm, 65mm, 76mm.
Features:

• angle adjustment of 30 to 90°

• seperate emergency stop and separate start/stop button

• 2 speeds

• can be connected to a dust extraction

• belts and grinding rollers are easy to replace

Technical specifications:

• voltage = 400V / 50Hz

• motor power = 2,5 / 3,3kW

• motor speed = 1400 / 2800rpm

• belt speed = 23,5 / 47m/s

• grinding diameter = 20 - 76mm

• adjustable angle = 30 - 90°

• measurements belt = 100 x 2000mm
