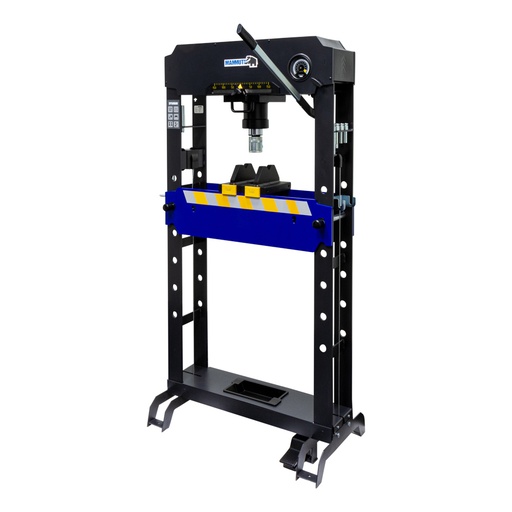

Shop press air hydraulic with foot pedal 50 ton [SP50HAM] Shop press air hydraulic with foot pedal 50 ton
mm mm mm Kg

Press / garage press / bearing press

This Mammuth workshop press is of high quality and very stable thanks to the fully welded heavy frame. The working bed is easily manually in height adjustable using the hand winch. The press can be operated with the handle and pump (has two speeds) and with a foot pedal on compressed air. The hydraulic cylinder is movable in width (bearing) and is  equipped with a height adjustable, 7,5cm long spindle. The pressure is read via the integrated pressure gauge.

Comes with 2 heavy press blocks, 8 press pins and a parts tray.

Specifications:

  • capacity = 50 ton

  • cylinder stroke = 220mm

  • diameter cylinder = 66mm

  • bed width = 750mm

  • bed depth = 249mm

  • working range = 780mm

  • screw thread length = 75mm

  • operating pressure = 8 - 12 bar

  • air connection = 1/4" NPT external thread

Équipement d'atelier / Presses hydrauliques / Presse d'atelier à pédale Mammuth SP50HAM 8720028090983
€ 1 996,50 TVA incluse https://schema.org/InStock
€ 1 996,50 1996.5 EUR

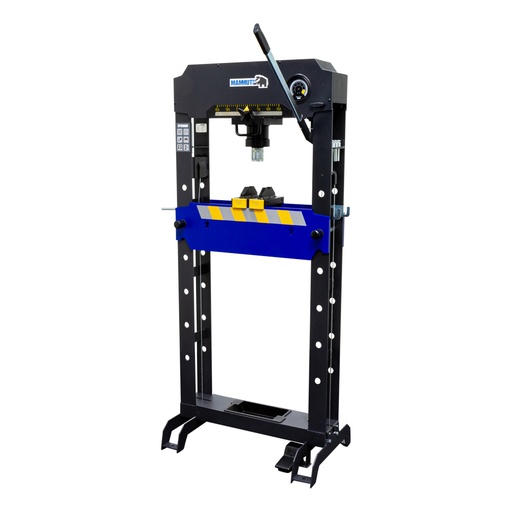

Shop press air hydraulic with foot pedal 30 ton [SP30HAM] Shop press air hydraulic with foot pedal 30 ton
mm mm mm Kg

Press / garage press / bearing press

This Mammuth workshop press is of high quality and very stable thanks to the fully welded heavy frame. The working bed is easily manually in height adjustable using the hand winch. The press can be operated with the handle and pump (has two speeds) and with a foot pedal on compressed air. The hydraulic cylinder is movable in width (bearing) and is  equipped with a height adjustable, 7,5cm long spindle. The pressure is read via the integrated pressure gauge.

Comes with 2 heavy press blocks, 8 press pins and a parts tray.

Specifications:

  • capacity = 30 ton

  • cylinder stroke = 220mm

  • bed width = 600mm

  • bed depth = 187mm

  • working range = 850mm

  • screw thread length = 75mm

  • operating pressure = 8 - 12 bar

  • air connection = 1/4" NPT external thread

Équipement d'atelier / Presses hydrauliques / Presse d'atelier à pédale Mammuth SP30HAM 8720028090976
€ 1 270,50 TVA incluse https://schema.org/InStock
€ 1 270,50 1270.5 EUR

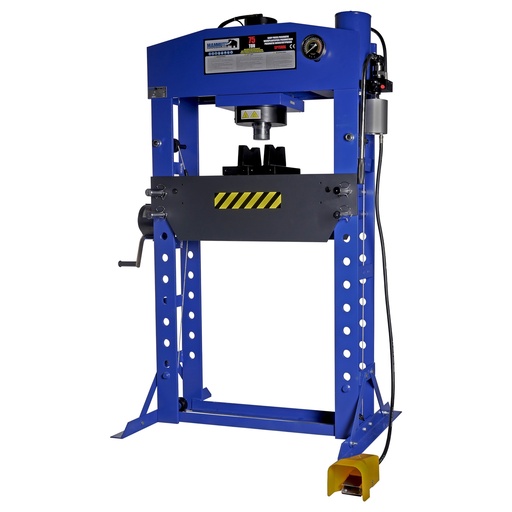

Shop press air hydraulic 75 ton [SP75HAL] Shop press air hydraulic 75 ton
mm mm mm Kg

Shop press pneumatic hydraulic

This high quality Mammuth shop press is very stable because of the heavy steel construction. The press is entirely welded.

The press bed is easily reaised and lowered in any position with the hand winch. The press includes a foot pump.
Includes two heavy duty press plates.

- capacity = 75 ton
- cylinder stroke = 250mm
- working range = 170 - 884mm
- air pressure = 7,5 - 8,5bar
- air inlet = 1/4''NPT
- bed width = 800mm

This shop press comes oil-filled.

Équipement d'atelier / Presses hydrauliques / Presse hydro-pneumatique Mammuth SP75HAL 8720028057887
€ 2 480,50 TVA incluse https://schema.org/InStock
€ 2 480,50 2480.5 EUR
Shop press air hydraulic 30 ton [SP30HAL] Shop press air hydraulic 30 ton
mm mm mm Kg

Pneumatik Presse

This high quality Mammuth shop press is very stable because of the heavy steel construction. The press is entirely welded.

Includes two heavy duty press plates. The hight is adjustable with two locking pins with safety clips.

- capacity = 30 ton
- cylinder stroke = 150mm
- working range = 151 - 1031mm
- air pressure = 7,5 - 8,5bar
- air inlet = 1/4''NPT
- bed width = 535mm

This shop press comes oil-filled.

Équipement d'atelier / Presses hydrauliques / Presse hydro-pneumatique Mammuth SP30HAL 8720028057955
€ 998,25 TVA incluse https://schema.org/InStock
€ 998,25 998.25 EUR
Shop press air hydraulic 20 ton [SP20HAL] Shop press air hydraulic 20 ton
mm mm mm Kg

Pneumatik Presse

This high quality Mammuth shop press is very stable because of the heavy steel construction. The press is entirely welded.

Includes two heavy duty press plates. The hight is adjustable with two locking pins with safety clips.

- capacity = 20 ton
- cylinder stroke = 185mm
- working range = 35 - 912mm
- air pressure = 7,5 - 8,5bar
- air inlet = 1/4''NPT
- bed width = 550mm

This shop press comes oil-filled.

Équipement d'atelier / Presses hydrauliques / Presse hydro-pneumatique Mammuth SP20HAL 8720028058365
€ 756,25 TVA incluse https://schema.org/SoldOut
€ 756,25 756.25 EUR
