Press / garage press / bearing press

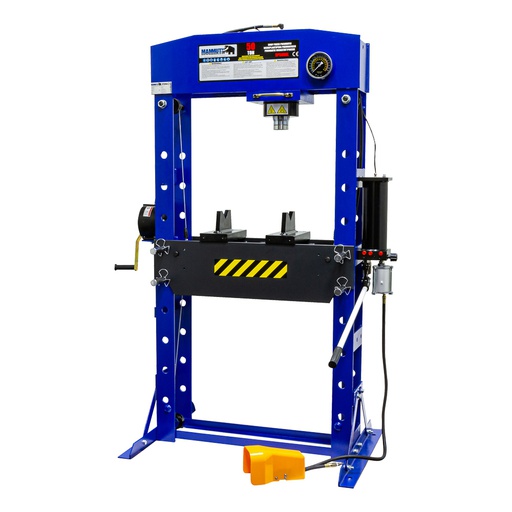

This Mammuth workshop press is of high quality and very stable thanks to the fully welded heavy frame. The working bed is easily manually in height adjustable using the hand winch. The press can be operated with the handle and pump (has two speeds) and with a foot pedal on compressed air. The hydraulic cylinder is movable in width (bearing) and is equipped with a height adjustable, 7,5cm long spindle. The pressure is read via the integrated pressure gauge.
Comes with 2 heavy press blocks, 8 press pins and a parts tray.
Specifications:
capacity = 50 ton
cylinder stroke = 220mm
diameter cylinder = 66mm
bed width = 750mm
bed depth = 249mm
working range = 780mm
screw thread length = 75mm
operating pressure = 8 - 12 bar
air connection = 1/4" NPT external thread
Presse / Garagenpresse / Lagerpresse

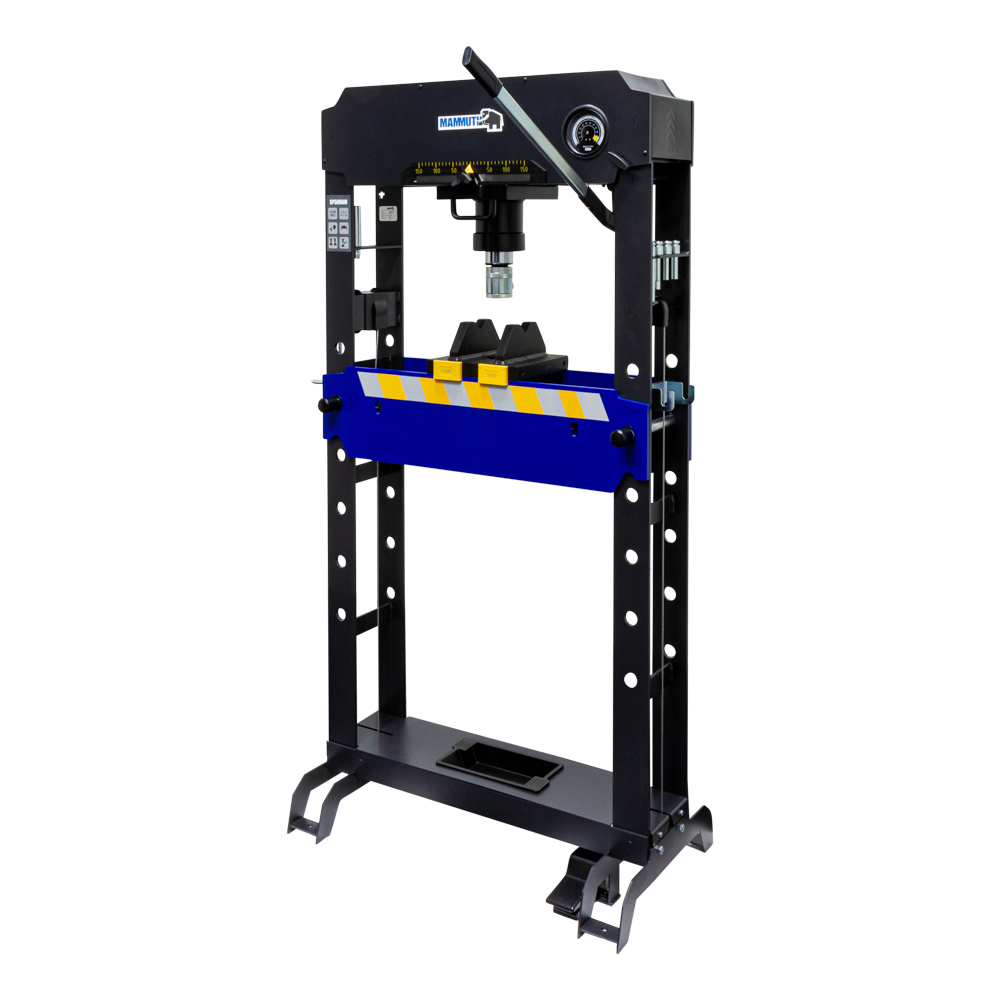

capacity = 30 ton
bed width = 600mm
bed depth = 187mm
working range = 850mm

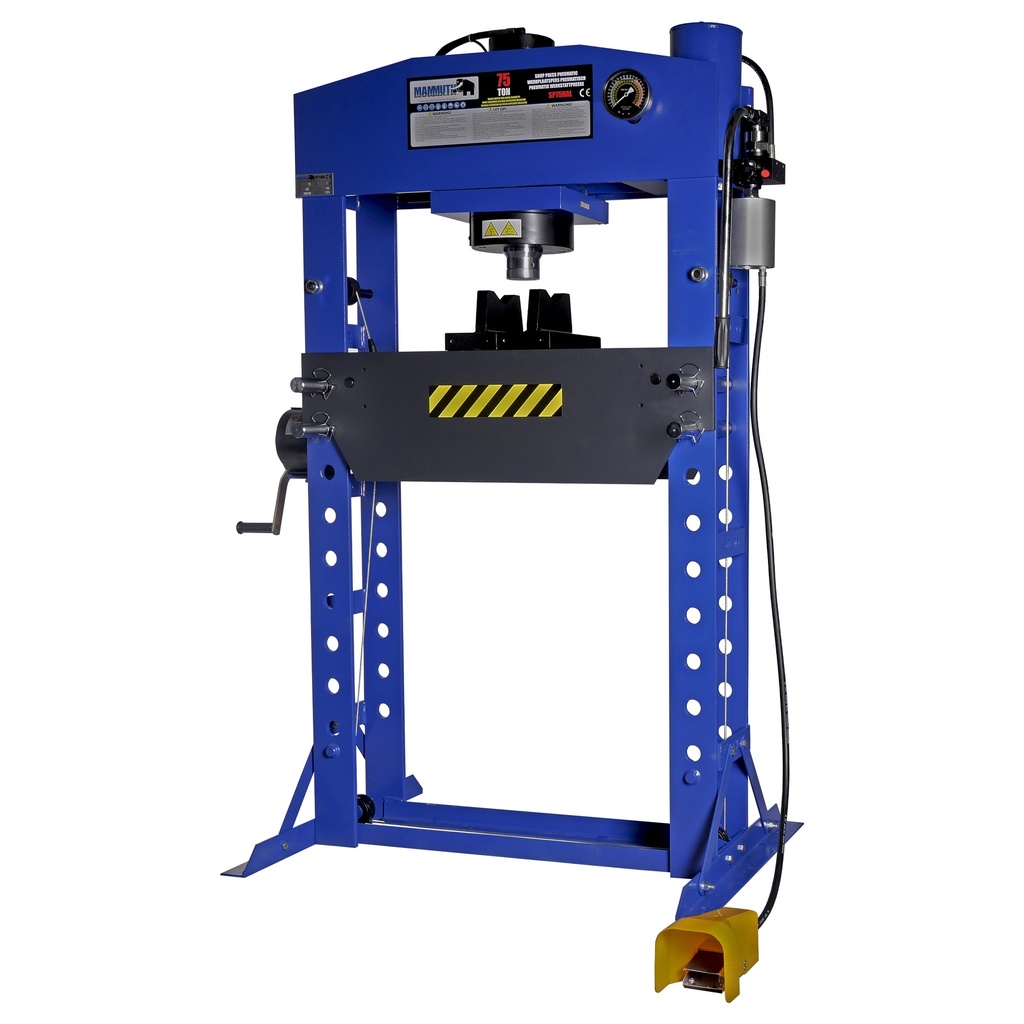

Pneumatik Presse This high quality Mammuth shop press is very stable because of the heavy steel construction. The press is entirely welded. The press bed is easily reaised and lowered in any position with the hand winch. The press includes a foot pump. Includes two heavy duty press plates. - capacity = 75 ton - cylinder stroke = 250mm - working range = 170 - 884mm - air pressure = 7,5 - 8,5bar - air inlet = 1/4''NPT - bed width = 800mm This shop press comes oil-filled.

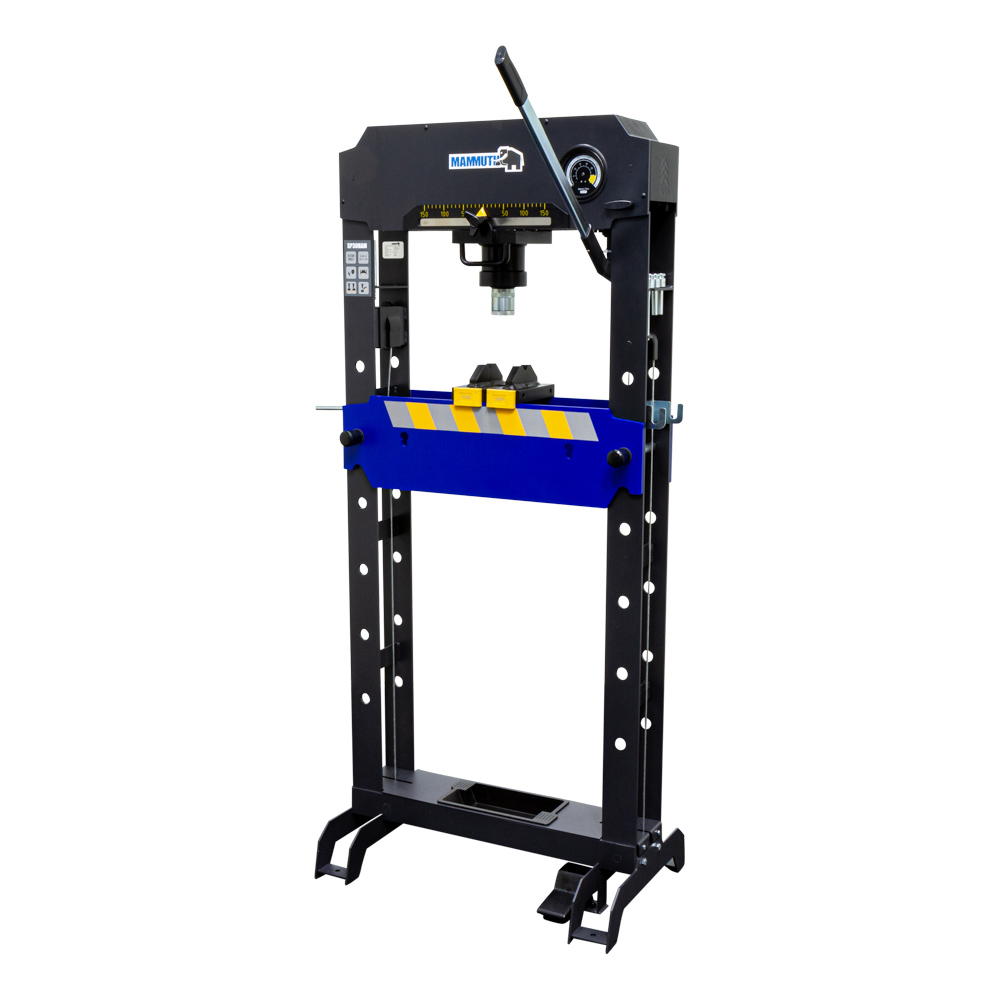

Pneumatik Presse This high quality Mammuth shop press is very stable because of the heavy steel construction. The press is entirely welded. Includes two heavy duty press plates. The hight is adjustable with two locking pins with safety clips. - capacity = 30 ton - cylinder stroke = 150mm - working range = 151 - 1031mm - air pressure = 7,5 - 8,5bar - air inlet = 1/4''NPT - bed width = 535mm This shop press comes oil-filled.
Pneumatik Presse This high quality Mammuth shop press is very stable because of the heavy steel construction. The press is entirely welded. Includes two heavy duty press plates. The hight is adjustable with two locking pins with safety clips. - capacity = 20 ton - cylinder stroke = 185mm - working range = 35 - 912mm - air pressure = 7,5 - 8,5bar - air inlet = 1/4''NPT - bed width = 550mm This shop press comes oil-filled.
